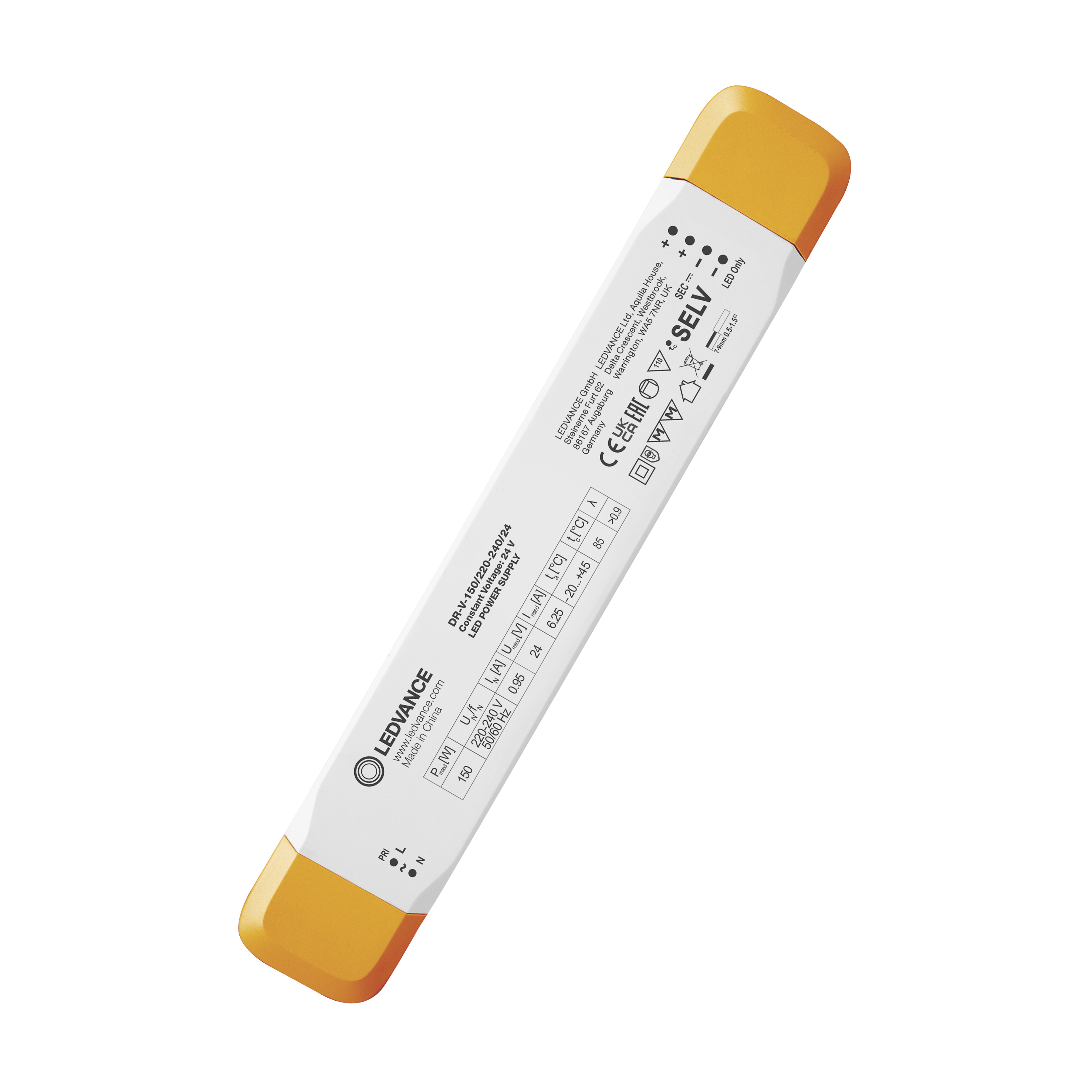

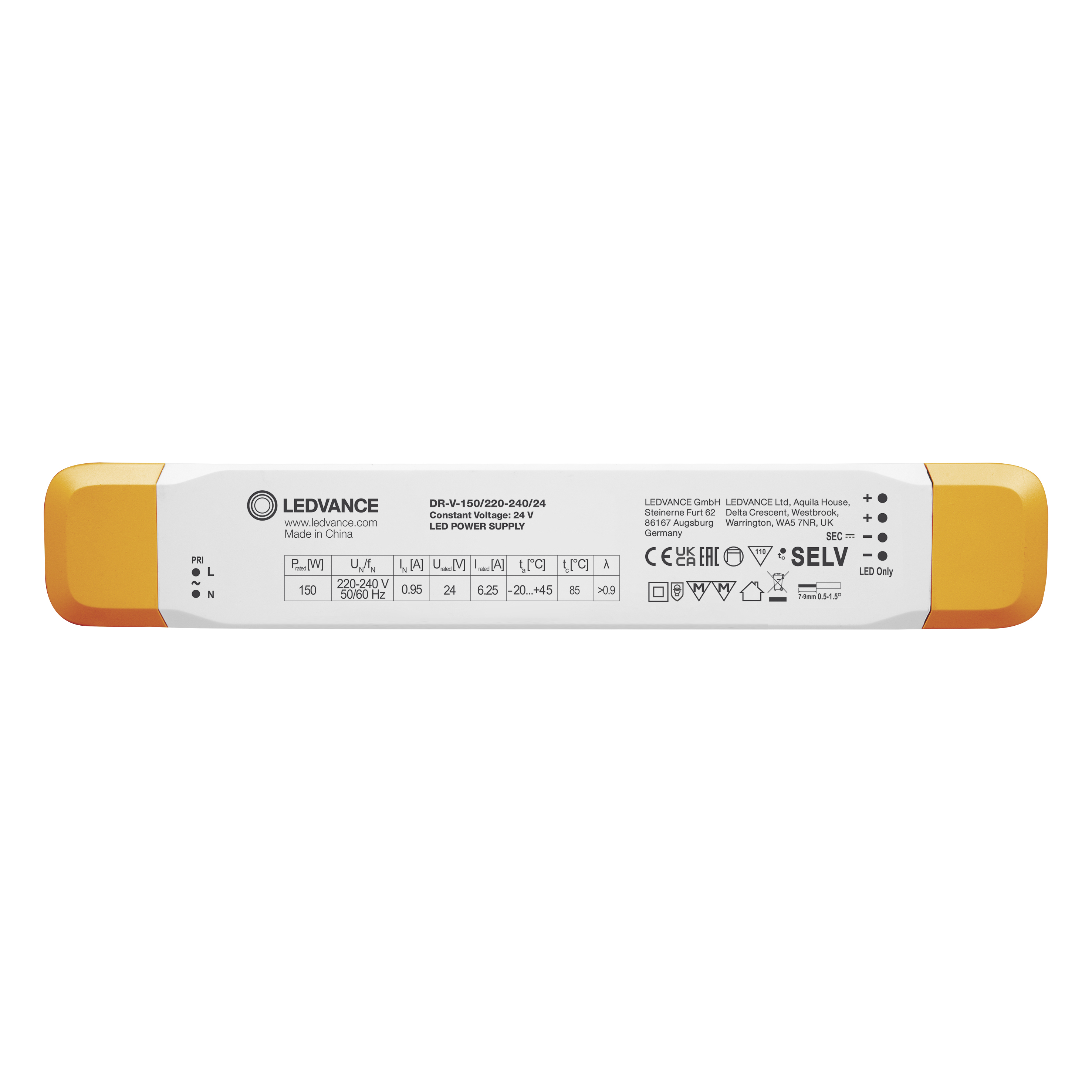

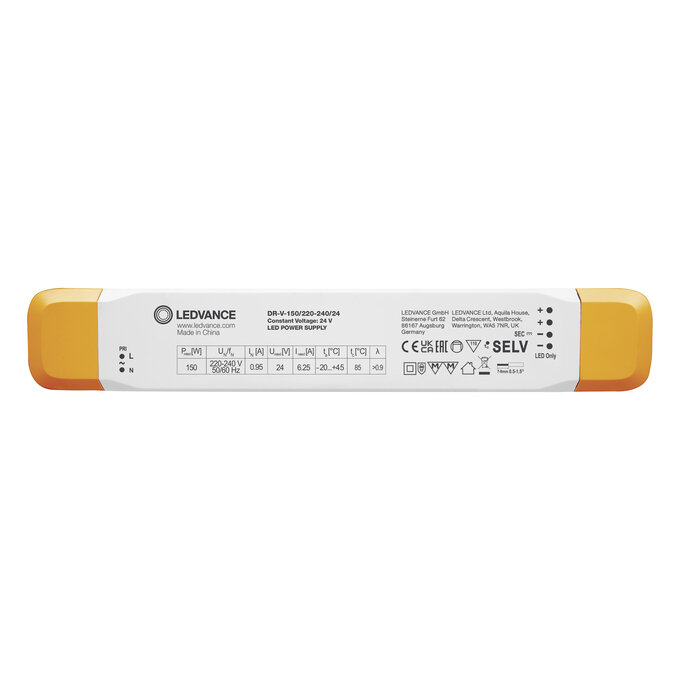

DR-V -150/220-240/24

Phase out

LED DRIVER VALUE

GTIN: 4058075755000 Folding box / 1 Show all packages

Download data sheet

Contact sales

Our warranty conditions

PRODUCT DETAILS

Product benefits

Perfectly matched to 24 V LED flexible strips
Excellent price/performance ratio
3 years guarantee
Quick and simple installation
Good efficiency and reliability

Areas of application

Cove lighting, even in tight spaces
Wallwasher effect lighting in living rooms, dining rooms, bedrooms, entrances
For indoor SELV installations
Offices, shopping centers, hospitals, restaurants, hotels

Product features

Available in 30 W, 60 W, 120 W and 150 W
Integrated cable clamp for independent installation
Lifetime: up to 35,000 h (at max. tc temperature)
Type of protection: IP20
Supply voltage: 220…240 V
Operating frequency: 50/60 Hz
Operated with less than 60 V: Safety extra-low voltage (SELV)
Reversible overtemperature, overload, short-circuit and open-circuit protection

References / Links

For Guarantee see www.ledvance.com/guarantee

Electrical data

Nominal wattage	150.00 W
Nominal output power	150 W ¹⁾
Nominal voltage	220…240 V
Nominal output voltage	24 V ²⁾
Input voltage range	220…240 V
Input voltage AC	198…264 V ³⁾
U-OUT (working voltage)	24 V
Type of current	DC
Nominal current	950 mA
Nominal output current	6250 mA ⁴⁾
Inrush current	55 A
Output ripple current (100 Hz)	< 5 %
Mains frequency	50…60 Hz
Total harmonic distortion	< 10 % ⁵⁾
Power factor λ	> 0.90 ⁶⁾
ECG efficiency	87 % ⁷⁾
Device power loss	14.8 W ⁸⁾
Max. ECG no. on circuit breaker 10 A (B)	3
Max. ECG no. on circuit breaker 16 A (B)	5
Max. ECG no. on circuit breaker 25 A (B)	6
Surge capability (L-N)	1 kV
Galvanic isolation	SELV

¹⁾ From 0 to 150 W
²⁾ Maximum 24 V
³⁾ Permitted voltage range
⁴⁾ ±10%
⁵⁾ At full load, 220…240 V, 50 Hz
⁶⁾ Full load at 230 V
⁷⁾ At full load and 230 V
⁸⁾ At maximum LED load of 150 W

Dimensions & Weight

Length	268.00 mm
Mounting hole spacing, length	251.00 mm
Width	45.00 mm
Height	30.50 mm
Cable cross-section, input side	0.75…1.5 mm²
Cable cross-section, output side	0.5…1.5 mm²
Prewired	No
Wire preparation length, input side	7…9 mm
Wire preparation length, output side	7…9 mm
Product weight	408.00 g

Colors & materials

Product color	White
Casing material	Plastic
Body material	Plastic

Temperatures & operating conditions

Ambient temperature range	-20…45 °C
Maximum temperature at tc test point	85 °C
Max.housing temperature in case of fault	110 °C
Temperature range in operation	-20…+45 °C
Permitted rel. humidity during operation	20…90 % ¹⁾

¹⁾ Maximum 56 days/year at 90%

Lifespan

ECG lifetime

35000 h ¹⁾

¹⁾ At maximum T_c = 90°C / 12% failure rate

Capabilities

Dimmable	No
Dimming interface	Not dimmable
Overheating protection	Yes
Overload protection	Yes
Short-circuit protection	Yes
Suitable for fixtures with prot. class	I,II
Suitable for emergency lighting	No
Type of connection, output side	Screw terminal

Certificates & Standards

Approval marks – approval	CE
Standards	Acc. to EN 61347-1, Acc. to EN 61347-2-13, Acc. to EN 55015, Acc. to EN 61547, Acc. to EN 61000-3-2, Acc. to EN 62384
Protection class	II
Type of protection	IP20

LOGISTICAL DATA

Temperature range at storage

-25…+80 °C

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals	0 mg
Quantity of rare earths	0 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Lead (7439-92-1)
