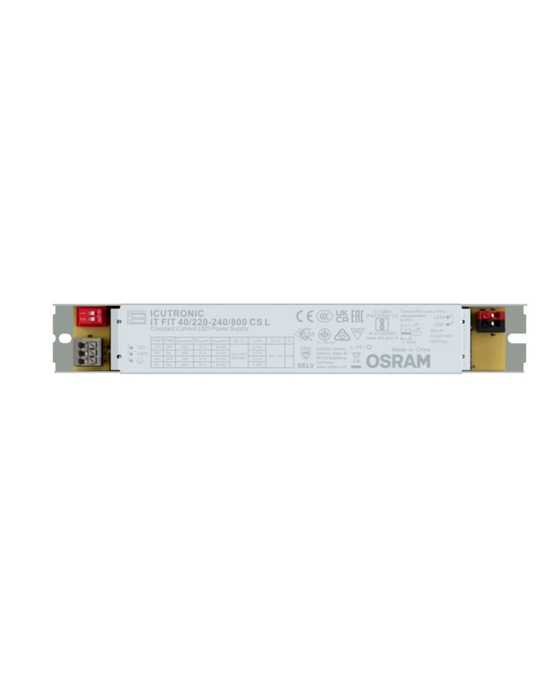

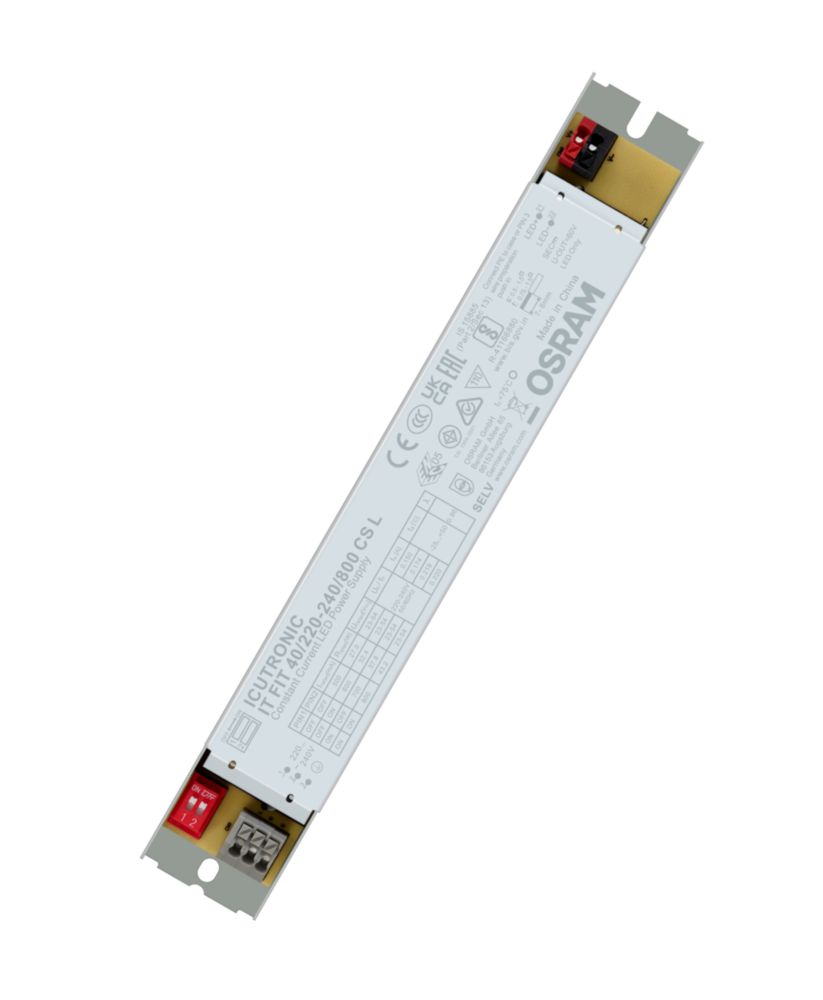

IT FIT 40/220-240/800 CS L

NEW

GTIN: 4062172212700 Unpacked / 1 Show all packages

Contact sales

Nominal wattage	40.00 W
Nominal output power	11.5…43.2 W
Nominal voltage	220…240 V
Nominal output voltage	23…54 V
Input voltage AC	198…264 V
U-OUT (working voltage)	< 60 V
Nominal current	0.8 A ¹⁾
Nominal output current	500…800 mA ²⁾
Inrush current	13.6 A ³⁾
Output current tolerance	±5 %
Output ripple current (100 Hz)	< 5 %
Mains frequency	50…60 Hz
Total harmonic distortion	< 15 %
Power factor λ	0.98
ECG efficiency	86 % ⁴⁾
Device power loss	6.17 W
Max. ECG no. on circuit breaker 10 A (B)	20
Max. ECG no. on circuit breaker 16 A (B)	33
Max. ECG no. on circuit breaker 25 A (B)	-
Surge capability (L/N-Ground)	2 kV
Surge capability (L-N)	1 kV
Galvanic isolation	SELV
Operating frequency	50/60 Hz
Flickering metric (Pst LM)	≤1

¹⁾ ± 5 %
²⁾ ±5%
³⁾ twidth = 220 μs typical (measured at 50 % Ipeak)
⁴⁾ at 230 V, 50 Hz

Flickering metric (Pst LM)	≤1
Stroboscope effect metric (SVM)	≤0.4

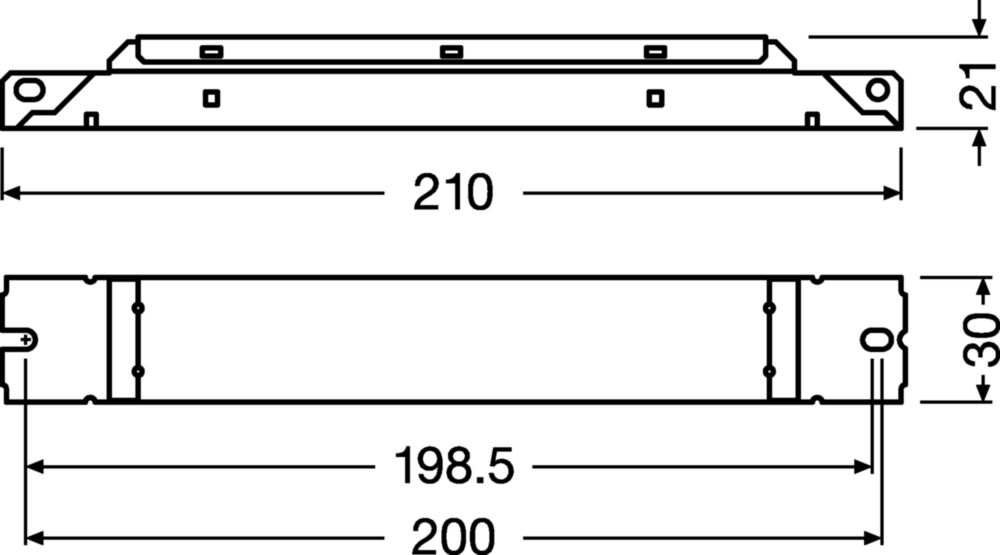

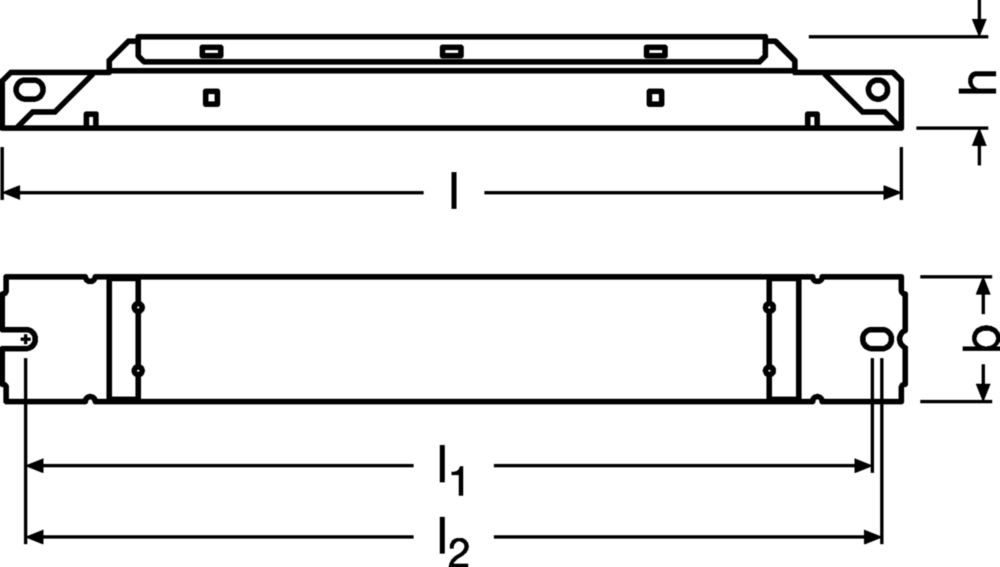

Length	210.00 mm
Mounting hole spacing, length	200,0 mm
Width	30.00 mm
Height	21.00 mm
Cable cross-section, input side	0.5…1.5 mm², 0.75…1.5 mm² ¹⁾
Cable cross-section, output side	0.5…1.5 mm², 0.75…1.5 mm² ¹⁾
Wire preparation length, input side	7.0...8.0 mm
Wire preparation length, output side	7.0...8.0 mm
Product weight	122.5 g

¹⁾ Solid/ Flexible Leads

Ambient temperature range	-20…+50 °C
Maximum temperature at tc test point	75 °C
Max.housing temperature in case of fault	110 °C
Permitted rel. humidity during operation	5…85 %

ECG lifetime

50000 h, 100000 h ¹⁾

¹⁾ At Tc = 75°C / 10% failure rate / At Tc = 65°C / 10% failure rate

Encapsulated

Dimmable	No
Overheating protection	Automatic reversible
Overload protection	Automatic reversible
Short-circuit protection	Automatic reversible
No-load proof	Yes
Max. cable length to lamp/LED module	2,0 m
Suitable for fixtures with prot. class	I, II
Suitable for emergency lighting	No
Type of connection, output side	Push terminal

Approval marks – approval	CE, ENEC, CCC, RCM, BIS, TISI, EAC
Standards	Acc. to EN 61347-1, Acc. to EN 61347-2-13, Acc. to EN 62384, Acc. to EC 61000-3-2, Acc. to IEC 61547, Acc. to IEC 6100-4-5
Protection class	II
Type of protection	IP20

Temperature range at storage

-25…+80 °C

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No
