NEW
LED DRIVER DALI PERFORMANCE GEN 3

DR DALI-P -30/220-240/700 OEM

GTIN: 4058075845404 Unpacked / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Flexible dip switch current settings on device in 50mA steps
  • DALI-2 certified incl. Parts 251, 252, 253
  • Push DIM application for easy control
  • Low flickering enables high light quality as well as good visual comfort
  • High-quality dimming of 1…100 %
  • Toolless installation
Areas of application
  • Luminaires of protection class I and II
  • Indoor SELV installations
  • Suitable for LED T5 FC EXTERNAL P
  • Emergency lighting systems (DC capable)
  • Cove lighting
  • Offices
  • Education
  • Storage areas
Product features
  • 1 channel DALI-2 certified LED driver
  • Available with output current range: from 150...1,050 mA
  • Type of installation: independent and built-in
  • Suitable for emergency lighting fixtures acc.to EN 60598-2-2 with emergency output factor EOFI=15%
  • Quick and easy current setting via Dip-Switch
  • Very long lifetime: up to 100,000 h
  • Supply voltage: 220…240 V
  • Operated with Safety extra-low voltage (SELV): < 60 V
Equipment / Accessories
  • Cable clamps for independent operation
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Disconnect mains before installation.
  • Do not open enclosure-housing.
References / Links
Electrical data
Nominal wattage 30.00 W
Nominal output power 30 W
Nominal voltage 220…240 V
Nominal output voltage 2.5…49 V
Input voltage AC 198…264 V 1)
Input voltage DC 198…264 V
U-OUT (working voltage) 60 V
Type of current DC
Nominal current 200 mA
Nominal output current 150 mA, 200 mA, 250 mA, 300 mA, 350 mA, 400 mA, 450 mA, 500 mA, 550 mA, 600 mA, 650 mA, 700 mA 2)
Inrush current 5.13 A
Output current tolerance +/- 5 %
Output ripple current (120 Hz) +/- 3.0 %
Mains frequency 0/50/60 Hz
Total harmonic distortion 5 % 3)
Power factor λ > 0.95 3)
ECG efficiency 89 %
Device power loss 3.7 W
Max. ECG no. on circuit breaker 10 A (B) 40
Max. ECG no. on circuit breaker 16 A (B) 64
Max. ECG no. on circuit breaker 25 A (B) 100
Max. ECG no. on circuit breaker 32 A (B) 128
Max. ECG no. on circuit breaker 10 A (C) 40
Max. ECG no. on circuit breaker 16 A (C) 64
Max. ECG no. on circuit breaker 25 A (C) 100
Max. ECG no. on circuit breaker 32 A (C) 128
Surge capability (L/N-Ground) 2 kV
Surge capability (L-N) 1 kV
Galvanic isolation SELV
Operating frequency 0/50/60 Hz
Power loss in stand-by mode ≤0.3 W
1) Permitted voltage range
2) +/- 5 %
3) Full load at 230 V/50 Hz
Dimensions & Weight
Length 105.00 mm
Mounting hole spacing, length 97,0 mm
Width 45.00 mm
Height 25.00 mm
Cable cross-section, input side 0.5…1.5 mm²
Cable cross-section, output side 0.5…1.5 mm²
Prewired No
Wire preparation length, input side 7…9 mm
Wire preparation length, output side 7…9 mm
Product weight 98.00 g
Colors & materials
Product color White
Casing material Plastic
Body material Plastic
Temperatures & operating conditions
Ambient temperature range -20…+45 °C
Maximum temperature at tc test point 85 °C
Max.housing temperature in case of fault <110 °C
Temperature range in operation -20…+45 °C
Permitted rel. humidity during operation 20…90 %
Lifespan
ECG lifetime 100000 h 1)
Number of switching cycles 60000
1) At Tc max. - 10°C
Additional product data
Encapsulated Yes
Product remark Available from March 2025
Capabilities
Dimmable Yes
Dimming interface DALI-2
Dimming range 1…100 %
Overheating protection Yes
Overload protection Yes
Short-circuit protection Yes
No-load proof Yes
Max. cable length to lamp/LED module 0,8 m
Suitable for fixtures with prot. class I, II
Suitable for emergency lighting Yes
Type of connection, output side Push terminal
Certificates & Standards
Approval marks – approval CE, UKCA, EAC, Nemco, ENEC, EL
Standards Acc. to EN 61347-1, Acc. to EN 61347-2-13, Acc. to EN 55015, Acc. to EN 61547, Acc. to EN 61000-3-2, Acc. to EN 62384
Protection class II
Type of protection IP20
LOGISTICAL DATA
Temperature range at storage -20…+80 °C
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075845404 Unpacked
1		 105 mm x 45 mm x 25 mm 98.00 g 0.12 dm³
4058075845411 Shipping box
20		 277 mm x 255 mm x 105 mm 2210.00 g 7.42 dm³
Product image Product name EAN
DR AY DALI-P CLAMP DUO 4099854400605
User instruction / safety instructions
DR DALI P
PDF (3.42 MB)
Legal information
Informationstext 18 Abs 4 ElektroG
PDF (435.15 KB)
Legal information
Safety Insert G11205865
PDF (161.05 KB)
Declarations of conformity
DR_AY DALI-P_CLAMP DUO
PDF (260.6 KB)

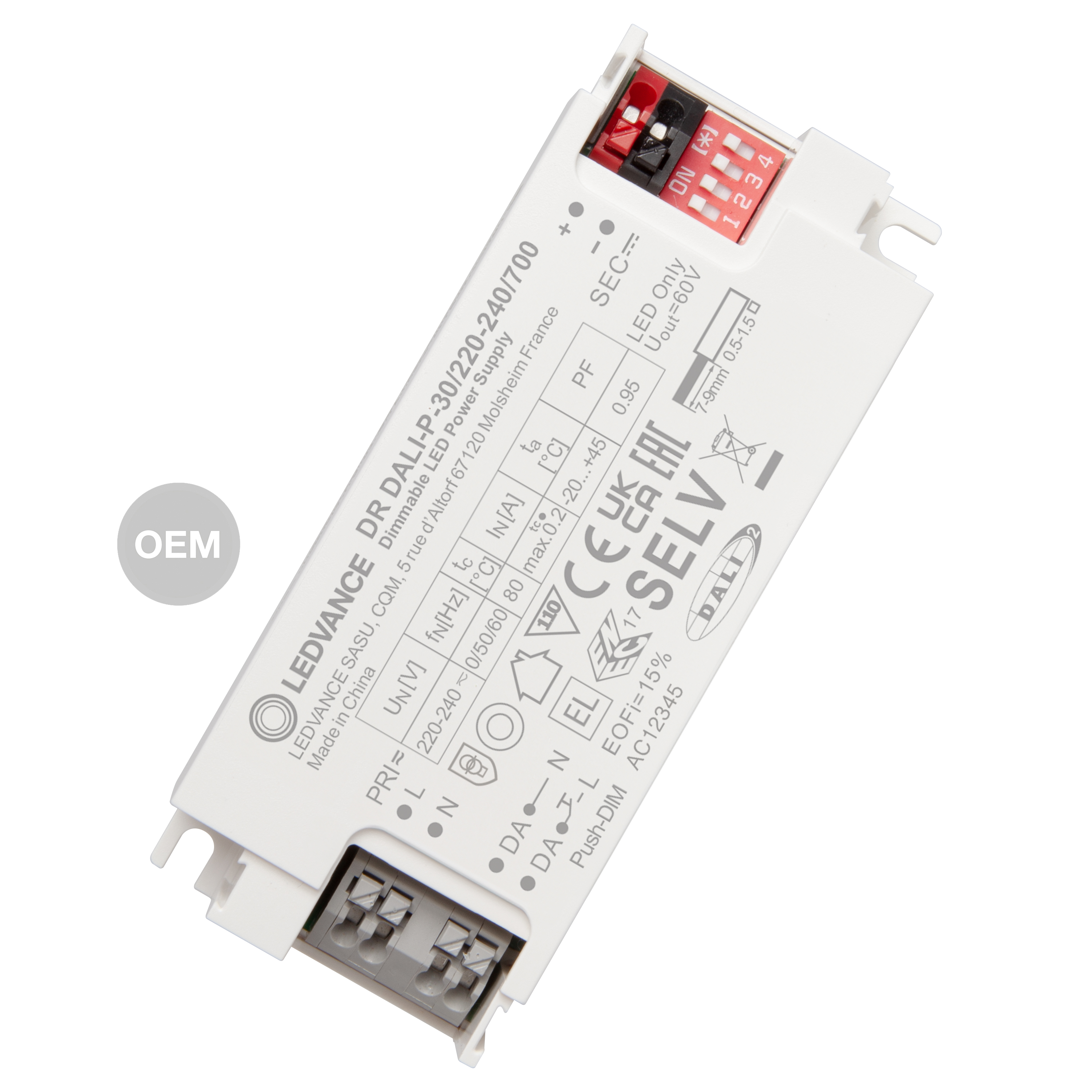

Product image: white background, diagonal
DR DALI-P-30/220-240/700
JPG (1.61 MB)

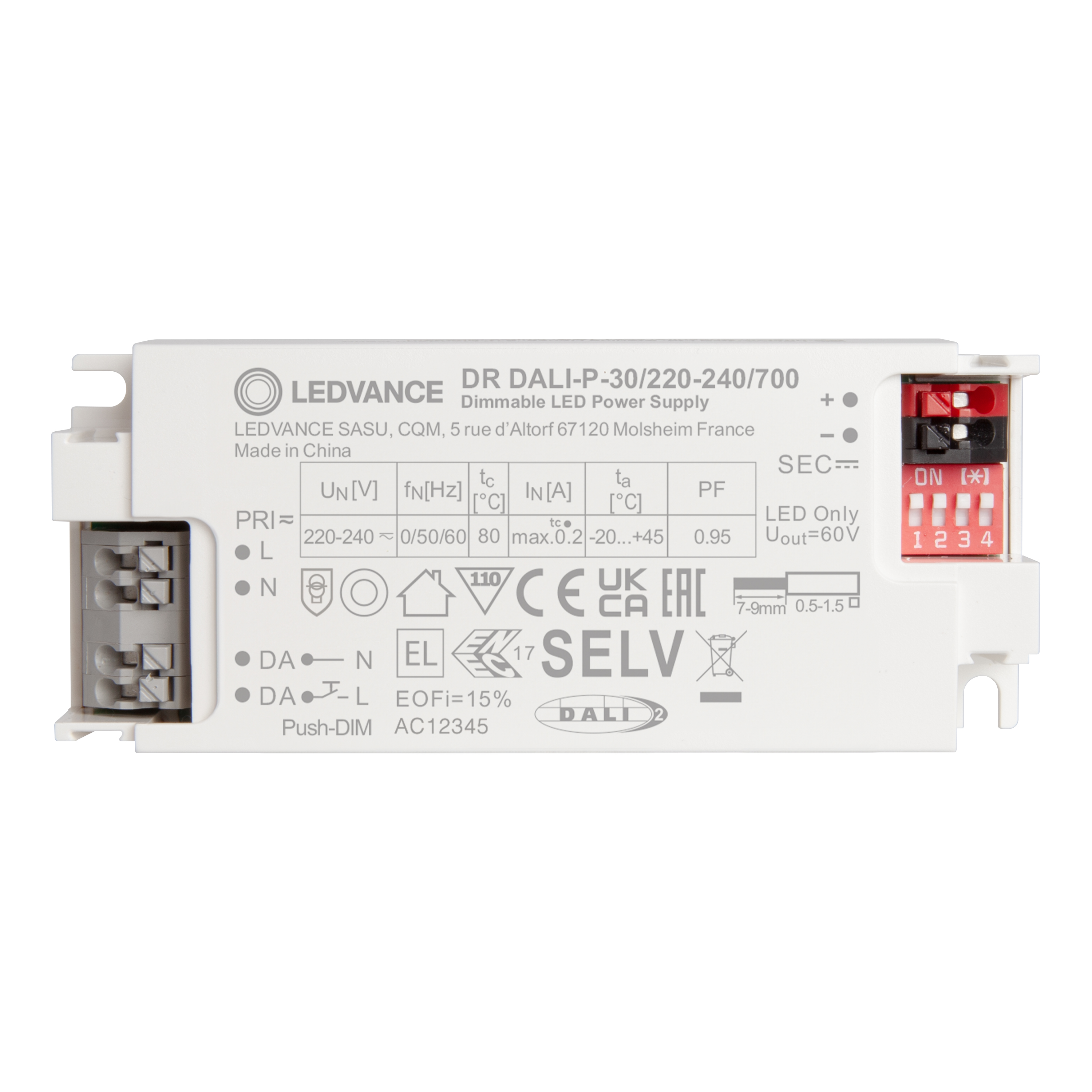

Product image: white background, upright
