LED TUBE T8 EM SUPERIOR

LED TUBE T8 EM SUPERIOR 1200 mm 11.3W/14W 840

GTIN: 4099854432767 Sleeve / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions
Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits
  • Energy savings of up to 71 % (compared to T8 fluorescent lamp)
  • Quick, simple and safe replacement with or without rewiring
  • Highly versatile thanks to selectable power/lumen steps (1200 mm, 1500 mm)
  • No bending thanks to glass technology
  • Support the implementation of the HACCP concepts from production through to presentation
  • Very high resistance to switching loads
  • Instant-on light, therefore ideally suitable in combination with sensor technology
  • Also suitable for operation at low temperatures
Areas of application
  • General illumination within ambient temperatures from -20…+50 °C
  • Illumination of production areas
  • Traffic zones and corridors
  • Supermarkets and department stores
  • Industry
Product features
  • LED replacement for classic T8 fluorescent lamps with G13 socket for use in CCG luminaires or on AC mains
  • Multi Lumen function: 2 power steps selectable (1200 mm, 1500 mm)
  • LED tube made of glass with shatter protection e.g. for food industry applications
  • ENEC 10 VDE mark
  • Single and tandem operation on conventional control gear (≤ 0.9 m versions)
  • Extremely long lifetime: up to 100,000 h
  • Type of protection: IP20
  • Mercury-free and RoHS compliant
  • Low flicker according to EU 2019-2020 (SVM ≤ 0.4 / PstLM ≤ 1)
Equipment / Accessories
  • Suitable for operation with low-loss and conventional control gears
Legal advice
  • When used to replace a T8 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.
Safety advice
  • Not suitable for operation with electronic control gear.
  • Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
  • Not suitable for emergency lighting.
  • Disconnect mains before installation.
References / Links
Electrical data
Nominal wattage 14.0 W / 11.3 W
Construction wattage 14.00 W
Nominal voltage 220…240 V
Operating mode CCG, AC Mains
Nominal current 65mA / 50 mA
Type of current AC
Inrush current 6.52 A
Suitable for DC input Yes
Input voltage DC 186…260 V
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz 1)
Max. lamp number on MCB B10 A 69
Max. lamp number on MCB B10 A - CCG without compensation 30
Max. lamp number on MCB B10 A - CCG with compensation 14
Max. lamp number on MCB B16 A 110
Max. lamp number on MCB B16 A - CCG without compensation 48
Max. lamp number on MCB B16 A - CCG with compensation 23
Total harmonic distortion < 20 %
Power factor λ 0.90
1) DC 0Hz
Photometrical data
Luminous flux 2600 lm / 2100 lm
Luminous efficacy 185 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Cool White
Color temperature 4000 K
Color rendering index Ra 80
Light color 840
Standard deviation of color matching ≤5 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) 1
Stroboscope effect metric (SVM) 0.4
Adjustable attributes
Nominal wattage Color temperature Luminous flux Luminous efficacy
14 W 4000 K 2600 lm 185 lm/W
11.3 W 4000 K 2100 lm 185 lm/W
Light technical data
Beam angle 190 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s
Dimensions & Weight
Overall length 1212.00 mm
Length with base excl. base pins/connection 1200.00 mm
Diameter 26.70 mm
Product weight 215.00 g
Temperatures & operating conditions
Ambient temperature range -20…+50 °C 1)
Maximum temperature at tc test point 75 °C
Performance temp. acc. to IEC 62717 46 °C 2)
1) Temperature surrounding the lamp - for enclosed luminaires: temperature inside of the luminaire
2) Tp rated. Tp point coincides with Tc point - marked on device
Lifespan
Lifespan L70/B50 at 25 °C 100000 h
Number of switching cycles 200000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90
Additional product data
Base (standard designation) G13
Mercury content 0.0 mg
Mercury-free Yes
Added function MULTI LUMEN
Capabilities
Dimmable No
Certificates & Standards
Energy efficiency class B 1)
Energy consumption 14.00 kWh/1000h
Type of protection IP20
Standards CE, UKCA, EAC, ENEC, VDE
Photobiological safety group acc. to EN62778 RG0
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
Country-specific categorizations
Order reference LEDTUBE T8 EM S
LOGISTICAL DATA
Temperature range at storage -20…+80 °C
Energy labelling regulation data acc EU 2019/2015
Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) G13
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power <0.5 W
Claim of equivalent power No
Length 1212.00 mm
Height 26.70 mm
Width 26.70 mm
Chromaticity coordinate x 0.3818
Chromaticity coordinate y 0.3797
R9 Colour rendering index 1
Beam angle correspondence SPHERE_360
Survival factor 0.9
Displacement factor 0.9
LED light source replaces a fluorescent light source No
EPREL ID 2150914,2340230
Model number AC69453,AC81593
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854432767 Sleeve
1		 1,305 mm x 29 mm x 29 mm 240.00 g 1.10 dm³
4099854432774 Shipping box
10		 1,335 mm x 175 mm x 95 mm 3060.00 g 22.19 dm³
User instruction / safety instructions
LED TUBE T8 EM S
PDF (2.96 MB)
Extended installation guide
Installation instructions LED TUBE T8, T5 und DULUX LED 2024 10 EN
PDF (3.36 MB)
Extended installation guide
Notes on the operation of LEDVANCE LED tubes in compensated luminaires
PDF (551.59 KB)
Extended installation guide
LEDVANCE Luminaire conversion checklist
PDF (155.99 KB)
Legal information
Informationstext 18 Abs 4 ElektroG
PDF (435.15 KB)
Declarations of conformity
LEDTUBE
PDF (264.49 KB)
Declarations of conformity
LED tube
PDF (410.19 KB)
Certificates
LEDTUBE T8 EM S 1200
PDF (556.78 KB)
Product image: white background, diagonal with LEDVANCE logo
LEDVANCE LED TUBE T8 EM
JPG (862.17 KB)
Product image: white background, diagonal
LED TUBE T8 EM
JPG (769.9 KB)
Product image: white background, horizontal
LEDTUBE T8 EM
JPG (306.49 KB)
Product image: white background, upright LEDVANCE logo
LEDVANCE LED TUBE T8 EM
JPG (657.34 KB)
Product image: white background, upright
LED TUBE T8 EM
JPG (650.51 KB)
Product image: white background, spacial
LEDTUBE T8 EM
JPG (210.21 KB)
Product line drawing with letters
LEDTUBE T8 EM
SVG (9.49 KB)
Product line drawing with numbers
LEDTUBE T8 EM 1200
SVG (15.42 KB)
Product line drawing - technical
638401_Technical drawing TC point LED TUBE T8 EM
SVG (22 KB)

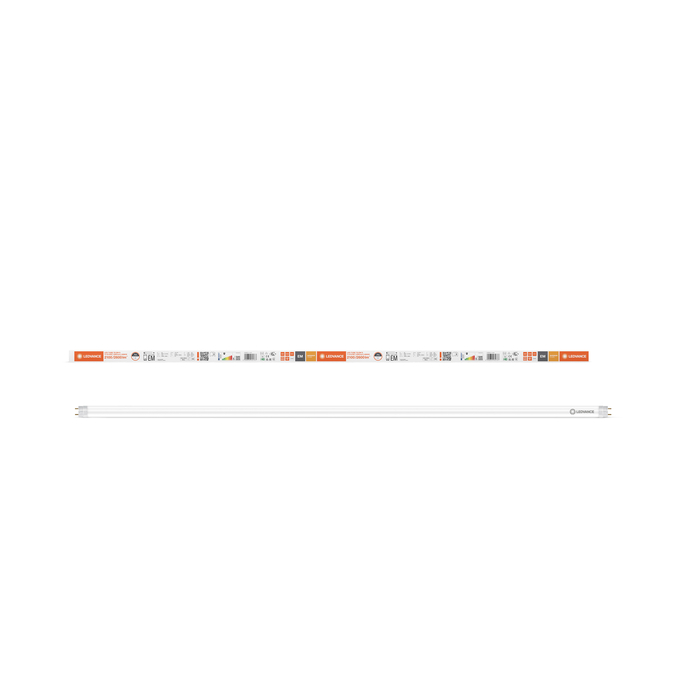

Combo Shot = Product Beauty Shot + Packaging Image
LEDTUBE T8 EM S 1200 11.3W 840 G13
JPG (365.51 KB)
Packaging image, frontal
LEDTUBE T8 EM S 1200 11.3W 840 G13
JPG (357.94 KB)
Packaging image, spacial
LEDTUBE T8 EM S 1200 11.3W 840 G13
JPG (367.19 KB)
Catalog info 6
Lifetime vs. Tc LED TUBE T8 EM
SVG (6.65 KB)
Energy label
EL-4099854432767-AC694 53
PDF (21.49 KB)
Energy label
EL-4099854432767-AC815 93
PDF (21.66 KB)
IES file (IES)
LEDTUBE T8 EM S 1200 11.3W 840 LEDV
IES (14.43 KB)
IES file (IES)
LEDTUBE T8 EM S 1200 14W 840 LEDV
IES (14.43 KB)
IES file (IES)
LEDTUBE T8 EM S 1200 11.3W 840 LEDV
IES (14.43 KB)
LDT file (Eulumdat)
LEDTUBE T8 EM S 1200 11.3W 840 LEDV
LDT (12.84 KB)
LDT file (Eulumdat)
LEDTUBE T8 EM S 1200 14W 840 LEDV
LDT (12.91 KB)
LDT file (Eulumdat)
LEDTUBE T8 EM S 1200 11.3W 840 LEDV
LDT (10.35 KB)
UGR file (UGR table)
LEDTUBE T8 EM S 1200 11.3W 840 LEDV
PNG (64.41 KB)
UGR file (UGR table)
LEDTUBE T8 EM S 1200 14W 840 LEDV
PNG (64.24 KB)
UGR file (UGR table)
LEDTUBE T8 EM S 1200 11.3W 840 LEDV
PNG (64.41 KB)
Light distribution curve type polar
LEDTUBE T8 EM S 1200 11.3W 840 LEDV
SVG (19.6 KB)
Light distribution curve type polar
LEDTUBE T8 EM S 1200 14W 840 LEDV
SVG (19.6 KB)
Light distribution curve type polar
LEDTUBE T8 EM S 1200 11.3W 840 LEDV
SVG (14.65 KB)
Spectral power distribution
EPREL data spectral diagram PROF LEDr 4000K
PNG (116.83 KB)
Tender documents
LED TUBE T8 EM SUPERIOR 1200 mm 11.3W 14W 840-en
TXT (3.9 KB)
Application pictures
The Room Product Setup Comb LAMPS
JPG (4.66 MB)
Application pictures

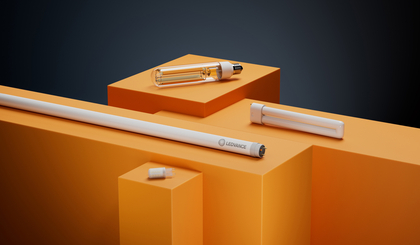

The Room Product-Setup Comb LAMPS cut out visual 3000x1750px
