PARATHOM PRO PAR16
PPRO PAR 16 80 36 ° 8.7 W/2700 K GU10
GTIN: 4058075260191
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Quick, simple and safe replacement without rewiring
- Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
- Low maintenance costs thanks to long lifetime
- No UV and near-IR radiation in the light beam
- Stepless dimming
- Very high dimmer compatibility, see also www.ledvance.com/dim
- Instant 100 % light, no warm-up time
Areas of application
- Shops and exhibition rooms
- Domestic applications
- Commercial applications
- Accent lighting
- Outdoor use in suitable outdoor luminaires only
Product features
- LED alternative to high voltage halogen lamps
- High color consistency: ≤ 3 SDCM
- Dimmable
- Base: GU10
- Lamp made of glass
- Excellent color rendering CRI > 97
- Lifetime up to 40,000 h
References / Links
- For dimming conformity see www.ledvance.com/dim
- For further products and actual information concerning LED lamps see www.ledvance.com/ledlamps
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 8.7 W |
| Construction wattage | 8.70 W |
| Nominal voltage | 220…240 V |
| Claimed equiv. conventional lamp power | 80 W |
| Nominal current | 45 mA |
| Type of current | AC |
| Inrush current | 7.5 A |
| Operating frequency | 50…60 Hz |
| Mains frequency | 50…60 Hz |
| Max. lamp number on MCB B10 A | 129 |
| Max. lamp number on MCB B16 A | 206 |
| Power factor λ | > 0.80 |
Photometrical data
| Luminous intensity | 1000 cd |
| Luminous flux | 575 lm |
| Nominal useful luminous flux 90° | 575 lm |
| Luminous efficacy | 66 lm/W |
| Lumen main.fact.at end of nom.life time | 0.70 |
| Light color (designation) | Warm White |
| Color temperature | 2700 K |
| Color rendering index Ra | 97 |
| Light color | 927 |
| Standard deviation of color matching | ≤3 sdcm |
| Rated peak intensity | 1000 cd |
| Rated LLMF at 6,000 h | 0.80 |
Light technical data
| Beam angle | 36 ° |
| Warm-up time (60 %) | ‹ 0.50 s |
| Starting time | < 0.5 s |
Dimensions & Weight
| Overall length | 62.00 mm |
| Diameter | 51.00 mm |
| Maximum diameter | 51 mm |
| Product weight | 56.00 g |
Temperatures & operating conditions
| Maximum temperature at tc test point | 80 °C |
Lifespan
| Number of switching cycles | 1000000 |
| Lumen maintenance at end of service lifetime | 0.70 |
| Rated lamp survival factor at 6,000 h | ≥ 0.90 |
Additional product data
| Base (standard designation) | GU10 |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Product remark | All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value |
Capabilities
| Dimmable | Yes |
Certificates & Standards
| Energy efficiency class | A+ 1) |
| Energy consumption | 8.00 kWh/1000h |
| Type of protection | IP20 |
| Standards | CE, EAC |
| Photobiological safety group acc. to EN62778 | RG0 |
1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)
Country-specific categorizations
| Order reference | LPPAR16D8036 8, |
Energy labelling regulation data acc EU 2019/2015
| Light source cap-type (or other electric interface) | GU10 |
| Length | 62.00 mm |
| Height | 51.00 mm |
| Width | 51.00 mm |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075260191 | Folding box 1 |
49 mm x 49 mm x 62 mm | 63.00 g | 0.15 dm³ |
| 4058075260207 | Shipping box 10 |
255 mm x 107 mm x 72 mm | 895.00 g | 1.96 dm³ |
Product image: white background, diagonal
LED PAR16
LED PAR16

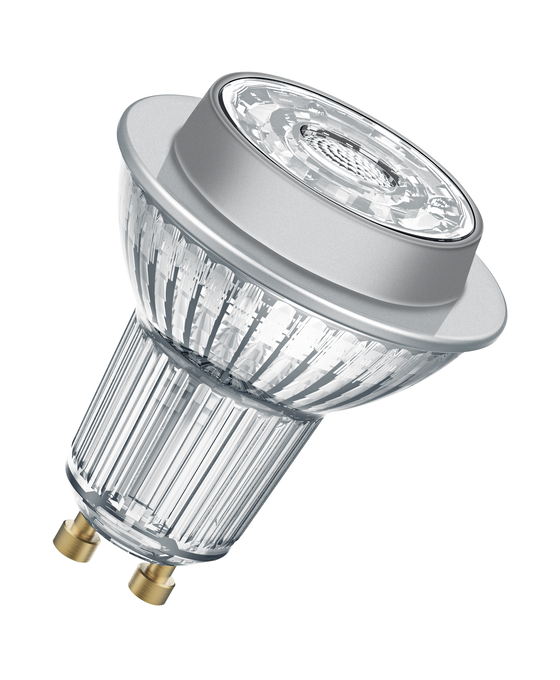

Product image: white background, diagonal
LED PAR16 100W
LED PAR16 100W

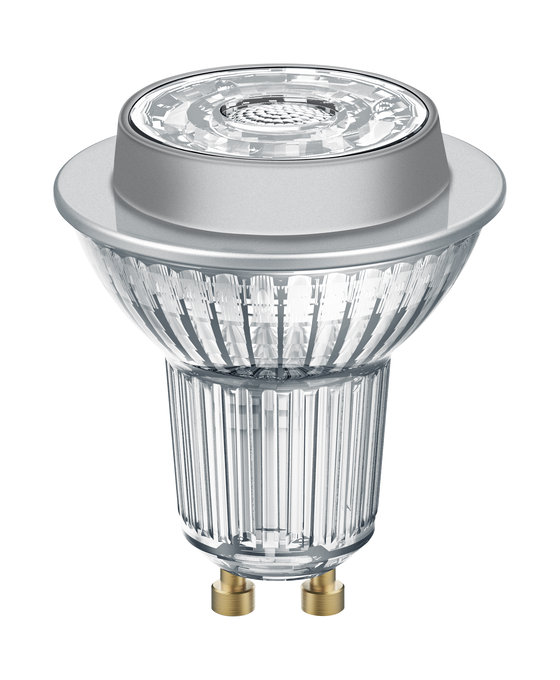

Product image: white background, upright
LED PAR16 100W
LED PAR16 100W
Product image: white background, upright
LED PAR16
LED PAR16
Product line drawing with letters
666401_PAR16 35/50/80 2016
666401_PAR16 35/50/80 2016
Product line drawing, front, no dimensions
666421_PAR16 35/50/80 2016
666421_PAR16 35/50/80 2016
Spectral power distribution
Everlight 67-23ST HKE 2700K
Everlight 67-23ST HKE 2700K
| EAN | SEG number | STK number | ELDAS number |
|---|---|---|---|
| 4058075260191 | 8294923 | 4731278 | 941840830 |
