LED STAR STICK 60 FR 8 W/4000 K E27

LED STAR STICK

GTIN: 0 Show all packages

Download data sheet

Contact sales

Our warranty conditions

PRODUCT DETAILS

Product benefits

Lower energy consumption than incandescent or halogen lamps
Attractive lamp appearance

Areas of application

All domestic rooms, especially where the lamps are visible
Wherever compact and efficient lamps are needed
Where the lamps need to last a long time or have to withstand frequent on/off switching
Outdoor use in suitable outdoor luminaires only

Product features

LED alternative to conventional lamps
Good quality of light; color rendering index R_a: ≥ 80; constant chromaticity

Safety advice

Do not touch the lamp if broken.
Must not be used if outer bulb is defective.

Electrical data

Nominal wattage	8 W
Construction wattage	8.00 W
Nominal voltage	220…240 V
Claimed equiv. conventional lamp power	60 W
Nominal current	58 mA
Type of current	AC
Inrush current	< 18 A
Operating frequency	50…60 Hz
Mains frequency	50…60 Hz
Max. lamp number on MCB B10 A	172
Max. lamp number on MCB B16 A	275
Total harmonic distortion	119 %
Power factor λ	> 0.50

Photometrical data

Luminous flux	806 lm
Nominal useful luminous flux 90°	806 lm
Luminous efficacy	100 lm/W
Lumen main.fact.at end of nom.life time	0.70
Light color (designation)	Cool White
Color temperature	4000 K
Color rendering index Ra	≥80
Light color	840
Standard deviation of color matching	≤6 sdcm
Rated LLMF at 6,000 h	0.80

Light technical data

Beam angle	200 °
Warm-up time (60 %)	‹ 0.50 s
Starting time	< 0.5 s

Dimensions & Weight

Overall length	114.00 mm
Diameter	40.40 mm
Maximum diameter	38 mm
Product weight	29.00 g

Temperatures & operating conditions

Ambient temperature range	-40…+40 °C
Maximum temperature at tc test point	90 °C

Lifespan

Number of switching cycles	100000
Lumen maintenance at end of service lifetime	0.70
Rated lamp survival factor at 6,000 h	≥ 0.90

Additional product data

Base (standard designation)	E27
Mercury content	0.0 mg
Mercury-free	Yes
Design / version	Frosted
Product remark	All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable

Certificates & Standards

Energy efficiency class	F ¹⁾
Energy consumption	8.00 kWh/1000h
Type of protection	IP20
Standards	CE
Photobiological safety group acc. to EN62778	RG1

¹⁾ Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)

Country-specific categorizations

ILCOS	DRSGT/F-7/827-230-E27-41
Order reference	LEDSSTICK60 8W/

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface)	E27
Correlated colour temperature type	SINGLE_VALUE
Length	114.00 mm
Height	40.40 mm
Width	40.40 mm
EPREL ID	1402977,523292,1838212,2190113

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4058075059177	Folding box 1	41 mm x 49 mm x 155 mm	43.00 g	0.31 dm³
4058075428508	Folding box 1	41 mm x 49 mm x 155 mm	43.00 g	0.31 dm³
4058075815933	Blister 1	45 mm x 140 mm x 120 mm	49.00 g	0.76 dm³
4058075585799	Shipping box 6	144 mm x 111 mm x 131 mm	327.00 g	2.09 dm³
4058075586116	Shipping box 6	144 mm x 111 mm x 131 mm	327.00 g	2.09 dm³
4058075059184	Shipping box 10	226 mm x 111 mm x 131 mm	483.00 g	3.29 dm³
4058075815940	Shipping box 6	285 mm x 153 mm x 136 mm	362.00 g	5.93 dm³

Declarations of conformity
LED Classic A, B, P, Stick Lamps

PDF (242.77 KB)

Declarations of conformity
LED Stick lamp

PDF (161.1 KB)

Declarations of conformity
LED CLASSIC / LED STICK

PDF (289.93 KB)

Declarations of conformity
Declaration of conformity CE FTL Sticks

PDF (309.56 KB)

Declarations of conformity
Declaration of conformity CE

PDF (309.56 KB)

PRODUCT DATASHEET
LEDSSTICK60 8W/840 230VFRE2710X1ICEOSRAM

PDF (216.12 KB)

PRODUCT DATASHEET
STSTICK60FR8W4000KE27e n

PDF (289.02 KB)

PRODUCT DATASHEET
STSTICK60FR8W4000KE27e n

PDF (288.95 KB)

Product datasheet -> old version of product
LEDStarClassicStick608 W840FrostedE27en

PDF (280.63 KB)

Product datasheet -> old version of product
LEDStarClassicStick608 .5W840FrostedE27en

PDF (277.16 KB)

Product datasheet -> old version of product
LEDStarClassicStick608 W840FrostedE27en

PDF (280.62 KB)

Product datasheet -> old version of product
LEDStarClassicStick608 .5W840FrostedE27en

PDF (277.84 KB)

Product image: white background, diagonal with OSRAM logo
LED STICK E27 FROSTED OSRAM

JPG (1.07 MB)

Product image: white background, diagonal
LED STICK Lamp

TIF (1.16 MB)

Product image: white background, diagonal
LED STICK E27 FROSTED DIM OSRAM

JPG (1.07 MB)

Product image: white background, upright, OSRAM logo
LED STICK E27 FROSTED OSRAM

JPG (1.04 MB)

Product image: white background, upright
LED STICK Lamp

TIF (29.37 MB)

Product image: white background, upright
LED STICK E27 FROSTED OSRAM

JPG (1.03 MB)

Product line drawing with letters
LED STICK Lamp

SVG (8.63 KB)

Product line drawing with numbers
LED STICK E27 FROSTED OSRAM

SVG (12.61 KB)

Product line drawing, front, no dimensions
LED STICK Lamp

SVG (5.46 KB)

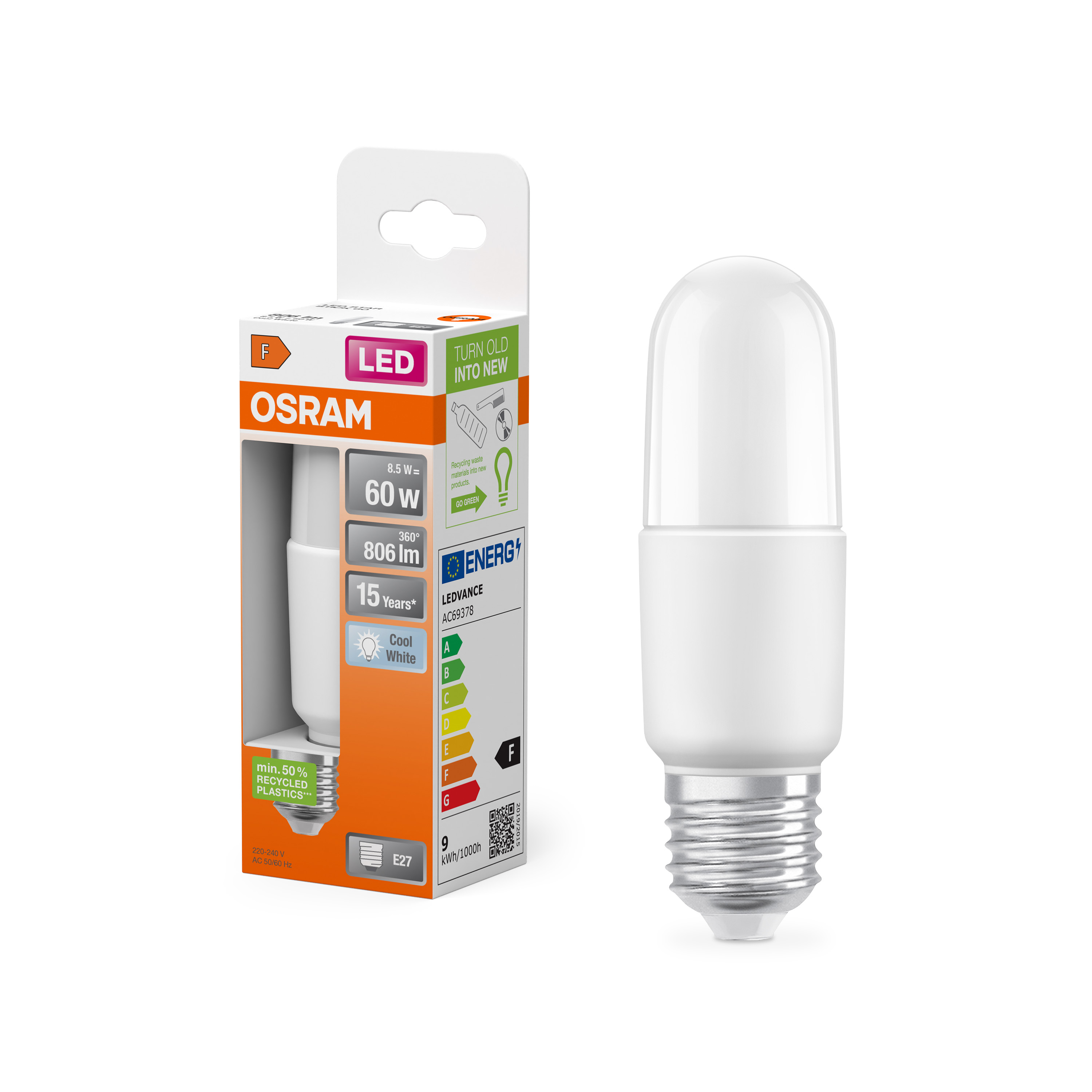

Combo Shot = Product Beauty Shot + Packaging Image
LED ST STICK 60 8.0W 840 FR E27 MiCh

JPG (596.6 KB)

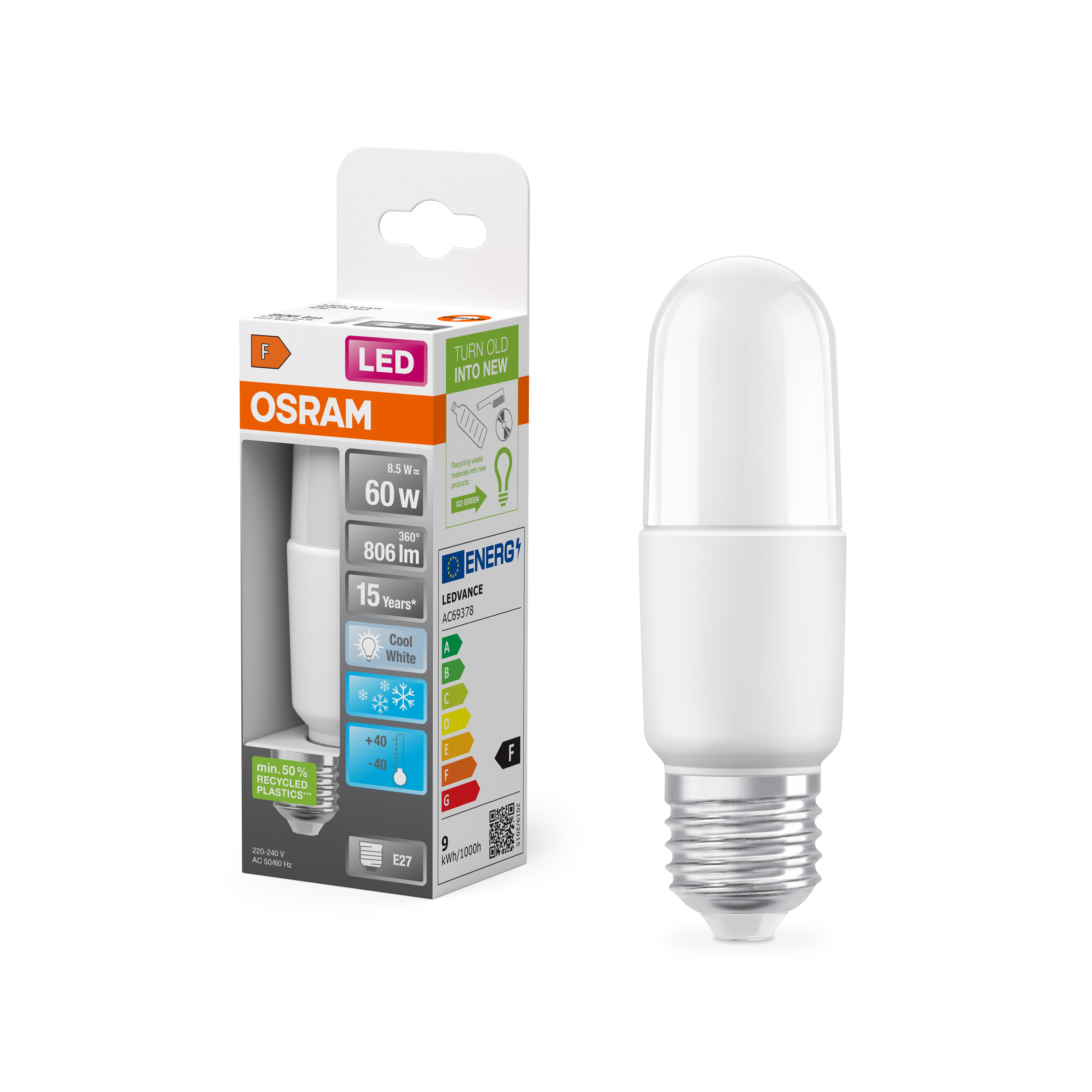

Combo Shot = Product Beauty Shot + Packaging Image
LED ST STICK 60 8.0W 840 FR E27 MiCh

JPG (594.5 KB)

Packaging image, frontal
LED ST STICK 53 7W 840 FR E27 MiCh Front

TIF (9.02 MB)

Packaging image, frontal
LED ST STICK 53 7W 840 FR E27 MiCh Front

TIF (478.7 KB)

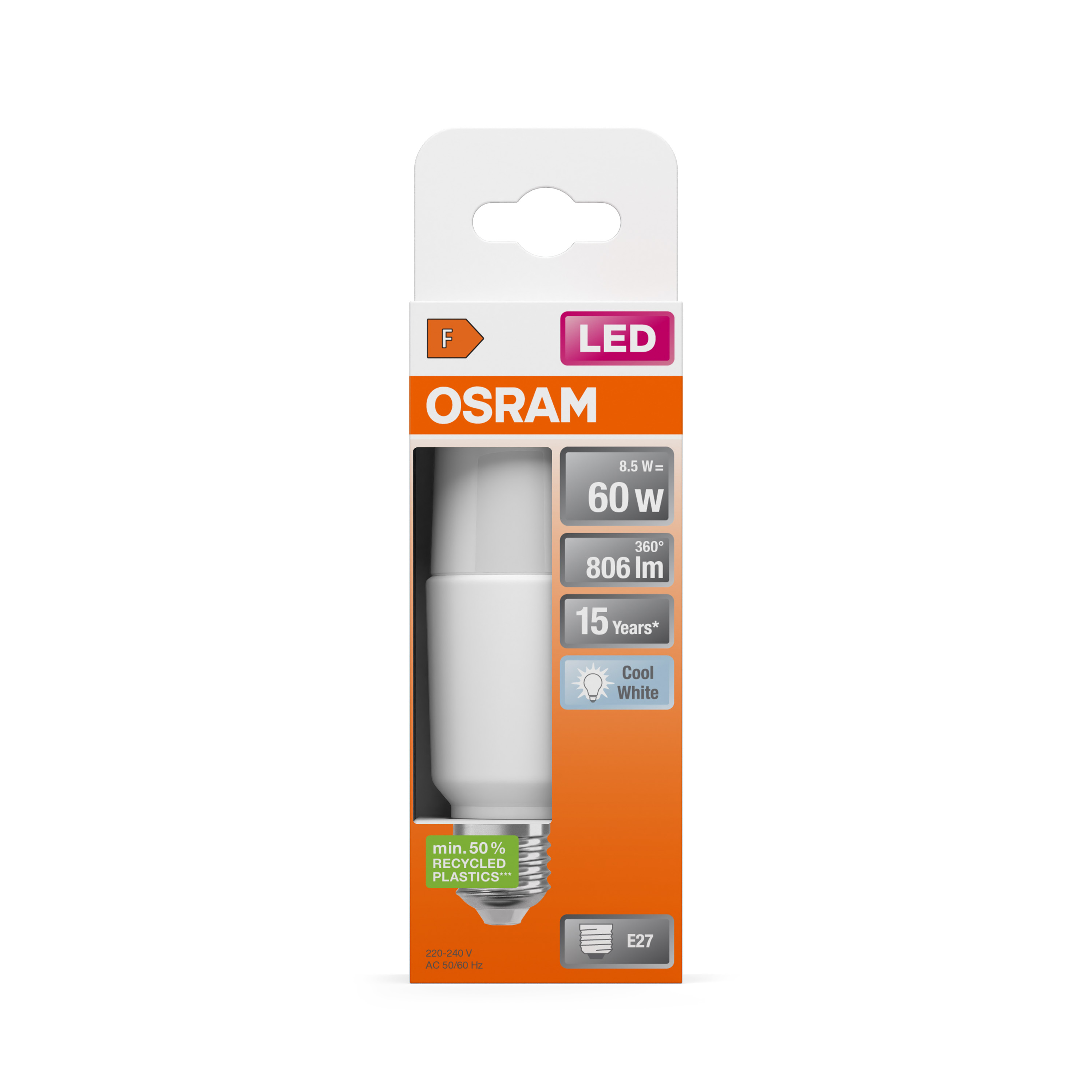

Packaging image, frontal
LED ST STICK 60 8W 840 FR E27 MiCh

TIF (476 KB)

Packaging image, spacial
LED ST STICK 53 7W 840 FR E27 MiCh Side

TIF (577.42 KB)

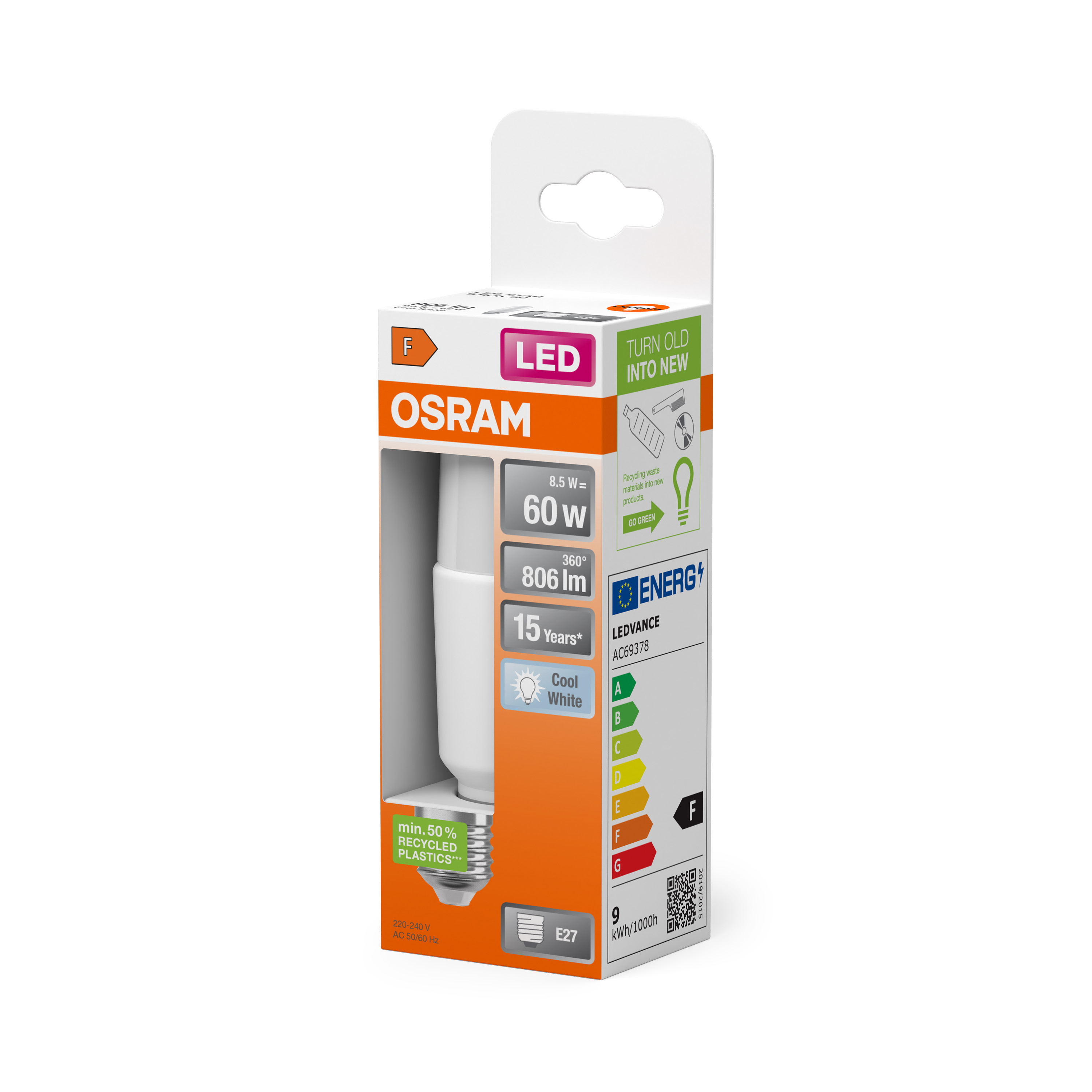

Packaging image, spacial
