Vintage 1906 LED BIG DECORATIVE BULB WITH FILAMENT-MAGNETIC STYLE
Vintage 1906 Big Elipse 6 Filament Magnetic 4W 818 Smoke E27
GTIN: 4099854173929
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Lower energy consumption than incandescent or halogen lamps
- Instant 100 % light, no warm-up time
- Can be easily fitted instead of ordinary light bulbs
- Type of protection: IP20, Ideal for indoor use
- Decorative lamps with innovative LED "filament-magnetic" technology
- No Filament Holder: Perfect for decorative installations
- Available in various bulb shapes and diameters
Areas of application
- Perfect for decorative installations
- Domestic applications
- General illumination
Product features
- Lifetime up to 15,000 h
- Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
- Lamp made of plastic
- Available with color temperature: 2700 K, 1800 K
- Pleasant light: Warm white comfort light color
- Can be used directly as luminaire
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
Electrical data
| Nominal wattage | 4 W |
| Construction wattage | 4.00 W |
| Nominal voltage | 220…240 V |
| Operating mode | AC Mains |
| Claimed equiv. conventional lamp power | 6 W |
| Nominal current | 35 mA |
| Type of current | AC |
| Inrush current | 0.3 A |
| Operating frequency | 50/60 Hz |
| Mains frequency | 50/60 Hz |
| Max. lamp number on MCB B10 A | 228 |
| Max. lamp number on MCB B16 A | 365 |
Photometrical data
| Luminous intensity | Not relevant |
| Luminous flux | 60 lm |
| Luminous efficacy | 15 lm/W |
| Lumen main.fact.at end of nom.life time | 0.93 |
| Light color (designation) | Comfort warm white |
| Color temperature | 1800 K |
| Color rendering index Ra | 80 |
| Light color | 818 |
| Standard deviation of color matching | ≤6 sdcm |
| Rated LLMF at 6,000 h | 0.80 |
| Flickering metric (Pst LM) | 1 |
| Stroboscope effect metric (SVM) | 0.4 |
Light technical data
| Beam angle | 320 ° |
| Warm-up time (60 %) | ‹ 0.50 s |
| Starting time | 0.5 s |
Dimensions & Weight
| Overall length | 210.00 mm |
| Diameter | 300.00 mm |
| Maximum diameter | 300 mm |
| Product weight | 710.00 g |
Temperatures & operating conditions
| Ambient temperature range | -20…+40 °C |
| Maximum temperature at tc test point | 45 °C |
Lifespan
| Lifespan L70/B50 at 25 °C | 15000 h |
| Number of switching cycles | 100000 |
| Lumen maintenance at end of service lifetime | 0.93 |
| Rated lamp survival factor at 6,000 h | ≥ 0.90 |
Additional product data
| Base (standard designation) | E27 |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Design / version | Clear |
| Product remark | All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value |
Capabilities
| Dimmable | No |
Certificates & Standards
| Energy consumption | 4.00 kWh/1000h |
| Type of protection | IP20 |
| Standards | CE |
| Photobiological safety group acc. to EN62778 | RG1 |
Country-specific categorizations
| Order reference | 1906LBELP 4W/81 |
LOGISTICAL DATA
| Temperature range at storage | -20…+80 °C |
Energy labelling regulation data acc EU 2019/2015
| Lighting technology used | LED |
| Non-directional or directional | NDLS |
| Mains or non-mains | MLS |
| Light source cap-type (or other electric interface) | E27 |
| Connected light source (CLS) | No |
| Color-tuneable light source | No |
| Envelope | No |
| High luminance light source | No |
| Anti-glare shield | No |
| Claim of equivalent power | Yes |
| Length | 210.00 mm |
| Height | 300.00 mm |
| Width | 300.00 mm |
| Chromaticity coordinate x | 0,552 |
| Chromaticity coordinate y | 0,408 |
| R9 Colour rendering index | 0.00 |
| Beam angle correspondence | SPHERE_360 |
| Survival factor | 0.9 |
| LED light source replaces a fluorescent light source | No |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854173929 | Folding box 1 |
308 mm x 308 mm x 219 mm | 1296.00 g | 20.78 dm³ |
| 4099854173936 | Shipping box 4 |
635 mm x 323 mm x 468 mm | 6328.00 g | 95.99 dm³ |
On-Pack-Info
ELR - exempt lamps
ELR - exempt lamps
Declarations of conformity
1906 LED BIG Magnetic
1906 LED BIG Magnetic

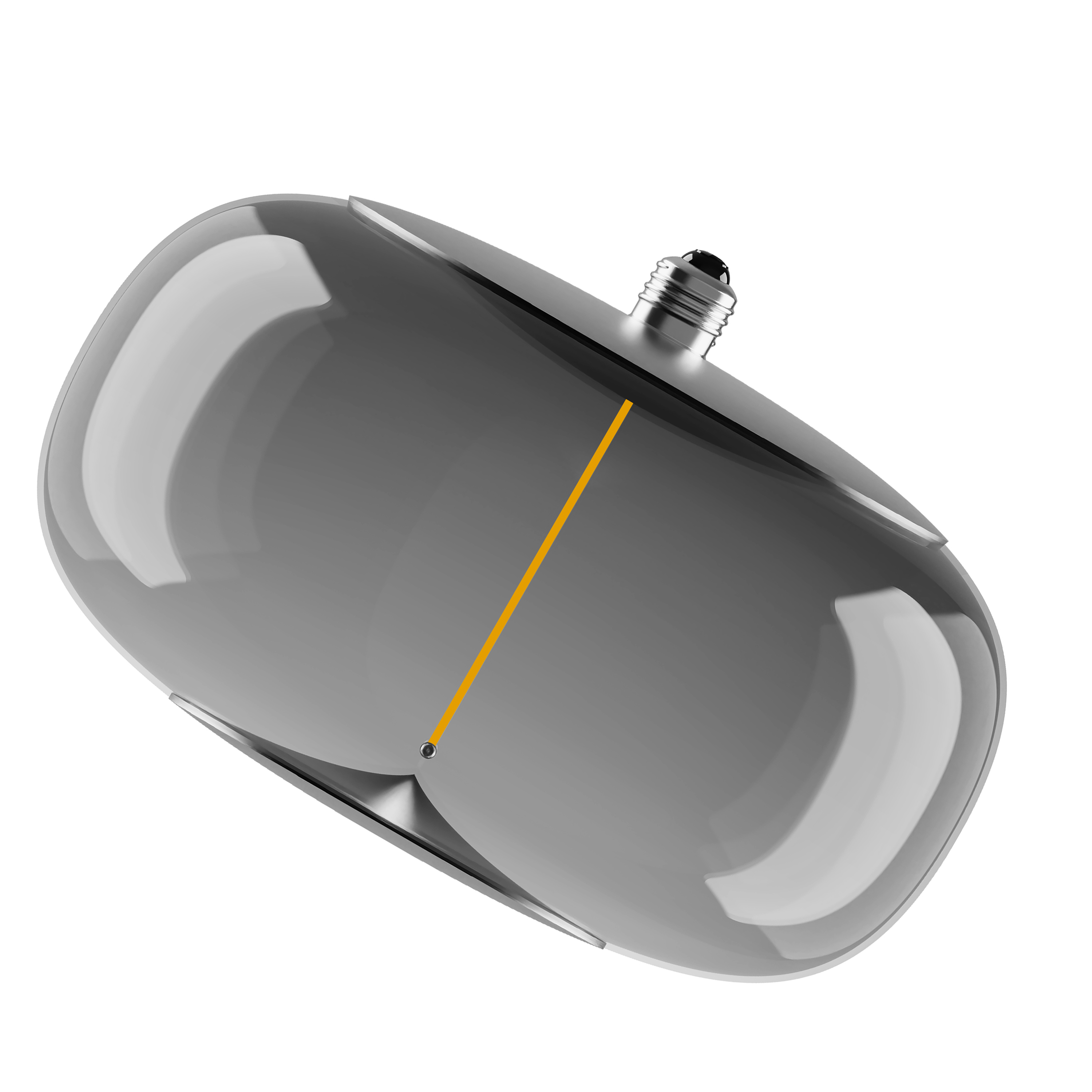

Product image: white background, diagonal
BIG MAGNETIC SMOKE E27 ELIPSE
BIG MAGNETIC SMOKE E27 ELIPSE

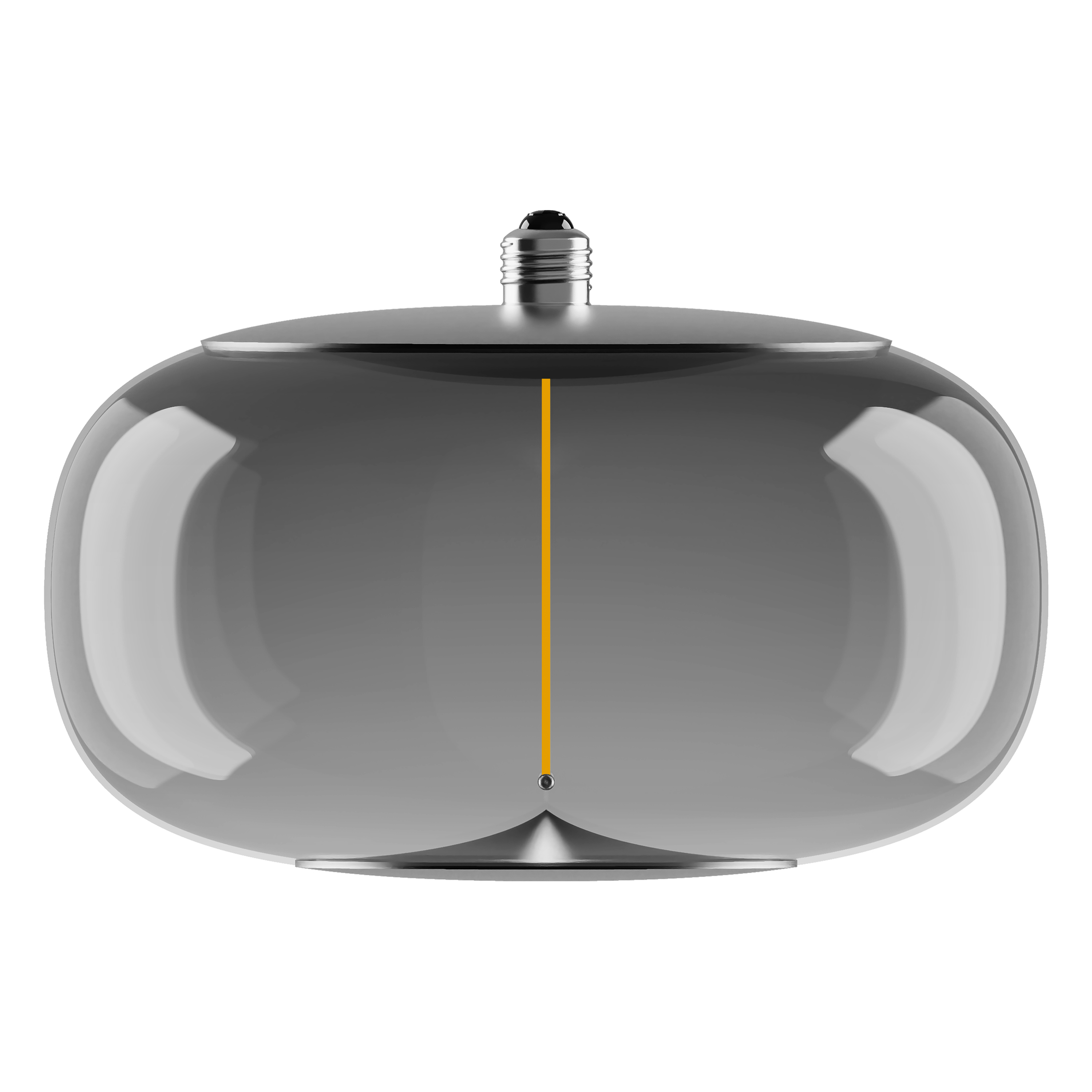

Product image: white background, upright
BIG MAGNETIC SMOKE E27 ELIPSE
BIG MAGNETIC SMOKE E27 ELIPSE
Product image: white background, upright, switched on
BIG MAGNETIC SMOKE E27 ELIPSE
BIG MAGNETIC SMOKE E27 ELIPSE
Product line drawing with letters
1906LBELP 4W/818 230VFILSMMAGE27
1906LBELP 4W/818 230VFILSMMAGE27
Product line drawing with numbers
1906LBELP 4W/818 230VFILSMMAGE27
1906LBELP 4W/818 230VFILSMMAGE27
Product line drawing, front, no dimensions
1906 LBELP 4W 818 230VFILSMMAGE27
1906 LBELP 4W 818 230VFILSMMAGE27

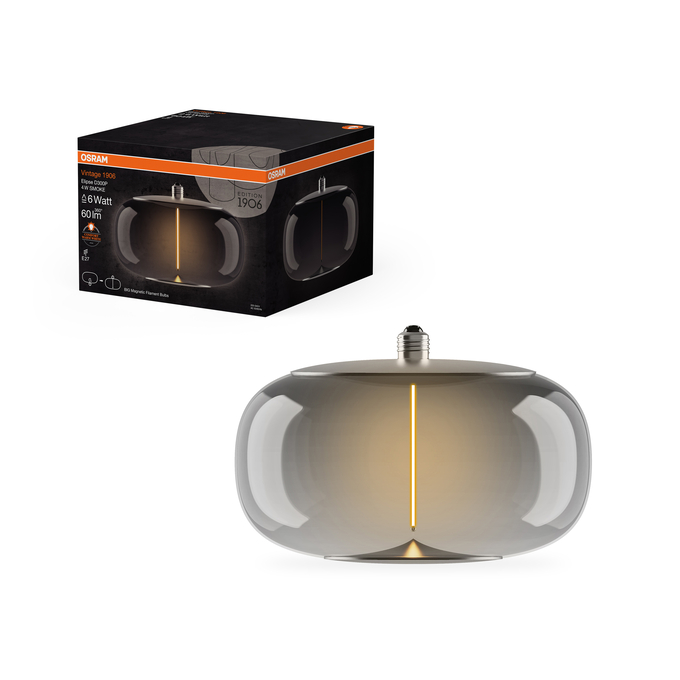

Combo Shot = Product Beauty Shot + Packaging Image
FC1 LED V1906 Elipse D300P 4W 818 FIL SMOKE E27
FC1 LED V1906 Elipse D300P 4W 818 FIL SMOKE E27

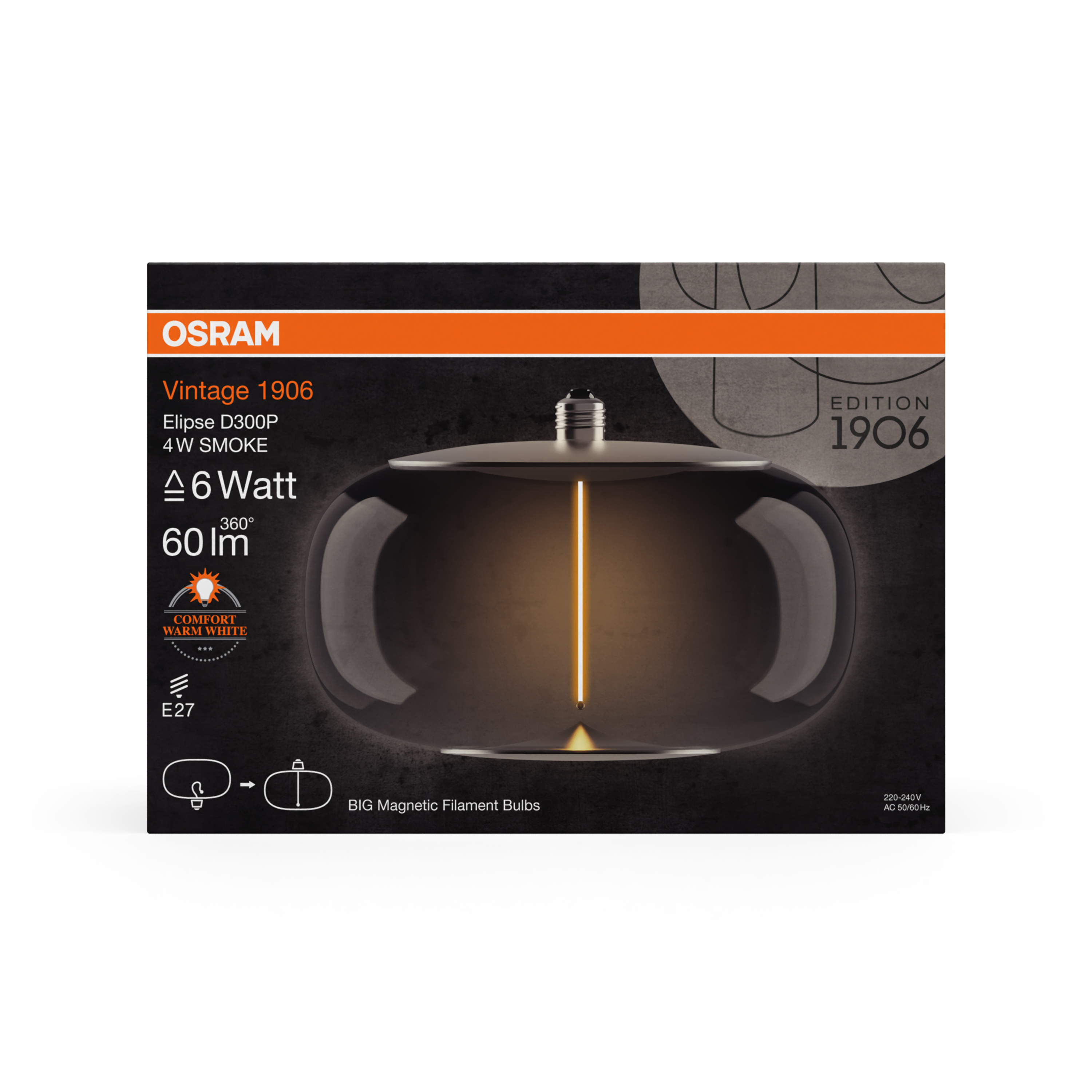

Packaging image, frontal
FC1 LED V1906 Elipse D300P 4W 818 FIL SMOKE E27
FC1 LED V1906 Elipse D300P 4W 818 FIL SMOKE E27

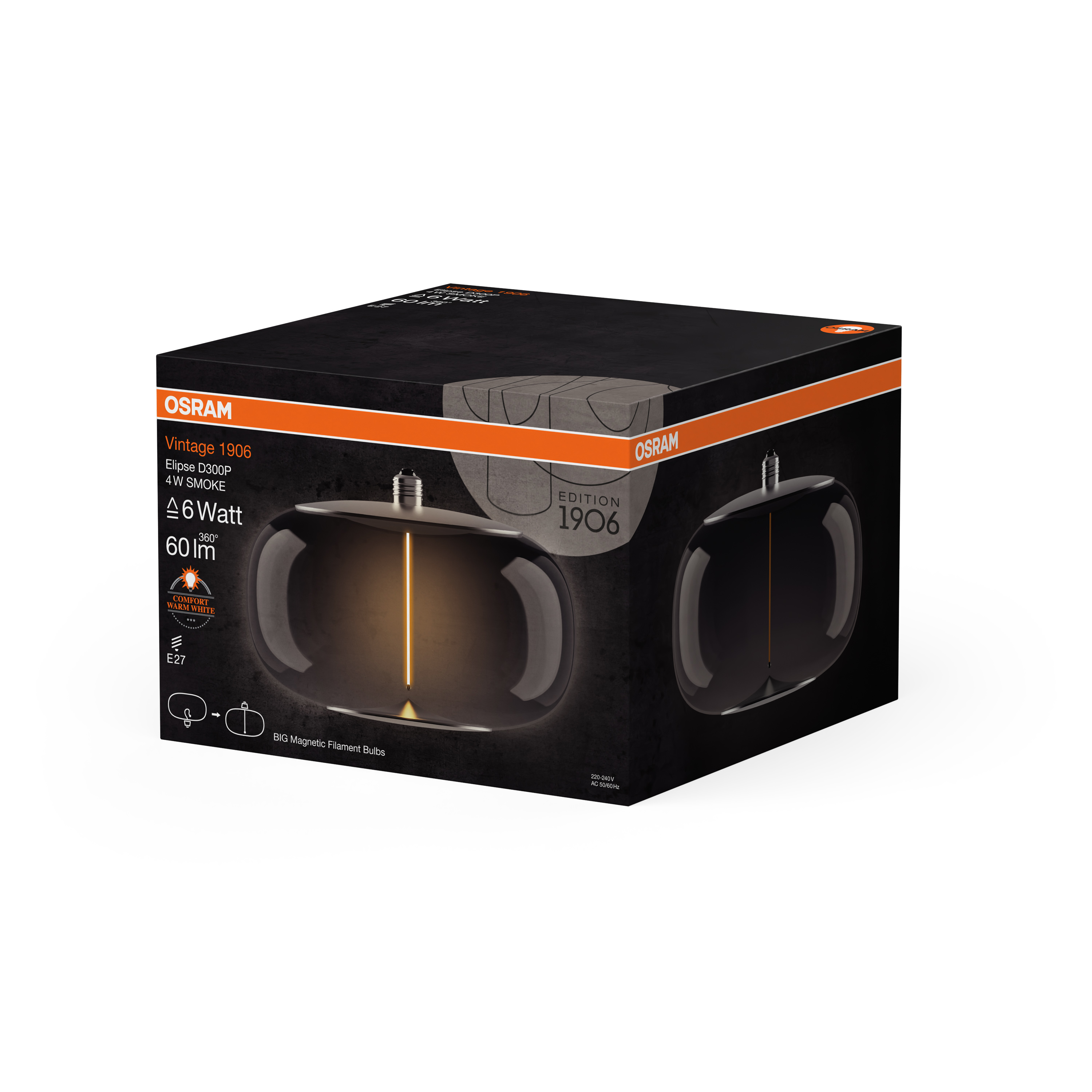

Packaging image, spacial
FC1 LED V1906 Elipse D300P 4W 818 FIL SMOKE E27
FC1 LED V1906 Elipse D300P 4W 818 FIL SMOKE E27

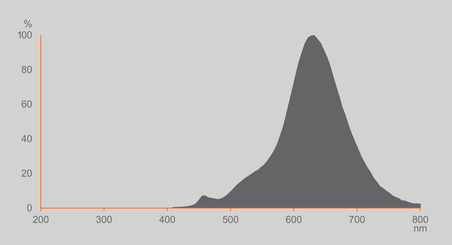

Spectral power distribution
EPREL Data Spectral Diagram LEDr _1800K_Big_Shape_Smoke
EPREL Data Spectral Diagram LEDr _1800K_Big_Shape_Smoke
Application pictures
3-SOCKET FLOOR LUM smoke grey Ambient
3-SOCKET FLOOR LUM smoke grey Ambient
Application pictures
Vintage 1906 Big Elipse 6 Filament Magnetic 4W 818 Smoke E27
Vintage 1906 Big Elipse 6 Filament Magnetic 4W 818 Smoke E27
Application pictures
Vintage 1906 magnetic
Vintage 1906 magnetic

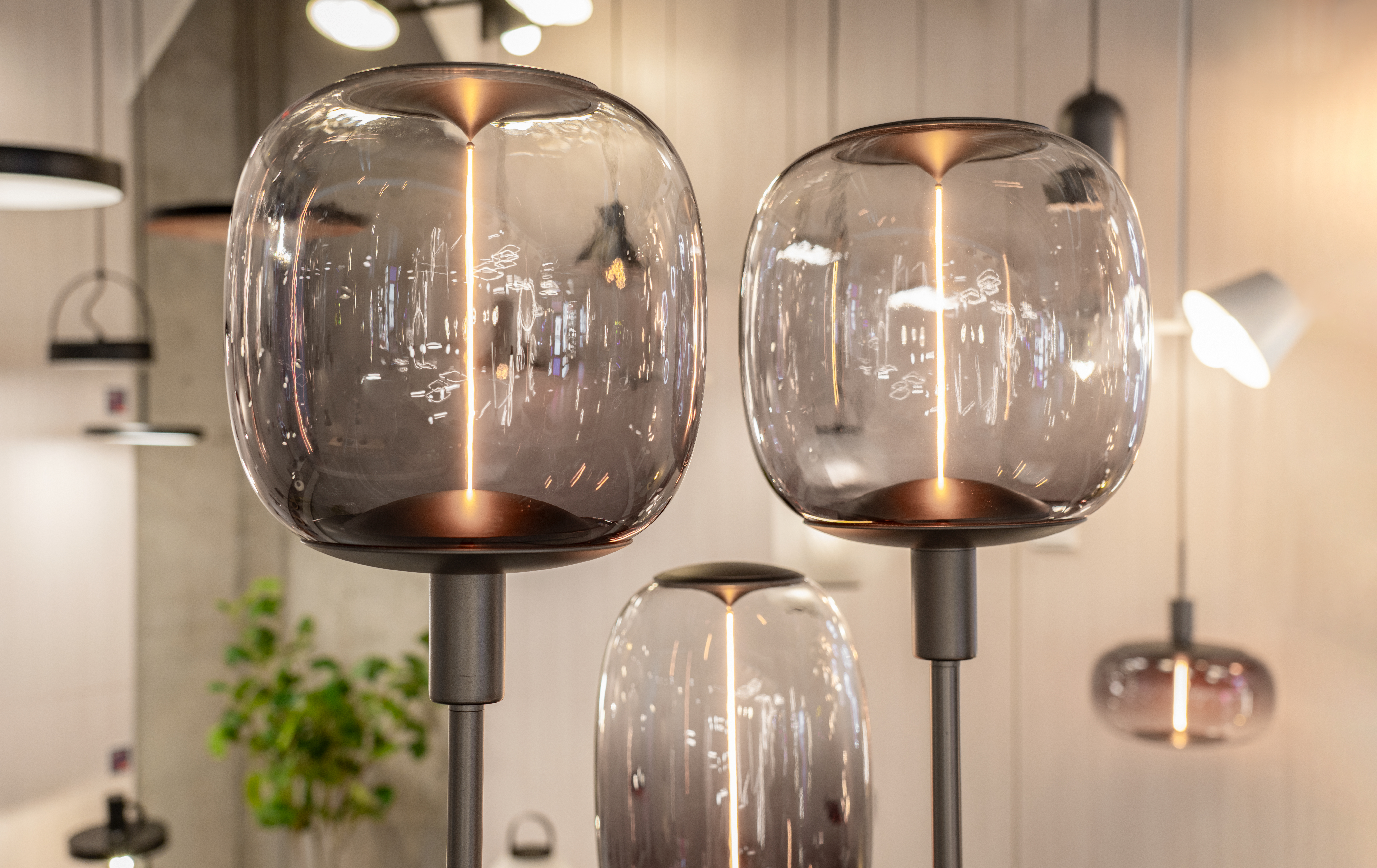

Application pictures
Big Magnetic Filament RGB
Big Magnetic Filament RGB
Application pictures
Big Magnetic Filament CMYK
Big Magnetic Filament CMYK
Application pictures Getty
Sockets for LED Magnetic Bulbs Composing
Sockets for LED Magnetic Bulbs Composing
Application pictures Getty
Sockets for LED Magnetic Bulbs 3 Socket Smoky Grey
Sockets for LED Magnetic Bulbs 3 Socket Smoky Grey
| EAN | SEG number | ELDAS number |
|---|---|---|
| 4099854173929 | 8298906 | 941903710 |
