DECOR FLAT LAMP IN METAL HOUSING
DECOR LED FLAT SQUARE 100 BLACK 3.5W 827 Frosted E27 Non-DIM
GTIN: 4058075840140
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- The integrated lamp delivers a modern and luxurious atmosphere
- Ultra-compact design lamp without bulb-shaped diffuser
- The special design offers comfortable light distribution
- Type of protection: IP20, Ideal for indoor use
- Lower energy consumption than incandescent or halogen lamps
Areas of application
- Perfect for decorative installations
- Luxurious living areas
Product features
- The flat lamp is installed in the metal housing for design purposes
- Metal housing has two versions: Globe and Square
- Two different colors are offered for the lamp housing: Gold and Black
- Lifetime up to 25,000 h
- The flat lamp can be detached from the housing
- Can be used directly as luminaire
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
Electrical data
| Nominal wattage | 3.5 W |
| Construction wattage | 3.50 W |
| Nominal voltage | 220…240 V |
| Operating mode | AC Mains |
| Claimed equiv. conventional lamp power | 28 W |
| Nominal current | 32 mA |
| Type of current | AC |
| Inrush current | 2.36 A |
| Operating frequency | 50/60 Hz |
| Mains frequency | 50/60 Hz |
| Max. lamp number on MCB B10 A | 320 |
| Max. lamp number on MCB B16 A | 514 |
| Total harmonic distortion | 141.90 % |
| Power factor λ | 0.46 |
Photometrical data
| Luminous intensity | Not relevant |
| Luminous flux | 300 lm |
| Luminous efficacy | 85 lm/W |
| Lumen main.fact.at end of nom.life time | 0.96 |
| Light color (designation) | Warm White |
| Color temperature | 2700 K |
| Color rendering index Ra | 80 |
| Light color | 827 |
| Standard deviation of color matching | ≤6 sdcm |
| Flickering metric (Pst LM) | 1 |
| Stroboscope effect metric (SVM) | 0.4 |
Light technical data
| Beam angle | 100 ° |
| Warm-up time (60 %) | ‹ 0.50 s |
| Starting time | < 0.5 s |
Dimensions & Weight
| Overall length | 162.00 mm |
| Diameter | 100.00 mm |
| Maximum diameter | 100 mm |
| Product weight | 77.00 g |
Temperatures & operating conditions
| Ambient temperature range | -25…+40 °C |
| Maximum temperature at tc test point | 90 °C |
Lifespan
| Lifespan L70/B50 at 25 °C | 25000 h |
| Number of switching cycles | 100000 |
| Lumen maintenance at end of service lifetime | 0.96 |
Additional product data
| Base (standard designation) | E27 |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Design / version | Frosted |
| Product remark | All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value |
Capabilities
| Dimmable | No |
Certificates & Standards
| Energy efficiency class | F 1) |
| Energy consumption | 4.00 kWh/1000h |
| Type of protection | IP20 |
| Standards | CE, UKCA, EAC |
| Photobiological safety group acc. to EN62778 | RG1 |
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
Country-specific categorizations
| Order reference | LFLATSQ100BK 3, |
LOGISTICAL DATA
| Temperature range at storage | -20…+80 °C |
Energy labelling regulation data acc EU 2019/2015
| Lighting technology used | LED |
| Non-directional or directional | NDLS |
| Mains or non-mains | MLS |
| Light source cap-type (or other electric interface) | E27 |
| Connected light source (CLS) | No |
| Color-tuneable light source | No |
| Envelope | No |
| High luminance light source | No |
| Anti-glare shield | No |
| Correlated colour temperature type | SINGLE_VALUE |
| Standby power | 0 W |
| Claim of equivalent power | Yes |
| Length | 162.00 mm |
| Height | 100.00 mm |
| Width | 100.00 mm |
| Chromaticity coordinate x | 0.458 |
| Chromaticity coordinate y | 0.410 |
| R9 Colour rendering index | 10 |
| Beam angle correspondence | SPHERE_360 |
| Survival factor | 0.9 |
| Displacement factor | 0.787 |
| LED light source replaces a fluorescent light source | No |
| EPREL ID | 1891350 |
| Model number | AC59905 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075840140 | Folding box 1 |
111 mm x 111 mm x 210 mm | 149.00 g | 2.59 dm³ |
| 4058075840157 | Shipping box 4 |
238 mm x 230 mm x 225 mm | 783.00 g | 12.32 dm³ |
Declarations of conformity
LED lamp Flat lamp
LED lamp Flat lamp

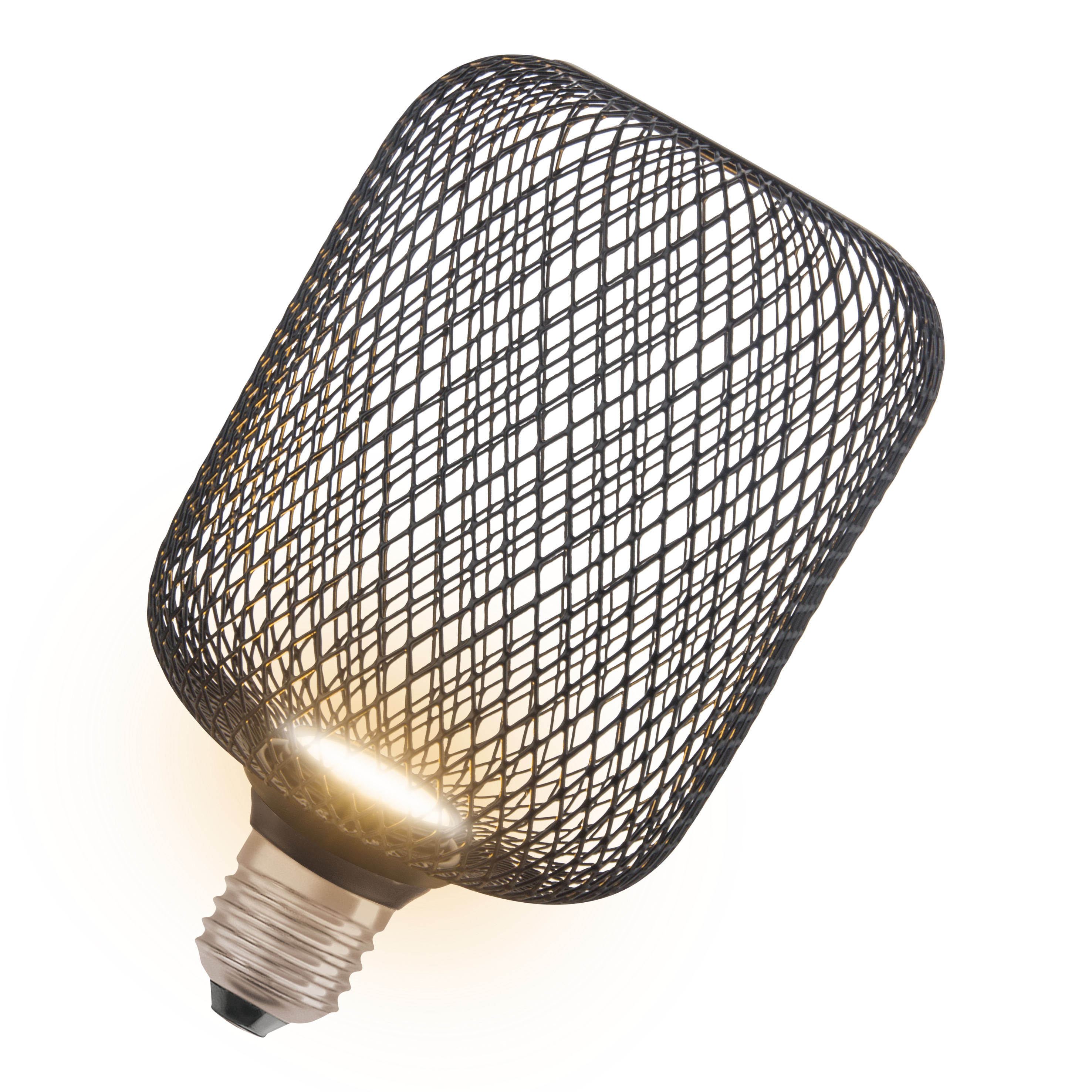

Product image: white background, diagonal
LED FLAT LAMPS NON-DIM Black Square E27
LED FLAT LAMPS NON-DIM Black Square E27

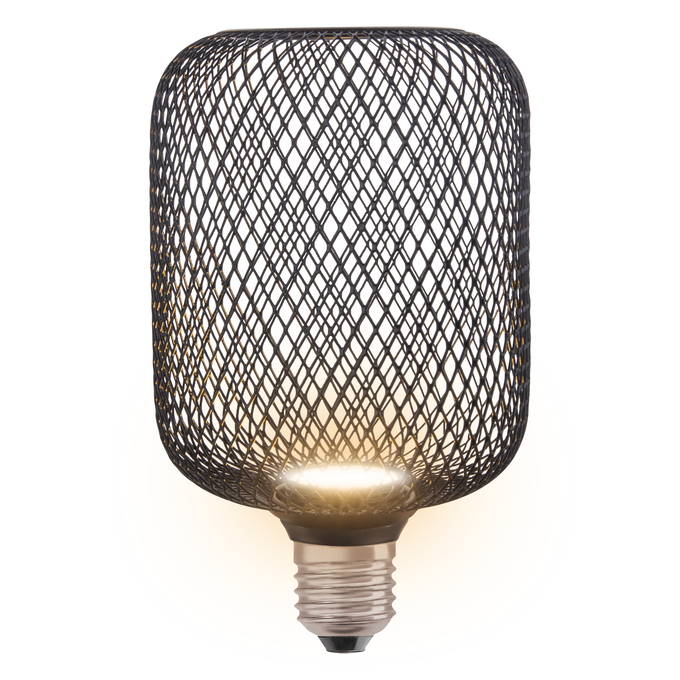

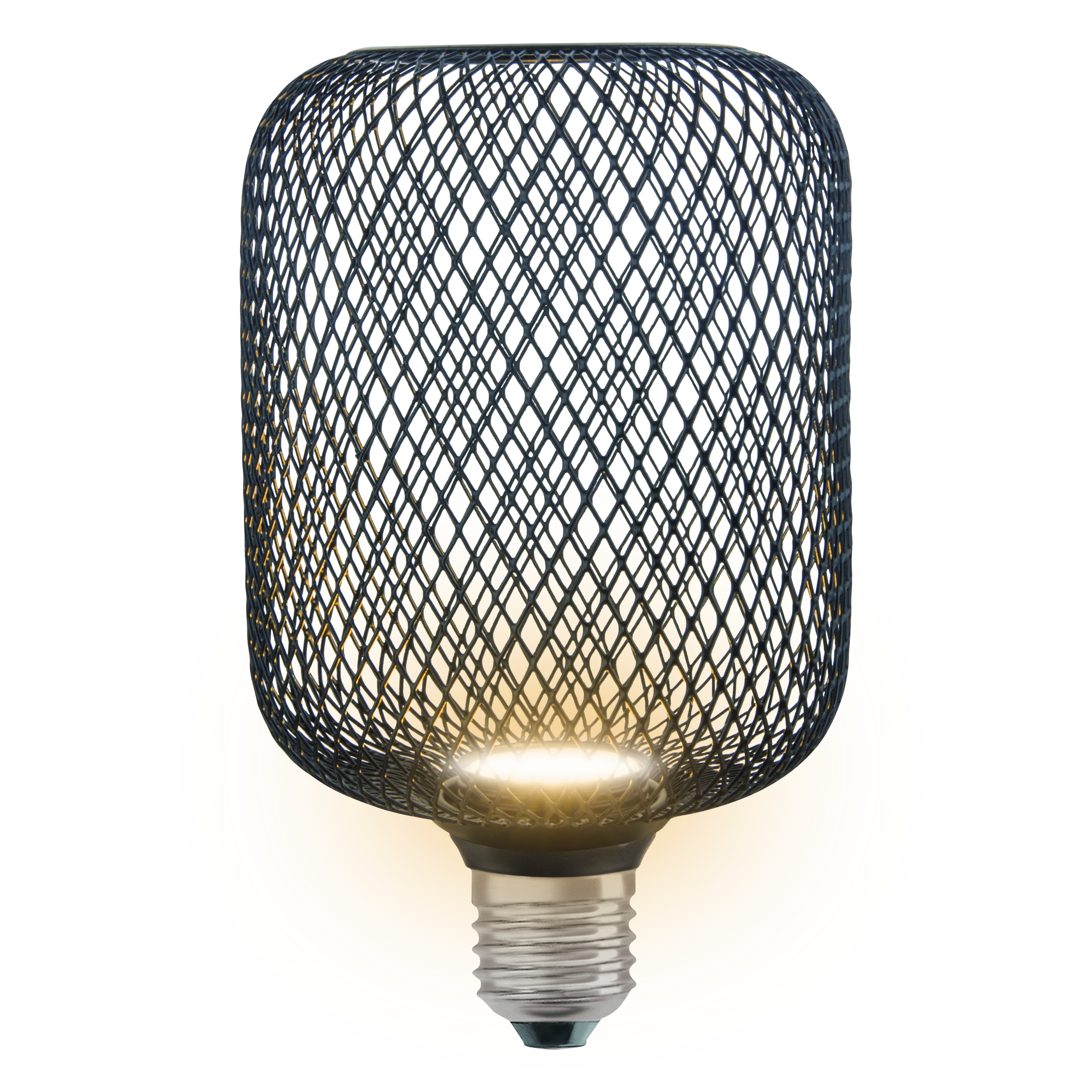

Product image: white background, upright
LED FLAT LAMPS NON-DIM Black Square E27
LED FLAT LAMPS NON-DIM Black Square E27
Product line drawing with letters
LED FLAT LAMPS NON-DIM Black Square E27
LED FLAT LAMPS NON-DIM Black Square E27
Product line drawing with numbers
LED FLAT LAMPS NON-DIM Gold Square E27
LED FLAT LAMPS NON-DIM Gold Square E27
Product line drawing - technical
LED FLAT LAMPS NON-DIM Black Square E27
LED FLAT LAMPS NON-DIM Black Square E27

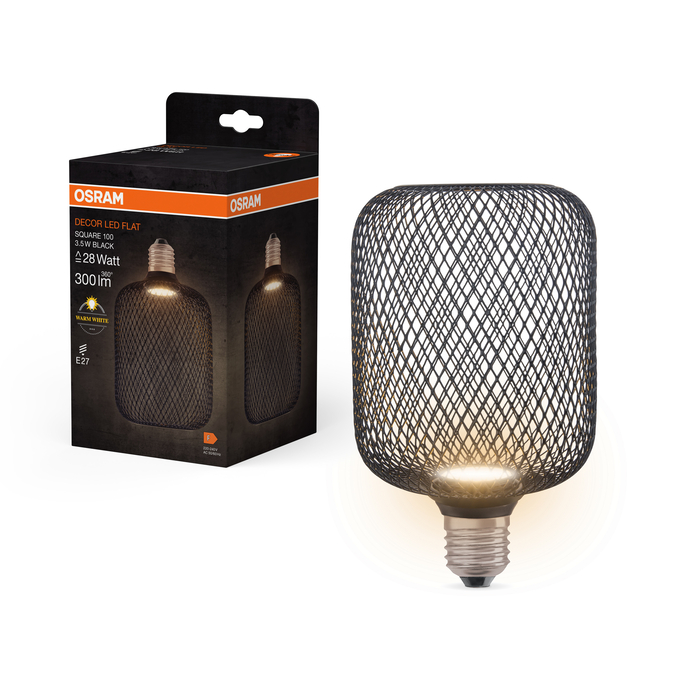

Combo Shot = Product Beauty Shot + Packaging Image
FC1 LED DECOR SQUARE 100 3.5W 818 FLAT BK E27
FC1 LED DECOR SQUARE 100 3.5W 818 FLAT BK E27
Packaging image, frontal
FC1 LED DECOR SQUARE 100 3.5W 818 FLAT BK E27
FC1 LED DECOR SQUARE 100 3.5W 818 FLAT BK E27
Packaging image, spacial
FC1 LED DECOR SQUARE 100 3.5W 818 FLAT BK E27
FC1 LED DECOR SQUARE 100 3.5W 818 FLAT BK E27
Energy label
EL-4058075840140-AC599 05
EL-4058075840140-AC599 05
Spectral power distribution
LISO spectral power distribution 2700K CRI80 v1
LISO spectral power distribution 2700K CRI80 v1
Application pictures

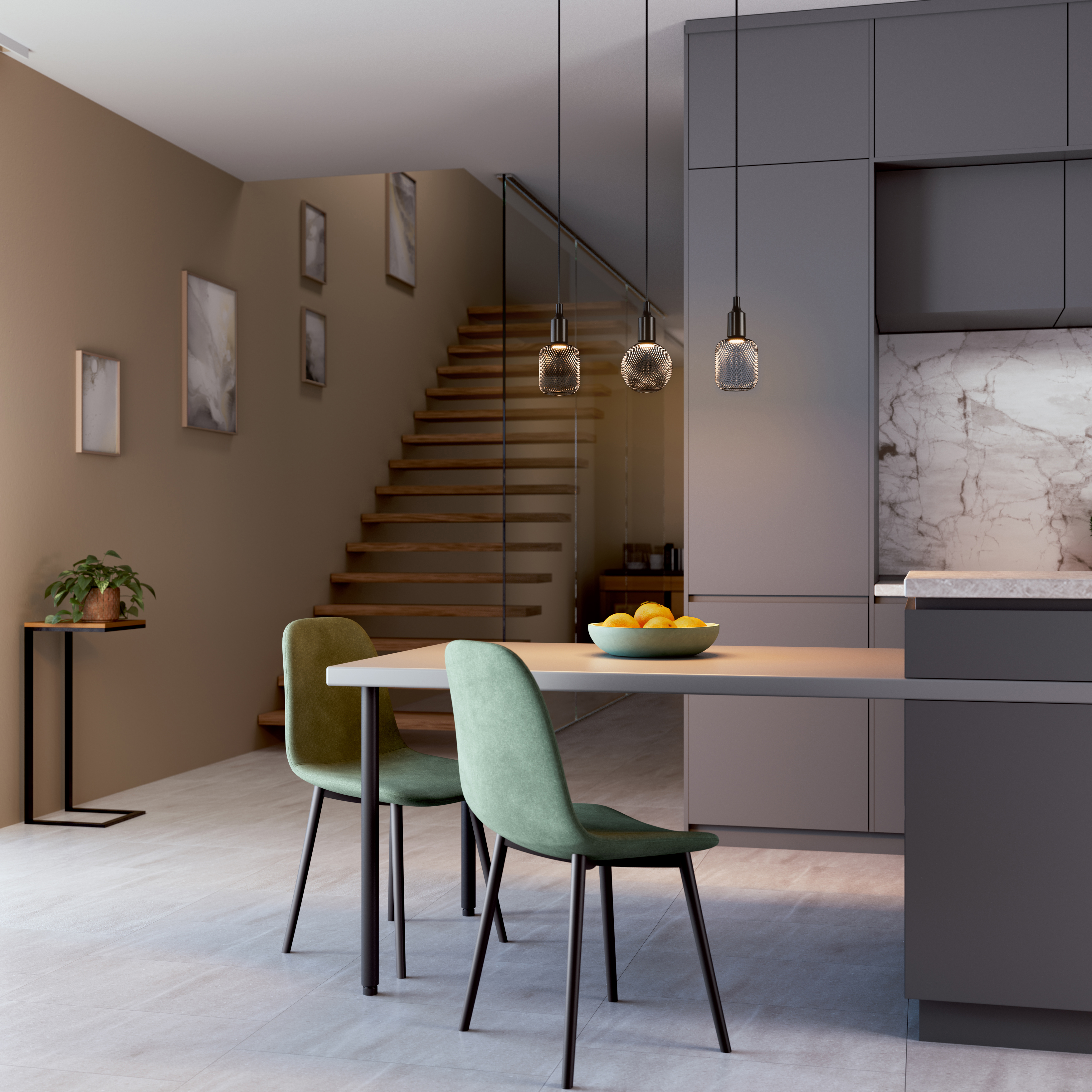

Flat and Cage Lamps Rendering 3D Kitchen
Flat and Cage Lamps Rendering 3D Kitchen
Application pictures
Close-up DECOR LED FLAT SQUARE 100 BLACK
Close-up DECOR LED FLAT SQUARE 100 BLACK
| EAN | EFO number |
|---|---|
| 4058075840140 | 3755224 |
