LED PIN MICRO 12V P

LED PIN Micro 10 320° P 1W 827 Clear G4

GTIN: 4099854278563 Folding box / 1 Show all packages
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Extremely small dimensions
  • Variable use at Direct Current and Alternating Current
  • Good all-around light emission
  • Ideal for decorative and free-burning applications
  • Long lifetime of up to 15,000 h
  • Four year guarantee
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • Decorative applications
  • Atmospheric accent lighting throughout the home
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Compatible with many common conventional and electronic control gears (see also compatibility list)
  • LED alternative to low voltage halogen lamps
  • Base: G4
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
  • To ensure full light efficiency and product lifetime, it is recommended to detach any glass or cover of the luminaire.
References / Links
Electrical data
Nominal wattage 1 W
Construction wattage 1.00 W
Nominal voltage 12 V
Operating mode 12V AC/DC
Claimed equiv. conventional lamp power 10 W
Nominal current 130 mA
Type of current AC/DC
Inrush current 12.3 A
Max. lamp number on MCB B10 A 48
Max. lamp number on MCB B16 A 61
Total harmonic distortion < 150 %
Power factor λ > 0.50
Photometrical data
Luminous flux 100 lm
Nominal useful luminous flux 90° 100 lm
Luminous efficacy 100 lm/W
Lumen main.fact.at end of nom.life time 0.90
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra ≥80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) 1.0
Stroboscope effect metric (SVM) 0.4
Light technical data
Beam angle 320 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s
Dimensions & Weight
Overall length 30.00 mm
Diameter 10.00 mm
Maximum diameter 10 mm
Product weight 1.9 g
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 92 °C
Lifespan
Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.90
Rated lamp survival factor at 6,000 h ≥ 0.90
Additional product data
Base (standard designation) G4
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Capabilities
Dimmable No
Certificates & Standards
Energy efficiency class F 1)
Energy consumption 1.00 kWh/1000h
Type of protection IP20
Standards CE, EAC, UKCA
Photobiological safety group acc. to EN62778 RG1
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
Country-specific categorizations
Order reference LED PINMIC10 1W
LOGISTICAL DATA
Temperature range at storage -20…+80 °C
Energy labelling regulation data acc EU 2019/2015
Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains NMLS
Light source cap-type (or other electric interface) G4
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0.00 W
Networked standby power for CLS 0 W
Claim of equivalent power Yes
Length 30.00 mm
Height 10.00 mm
Width 10.00 mm
Chromaticity coordinate x 0.458
Chromaticity coordinate y 0.410
R9 Colour rendering index 1
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor 0.5
LED light source replaces a fluorescent light source No
EPREL ID 522870,2365059
Model number AC32112,AC32112,AC84116
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854278563 Folding box
1
28 mm x 28 mm x 67 mm 6.90 g 0.05 dm³
4099854278570 Shipping box
20
150 mm x 122 mm x 77 mm 174.00 g 1.41 dm³
4099854278587 Shipping box
120
256 mm x 160 mm x 248 mm 1179.00 g 10.16 dm³
Declarations of conformity
LED PIN 20 NON-DIM 12V
Product datasheet -> old version of product
LEDPINMicro10320°P1W8 27ClearG4en

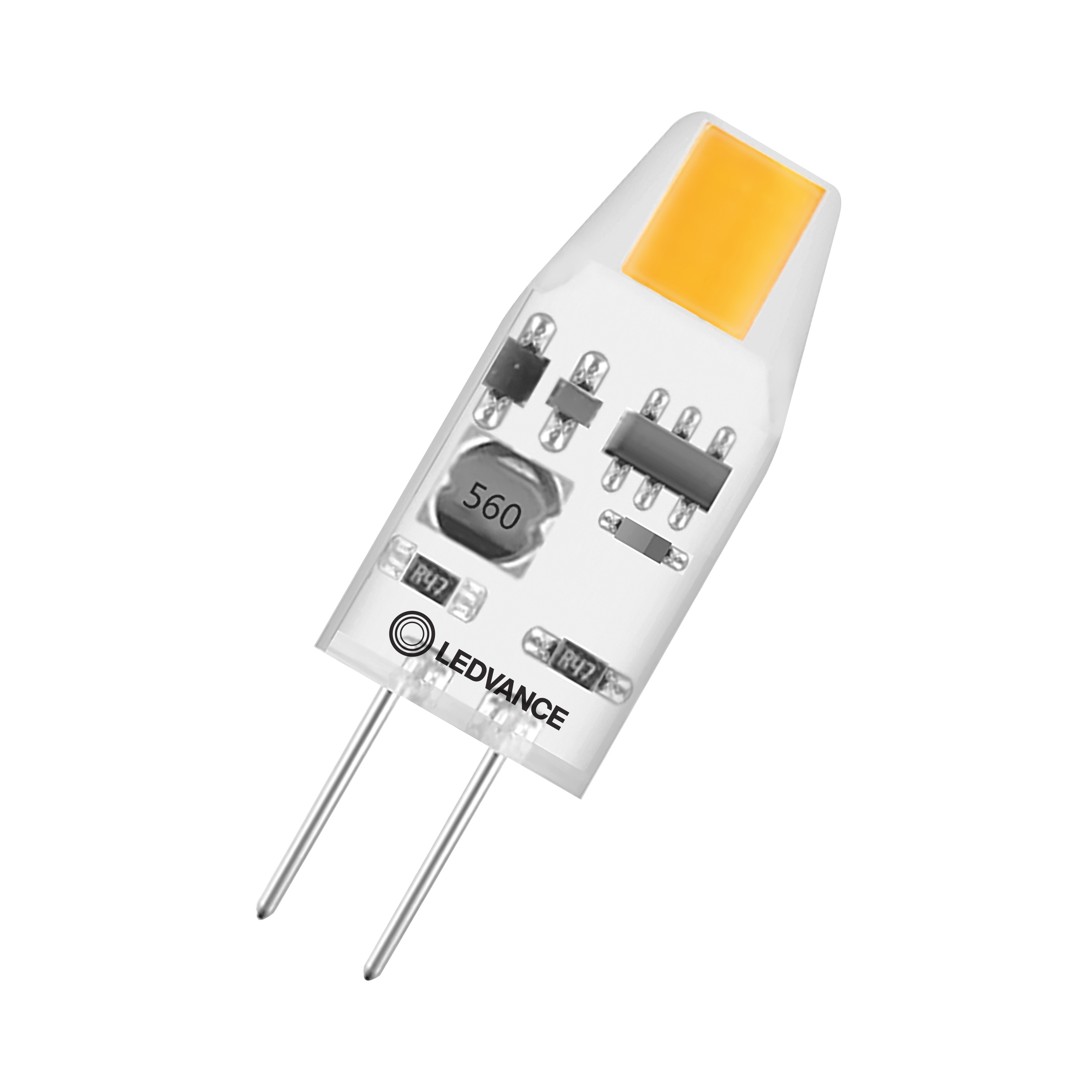

Product image: white background, diagonal with LEDVANCE logo
LED PIN MICRO 10 G4
Product image: white background, diagonal
LED PIN MICRO 10 G4

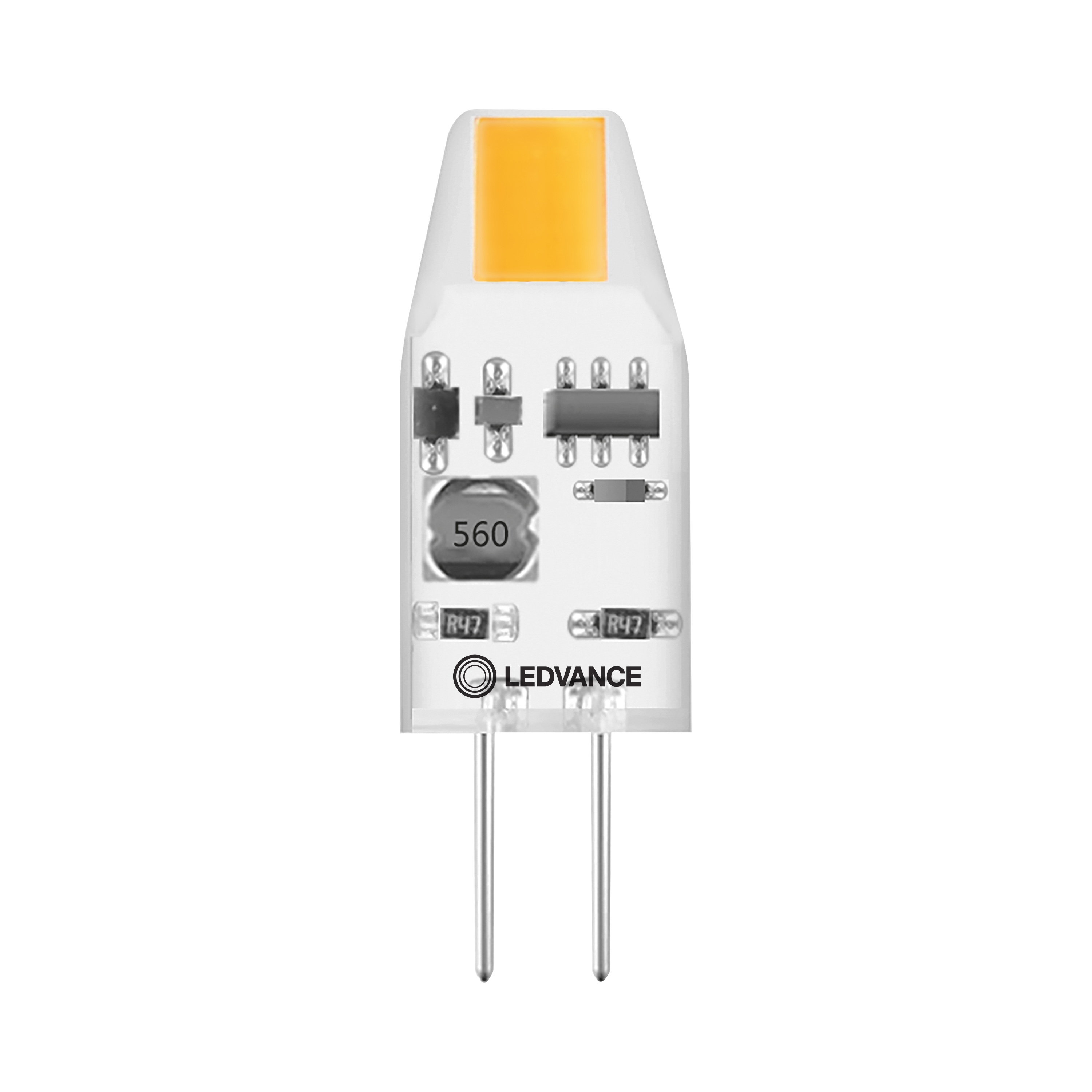

Product image: white background, upright LEDVANCE logo
LED PIN MICRO 10 G4
Product image: white background, upright
LED PIN MICRO 10 G4
Product line drawing with letters
LED PIN MICRO 10 G4
Product line drawing with numbers
LED PIN MICRO 10 G4
Product line drawing - technical
LED PIN MICRO 10 G4

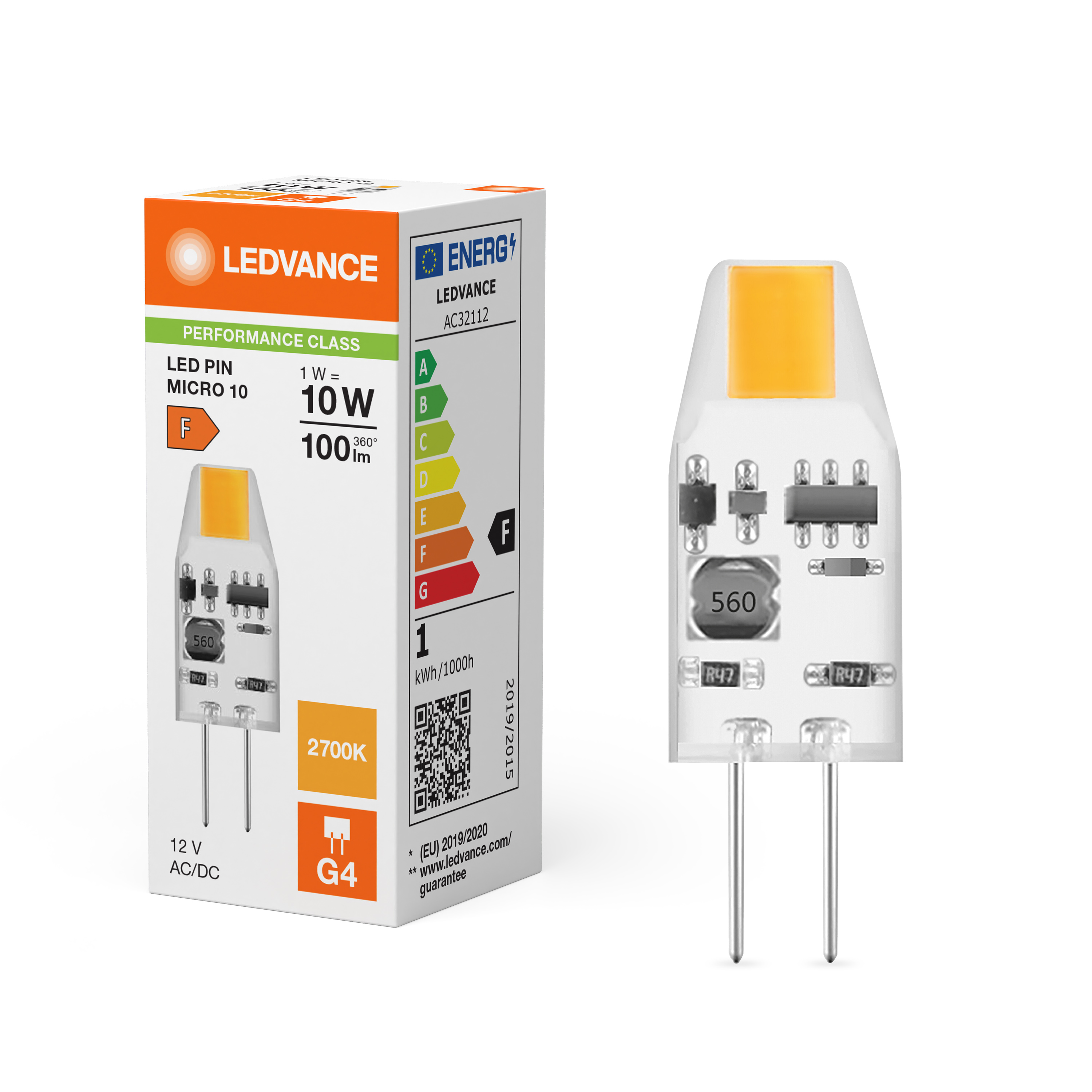

Combo Shot = Product Beauty Shot + Packaging Image
PIN MICRO 10 PFM 1W 827 G4

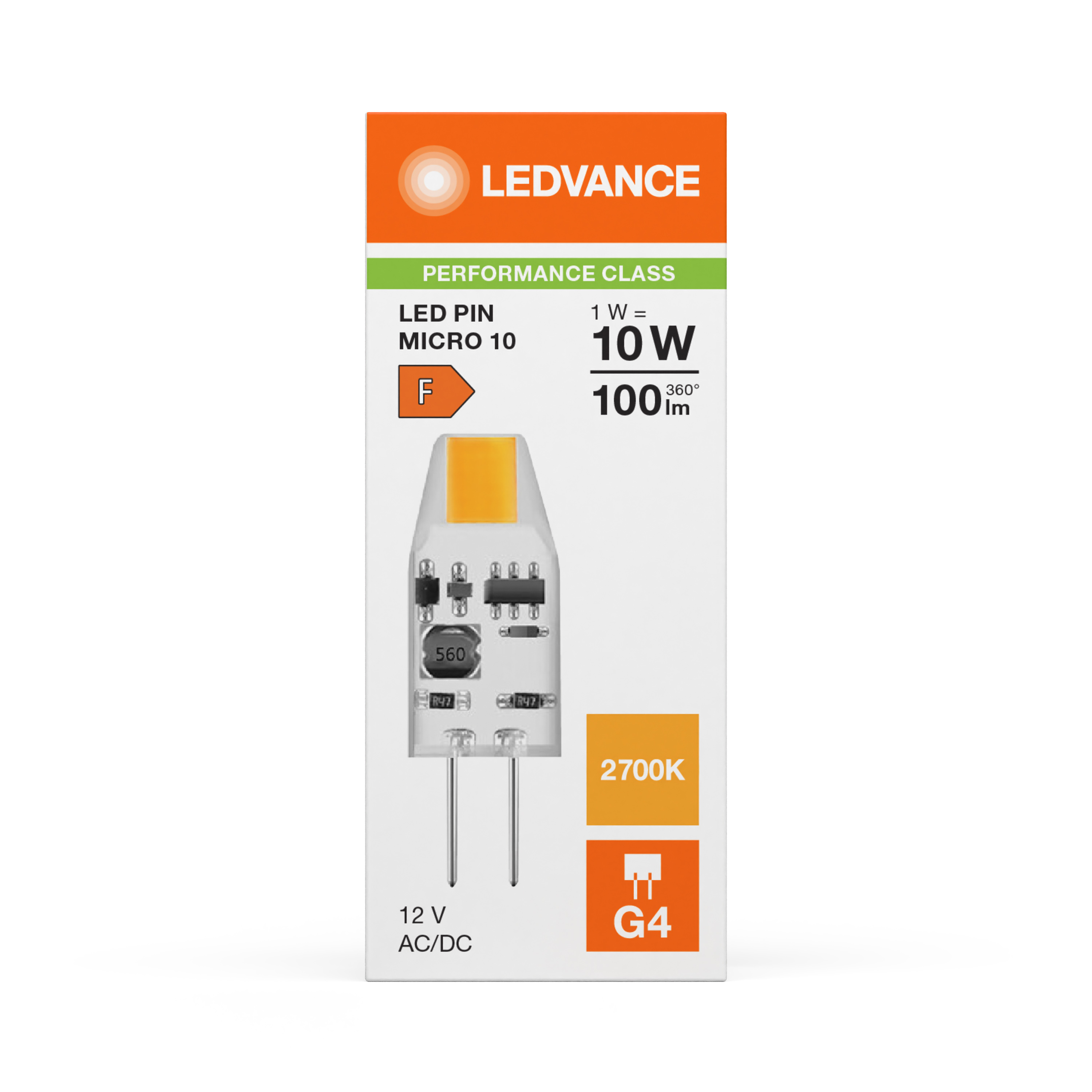

Packaging image, frontal
PIN MICRO 10 PFM 1W 827 G4

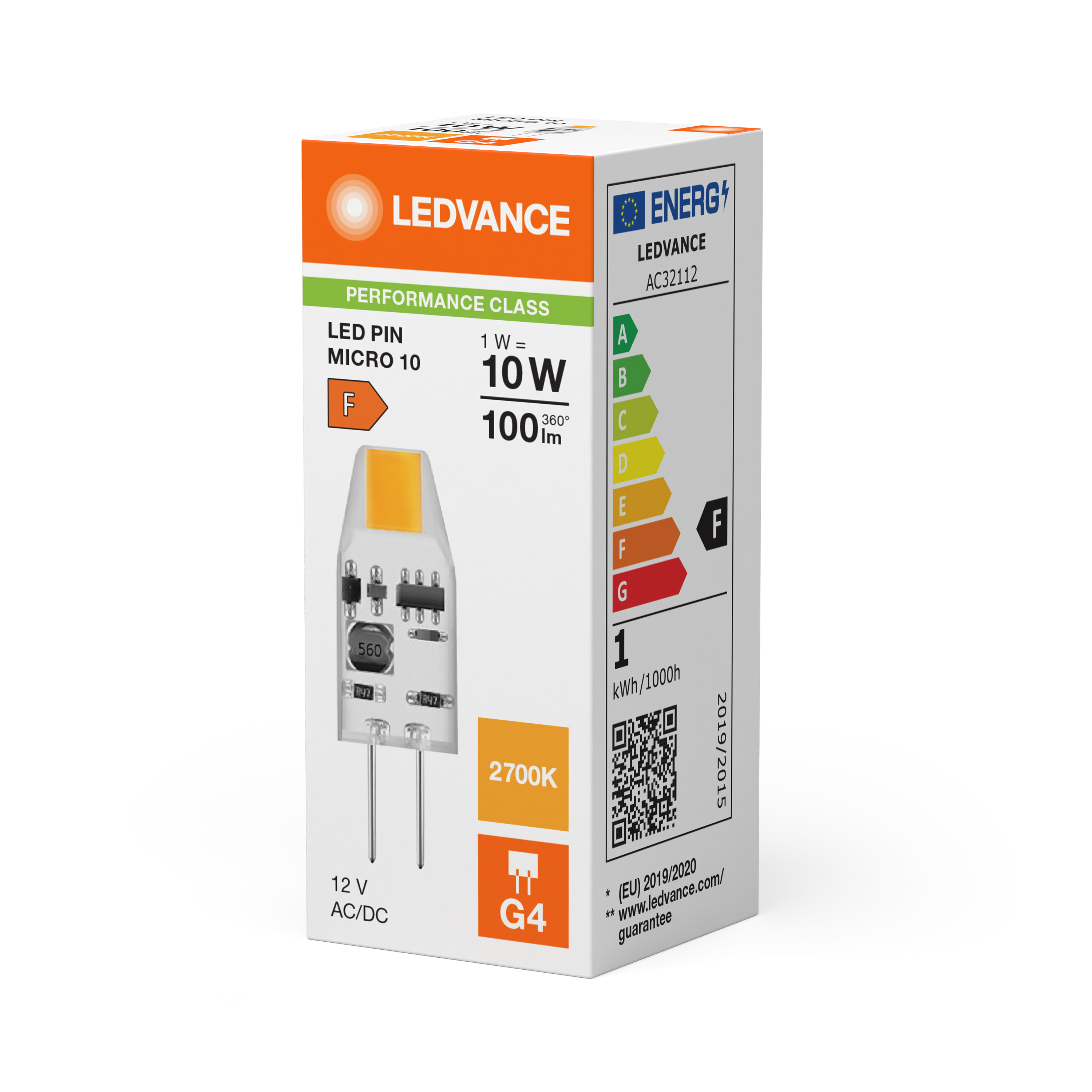

Packaging image, spacial
