RENOVATION LAMPS WITH TERMINAL BLOCK
Renovation Lamp Classic A75 Terminal Block 10W 840 Triple Pack
GTIN: 4058075845947
Folding box / 3
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Ideal light for construction sites, renovations, or moving
- Can be easily and quickly fitted
- Offered in a closed box, the integrated terminal block ensures safe installation on the wall or ceiling
Areas of application
- New construction sites or apartments and houses for temporary light
- Practical temporary light for indoor ceiling or wall installation
- For indoor use only
Product features
- The lamp has an integrated power cable, including the terminal block
- The lamp can be directly connected to AC 220 - 240 V without a socket
- A strong lumen output with 1050 lm at 4000 K provides bright and energy efficient light
- The light source is not replaceable
Equipment / Accessories
- Integrated 13-cm long power cable and the terminal block in closed box
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
Electrical data
| Nominal wattage | 10.00 W |
| Nominal voltage | 220…240 V |
| Nominal current | 70.000 mA |
| Type of current | AC |
| Inrush current | 6.4 A |
| Operating frequency | 50/60 Hz |
| Mains frequency | 50/60 Hz |
| Power factor λ | > 0.5 |
Photometrical data
| Luminous flux | 1055 lm |
| Luminous efficacy | 105 lm/W |
| Light color (designation) | Cool white |
| Color temperature | 4000 K |
| Color rendering index Ra | > 80 |
| Light color | 840 |
| Standard deviation of color matching | ≤6 sdcm |
| Flickering metric (Pst LM) | 1 |
| Stroboscope effect metric (SVM) | 0.4 |
Light technical data
| Beam angle | 200 ° |
Dimensions & Weight
| Diameter | 60.00 mm |
| Product weight | 55.00 g |
Temperatures & operating conditions
| Ambient temperature range | -20…+40 °C |
Lifespan
| Lifespan L70/B50 at 25 °C | 15000 h |
Additional product data
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Product remark | Available from October 2024 |
Capabilities
| Dimmable | No |
Certificates & Standards
| Type of protection | IP20 |
| Standards | CE, EAC, UKCA |
| Photobiological safety group acc. to EN62778 | RG1 |
Country-specific categorizations
| Order reference | RENOVATION CLA7 |
LOGISTICAL DATA
| Temperature range at storage | -20…+80 °C |
Energy labelling regulation data acc EU 2019/2015
| Length | 98.00 mm |
| Height | 291.00 mm |
| Width | 60.00 mm |
| R9 Colour rendering index | 1 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075845947 | Folding box 3 |
66 mm x 186 mm x 117 mm | 195.00 g | 1.44 dm³ |
| 4058075845954 | Shipping box 30 |
343 mm x 193 mm x 249 mm | 2063.00 g | 16.48 dm³ |
User instruction / safety instructions
Renovation lamps
Renovation lamps
Declarations of conformity
Luminaires
Luminaires

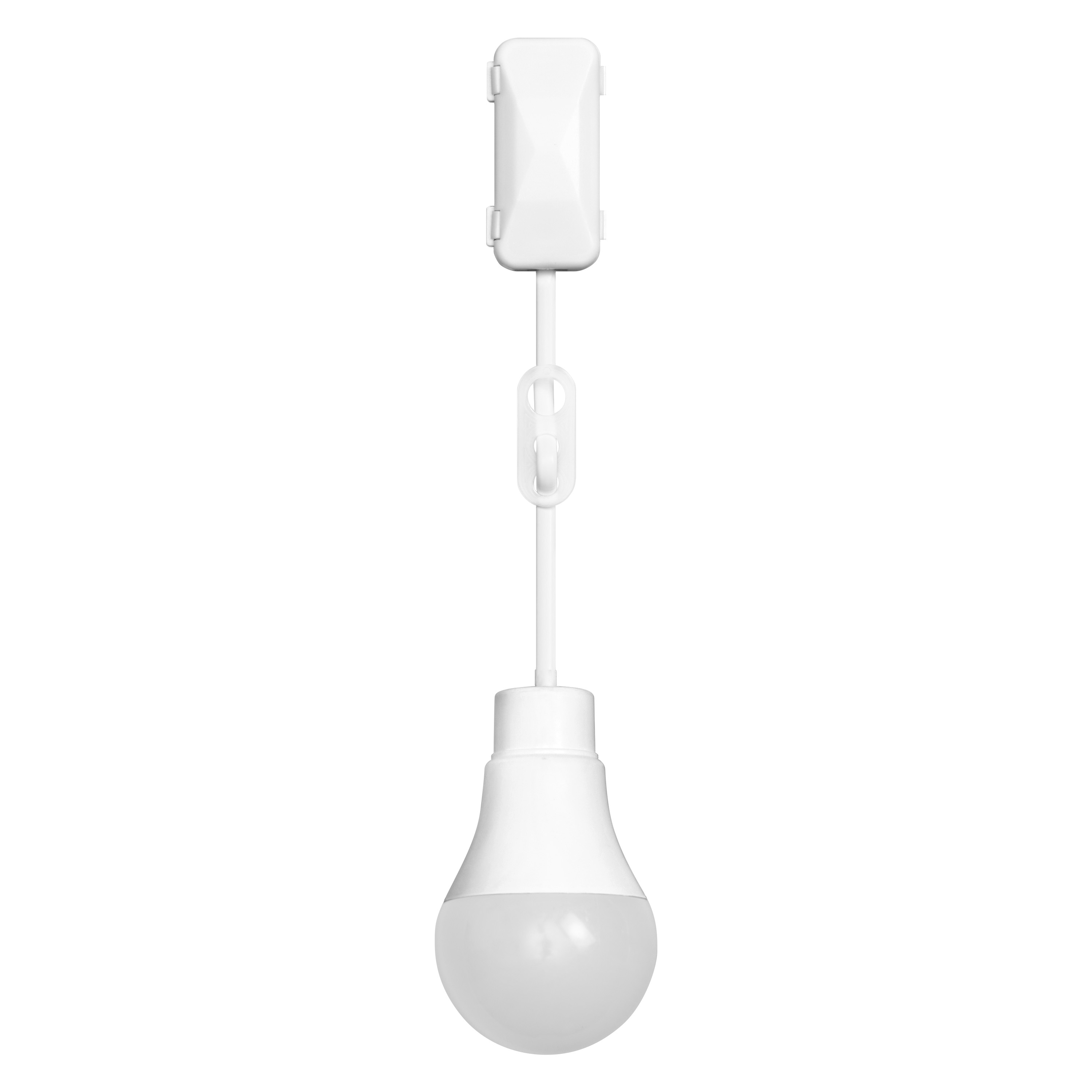

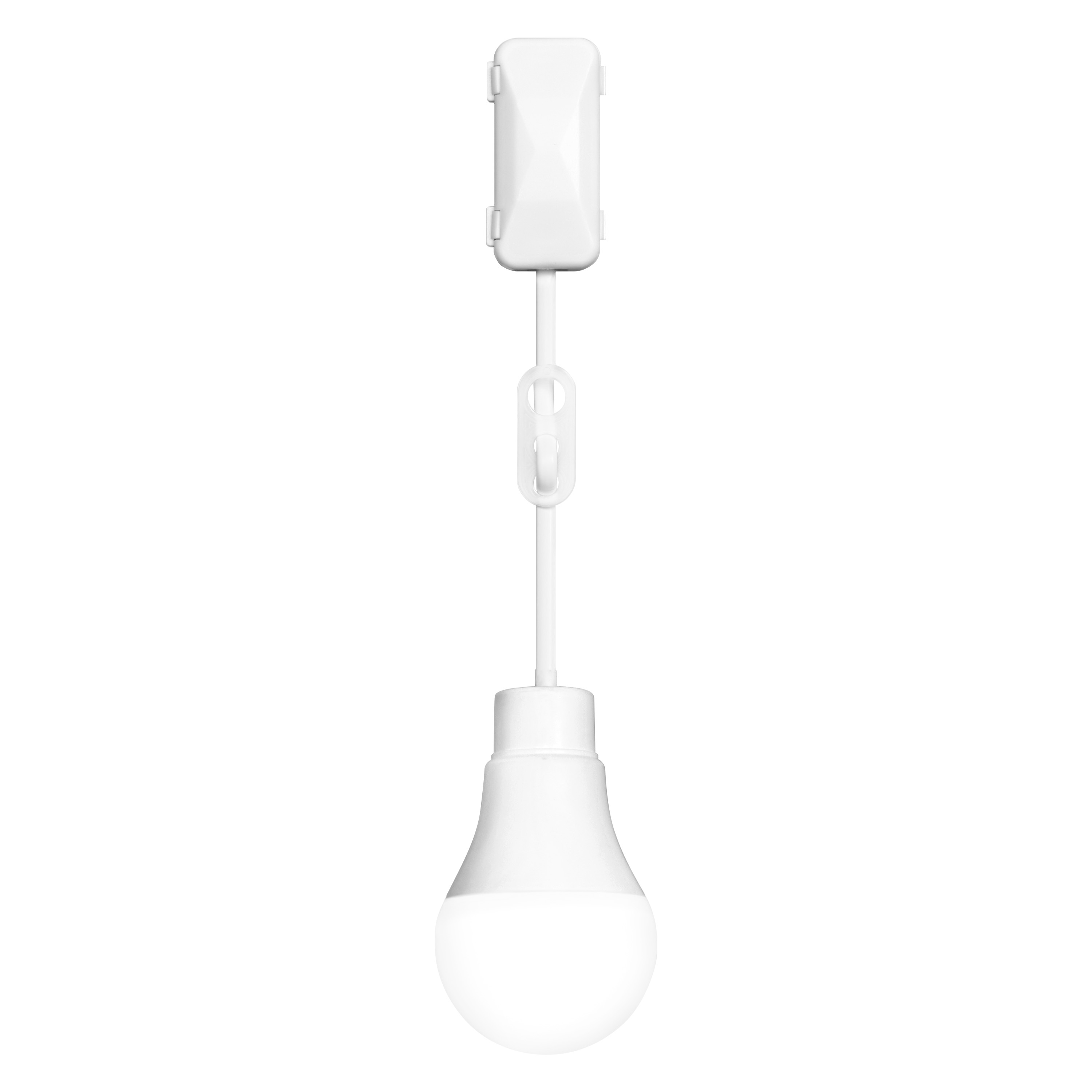

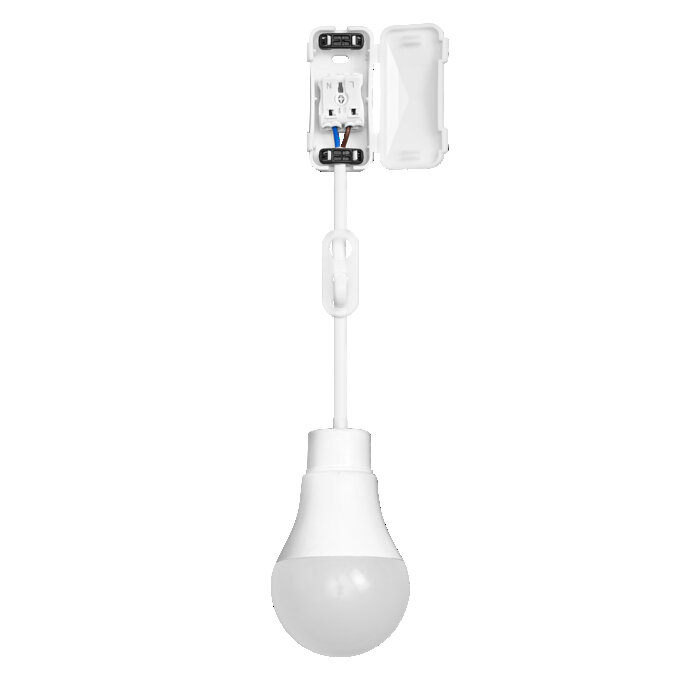

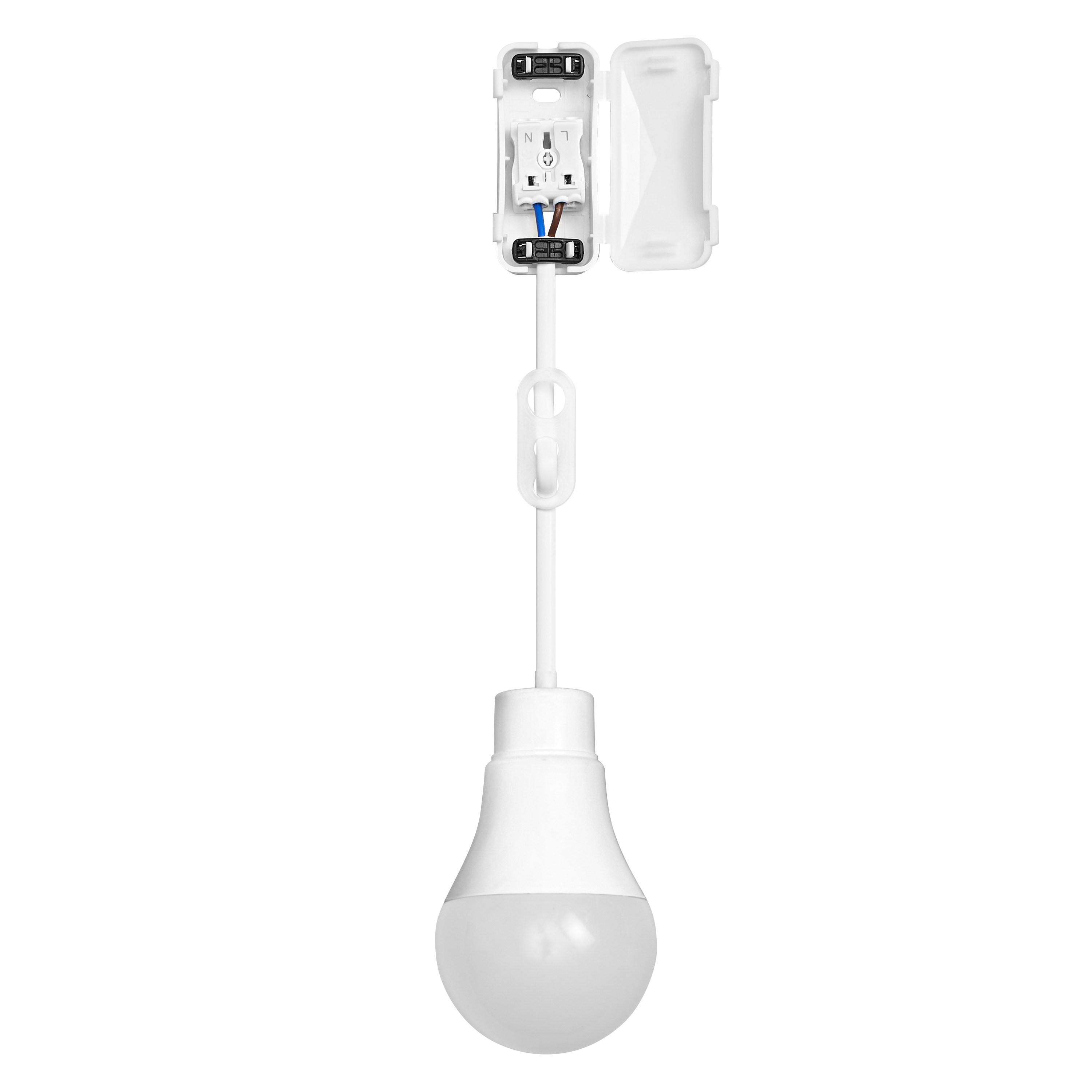

Product image: white background, upright
RENOVATION CLA75 TB 4000 K
RENOVATION CLA75 TB 4000 K
Product image: white background, upright
RENOVATION CLA75 TB 4000 K
RENOVATION CLA75 TB 4000 K
Product image: white background, upright
RENOVATION CLA75 TB 4000 K
RENOVATION CLA75 TB 4000 K

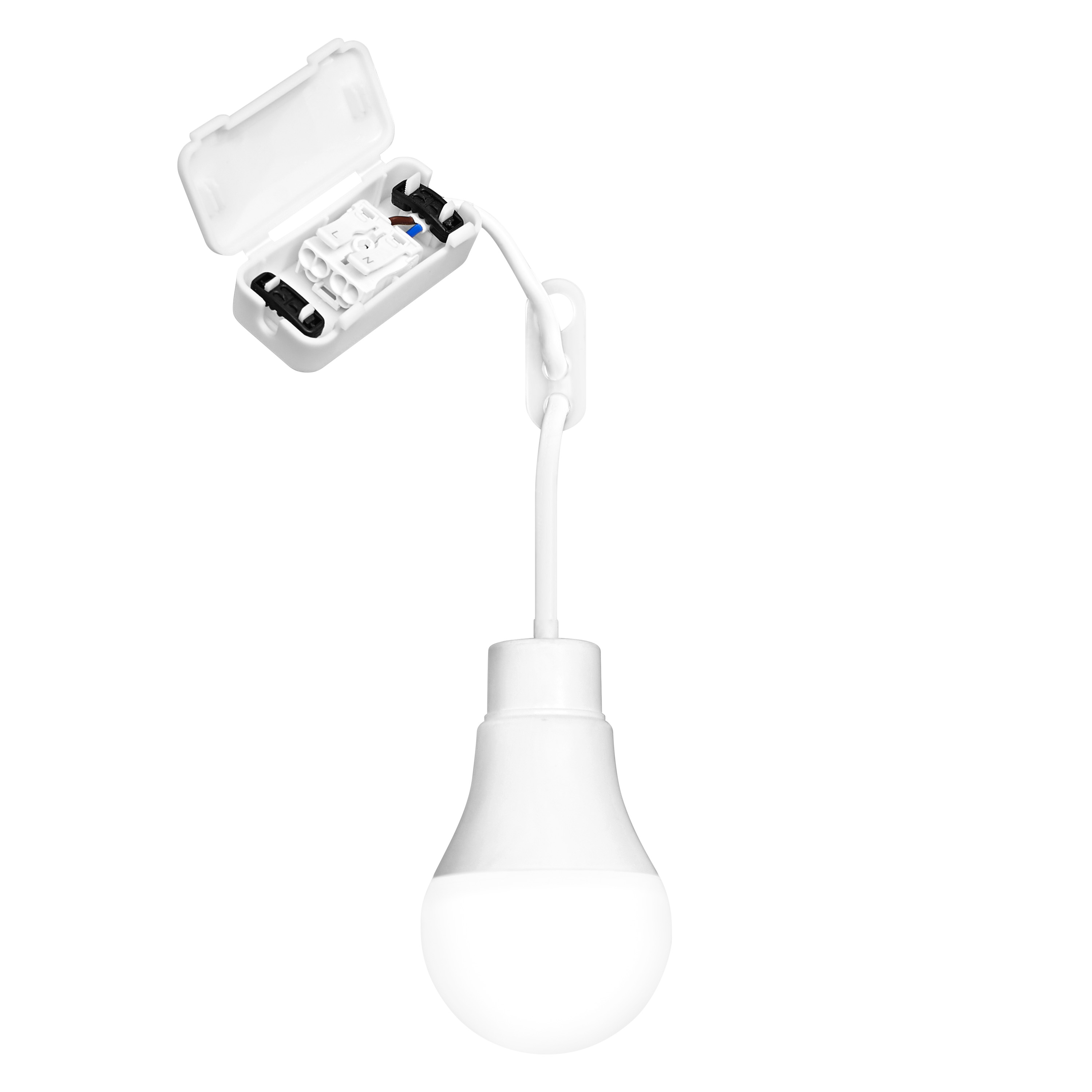

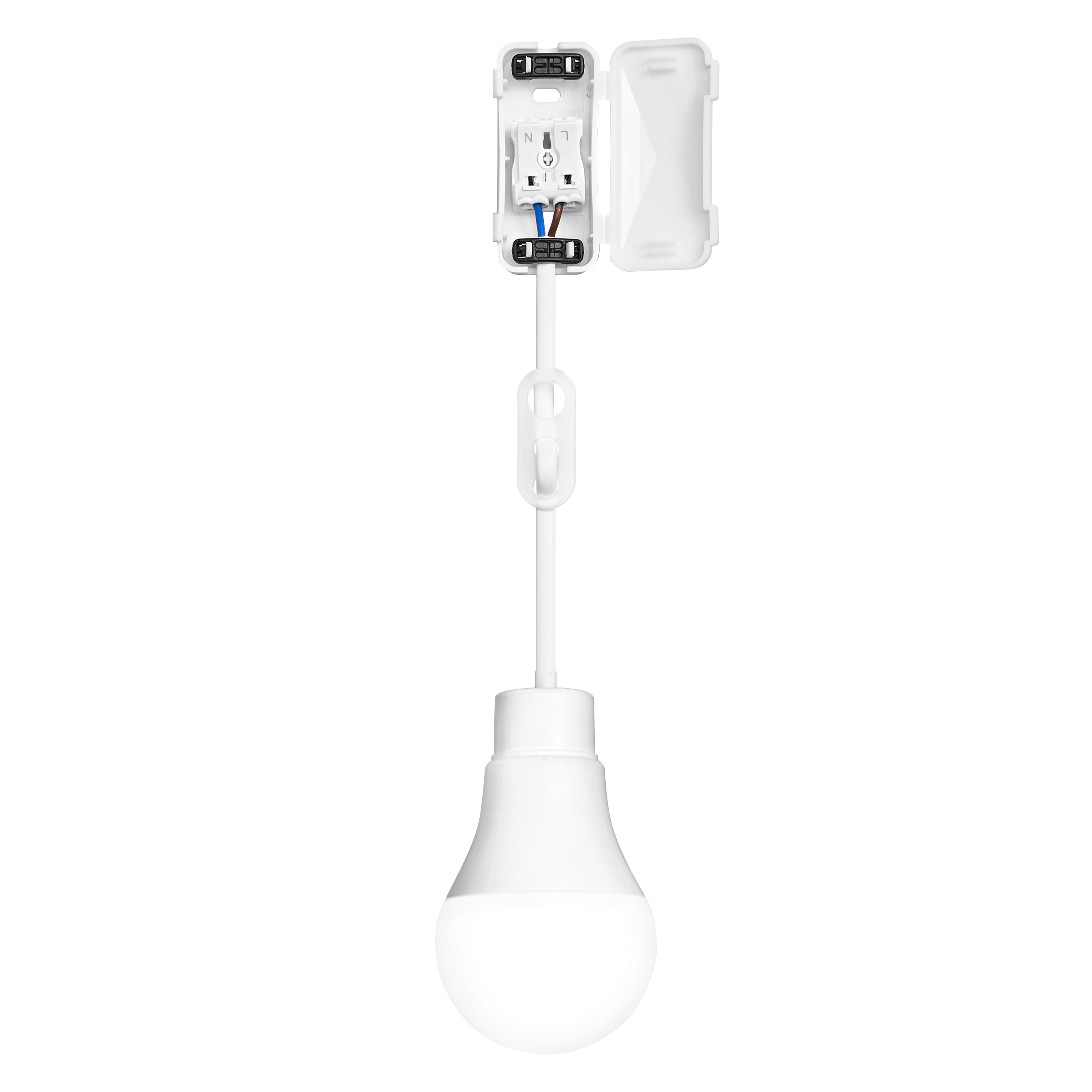

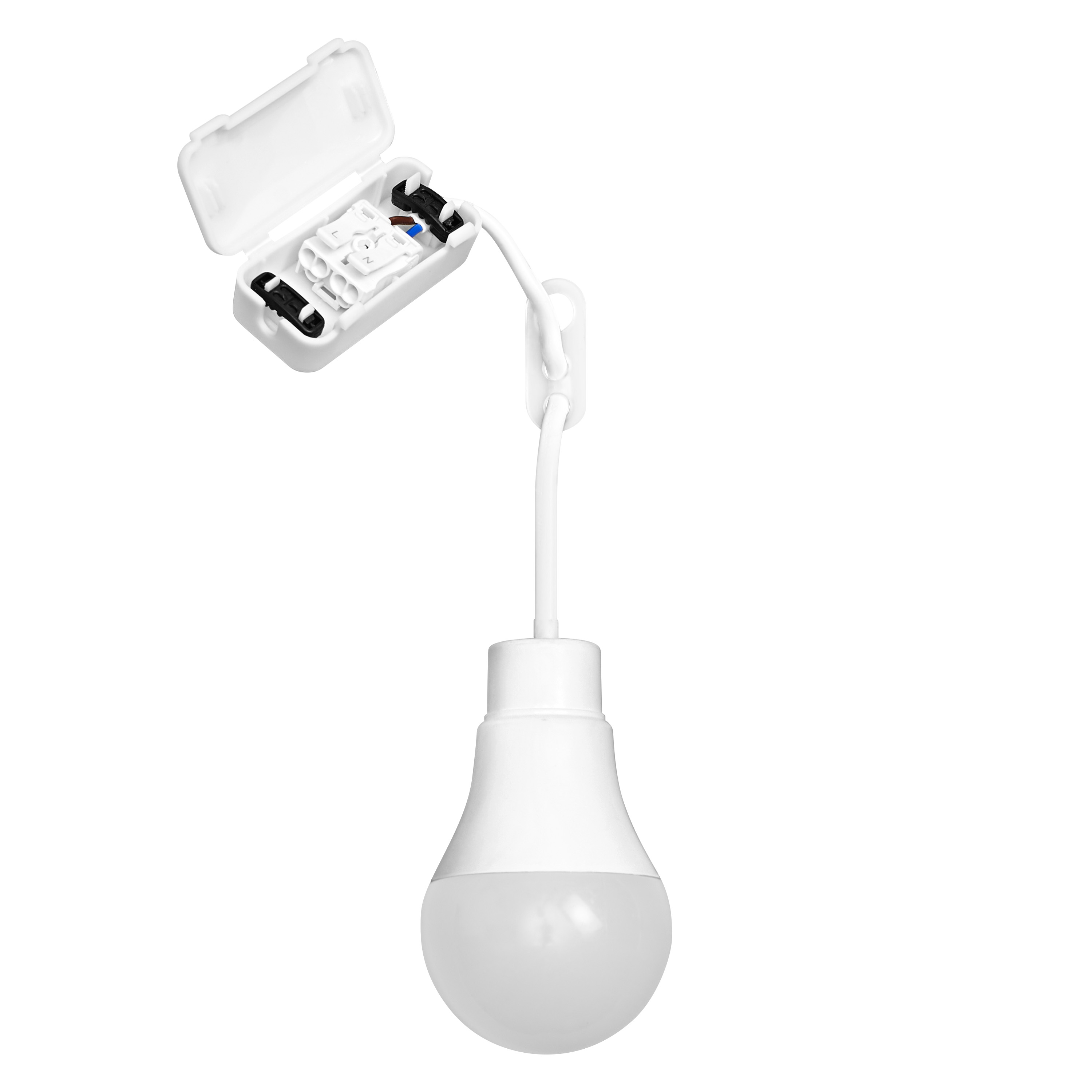

Product image: white background, upright, switched on
RENOVATION CLA75 TB 4000 K
RENOVATION CLA75 TB 4000 K
Product image: white background, upright, switched on
RENOVATION CLA75 TB 4000 K
RENOVATION CLA75 TB 4000 K
Product image: white background, upright, switched on
RENOVATION CLA75 TB 4000 K
RENOVATION CLA75 TB 4000 K
Product image: white background, upright, switched on
RENOVATION CLA75 TB 4000 K
RENOVATION CLA75 TB 4000 K

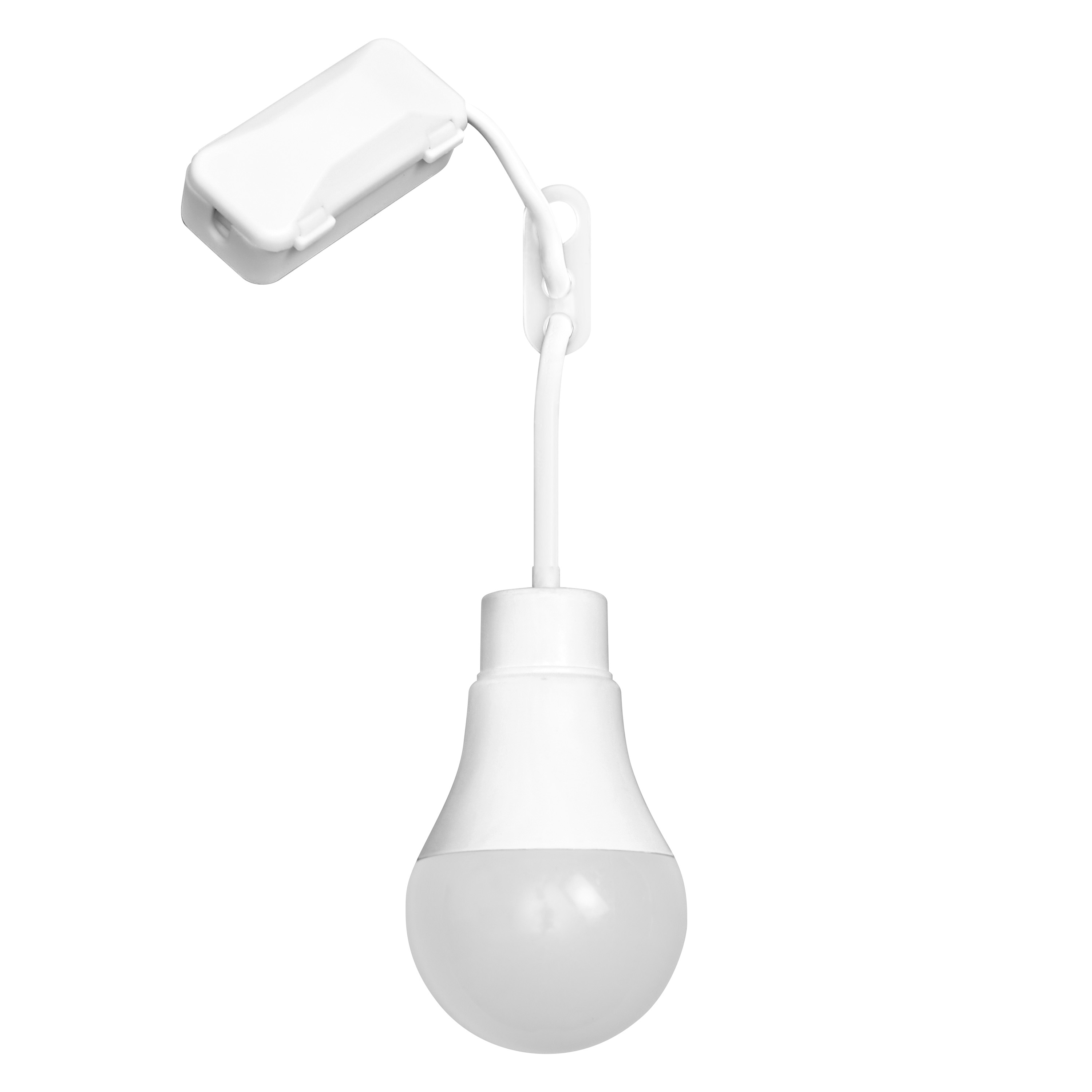

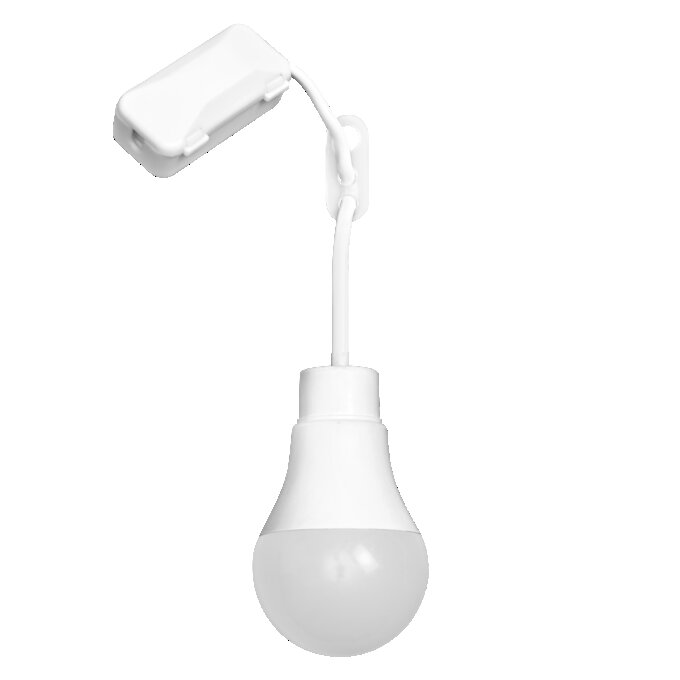

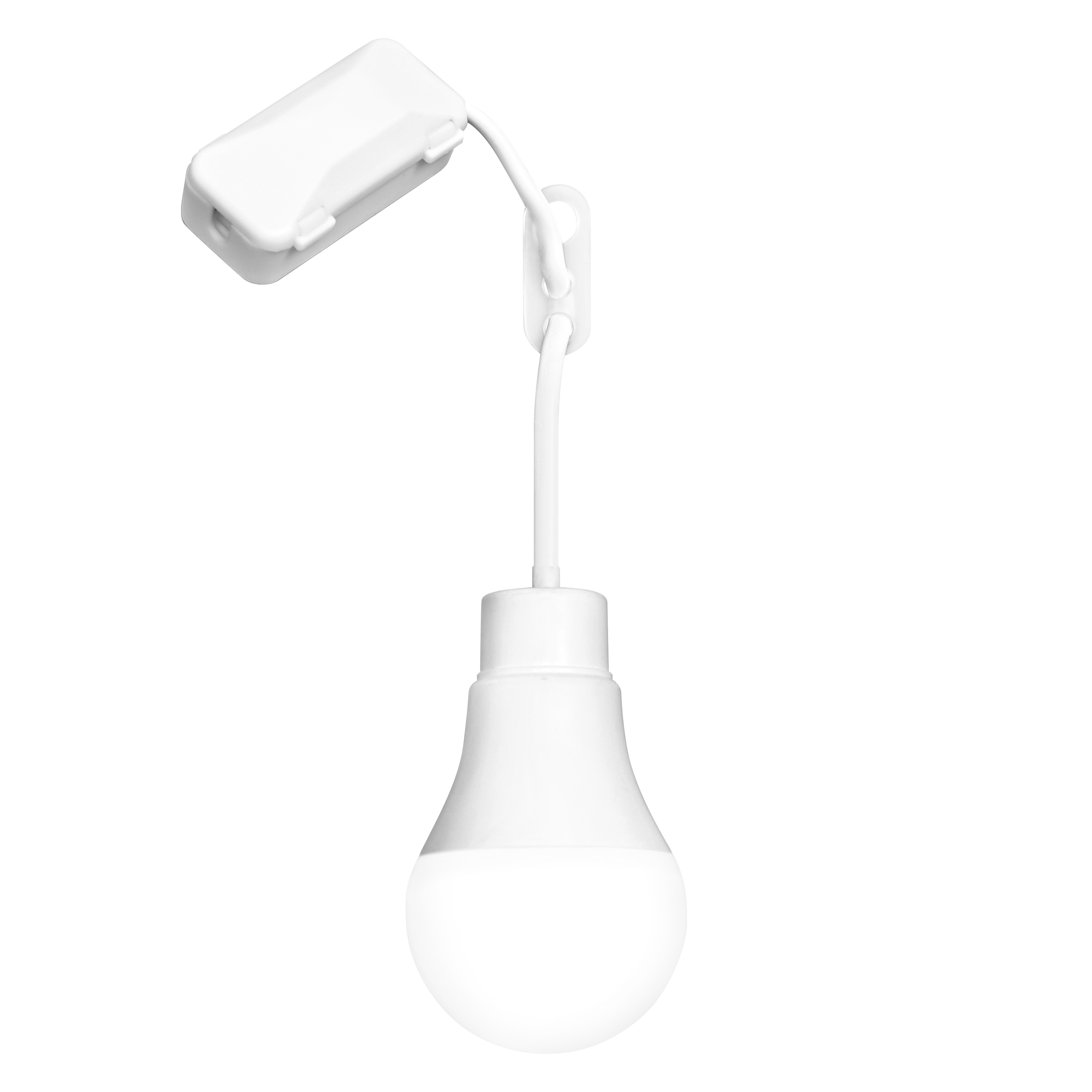

Product image: white background, spacial
RENOVATION CLA75 TB 4000 K
RENOVATION CLA75 TB 4000 K
Product line drawing with letters
RENOVATION CLA75 DCL 4000 K
RENOVATION CLA75 DCL 4000 K
Product line drawing with numbers
RENOVATION CLA75 DCL 4000 K
RENOVATION CLA75 DCL 4000 K
Product line drawing, front, no dimensions
RENOVATION CLA75 DCL 4000 K
RENOVATION CLA75 DCL 4000 K

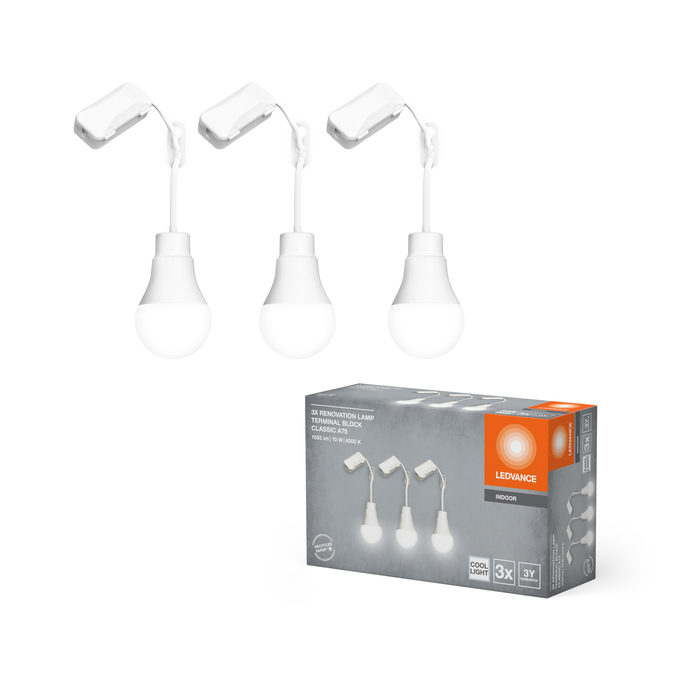

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC RENOV CLA75 TB 10W 840 3
LUM FC RENOV CLA75 TB 10W 840 3
Packaging image, frontal
LUM FC RENOV CLA75 TB 10W 840 3
LUM FC RENOV CLA75 TB 10W 840 3
Packaging image, spacial
LUM FC RENOV CLA75 TB 10W 840 3
LUM FC RENOV CLA75 TB 10W 840 3
Application pictures Getty
RENOVATION LAMP
RENOVATION LAMP
| EAN | ELDAS number |
|---|---|
| 4058075845947 | 941392000 |
