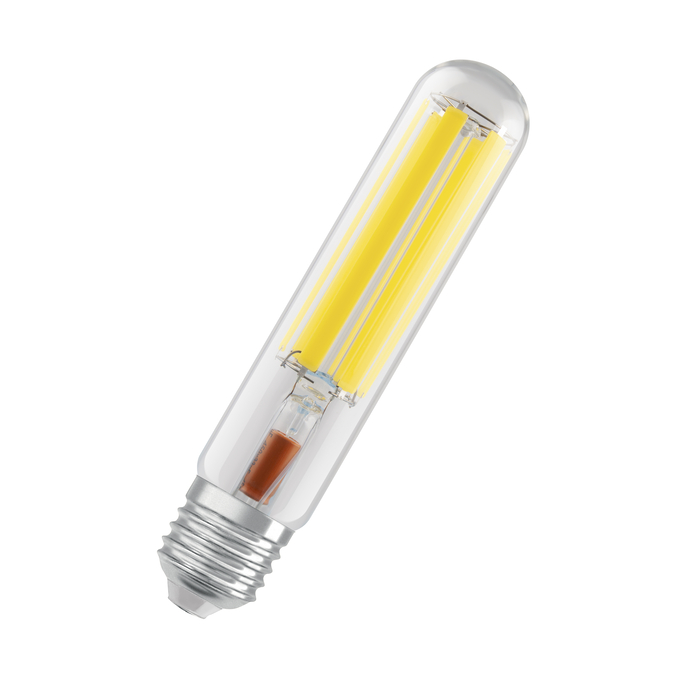

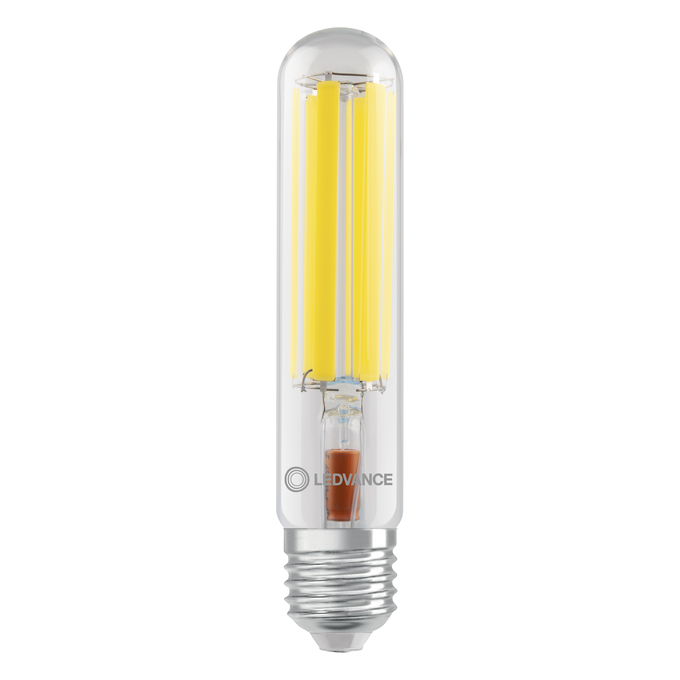

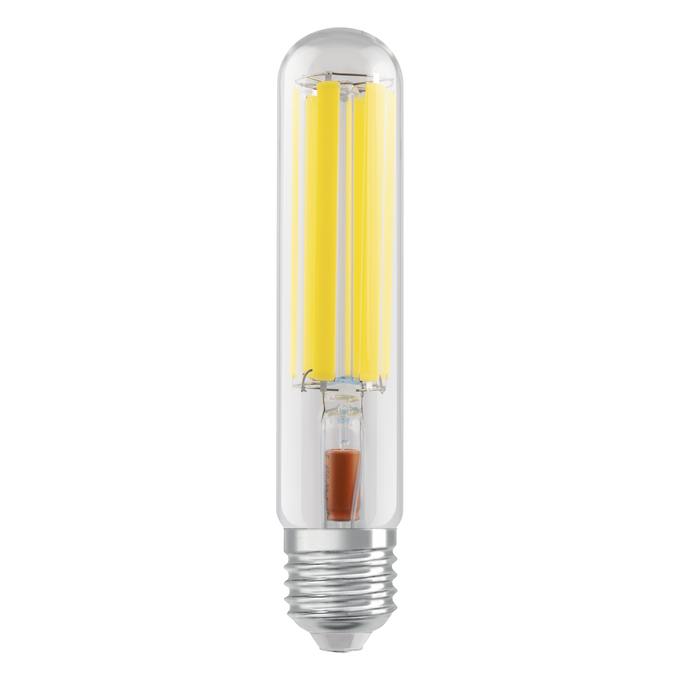

NAV 100 LED FILAMENT V 7500LM 41W 740 E40

GTIN: 4099854072079 Folding box / 1 Show all packages

Contact sales

Tools

Not suitable for operation with ignitors.
Operation on the capacitor can lead to a reduction of the power factor of the system.
When installed horizontally, the t_c point of the lamp is located on the top side of the lamp.
Use in tight luminaires and luminaires with tight reflectors not recommended.
Only suitable for temperatures of up to 50 °C inside of the luminaire. Use in tight luminaires and luminaires with tight reflectors not recommended.
All electrical connections must be made by a qualified person.

Nominal wattage	41 W
Construction wattage	41.00 W
Nominal voltage	220…240 V
Operating mode	CCG, AC Mains
Claimed equiv. conventional lamp power	100 W
Nominal current	175 mA
Type of current	AC
Inrush current	9.1 A
Operating frequency	50/60 Hz
Mains frequency	50/60 Hz
Max. lamp number on MCB B10 A	3
Max. lamp number on MCB B10 A - CCG without compensation	3
Max. lamp number on MCB B10 A - CCG with compensation	3
Max. lamp number on MCB B16 A	6
Max. lamp number on MCB B16 A - CCG without compensation	6
Max. lamp number on MCB B16 A - CCG with compensation	4
Total harmonic distortion	10 %
Power factor λ	> 0.90
Surge capability (L-N)	2 kV

Luminous intensity	Not relevant
Luminous flux	7500 lm
Nominal useful luminous flux 90°	7500 lm
Luminous efficacy	182 lm/W
Lumen main.fact.at end of nom.life time	0.70
Light color (designation)	Cool White
Color temperature	4000 K
Color rendering index Ra	70
Light color	740
Standard deviation of color matching	≤6 sdcm
Rated LLMF at 6,000 h	0.80
Flickering metric (Pst LM)	1
Stroboscope effect metric (SVM)	0,4

Ambient temperature range	-20…+50 °C ¹⁾
Maximum temperature at tc test point	90 °C

¹⁾ Temperature surrounding the lamp - for enclosed luminaires: temperature inside of the luminaire

Lifespan L70/B50 at 25 °C	25000 h
Number of switching cycles	100000
Lumen maintenance at end of service lifetime	0.70
Rated lamp survival factor at 6,000 h	≥ 0.90

Dimmable

Energy efficiency class	C ¹⁾
Energy consumption	41.00 kWh/1000h
Type of protection	IP65
Standards	CE, EAC, UKCA
Photobiological safety group acc. to EN62778	RG1

¹⁾ Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Order reference

NAV 100 LED FIL

Temperature range at storage

-20…+80 °C

Lighting technology used	LED
Non-directional or directional	NDLS
Mains or non-mains	MLS
Light source cap-type (or other electric interface)	E40
Connected light source (CLS)	No
Color-tuneable light source	No
Envelope	No
High luminance light source	No
Anti-glare shield	No
Correlated colour temperature type	SINGLE_VALUE
Claim of equivalent power	No
Length	225.00 mm
Height	46.00 mm
Width	46.00 mm
Chromaticity coordinate x	0,38
Chromaticity coordinate y	0,38
R9 Colour rendering index	0.00
Beam angle correspondence	SPHERE_360
Survival factor	0.9
Displacement factor	0.9
LED light source replaces a fluorescent light source	No
EPREL ID	1371174
Model number	AC46365,AC46365,AC46365,AC46365

Quantity of precious metals	Contains at least 10 mg
Quantity of rare earths	Contains at least 1 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume

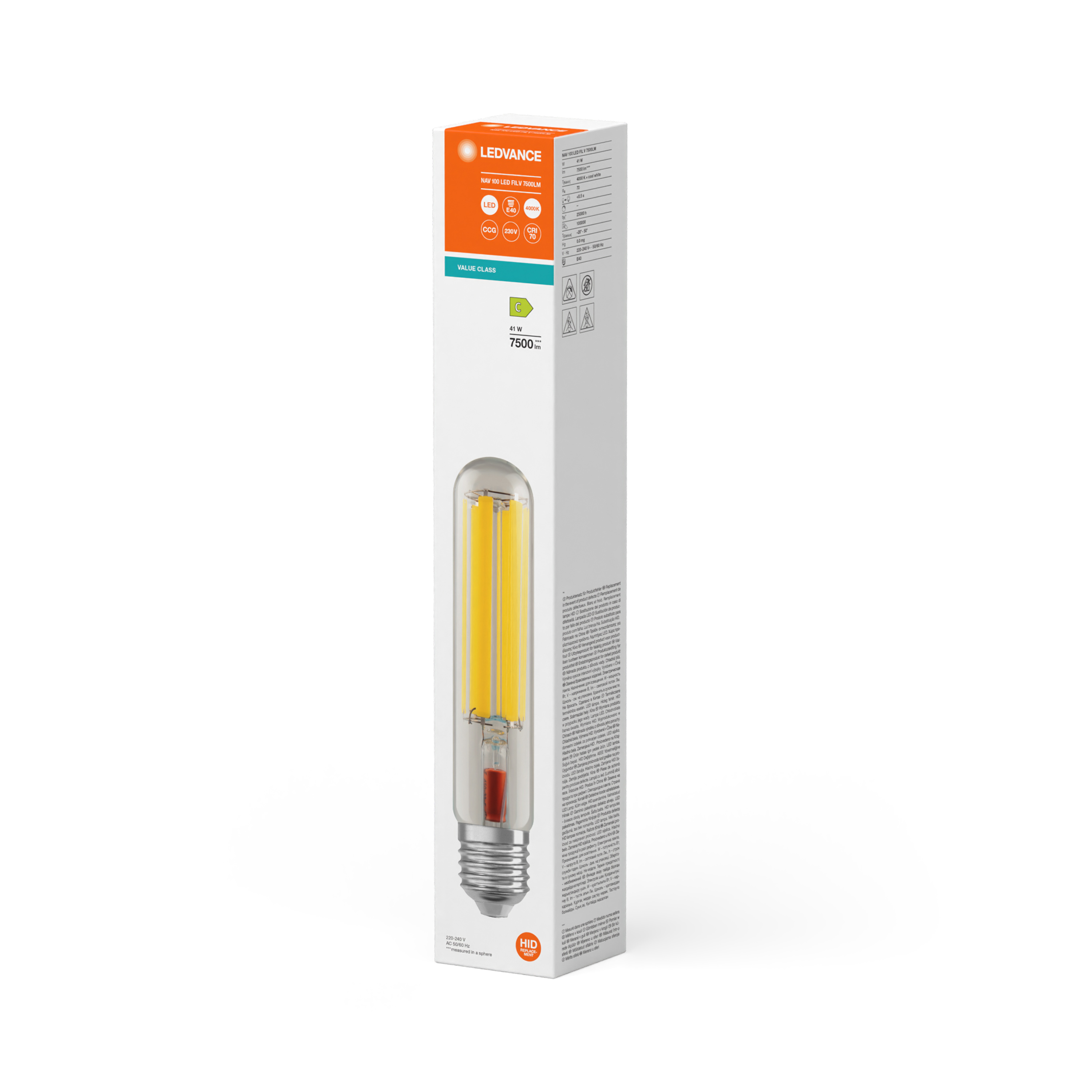

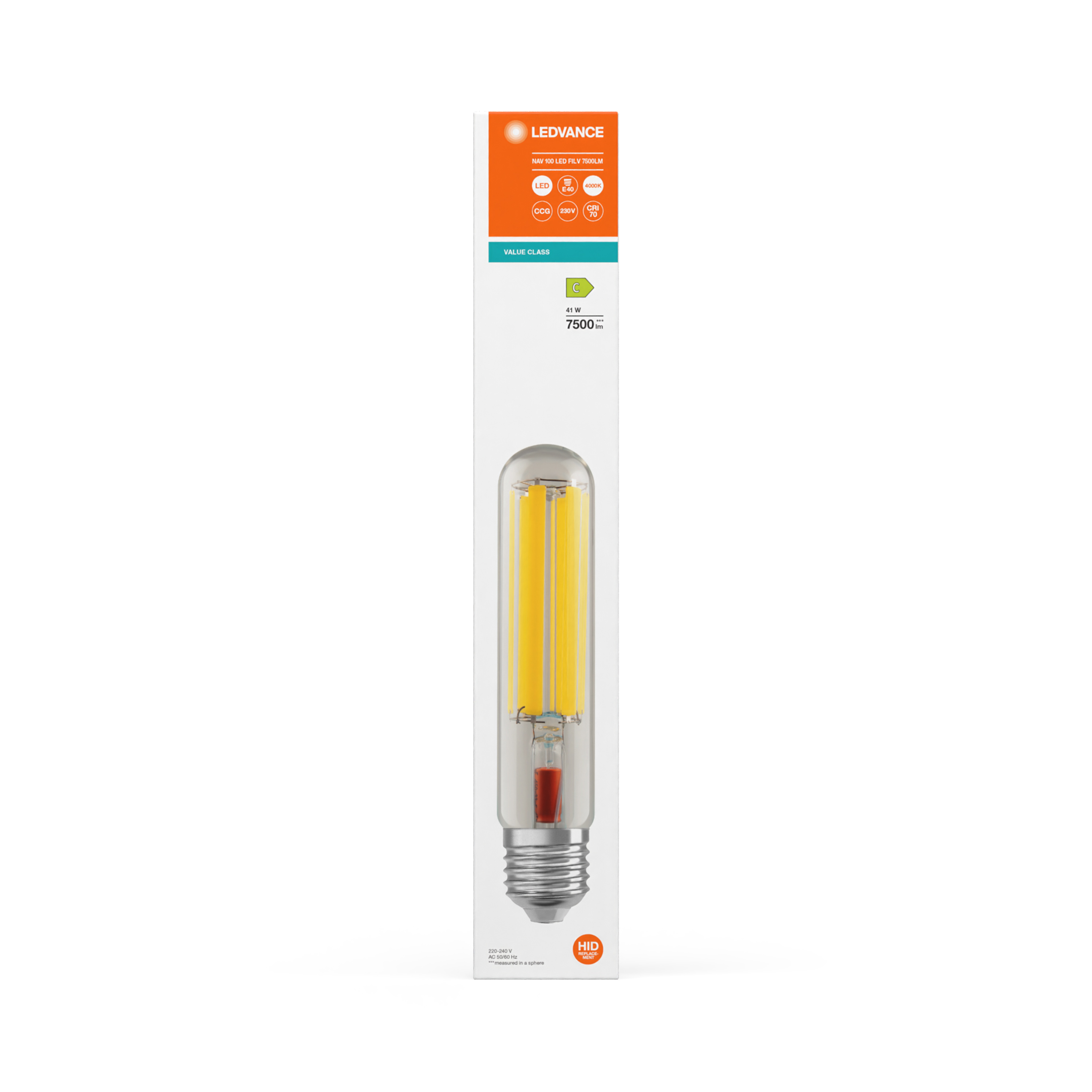

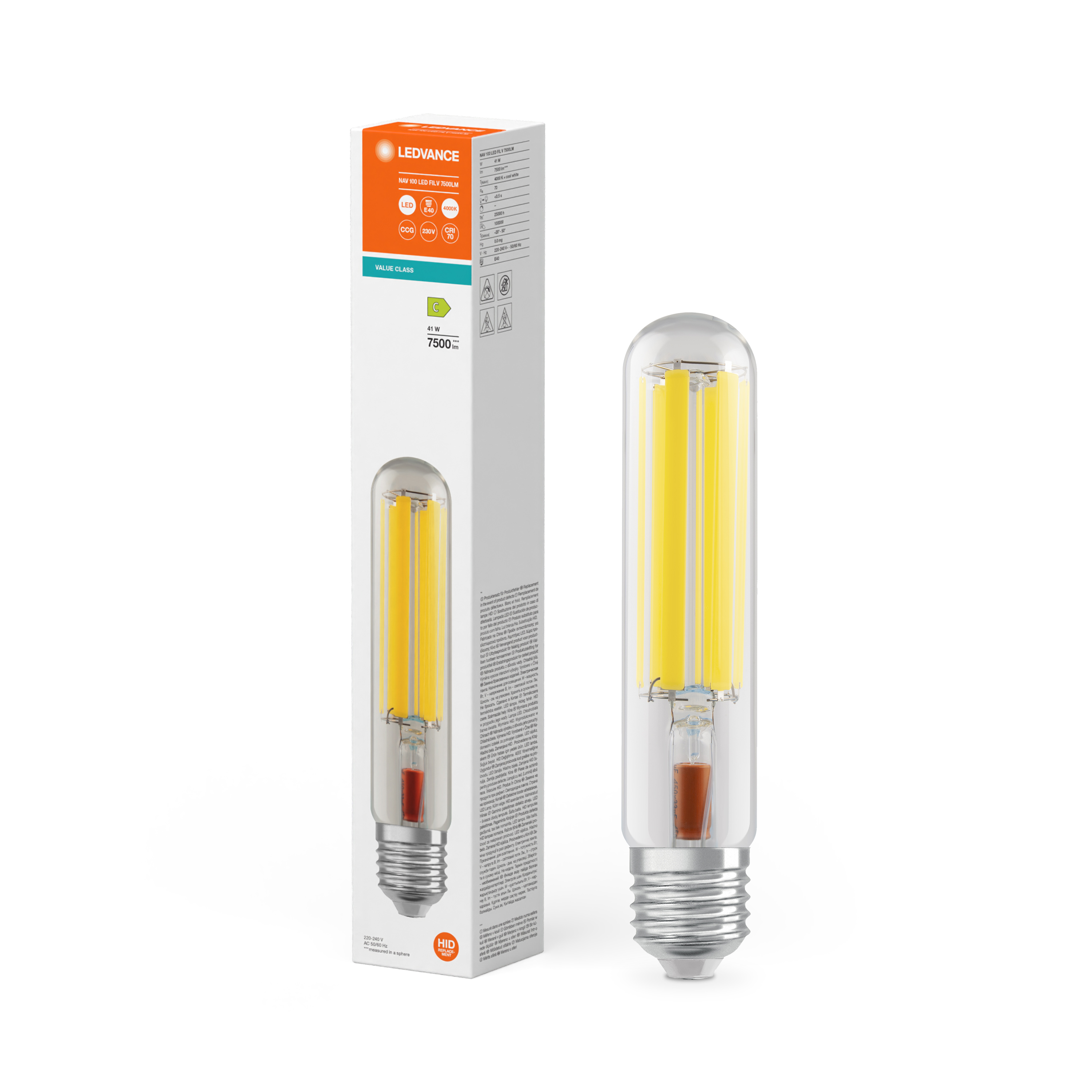

4099854072079	Folding box 1	52 mm x 52 mm x 311 mm	241.00 g	0.84 dm³
4099854072086	Shipping box 6	329 mm x 176 mm x 133 mm	1634.00 g	7.70 dm³
4099854319730	Shipping box 6	235 mm x 180 mm x 340 mm	1893.00 g	14.38 dm³
