DULUX LED SQ EM & AC MAINS V

DULUX LED SQ28 EM & AC MAINS V 13W 830 GR8

GTIN: 4058075822573 Folding box / 1 Show all packages
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Easy installation
  • Low energy consumption
  • Easy relamping thanks to compact design
  • Operation directly on 230 V AC mains possible
Areas of application
  • General illumination within ambient temperatures from -20…+45 °C
  • Supermarkets and department stores
  • Walkways and corridors
  • Hotels, restaurants
Product features
  • LED replacement for conventional compact fluorescent lamps for use in CCG luminaires or on AC mains
  • Lifetime up to 30,000 h
  • Single-ended two-pin plug-in GR8 base
  • Type of protection: IP20
  • Mercury-free lamps
Safety advice
  • Not suitable for tandem operation.
  • The operating temperature range of DULUX LED is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
  • All electrical connections must be made by a qualified person.
  • Do not touch the lamp with bare fingers.
  • Must not be used if outer bulb is defective.
  • Lamp not suitable for emergency operation.
Electrical data
Nominal wattage 13 W
Construction wattage 13.00 W
Nominal voltage 220…240 V
Operating mode CCG, AC Mains
Claimed equiv. conventional lamp power 28 W
Nominal current 57 mA
Type of current AC
Inrush current 6 A
Suitable for DC input Yes
Input voltage DC 186…260 V 1)
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 75
Max. lamp number on MCB B10 A - CCG without compensation 30
Max. lamp number on MCB B10 A - CCG with compensation 20
Max. lamp number on MCB B16 A 120
Max. lamp number on MCB B16 A - CCG without compensation 48
Max. lamp number on MCB B16 A - CCG with compensation 30
Total harmonic distortion ≤ 30 %
Power factor λ > 0.90
1) Permitted voltage range
Photometrical data
Luminous flux 1350 lm
Nominal useful luminous flux 90° 1350 lm
Luminous efficacy 103 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 3000 K
Color rendering index Ra 80
Light color 830
Standard deviation of color matching ≤6 sdcm
Flickering metric (Pst LM) 1.0
Stroboscope effect metric (SVM) 0.4
Light technical data
Beam angle 130 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s
Dimensions & Weight
Overall length 204.00 mm
Diameter 202.00 mm
Tube diameter 19,0 mm
Maximum diameter 19 mm
Product weight 132.00 g
Temperatures & operating conditions
Ambient temperature range -20…+45 °C 1)
Maximum temperature at tc test point 70 °C
1) Temperature surrounding the lamp - for enclosed luminaires: temperature inside of the luminaire
Lifespan
Lifespan L70/B50 at 25 °C 30000 h
Number of switching cycles 200000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90
Additional product data
Base (standard designation) GR8
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted
Capabilities
Dimmable No
Certificates & Standards
Energy efficiency class F 1)
Energy consumption 13.00 kWh/1000h
Type of protection IP20
Standards CE, EAC, UKCA
Photobiological safety group acc. to EN62778 RG0
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
Country-specific categorizations
Order reference DULUX LED SQ28
LOGISTICAL DATA
Temperature range at storage -20…+80 °C
Energy labelling regulation data acc EU 2019/2015
Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) GR8
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0 W
Claim of equivalent power No
Length 204.00 mm
Height 202.00 mm
Width 202.00 mm
Chromaticity coordinate x 0.433
Chromaticity coordinate y 0.403
R9 Colour rendering index 1
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor 0.90
LED light source replaces a fluorescent light source No
EPREL ID 1404786,2059896
Model number AC46464,AC64990,AC64990
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075822573 Folding box
1
46 mm x 216 mm x 217 mm 173.00 g 2.16 dm³
4058075822580 Shipping box
10
468 mm x 224 mm x 231 mm 1973.00 g 24.22 dm³
User instruction / safety instructions
DULUX LED SQ V
Extended installation guide
Installation instructions LED TUBE T8, T5 und DULUX LED 2024 10 EN
Legal information
Informationstext 18 Abs 4 ElektroG
Declarations of conformity
DULUX LED
Product datasheet -> old version of product
DULUXLEDSQ28EM&ACMAINS V13W830GR8en
Product image: white background, diagonal with LEDVANCE logo
DULUX LED SQ28 13 W LEDV
Product image: white background, diagonal
DULUX LED SQ28 13 W LEDV
Product image: white background, upright LEDVANCE logo
DULUX LED SQ28 13 W LEDV
Product image: white background, upright
DULUX LED SQ28 13 W LEDV
Product line drawing with letters
DULUX LED SQ16 SQ28
Product line drawing with numbers
DULUX LED SQ28 13 W LEDV
Product line drawing - technical
DULUX LED SQ EM

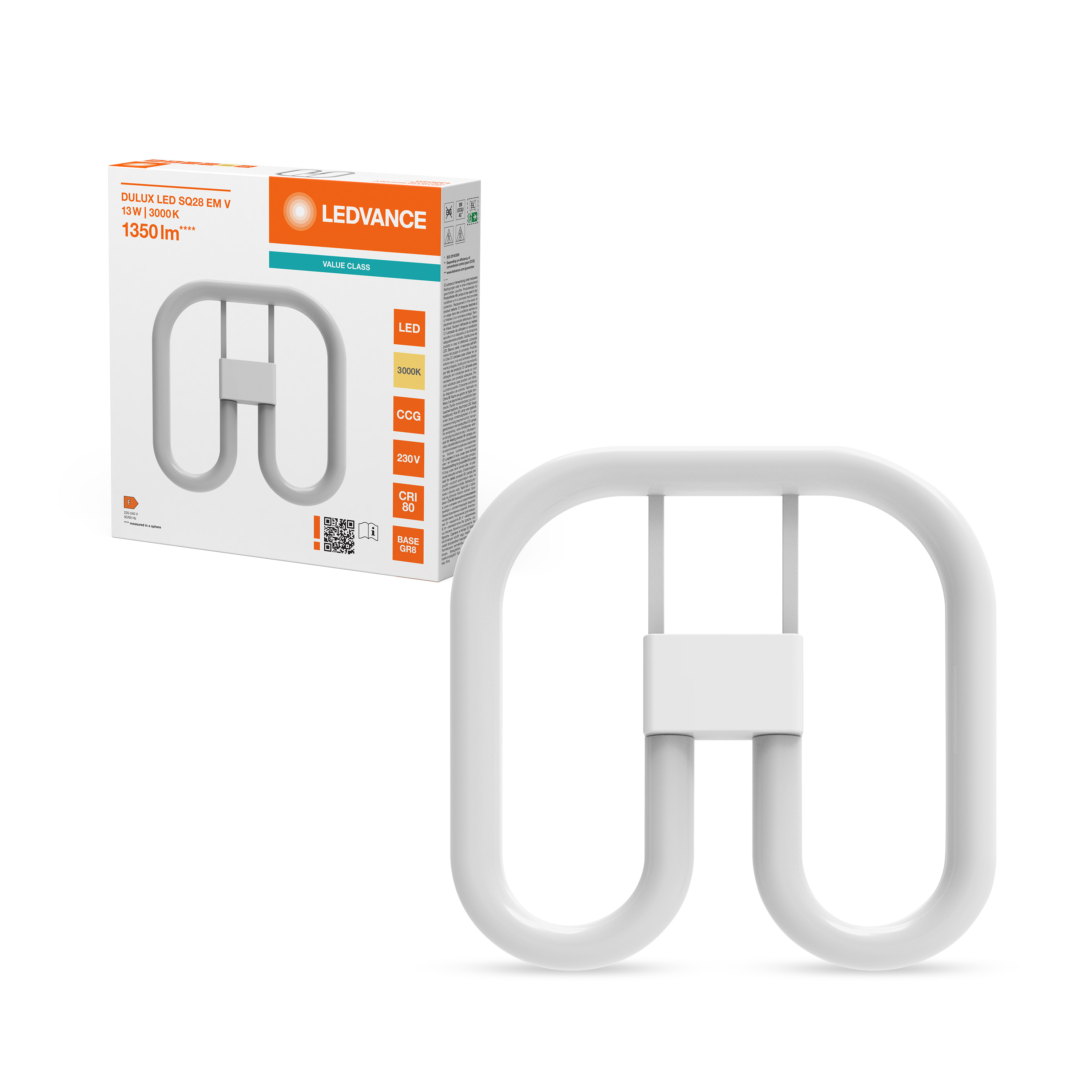

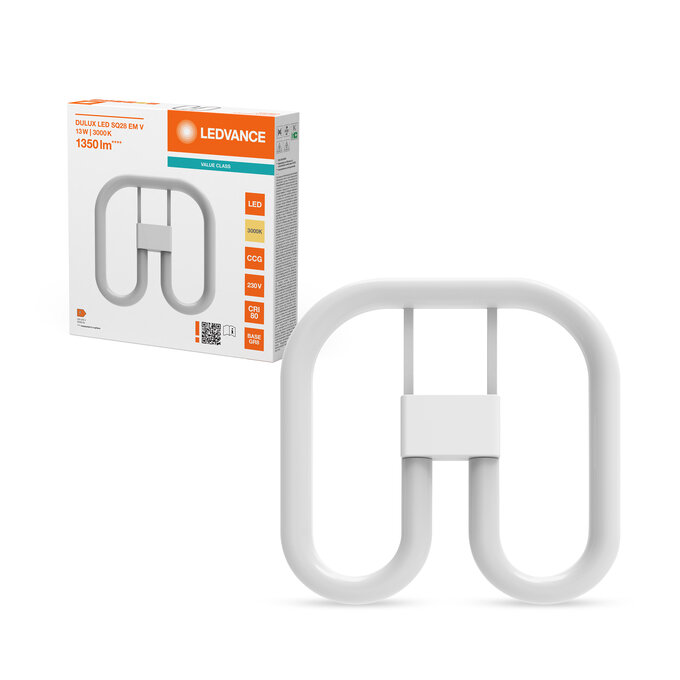

Combo Shot = Product Beauty Shot + Packaging Image
Dulux LED SQ28 EM V
Packaging image, frontal
Dulux LED SQ28 EM V
Packaging image, spacial
Dulux LED SQ28 EM V
Catalog info 6
LIFETIME CURVE TC_DULUX LED SQUARE EM 12W 28W
Energy label
EL-4058075822573-AC464 64
Energy label
EL-4058075822573-AC649 90
IES file (IES)
DULUX LED SQ28 EM V 13W 830 GR8 LEDV
LDT file (Eulumdat)
DULUX LED SQ28 EM V 13W 830 GR8 LEDV

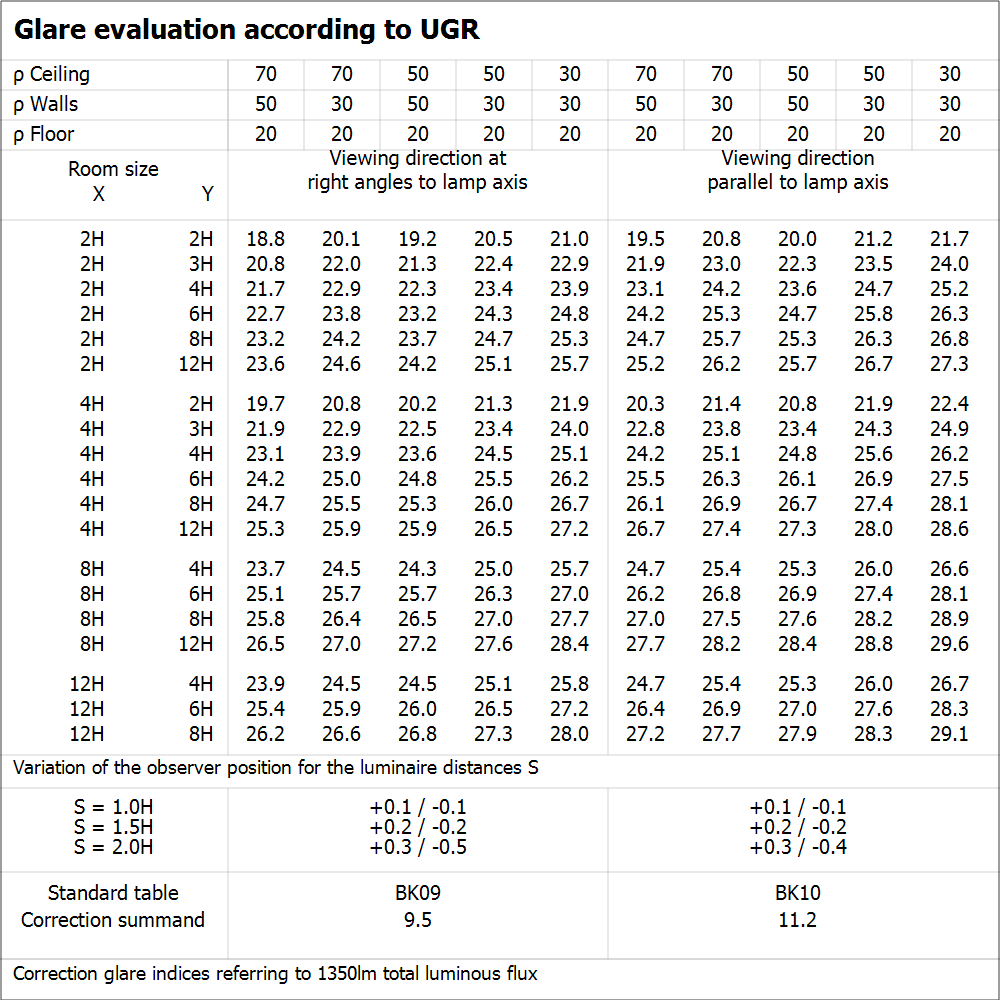

UGR file (UGR table)
