LED CLASSIC A ENERGY EFFICIENCY A S
LED Classic A 40 Filament Energy efficiency class A 2.2W 830 Clear E27
GTIN: 0
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Lamps with innovative LED "filament" technology
- Design, dimensions, luminous flux comparable to a halogen lamp
- Low energy consumption
- Instant 100 % light, no warm-up time
- Low flickering
Areas of application
- Perfect for decorative installations
- Domestic applications
- General illumination
- Outdoor use in suitable outdoor luminaires only
Product features
- LED lamps for line voltage
- Beam angle: up to 300°
- Very long lifetime of up to 50,000 h
- Very high number of switching cycles 500,000
- Luminous efficacy: up to 210 lm/W
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
Electrical data
| Nominal wattage | 2.2 W |
| Construction wattage | 2.20 W |
| Nominal voltage | 220…240 V |
| Operating mode | AC Mains |
| Claimed equiv. conventional lamp power | 40 W |
| Nominal current | 30 mA |
| Type of current | AC |
| Inrush current | 0.5 A |
| Operating frequency | 50/60 Hz |
| Mains frequency | 50/60 Hz |
| Max. lamp number on MCB B10 A | 266 |
| Max. lamp number on MCB B16 A | 426 |
| Power factor λ | ≥ 0.40 |
Photometrical data
| Luminous flux | 470 lm |
| Luminous efficacy | 213 lm/W |
| Lumen main.fact.at end of nom.life time | 0.96 |
| Light color (designation) | Warm White |
| Color temperature | 3000 K |
| Color rendering index Ra | 80 |
| Light color | 830 |
| Standard deviation of color matching | ≤6 sdcm |
| Rated LLMF at 6,000 h | 0.80 |
| Flickering metric (Pst LM) | ≤1.0 |
| Stroboscope effect metric (SVM) | ≤0.4 |
Light technical data
| Beam angle | 320 ° |
| Warm-up time (60 %) | ‹ 0.50 s |
| Starting time | < 0.5 s |
Dimensions & Weight
| Overall length | 105.00 mm |
| Diameter | 60.00 mm |
| Maximum diameter | 60 mm |
| Product weight | 35.00 g |
Temperatures & operating conditions
| Ambient temperature range | -20…+40 °C |
| Maximum temperature at tc test point | 42 °C |
Lifespan
| Lifespan L70/B50 at 25 °C | 50000 h |
| Number of switching cycles | 500000 |
| Lumen maintenance at end of service lifetime | 0.96 |
| Rated lamp survival factor at 6,000 h | ≥ 0.90 |
Additional product data
| Base (standard designation) | E27 |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Design / version | Clear |
| Product remark | All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value |
Capabilities
| Dimmable | No |
Certificates & Standards
| Energy efficiency class | A 1) |
| Energy consumption | 3.00 kWh/1000h |
| Type of protection | IP20 |
| Standards | CE, ERP, ROHS, REACH, UKCA |
| Photobiological safety group acc. to EN62778 | RG1 |
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
Country-specific categorizations
| Order reference | LSSPCLA40 2,2W/ |
LOGISTICAL DATA
| Temperature range at storage | -20…+80 °C |
Energy labelling regulation data acc EU 2019/2015
| Lighting technology used | LED |
| Non-directional or directional | NDLS |
| Mains or non-mains | MLS |
| Light source cap-type (or other electric interface) | E27 |
| Connected light source (CLS) | No |
| Color-tuneable light source | No |
| Envelope | No |
| High luminance light source | No |
| Anti-glare shield | No |
| Correlated colour temperature type | SINGLE_VALUE |
| Standby power | 0 W |
| Claim of equivalent power | Yes |
| Length | 105.00 mm |
| Height | 60.00 mm |
| Width | 60.00 mm |
| Chromaticity coordinate x | 0.440 |
| Chromaticity coordinate y | 0.403 |
| R9 Colour rendering index | 1 |
| Beam angle correspondence | SPHERE_360 |
| Survival factor | 0.90 |
| LED light source replaces a fluorescent light source | No |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Additional info can be provided per individual request |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|
Declarations of conformity
LED CLASSIC
LED CLASSIC
PRODUCT DATASHEET
LEDCLASA40CL2.5W3000KE 27FILen
LEDCLASA40CL2.5W3000KE 27FILen
Product image: white background, diagonal
LED CLA45 2,5W/830 230V FIL E27 6X1LEDV
LED CLA45 2,5W/830 230V FIL E27 6X1LEDV
Product image: white background, diagonal
LEDSCLA40 2,2W/827 230V FILUEE27
LEDSCLA40 2,2W/827 230V FILUEE27
Product image: white background, upright
LED CLA45 2,5W-830 230V FIL E27 6X1LEDV
LED CLA45 2,5W-830 230V FIL E27 6X1LEDV
Product image: white background, upright
LEDSCLA40 2,2W/827 230V FILUEE27
LEDSCLA40 2,2W/827 230V FILUEE27
Product infographic (application image with text and graphic)
Ultra efficient assortment E-Com-Grafik V2 1200x1200 2023 EN
Ultra efficient assortment E-Com-Grafik V2 1200x1200 2023 EN
Product infographic (application image with text and graphic)
Ultra efficient assortment E-Com-Grafik V1 1200x1200 2023 EN
Ultra efficient assortment E-Com-Grafik V1 1200x1200 2023 EN
Product infographic (application image with text and graphic)
Ultra efficient assortment E-Com-Grafik V3 1200x1200 2023 EN
Ultra efficient assortment E-Com-Grafik V3 1200x1200 2023 EN
Product line drawing with letters
LED CLA45 2,5W/830 230V FIL E27 6X1LEDV
LED CLA45 2,5W/830 230V FIL E27 6X1LEDV
Product line drawing with letters
LEDSCLA40 2,2W/827 230V FILUEE27
LEDSCLA40 2,2W/827 230V FILUEE27
Product line drawing with numbers
LED CLA45 2,5W/830 230V FIL E27 6X1LEDV
LED CLA45 2,5W/830 230V FIL E27 6X1LEDV
Product line drawing with numbers
LED CLASSIC A 40 EEL A E27
LED CLASSIC A 40 EEL A E27
Product line drawing with numbers
LEDSCLA40 2,2W/827 230V FILUEE27
LEDSCLA40 2,2W/827 230V FILUEE27
Product line drawing - technical
LED CLA45 2,5W/830 230V FIL E27 6X1LEDV
LED CLA45 2,5W/830 230V FIL E27 6X1LEDV
Product line drawing - technical
LEDSCLA40 2,2W/827 230V FILUEE27
LEDSCLA40 2,2W/827 230V FILUEE27

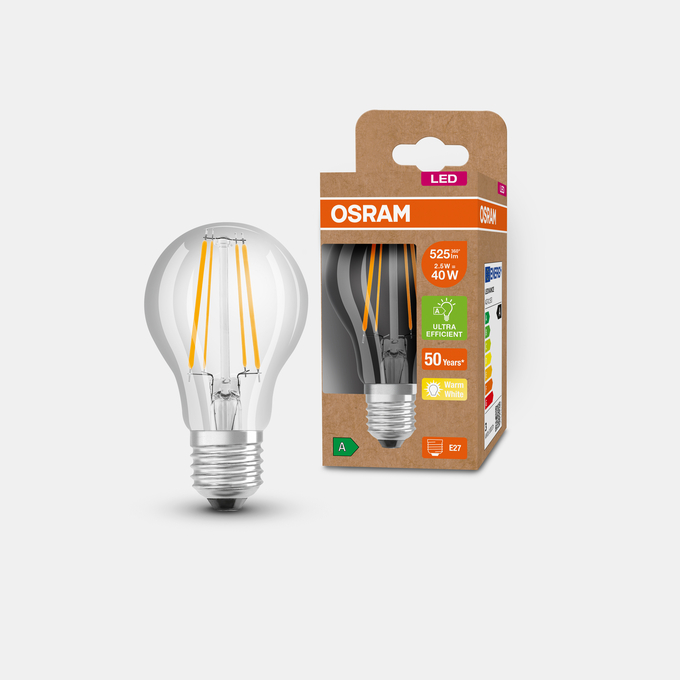

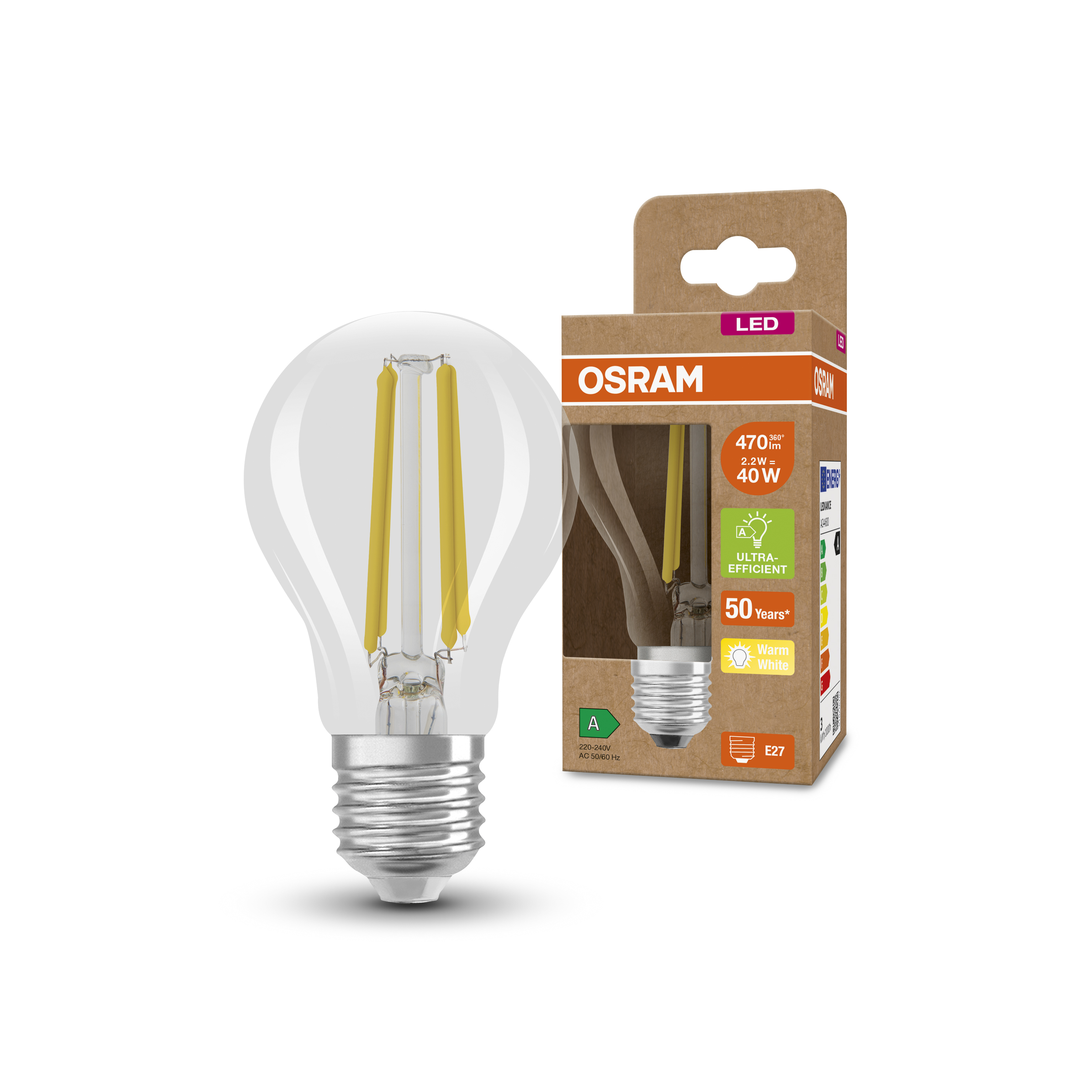

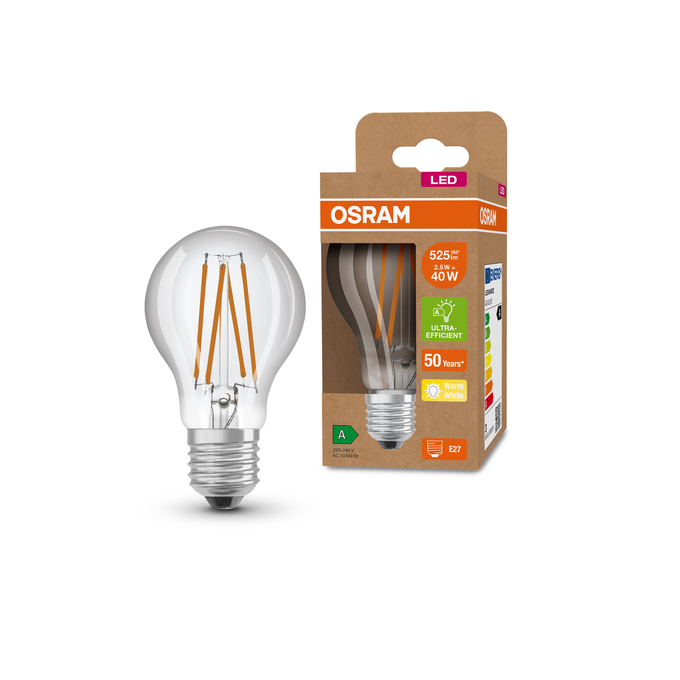

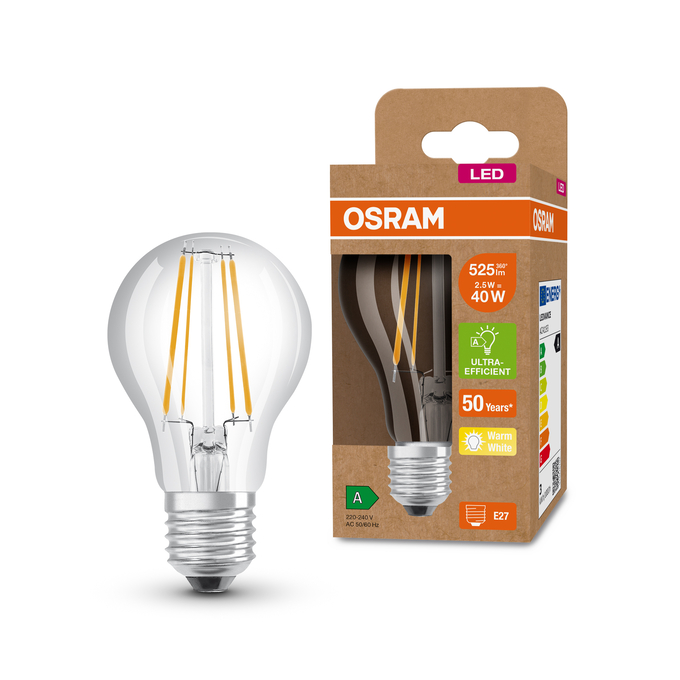

Combo Shot = Product Beauty Shot + Packaging Image
