Phase out
LUMILUX DE LUXE T8
L 36 W/940
GTIN: 4050300011301
Sleeve / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Natural colors
Areas of application
- Ideal where color rendering is an important factor
- Public buildings
- Shops
- Supermarkets and department stores
- Industry
Product features
- Very good color rendering index
- Dimmable
Safety advice
- In case of lamp breakage: www.ledvance.com/brokenlamp
Electrical data
| Nominal wattage | 36 W |
| Construction wattage | 38.00 W |
| Nominal voltage | 103 V |
| Nominal current | 0.43 A |
Photometrical data
| Luminous flux | 2900 lm |
| Luminous efficacy | 76 lm/W |
| Light color (designation) | LUMILUX DE LUXE Cool White |
| Color temperature | 4000 K |
| Color rendering index Ra | ≥90 |
| Light color | 940 |
| Rated LLMF at 2,000 h | 0.96 |
| Rated LLMF at 4,000 h | 0.94 |
| Rated LLMF at 6,000 h | 0.93 |
| Rated LLMF at 8,000 h | 0.91 |
| Rated LLMF at 12,000 h | 0.91 |
| Rated LLMF at 16,000 h | 0.90 |
| Rated LLMF at 20,000 h | 0.89 |
Dimensions & Weight
| Overall length | 1213.60 mm |
| Length with base excl. base pins/connection | 1200 mm |
| Diameter | 26.00 mm |
| Tube diameter | 26 mm |
| Product weight | 165.00 g |
Lifespan
| Service life | 16000 h 1) |
| Rated lamp survival factor at 2,000 h | 0.99 |
| Rated lamp survival factor at 4,000 h | 0.99 |
| Rated lamp survival factor at 6,000 h | 0.99 |
| Rated lamp survival factor at 8,000 h | 0.99 |
| Rated lamp survival factor at 12,000 h | 0.99 |
| Rated lamp survival factor at 16,000 | 0.90 |
| Rated lamp survival factor at 20,000 h | 0.50 |
| Lifespan B50 | 20000 h |
1) With preheat ECG
Additional product data
| Base (standard designation) | G13 |
| Mercury content | 3.0 mg |
Capabilities
| Dimmable | Yes |
Certificates & Standards
| Energy efficiency class | G |
| Energy consumption | 38.00 kWh/1000h |
Country-specific categorizations
| ILCOS | FD-36/940-E-G13-26/1200 |
| Order reference | L 36W/940 |
Energy labelling regulation data acc EU 2019/2015
| Lighting technology used | OTHER_FL |
| Non-directional or directional | NDLS |
| Mains or non-mains | NMLS |
| Light source cap-type (or other electric interface) | G13 |
| Connected light source (CLS) | No |
| Color-tuneable light source | No |
| Envelope | No |
| High luminance light source | No |
| Anti-glare shield | No |
| Correlated colour temperature type | SINGLE_VALUE |
| Claim of equivalent power | No |
| Length | 1213.60 mm |
| Height | 26.00 mm |
| Width | 26.00 mm |
| Chromaticity coordinate x | 0,386 |
| Chromaticity coordinate y | 0,374 |
| Beam angle correspondence | SPHERE_360 |
| EPREL ID | 546392 |
| Model number | AC34167 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4050300011301 | Sleeve 1 |
1,215 mm x 27 mm x 27 mm | 189.00 g | 0.89 dm³ |
| 4050300236469 | Shipping box 25 |
1,253 mm x 151 mm x 153 mm | 4660.00 g | 28.95 dm³ |
Declarations of conformity
EC Declaration of Conformity - 2021 9C1-4077902-EN-00 - T8 DE LUXE
EC Declaration of Conformity - 2021 9C1-4077902-EN-00 - T8 DE LUXE
Certificates
EAC RU C-DE HA10.B.00671 16 08 2018 15 07 2023 Expert Sertifikaciya FL
EAC RU C-DE HA10.B.00671 16 08 2018 15 07 2023 Expert Sertifikaciya FL
Certificates
EAC N RU D-DE.MU62.B.00801_20 02.03.2020-01.03.2025 Prommash Test - FL
EAC N RU D-DE.MU62.B.00801_20 02.03.2020-01.03.2025 Prommash Test - FL
Product image: white background, diagonal
313063_LUMILUX T8 XT / LUMILUX T8 XXT
313063_LUMILUX T8 XT / LUMILUX T8 XXT
Product line drawing with letters
324360_FLUORESCENT LAMP (BASIC T8/LUMILUX T8) G13 BASE
324360_FLUORESCENT LAMP (BASIC T8/LUMILUX T8) G13 BASE
Energy label
EL-4050300011301-AC341 67
EL-4050300011301-AC341 67

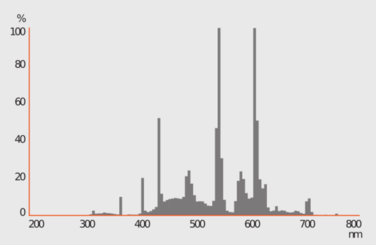

Spectral power distribution
349616_FL_940
349616_FL_940
| EAN | SEG number | STK number | EFO number | ELDAS number | AU model number |
|---|---|---|---|---|---|
| 4050300011301 | 8329284 | 4930456 | 3820368 | 946105100 | OSRL36W/940 |
