Phase out
OSRAM CFL SQUARE 2 pins
CFL SQUARE 16 W/835 GR8
GTIN: 4050300816838
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Square shape provides uniform distribution of light
- No shadows at either end and no dark patches
- Extremely low profile
Areas of application
- Low-profile wall and ceiling luminaires
- Public buildings, reception areas, offices, corridors, etc.
- Shops
- Supermarkets and department stores
- Hotels, restaurants
- Industry
Product features
- Single-ended two-pin plug-in GR8 base
- Short and compact pin-base lamp with double-turn tubes
- Good color rendering index
Equipment / Accessories
- Suitable for operation on conventional control gear
Safety advice
- In case of lamp breakage: www.ledvance.com/brokenlamp
Electrical data
| Nominal wattage | 16 W |
| Construction wattage | 16.70 W |
| Nominal voltage | 103 V |
| Nominal current | 0.2 A |
Photometrical data
| Luminous flux | 1050 lm |
| Luminous efficacy | 63 lm/W |
| Light color (designation) | LUMILUX White |
| Color temperature | 3500 K |
| Color rendering index Ra | ≥80 |
| Light color | 835 |
| Rated LLMF at 2,000 h | 0.85 |
| Rated LLMF at 4,000 h | 0.78 |
| Rated LLMF at 6,000 h | 0.76 |
| Rated LLMF at 8,000 h | 0.75 |
Dimensions & Weight
| Overall length | 136.00 mm |
| Diameter | 13.00 mm |
| Product weight | 64.4 g |
Temperatures & operating conditions
| Ambient temperature range | -5…+40 °C |
Lifespan
| Service life | 6000 h |
| Rated lamp survival factor at 2,000 h | 0.99 |
| Rated lamp survival factor at 4,000 h | 0.94 |
| Rated lamp survival factor at 6,000 h | 0.84 |
| Rated lamp survival factor at 8,000 h | 0.68 |
| Lifespan B50 | 10000 h |
Additional product data
| Base (standard designation) | GR8 |
| Mercury content | 3.0 mg |
| Design / version | OSRAM CFL SQUARE® 2-Pin for CCG |
Capabilities
| Dimmable | No |
Certificates & Standards
| Energy efficiency class | G |
| Energy consumption | 17.00 kWh/1000h |
Country-specific categorizations
| ILCOS | FSS-16/835-I-GR8 |
| Order reference | CFL SQUARE 16W/ |
Energy labelling regulation data acc EU 2019/2015
| Lighting technology used | CFLNI |
| Non-directional or directional | NDLS |
| Mains or non-mains | NMLS |
| Light source cap-type (or other electric interface) | GR8 |
| Connected light source (CLS) | No |
| Color-tuneable light source | No |
| Envelope | No |
| High luminance light source | No |
| Anti-glare shield | No |
| Correlated colour temperature type | SINGLE_VALUE |
| Claim of equivalent power | No |
| Length | 136.00 mm 1) |
| Height | 27.5 mm |
| Width | 141 mm |
| Chromaticity coordinate x | 0,409 |
| Chromaticity coordinate y | 0,394 |
| Beam angle correspondence | SPHERE_360 |
| EPREL ID | 546533 |
| Model number | AC34307 |
1) Maximum
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4050300816838 | Folding box 1 |
29 mm x 152 mm x 152 mm | 118.00 g | 0.67 dm³ |
| 4050300816845 | Shipping box 20 |
326 mm x 322 mm x 185 mm | 2834.00 g | 19.42 dm³ |
Declarations of conformity
EC Declaration of Conformity - 2021 9C1-4073688-EN-01 - CFL SQUARE
EC Declaration of Conformity - 2021 9C1-4073688-EN-01 - CFL SQUARE
Certificates
EAC RU C-DE.HA46.B.01131_21 21.05.2021-20.05.2026 Expert Certification - CFLpin
EAC RU C-DE.HA46.B.01131_21 21.05.2021-20.05.2026 Expert Certification - CFLpin
Certificates
EAC N RU D-DE.MU62.B.00933_20 06.03.2020-05.03.2025 Prommash Test - CFLpin
EAC N RU D-DE.MU62.B.00933_20 06.03.2020-05.03.2025 Prommash Test - CFLpin
Product image: white background, diagonal
327354_CFL SQUARE
327354_CFL SQUARE
Product image: white background, upright
327677_CFL SQUARE
327677_CFL SQUARE
Product line drawing with letters
325312_CFL SQUARE 2-PIN for CCG
325312_CFL SQUARE 2-PIN for CCG
Product line drawing, front, no dimensions
39654_CFL SQUARE 2-PIN
39654_CFL SQUARE 2-PIN
Energy label
EL-4050300816838-AC343 07
EL-4050300816838-AC343 07

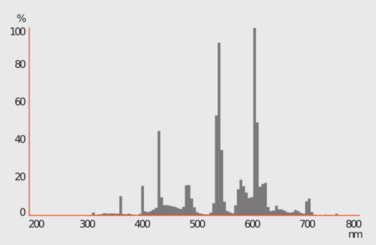

Spectral power distribution
349644_FL_835
349644_FL_835
| EAN | SEG number | STK number | EFO number |
|---|---|---|---|
| 4050300816838 | 8330242 | 4934235 | 3860902 |
