OSRAM DULUX S
DULUX S 9 W/827
GTIN: 4008321554611
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Improved maintenance
Areas of application
- Ideal for cost-effective creative illumination and decoration
- Offices, public buildings
- Shops
- Supermarkets and department stores
- Hotels, restaurants
Product features
- Good color rendering index
- Short and compact pin-base lamps with single-turn tubes
- Single-ended two-pin plug-in G23 base
Equipment / Accessories
- Suitable for operation on conventional control gear
Safety advice
- In case of lamp breakage: www.ledvance.com/brokenlamp
Electrical data
| Nominal wattage | 9 W |
| Construction wattage | 8.70 W |
Photometrical data
| Luminous flux | 600 lm |
| Luminous efficacy | 67 lm/W |
| Luminous flux at 25 °C | 600 lm |
| Light color (designation) | LUMILUX INTERNA |
| Color temperature | 2700 K |
| Color rendering index Ra | 80…89 |
| Light color | 827 |
| Rated LLMF at 2,000 h | 0.85 |
| Rated LLMF at 4,000 h | 0.78 |
| Rated LLMF at 6,000 h | 0.76 |
| Rated LLMF at 8,000 h | 0.75 |
| Rated lamp efficacy (standard co.) | 67 lm/W |
Dimensions & Weight
| Overall length | 165.00 mm |
| Length acc. to IEC standard | 145 mm |
| Length with base excl. base pins/connection | 144,00 mm |
| Diameter | 12.00 mm |
| Tube diameter | 12 mm |
| Maximum diameter | 11 mm |
| Product weight | 26.00 g |
Temperatures & operating conditions
| Rated ambient temp.w.max.luminous | 25.0 °C |
Lifespan
| Service life | 6500 h |
| Rated lamp survival factor at 2,000 h | 0.99 |
| Rated lamp survival factor at 4,000 h | 0.99 |
| Rated lamp survival factor at 6,000 h | 0.95 |
| Rated lamp survival factor at 8,000 h | 0.81 |
| Operation mode LLMF/LSF | 50 Hz |
Additional product data
| Base (standard designation) | G23 |
| Mercury content | 1.3 mg |
Capabilities
| Suitable for indoor | Yes |
Certificates & Standards
| Energy efficiency class | A |
| Energy consumption | 11.06 kWh/1000h |
Country-specific categorizations
| ILCOS | FSD-9/827-I-G23 |
| Order reference | DULUX S 9W/827 |
Energy labelling regulation data acc EU 2019/2015
| Light source cap-type (or other electric interface) | G23 |
| Length | 168.00 mm |
| Height | 12.00 mm |
| Width | 12.00 mm |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4008321554611 | Folding box 1 |
36 mm x 23 mm x 171 mm | 34.00 g | 0.14 dm³ |
| 4008321554628 | Shipping box 50 |
240 mm x 190 mm x 185 mm | 2166.00 g | 8.44 dm³ |
User instruction / safety instructions
334200_Technical guide - OSRAM DULUX pin-base
334200_Technical guide - OSRAM DULUX pin-base

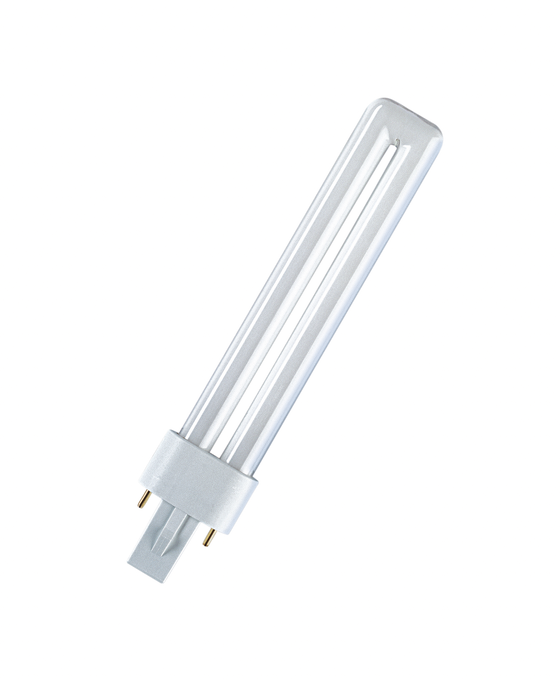

Product image: white background, diagonal
324653_DULUX S FOR KVG
324653_DULUX S FOR KVG

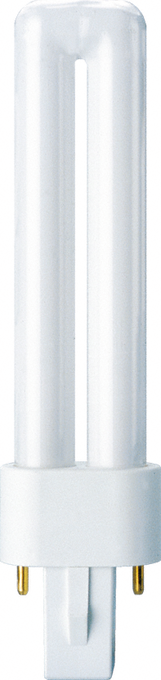

Product image: white background, upright
