LINEAR INDIVILED LIGHT SOURCES DIRECT
LISOEV 1339x29 65 52W 940 S90U19 GY
GTIN: 4099854284854
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Easy upgradeability of light source and driver (EVERLOOP design)
- Easy installation, no tools required for connection
- Homogenous light distribution and reduced glare (UGR ≤ 19) thanks to IndiviLED® optics
- High performance with CRI90
Areas of application
- Direct replacement for luminaires with fluorescent lamps
- Offices, education, public buildings
Product features
- Symmetric light distribution
- Lifetime (L80/B10): 70,000 h (at 25 °C)
- Beam angle: 90°
Safety advice
- All electrical connections must be made by a qualified person.
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 52.00 W |
| Nominal voltage | 45 V |
| Nominal current | 1050.000 mA |
Photometrical data
| Luminous flux | 6550 lm |
| Luminous efficacy | 126 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | ≥90 |
| Standard deviation of color matching | 3 sdcm |
| Flickering metric (Pst LM) | ≤1 |
| Stroboscope effect metric (SVM) | ≤0.4 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 90 ° |
| UGR | 19 |
Dimensions & Weight
| Length | 1339.00 mm |
| Height | 19.00 mm |
| Width | 29.00 mm |
| Product weight | 460.00 g |
| Cable length | 100.000 |
Materials & Colors
| Product color | Grey |
| Housing color | Grey |
Application & Mounting
| Ambient temperature range | -20…+50 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Push-in clamp |
| Type of protection | IP20 |
| Dimmable | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 100000 h |
| Lifespan L80/B10 at 25 °C | 70000 h |
| Lifespan L90/B10 at 25 °C | 35000 h |
| Number of switching cycles | 25000 |
Certificates & Standards
| Standards | CE, CB, ENEC, TÜV SÜD, UKCA, EAC |
Additional product data
| Product remark | Available from September 2025 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV329) - (3147-75-9) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854284854 | Folding box 1 |
36 mm x 1,347 mm x 26 mm | 590.00 g | 1.26 dm³ |
| 4099854284861 | Shipping box 10 |
1,379 mm x 204 mm x 95 mm | 6587.00 g | 26.73 dm³ |
User instruction / safety instructions
User instruction G11244437
User instruction G11244437
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Legal information
Safety Insert G11218810
Safety Insert G11218810
Legal information
Legal Insert G11244392
Legal Insert G11244392
Legal information
LSI insert G11244301
LSI insert G11244301

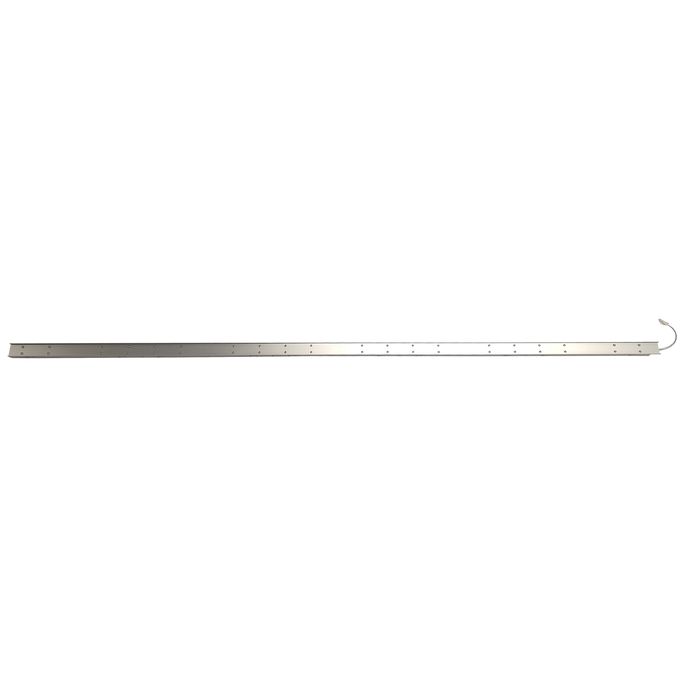

Product image: white background, diagonal
1 5m DIRECT LED
1 5m DIRECT LED

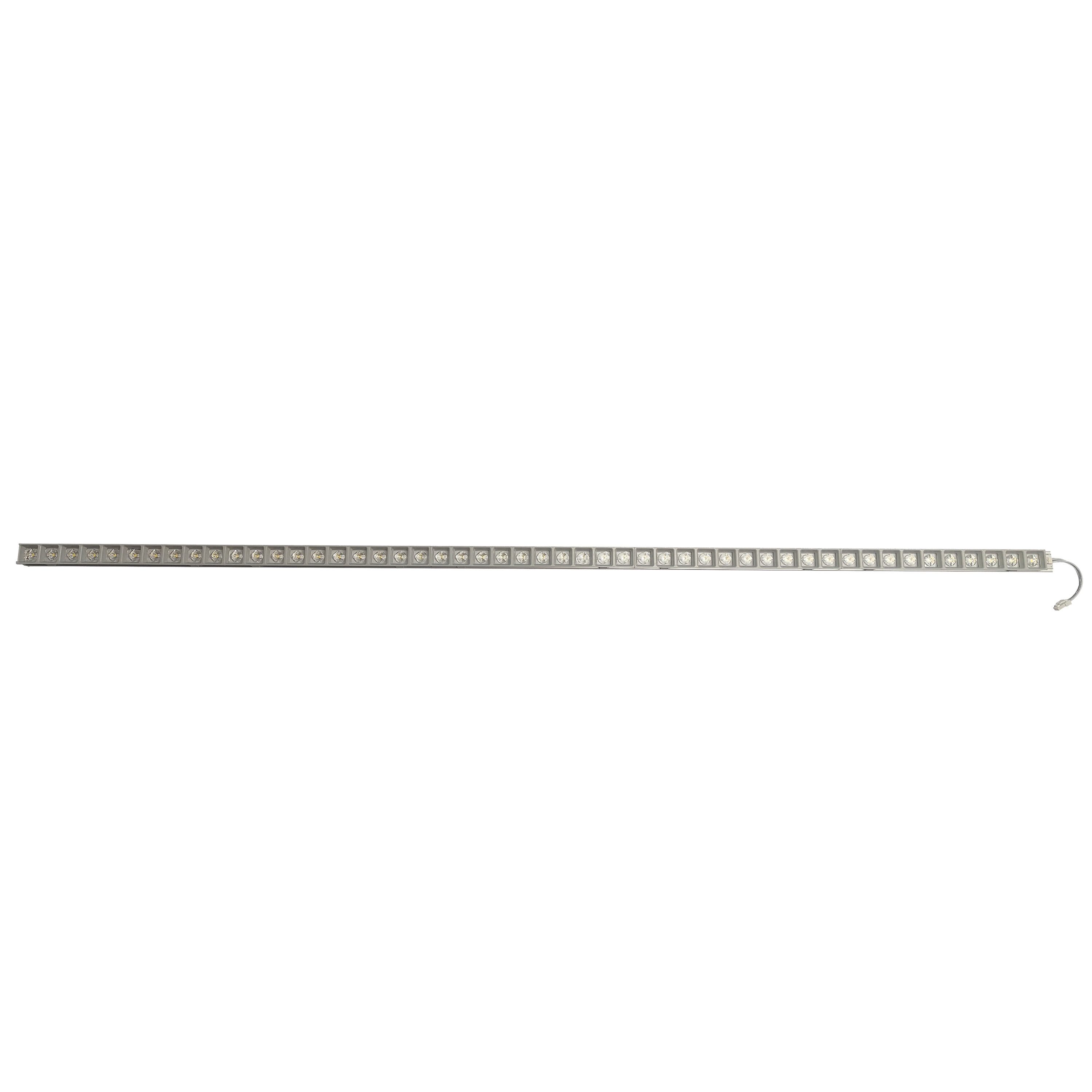

Product image: white background, horizontal
1 5m DIRECT LED
1 5m DIRECT LED

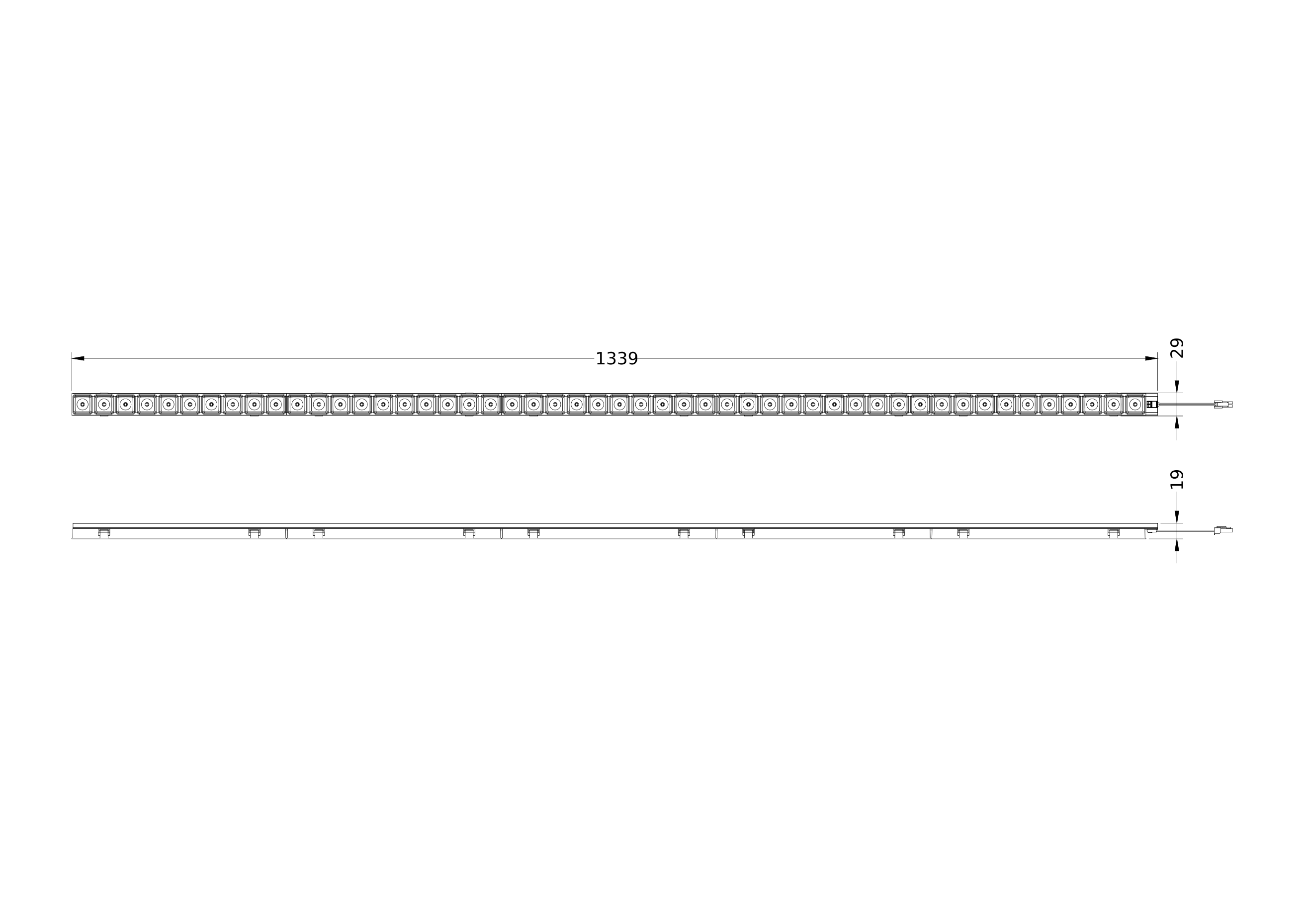

Product line drawing with letters
