CONNECTOR BOX
CONNECTOR BOX 5POLE L/N 4x
GTIN: 4058075473010
BAG / 4
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Tool-free electrical connection due to push button connector
- Through-wiring possible with included connector box
Product features
- 5 pole push terminal included
- Suitable for recessed On-/Off-luminaires of the electric class II (L/N version)
- Suitable for recessed DALI luminaires (L/N/E/D+/D-version)
References / Links
- For Guarantee see www.ledvance.com/guarantee
Dimensions & Weight
| Length | 115.0 mm |
| Height | 19.0 mm |
| Width | 56.0 mm |
| Product weight | 57.00 g |
Materials & Colors
| Product color | White |
Application & Mounting
| Replaceable light source | No |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075473010 | BAG 4 |
320 mm x 220 mm x 20 mm | 232.00 g | 1.41 dm³ |
| 4058075473027 | Shipping box 40 |
335 mm x 235 mm x 245 mm | 2748.00 g | 19.29 dm³ |
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Declarations of conformity
CONNECTOR BOX 5POLE
CONNECTOR BOX 5POLE

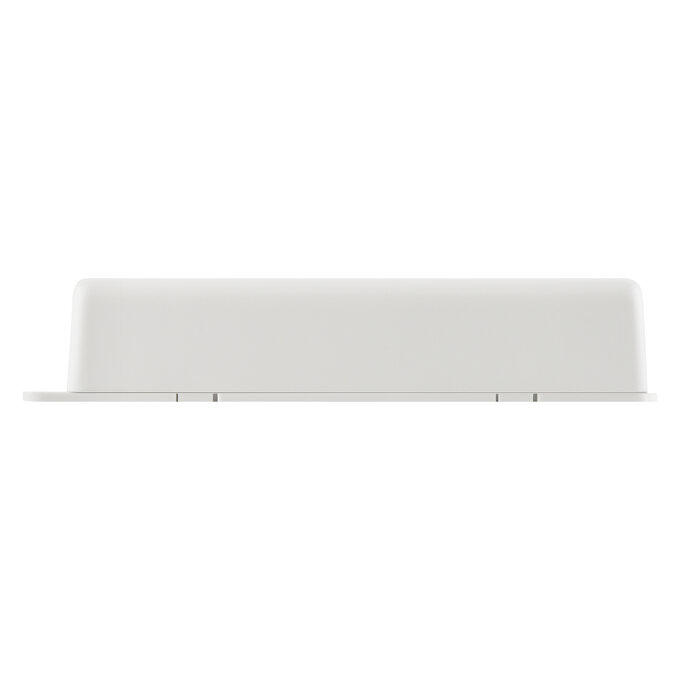

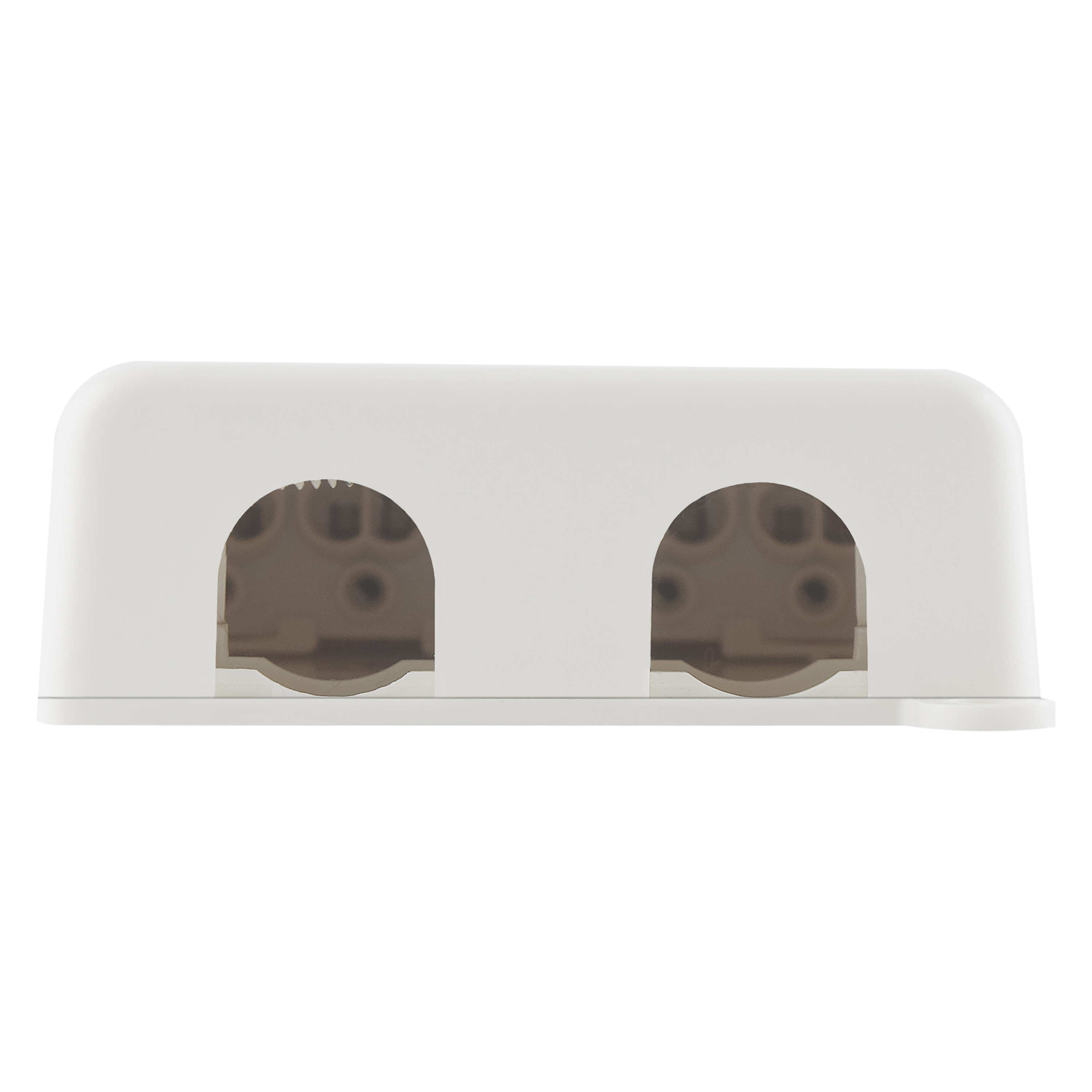

Product image: white background, horizontal
CONNECTOR BOX 5POLE L/N 4x
CONNECTOR BOX 5POLE L/N 4x

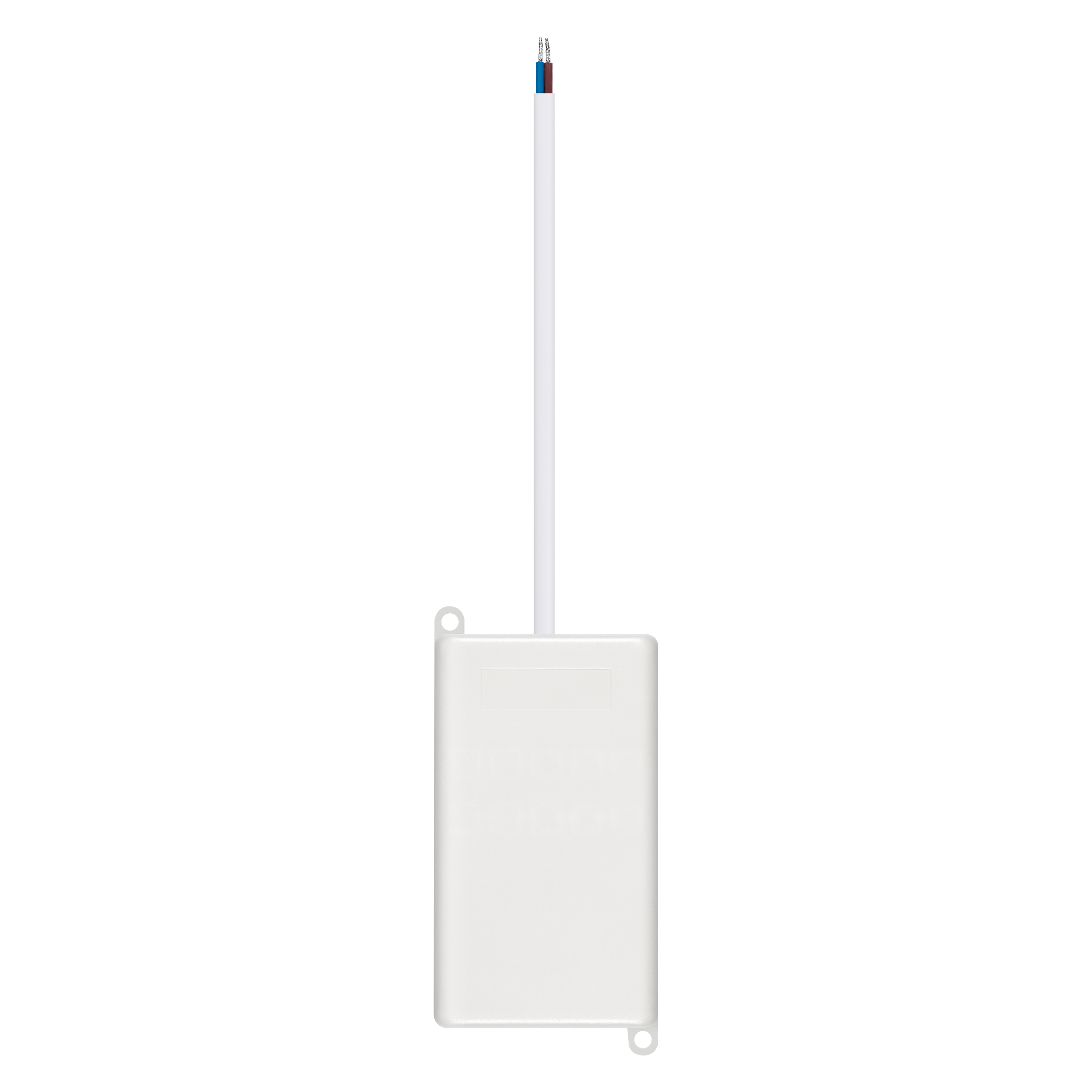

Product image: white background, upright
CONNECTOR BOX 5POLE L/N 4x
CONNECTOR BOX 5POLE L/N 4x
Product line drawing with letters
CONNECTOR BOX 5POLE
CONNECTOR BOX 5POLE
Product line drawing with numbers
CONNECTOR BOX 5POLE
CONNECTOR BOX 5POLE
Product line drawing, front, no dimensions
CONNECTOR BOX 5POLE
CONNECTOR BOX 5POLE
Catalog info 1
CONNECTOR BOX 5POLE L/N 4X
CONNECTOR BOX 5POLE L/N 4X
Catalog info 2
CONNECTOR BOX 5POLE L/N 4X
CONNECTOR BOX 5POLE L/N 4X
Tender documents
CONNECTOR BOX 5POLE LN 4x-EN
CONNECTOR BOX 5POLE LN 4x-EN
| EAN | SEG number | STK number | EFO number | ELDAS number | UK Org |
|---|---|---|---|---|---|
| 4058075473010 | 7019243 | 4125450 | 1311993 | 941902100 | 409013902 |
