Coming soon
FLOODLIGHT ADAPTER SOCKET
FL FLEX ADAPTER SOCKET NEMA
GTIN: 4099854680113
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- A standardized interface for future upgrades without having to replace the entire luminaire
- Adapter enables the integration of sensors, communication modules, and smart city technologies such as DALI D4i
- Enables easy retrofitting of sensors or control units
Areas of application
- Bicycle paths
- Industrial area
- Parking lots
- Street lighting
Product features
- Adapters are available separately as accessories and can be added depending on project requirements
- 2 different adapters: standardized for Zhaga Book 18 or ANSI C136.41 for easy plug-and-upgrade installation
- Suitable for FLOODLIGHT FLEX and MAX series
Equipment / Accessories
- Sensor is not included
Safety advice
- All electrical connections must be made by a qualified person.
Dimensions & Weight
| Length | 114 mm |
| Height | 196 mm |
| Width | 95 mm |
| Product weight | 590.00 g |
Materials & Colors
| Product color | White aluminum |
| Body material | Steel |
Application & Mounting
| Type of protection | IP66 |
| Mounting type | Screws |
| Replaceable light source | No |
Certificates & Standards
| Standards | CE, CB, UKCA, EAC |
Additional product data
| Product remark | Available from December 2025 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854680113 | Folding box 1 |
148 mm x 203 mm x 123 mm | 683.00 g | 3.70 dm³ |
| 4099854680120 | Shipping box 10 |
637 mm x 317 mm x 239 mm | 7595.00 g | 48.26 dm³ |
User instruction / safety instructions
FL FLEX ADAPTER SOCKET
FL FLEX ADAPTER SOCKET
Legal information
Safety Insert G11218828
Safety Insert G11218828
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Legal information
Legal Insert G11248547
Legal Insert G11248547

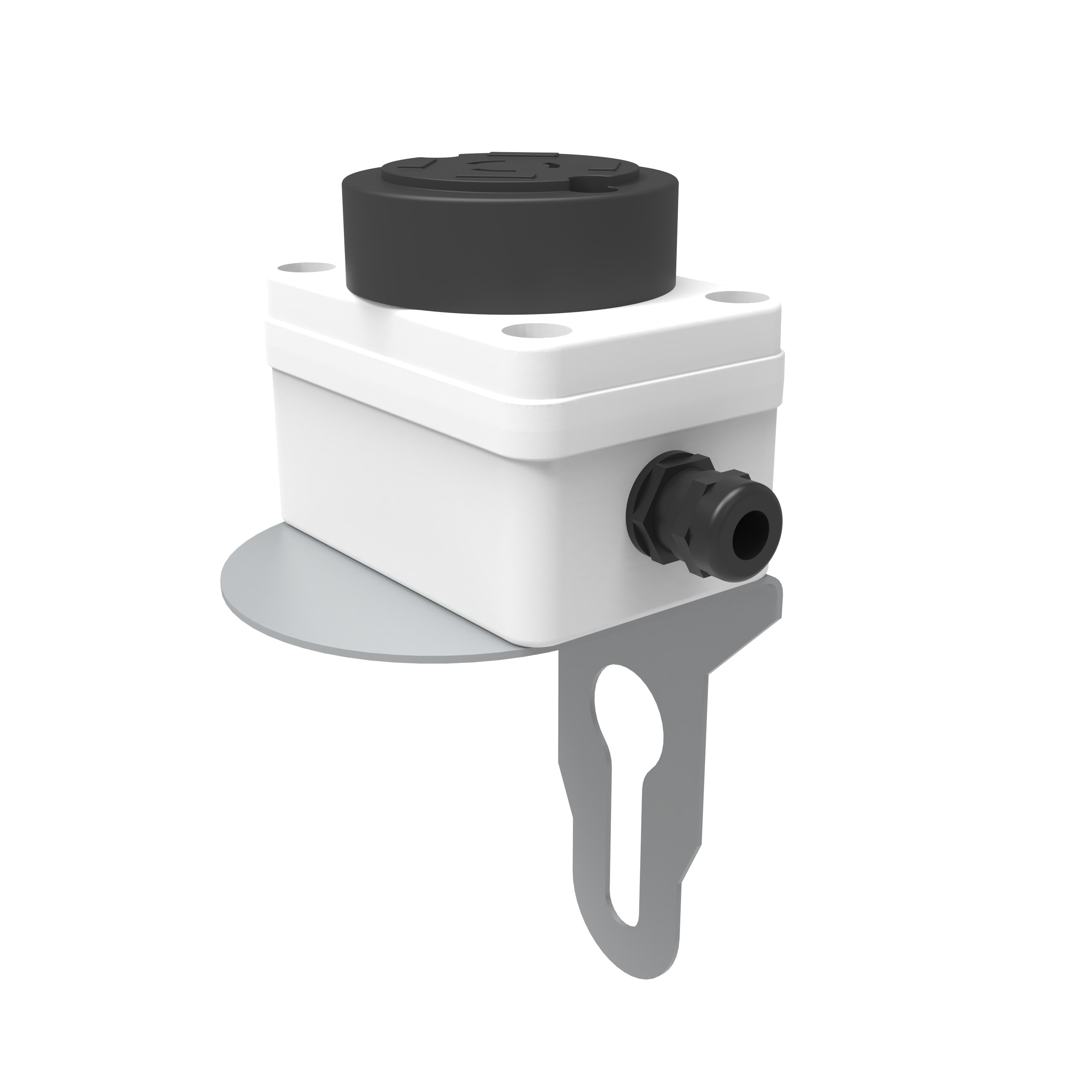

Product image: white background, diagonal
FL FLEX ADAPTER SOCKET NEMA
FL FLEX ADAPTER SOCKET NEMA

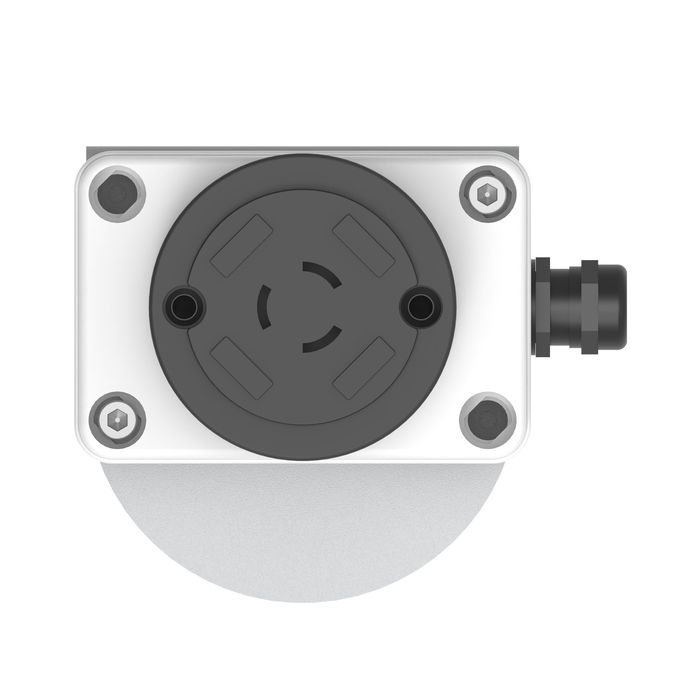

Product image: white background, horizontal
FL FLEX ADAPTER SOCKET NEMA
FL FLEX ADAPTER SOCKET NEMA
Product line drawing with letters
FL FLEX ADAPTER SOCKET NEMA
FL FLEX ADAPTER SOCKET NEMA
Product line drawing with numbers
FL FLEX ADAPTER SOCKET NEMA
FL FLEX ADAPTER SOCKET NEMA
Product line drawing - technical
FL FLEX ADAPTER SOCKET NEMA
FL FLEX ADAPTER SOCKET NEMA
