FLOODLIGHT ADAPTER SOCKET
FL FLEX ADAPTER SOCKET ZHAGA
GTIN: 4099854680076
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- A standardized interface for future upgrades without having to replace the entire luminaire
- Adapter enables the integration of sensors, communication modules, and smart city technologies such as DALI D4i
- Enables easy retrofitting of sensors or control units
Areas of application
- Bicycle paths
- Industrial area
- Parking lots
- Street lighting
Product features
- Adapters are available separately as accessories and can be added depending on project requirements
- 2 different adapters: standardized for Zhaga Book 18 or ANSI C136.41 for easy plug-and-upgrade installation
- Suitable for FLOODLIGHT FLEX and MAX series
Equipment / Accessories
- Sensor is not included
Safety advice
- All electrical connections must be made by a qualified person.
Dimensions & Weight
| Length | 95 mm |
| Height | 134 mm |
| Width | 90 mm |
| Product weight | 260.00 g |
Materials & Colors
| Product color | White aluminum |
| Body material | Steel |
Application & Mounting
| Type of protection | IP66 |
| Mounting type | Screws |
| Replaceable light source | No |
Certificates & Standards
| Standards | CE, CB, UKCA, EAC |
Additional product data
| Product remark | Available from December 2025 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854680076 | Folding box 1 |
108 mm x 163 mm x 103 mm | 325.00 g | 1.81 dm³ |
| 4099854680083 | Shipping box 15 |
552 mm x 187 mm x 344 mm | 6193.00 g | 35.51 dm³ |
User instruction / safety instructions
FL FLEX ADAPTER SOCKET
FL FLEX ADAPTER SOCKET
Legal information
Safety Insert G11218828
Safety Insert G11218828
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Legal information
Legal Insert G11248547
Legal Insert G11248547

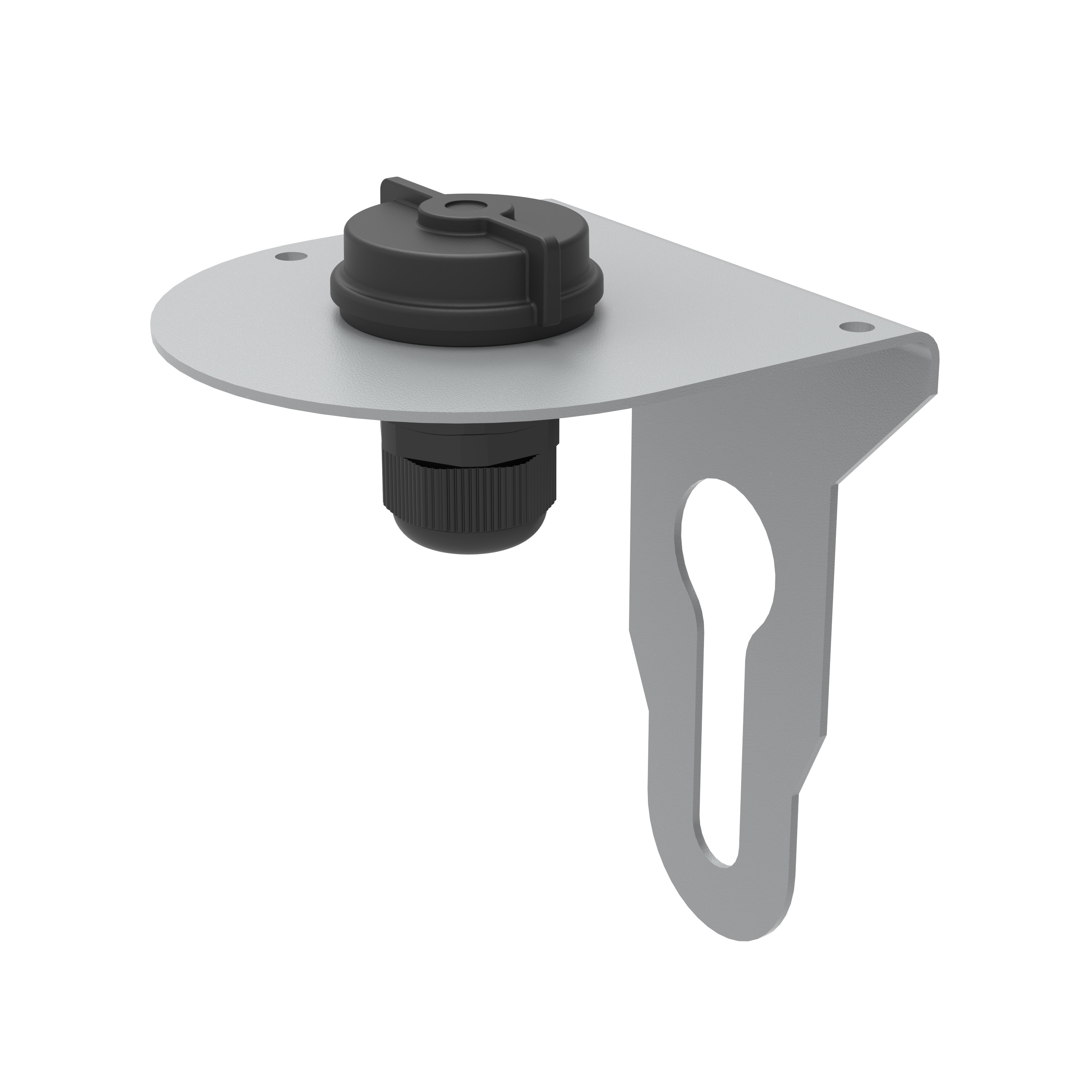

Product image: white background, diagonal
FL FLEX ADAPTER SOCKET ZHAGA
FL FLEX ADAPTER SOCKET ZHAGA

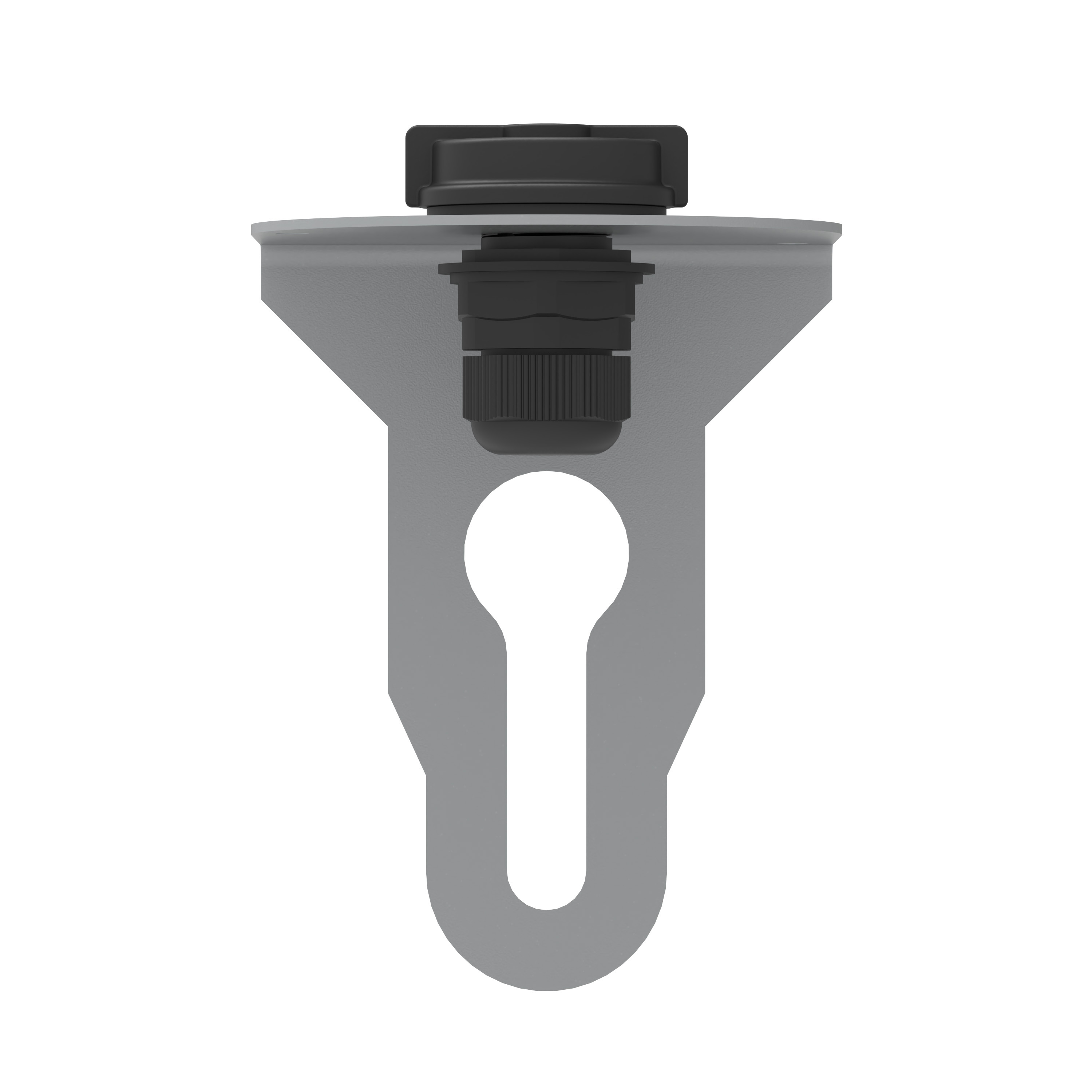

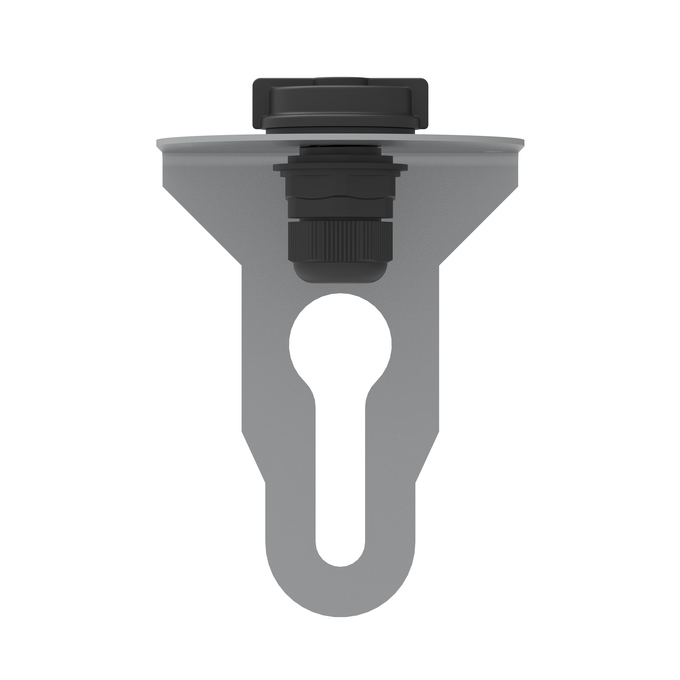

Product image: white background, horizontal
