DOWNLIGHT SLIM ALU FRAME

DL SLIM ALU FRAME D280 WT

GTIN: 4099854476051 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Easy installation
Product features
  • Aluminum frame with low installation depth
Equipment / Accessories
  • Mounting accessories included
Dimensions & Weight
Diameter 290 mm
Height 45 mm
Product weight 355.00 g
Materials & Colors
Product color White
Housing color White
Body material Aluminum
Application & Mounting
Dimmable No
Mounting type Surface mounting
Mounting location Ceiling
Replaceable light source No
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854476051 Folding box
1		 53 mm x 298 mm x 300 mm 465.00 g 4.74 dm³
4099854476068 Shipping box
6		 334 mm x 311 mm x 324 mm 3241.00 g 33.66 dm³
User instruction / safety instructions
DOWNLIGHT SLIM ALU FRAME
PDF (3.21 MB)
Legal information
LUM PANELS_SI
PDF (332.93 KB)

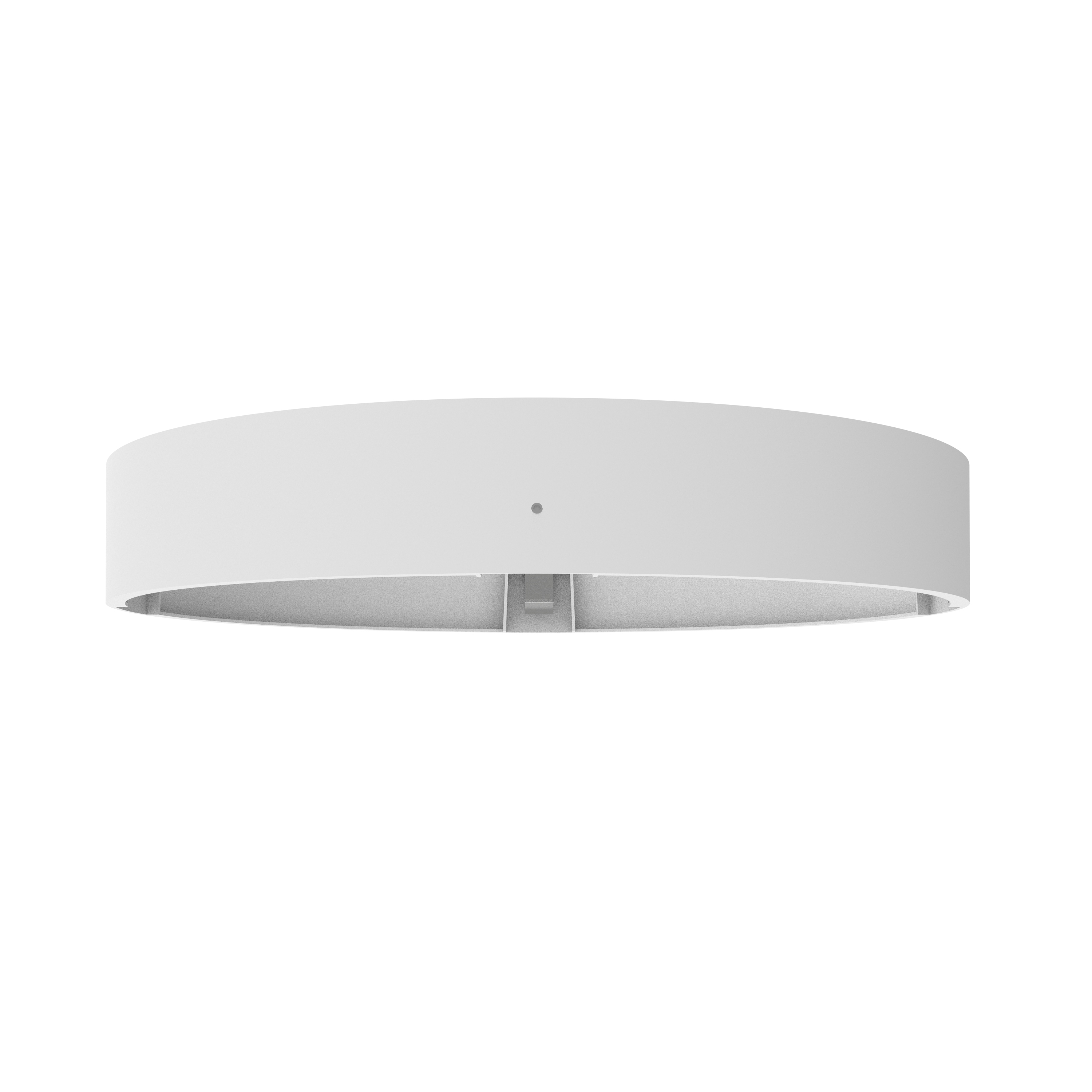

Product image: white background, diagonal
DL SLIM ALU FRAME D280 WT
JPG (1.11 MB)
Product image: white background, horizontal
DL SLIM ALU FRAME D280 WT
JPG (1.05 MB)
Product line drawing with letters
SVG (0 B)

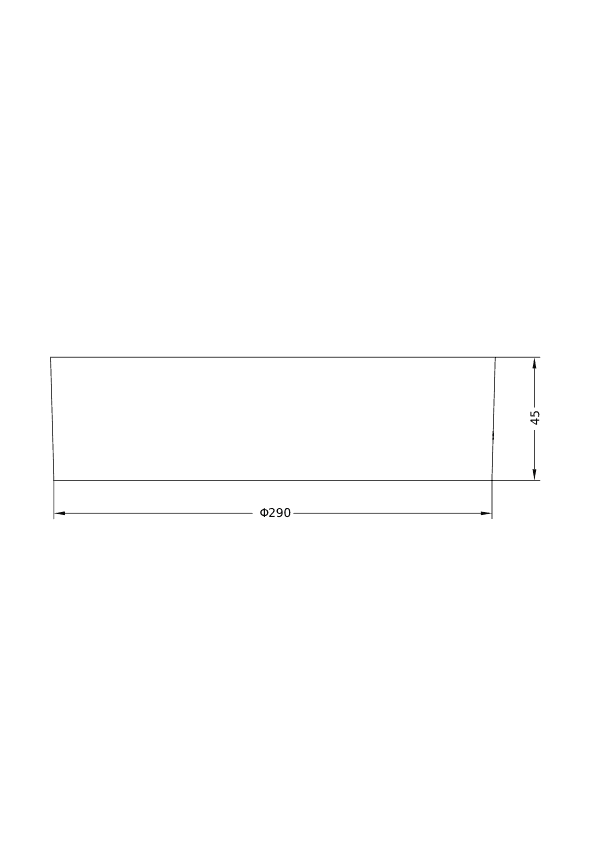

Product line drawing with numbers
DL SLIM ALU FRAME D280
PNG (1.75 KB)

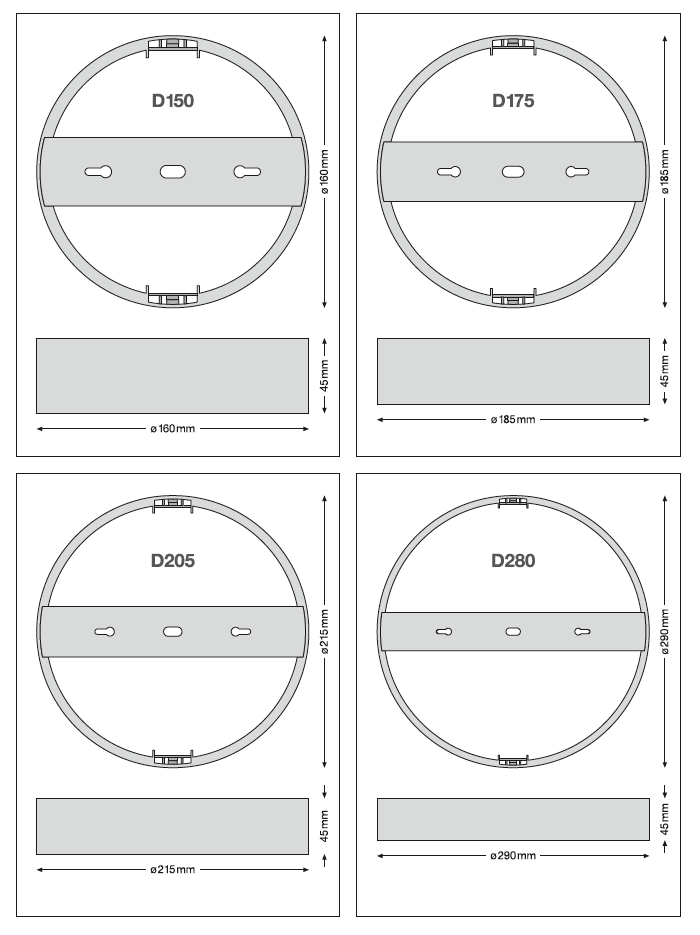

Catalog info 1
DL SLIM ALU FRAME WT
PNG (71.39 KB)
Catalog info 2
DL SLIM ALU FRAME WT
PNG (64.04 KB)
Tender documents
DOWNLIGHT SLIM ALU FRAME D280 WT-en
TXT (501 B)
EAN SEG number STK number ELDAS number
4099854476051 7477986 4161073 941904270
