Connectors for LED Strips Superior Class

LS AY SUP -SEF

GTIN: 4058075304680 BAG / 2 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Easy installation of connector, no manual wiring required
  • Tool-free installation
Areas of application
  • General outdoor illumination
Dimensions & Weight
Length 25.0 mm
Width 18.5 mm
Height 9.2 mm
Product weight 1.00 g
Colors & materials
Product color Transparent
Temperatures & operating conditions
Ambient temperature range -40…+130 °C
Temperature range in operation -40…+130 °C
LOGISTICAL DATA
Temperature range at storage -5…+55 °C
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075304680 BAG
2		 80 mm x 120 mm x 5 mm 3.00 g 0.05 dm³
4058075304697 Shipping box
100		 180 mm x 100 mm x 180 mm 229.00 g 3.24 dm³
4058075304703 Shipping box
1,000		 520 mm x 380 mm x 210 mm 3057.00 g 41.50 dm³

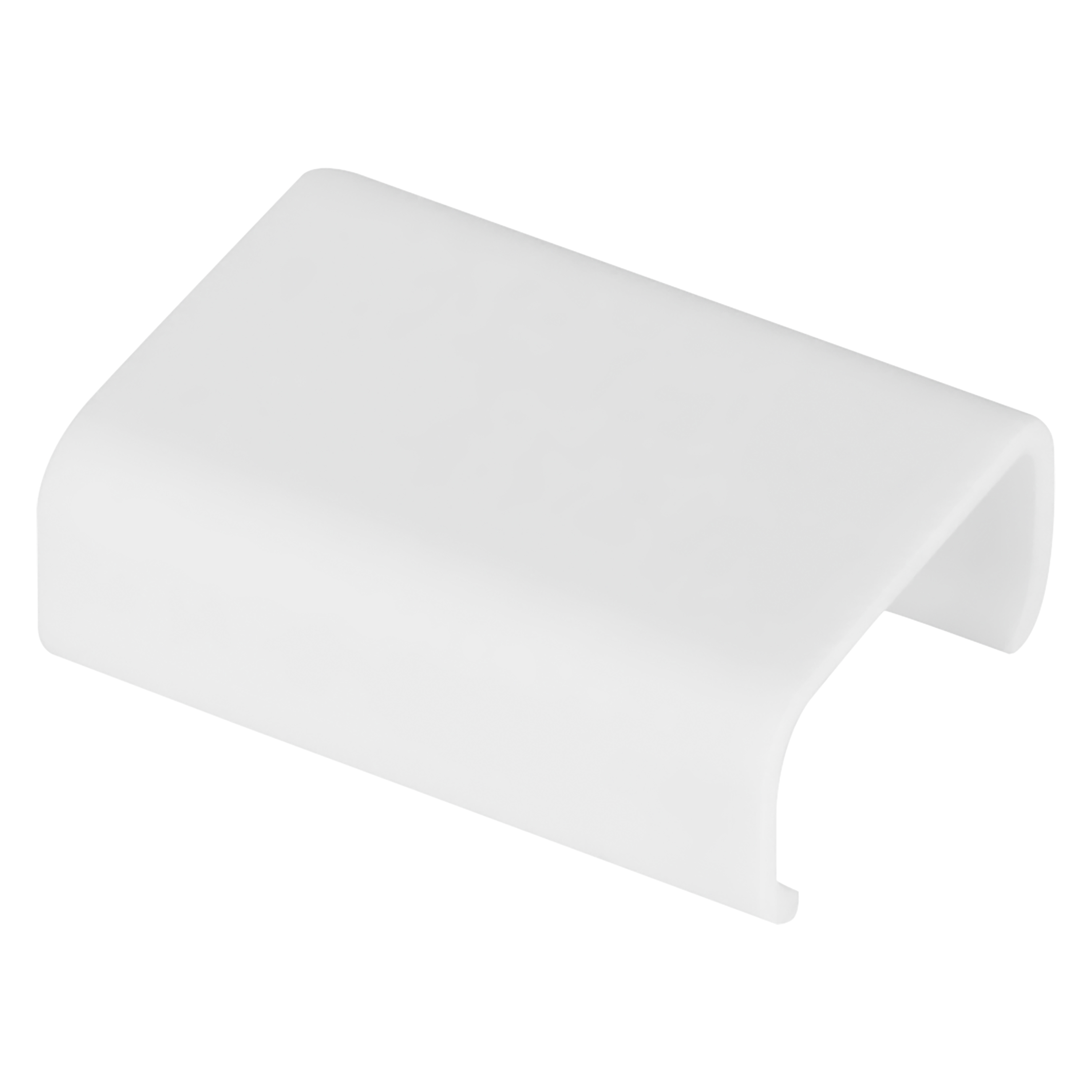

Product image: white background, diagonal
LS AY SUP-SEF
JPG (909.28 KB)
Product line drawing with letters
LS AY SUP-SEF
SVG (7.41 KB)
Product line drawing, front, no dimensions
LS AY SUP-SEF
SVG (2.42 KB)
EAN SEG number STK number EFO number ELDAS number
4058075304680 7507149 4266646 3254350 941901900
