Smart+ Solar Table Frame Multicolor
SMART+ BT Table Frame Solar RGB + W
GTIN: 4058075763760
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Easy and quick installation
- Colorful garden lighting with smart and intelligent control options
- Integrated Powerbank
- High-quality materials
- USB chargeable for mobile use (USB Type-C, fully charged in 5h)
Areas of application
- Gardens
- Patios, balconies
- General illumination
Product features
- Controllable via LEDVANCE SMART+ App (with minimum Android 8.0 or iOS 14.0)
- Solar powered outdoor LED luminaire
- RGB color control, approx. 16 million color options adjustable
- Dimmable
- Color temperature: 3,000 K (Warm White)
- Network protocol: Bluetooth
- Type of protection: IP44
- Battery charging via solar panel
Equipment / Accessories
- For control via LEDVANCE SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
- Complete mounting and connecting accessories included
Safety advice
- If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
- Please avoid: Maximal ambient temperature: +35 °C. Replacement of a battery with an incorrect type that can defeat safeguard (for example, in the case of some lithium battery types). Altitude during operation: 2000 m. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
References / Links
- Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
| Nominal wattage | 2,5 W |
| Nominal voltage | 3,7 V |
| Nominal current | 600.000 mA |
| Protection class | III |
Photometrical data
| Luminous flux | 200 lm |
| Total luminous flux of contained light sources | 280 lm |
| Luminous efficacy | 80 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White, RGB |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | ≤6 sdcm |
| Photobiological safety group acc. to EN62778 | RG0 |
Dimensions & Weight
| Length | 180.00 mm |
| Height | 300.00 mm |
| Width | 180.00 mm |
| Product weight | 1170.00 g |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Aluminum|Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Type of protection | IP44 |
| Dimmable | Yes |
| Type of dimming | Bluetooth |
| Mounting type | Surface |
| Application environment | Outdoor |
| Adjustable | No |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 25000 h |
| Number of switching cycles | 12500 |
BATTERY
| Type of Battery | Lithium ion |
| Battery size [GMS] | 18650 |
| Number of included batteries | 1 |
| Nominal voltage of battery | 3.7 V |
| Nominal capacity of battery | 2200 mAh |
| Battery charging time | 8 h |
Certificates & Standards
| Standards | CE, UKCA |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Product remark | Reset settings to default by switching the product on for three seconds and off for three seconds and repeating this five times. |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075763760 | Folding box 1 |
192 mm x 192 mm x 312 mm | 1368.00 g | 11.50 dm³ |
| 4058075763777 | Shipping box 4 |
400 mm x 400 mm x 340 mm | 6391.00 g | 54.40 dm³ |
User instruction / safety instructions
SMART+ TABLE SOLAR
SMART+ TABLE SOLAR
Legal information
Legal insert SMART OUTD ENDURA SOLAR WORKLIGHT BAT
Legal insert SMART OUTD ENDURA SOLAR WORKLIGHT BAT
Declarations of conformity
SMART OUTD BT
SMART OUTD BT

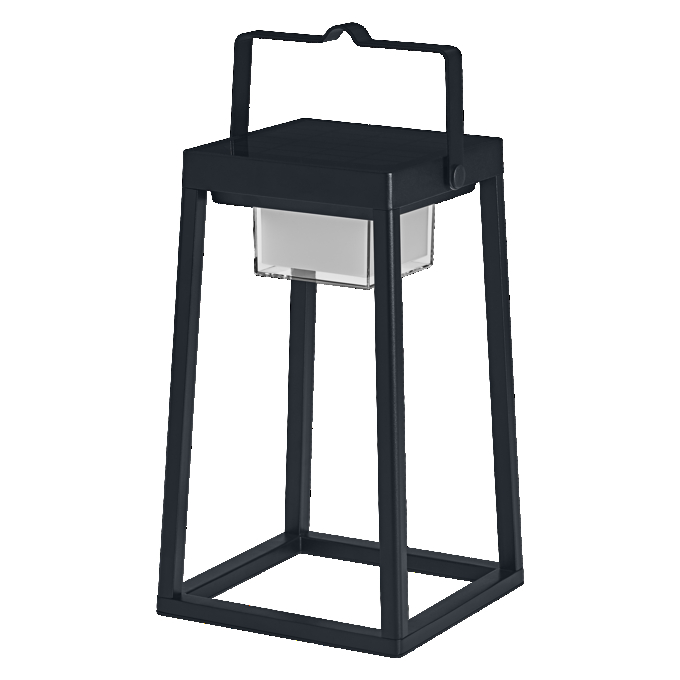

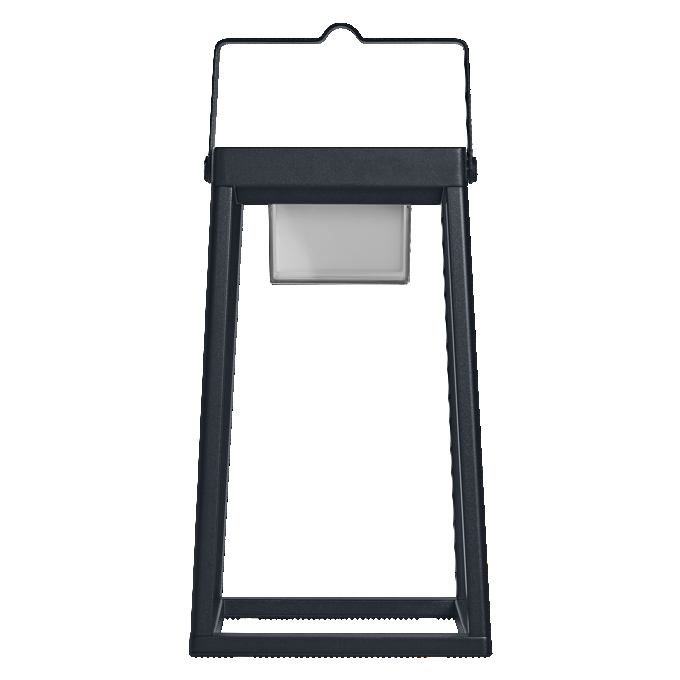

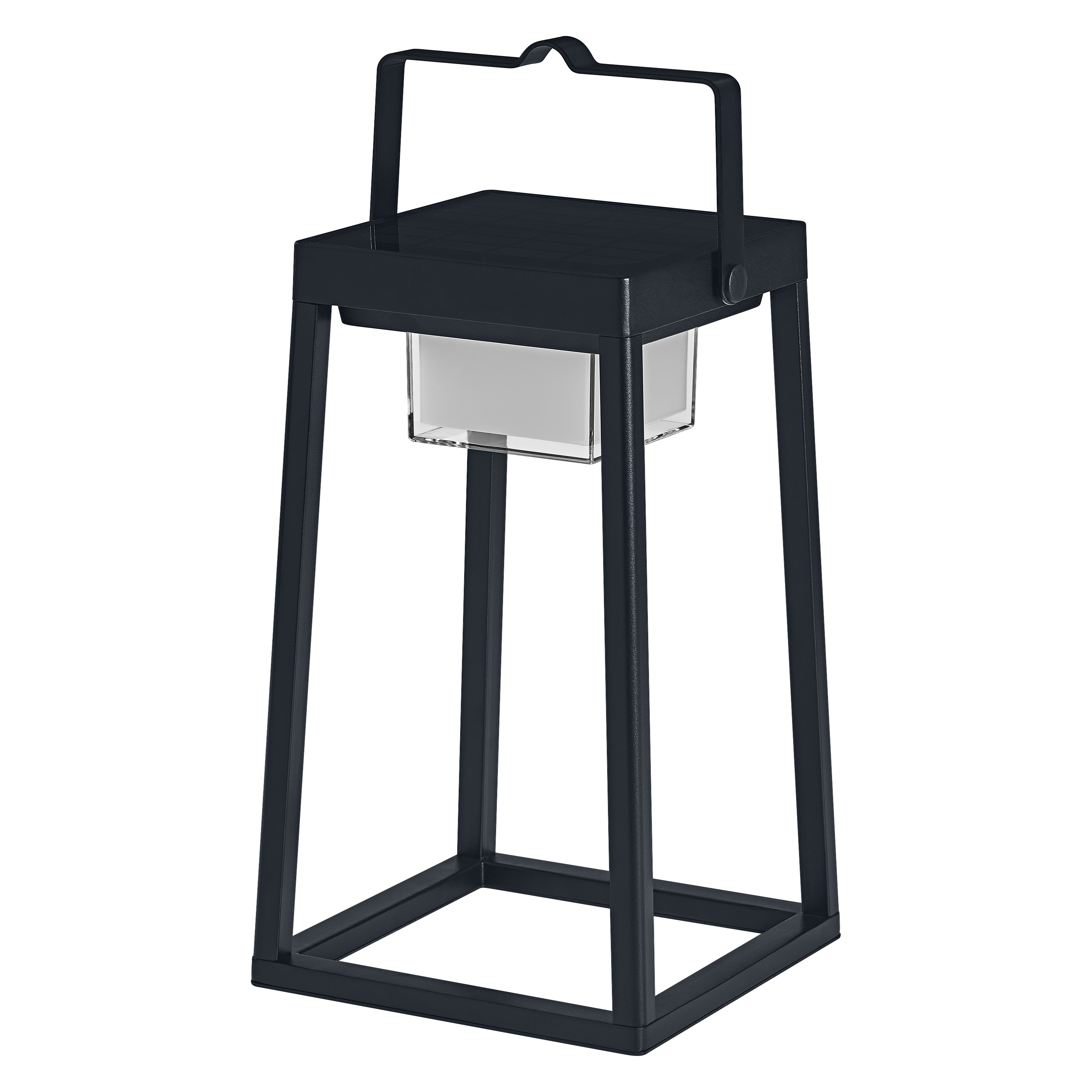

Product image: white background, upright
SMART OUTD BT TABLE FRAME SOL RGBTW
SMART OUTD BT TABLE FRAME SOL RGBTW

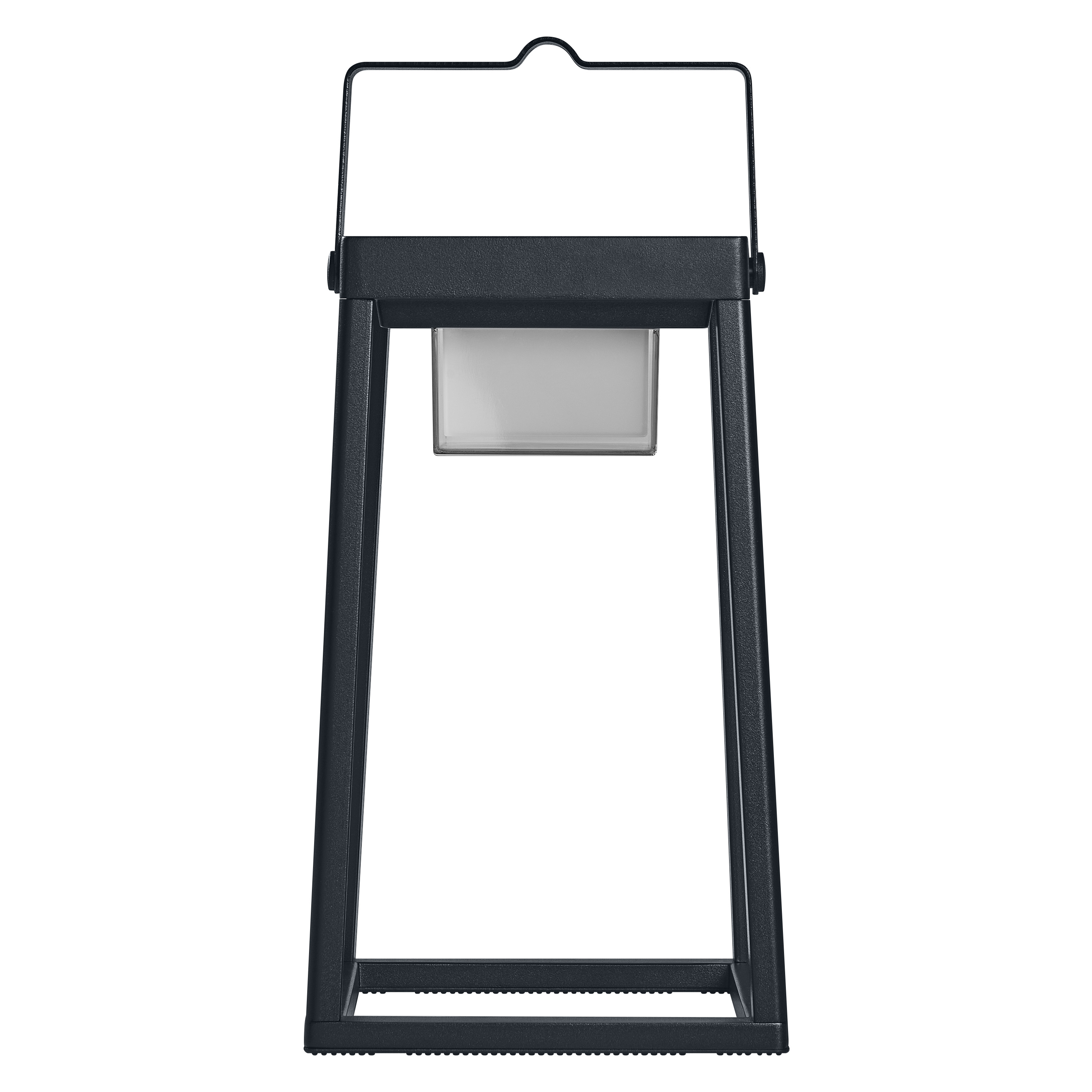

Product image: white background, upright, alternative image
SMART OUTD BT TABLE FRAME SOL RGBTW
SMART OUTD BT TABLE FRAME SOL RGBTW

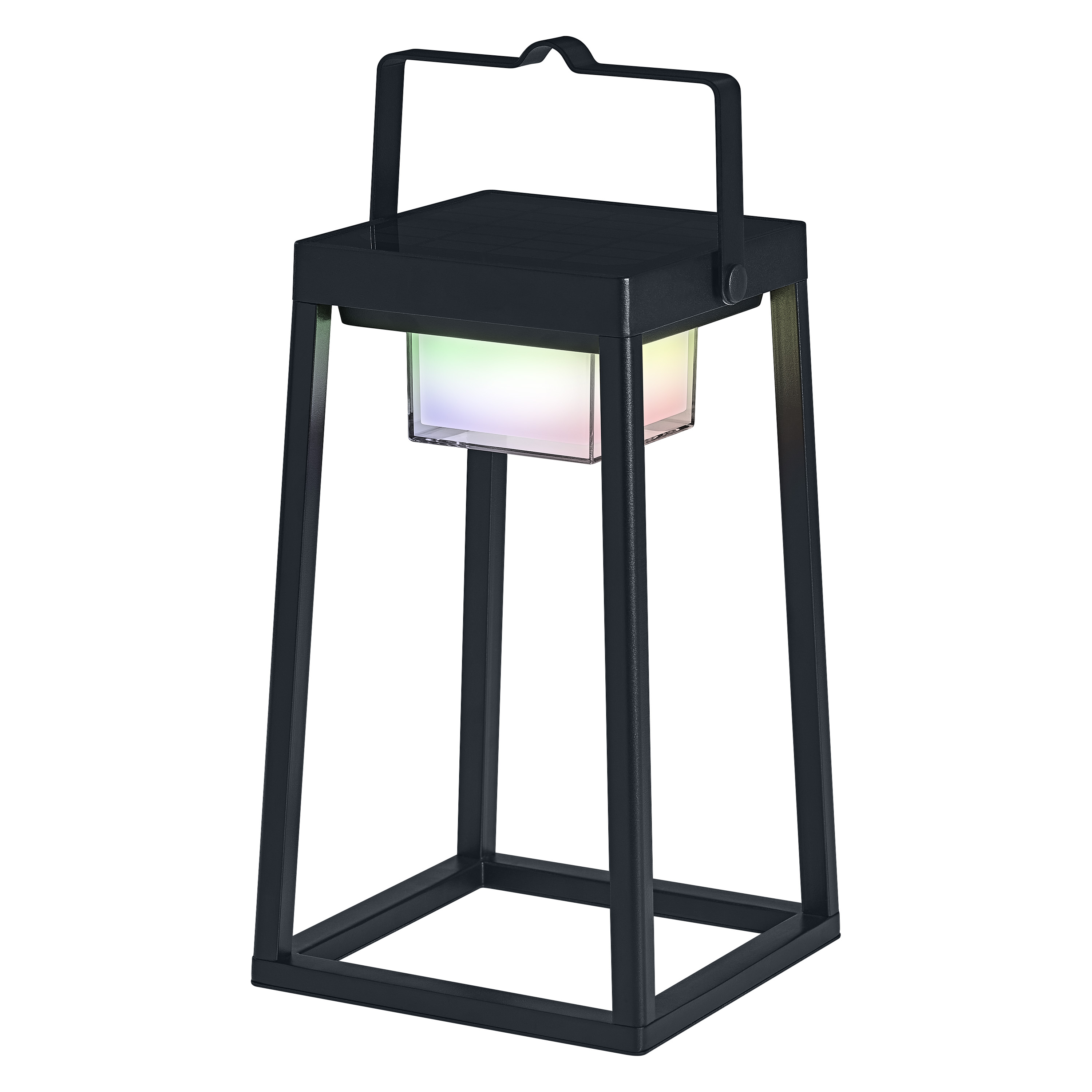

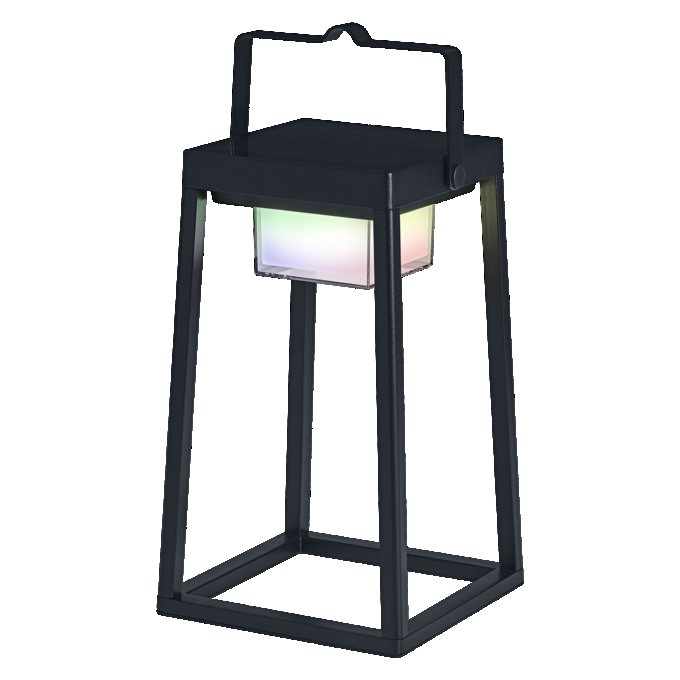

Product image: white background, upright, switched on
SMART OUTD BT TABLE FRAME SOL RGBTW
SMART OUTD BT TABLE FRAME SOL RGBTW
Product infographic (application image with text and graphic)
SmartPlus assortment E-Com-Grafik V3 1200x1200 2023 EN
SmartPlus assortment E-Com-Grafik V3 1200x1200 2023 EN
Product infographic (application image with text and graphic)
Solar assortment E-Com-Grafik V2 1200x1200 2023 EN
Solar assortment E-Com-Grafik V2 1200x1200 2023 EN
Product line drawing with letters
SMART OUTD BT TABLE FRAME SOL RGBTW
SMART OUTD BT TABLE FRAME SOL RGBTW
Product line drawing with numbers
SMART OUTD BT TABLE FRAME SOL RGBTW
SMART OUTD BT TABLE FRAME SOL RGBTW
Product line drawing, front, no dimensions
SMART OUTD BT TABLE FRAME SOL RGBTW
SMART OUTD BT TABLE FRAME SOL RGBTW

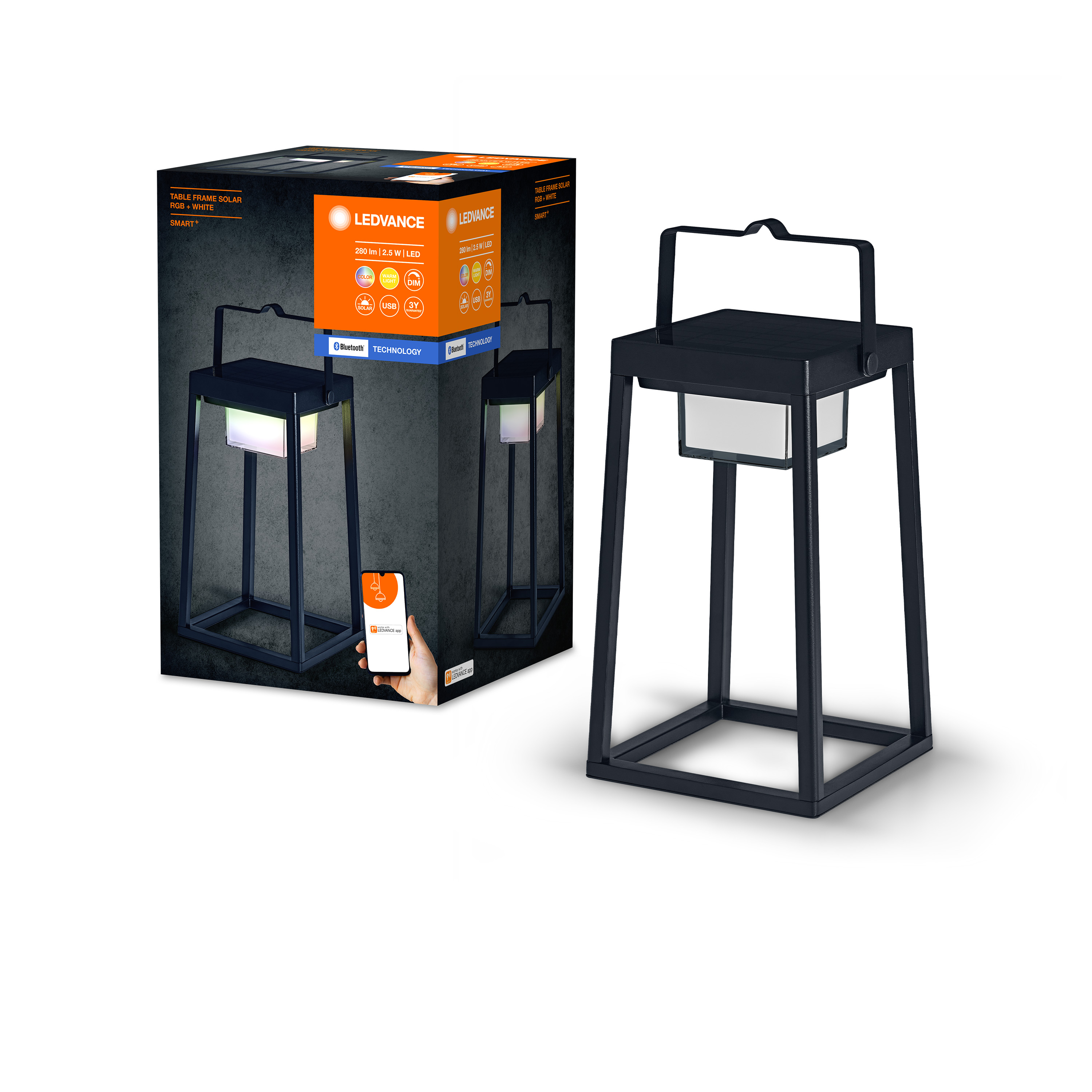

Combo Shot = Product Beauty Shot + Packaging Image
SH FC BT TABLE FRAME SOL RGBTW MiPRC
SH FC BT TABLE FRAME SOL RGBTW MiPRC
Packaging image, frontal
SH FC BT TABLE FRAME SOL RGBTW MiPRC
SH FC BT TABLE FRAME SOL RGBTW MiPRC
Packaging image, spacial
SH FC BT TABLE FRAME SOL RGBTW MiPRC
SH FC BT TABLE FRAME SOL RGBTW MiPRC
Application pictures

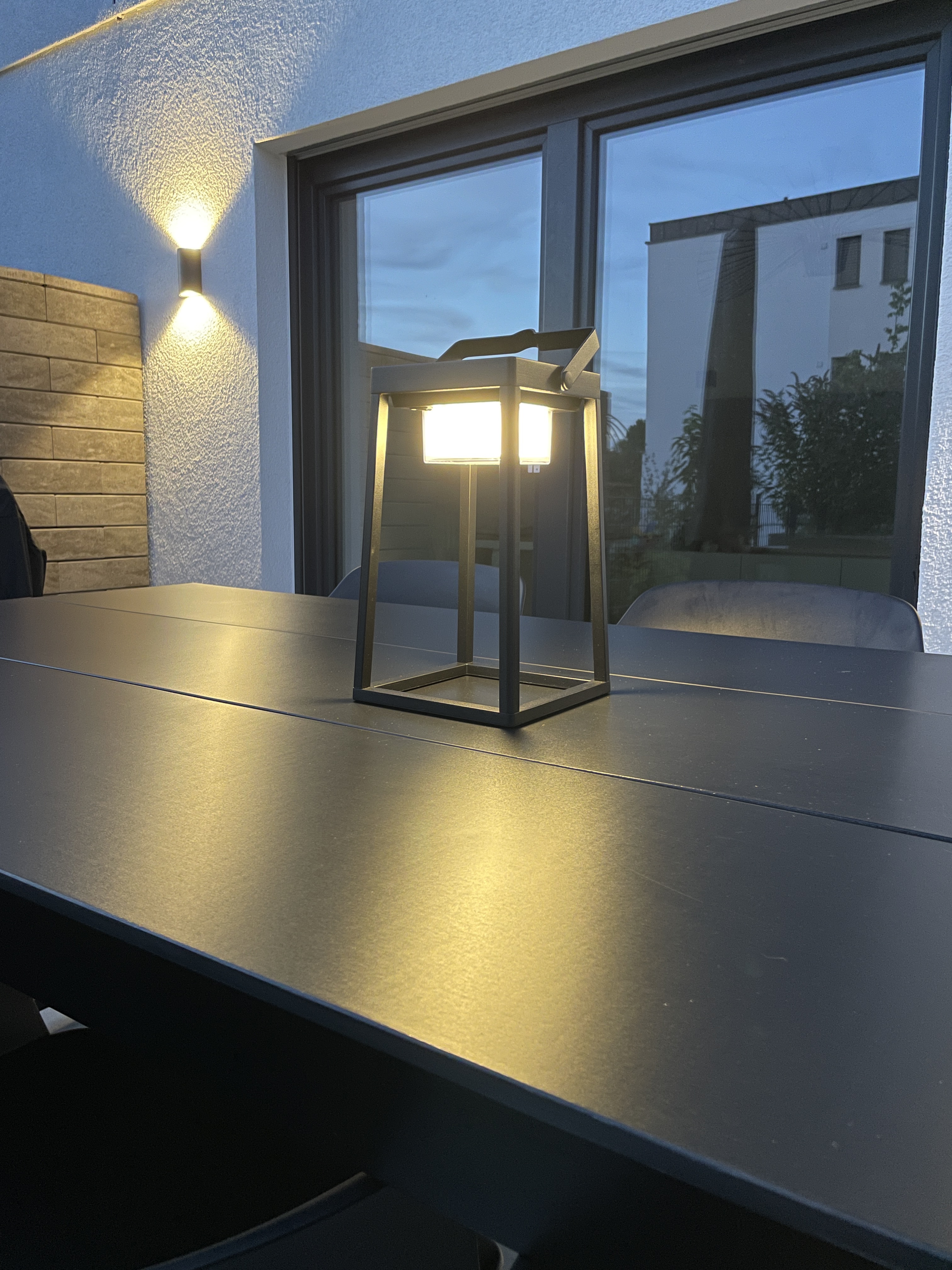

06 ayris Home image19.
06 ayris Home image19.
Application pictures
06 ayris Home image22.
06 ayris Home image22.

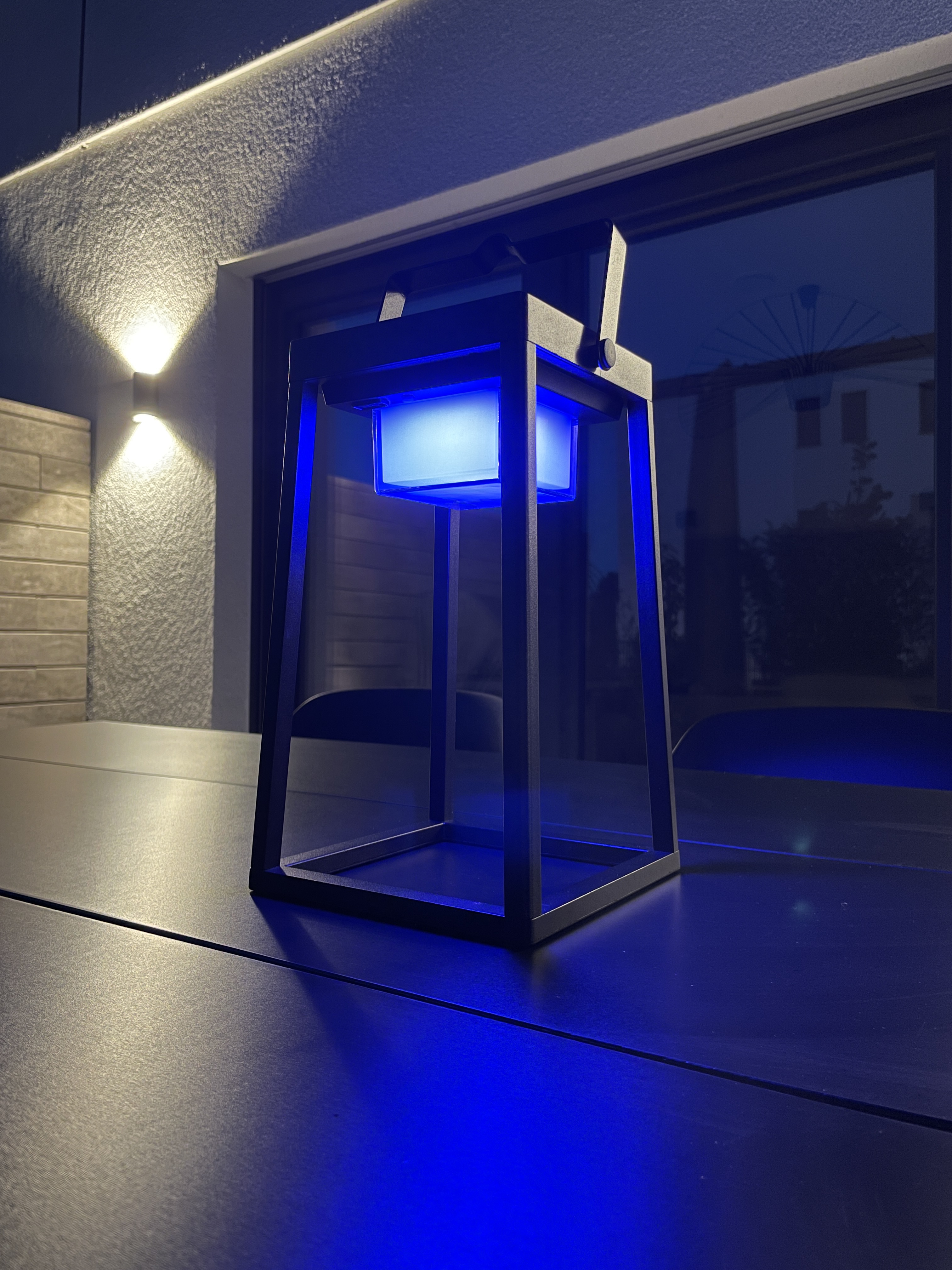

Application pictures
06 ayris Home Tischleuchte blau 2
06 ayris Home Tischleuchte blau 2
Application pictures

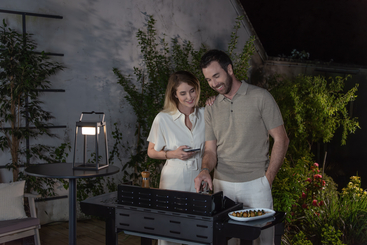

Table Frame SOLAR couple at barbecue ww 01
Table Frame SOLAR couple at barbecue ww 01
Application pictures
Table Frame SOLAR couple at barbecue ww 10
Table Frame SOLAR couple at barbecue ww 10
Application pictures
Table Frame SOLAR couple at barbecue RGB 11
Table Frame SOLAR couple at barbecue RGB 11
Application pictures
Table Frame SOLAR couple at barbecue ww 12
Table Frame SOLAR couple at barbecue ww 12
Application pictures
Table Frame SOLAR couple at barbecue RGB 13
Table Frame SOLAR couple at barbecue RGB 13
Application pictures
Table Frame SOLAR couple at barbecue ww 14
Table Frame SOLAR couple at barbecue ww 14
Application pictures

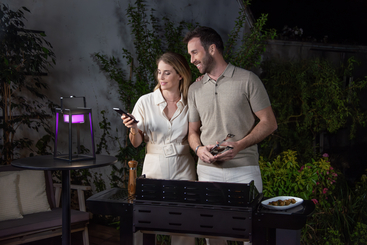

Table Frame SOLAR couple at barbecue RGB 15
Table Frame SOLAR couple at barbecue RGB 15
Application pictures
Table Frame SOLAR couple at barbecue ww 16
Table Frame SOLAR couple at barbecue ww 16
Application pictures
Table Frame SOLAR couple at barbecue RGB 17
Table Frame SOLAR couple at barbecue RGB 17
Application pictures
Table Frame SOLAR couple at barbecue ww 18
Table Frame SOLAR couple at barbecue ww 18
Application pictures

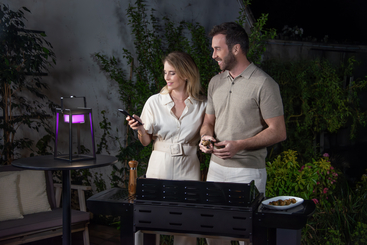

Table Frame SOLAR couple at barbecue RGB 19
Table Frame SOLAR couple at barbecue RGB 19
Application pictures
Table Frame SOLAR couple at barbecue ww 02
Table Frame SOLAR couple at barbecue ww 02
Application pictures
Table Frame SOLAR close-up ww 01
Table Frame SOLAR close-up ww 01
Application pictures

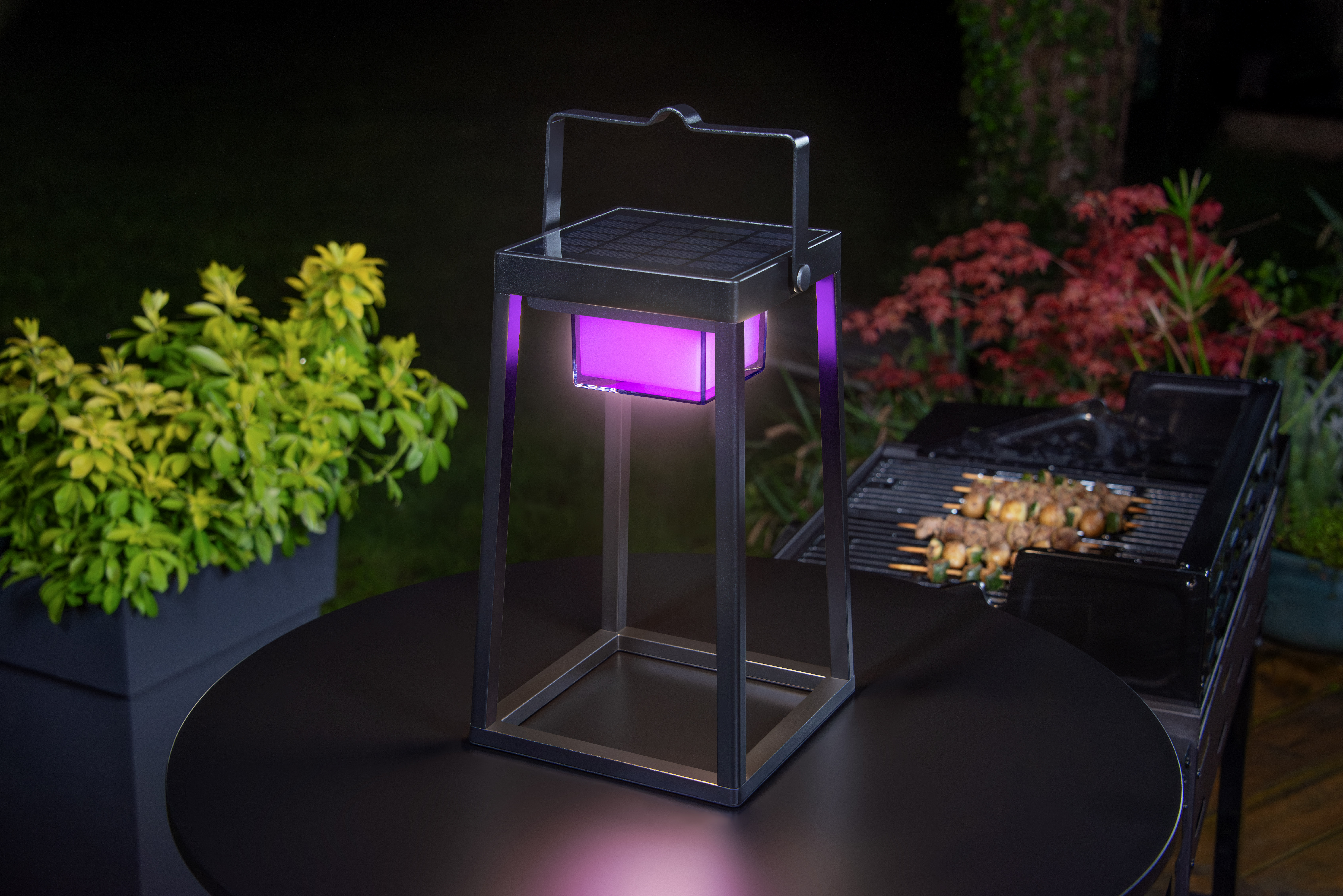

Table Frame SOLAR close-up RGB 02
Table Frame SOLAR close-up RGB 02
Application pictures

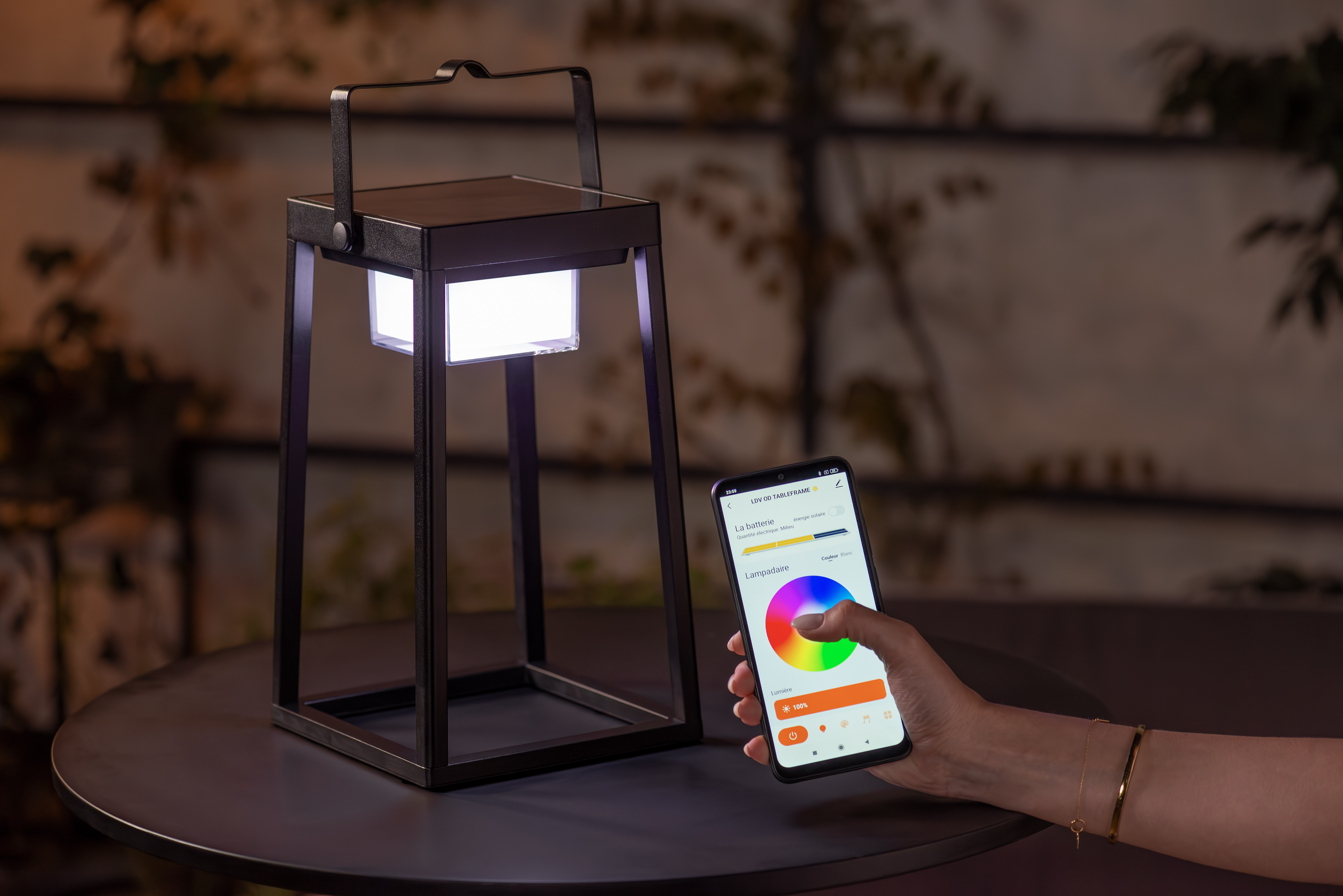

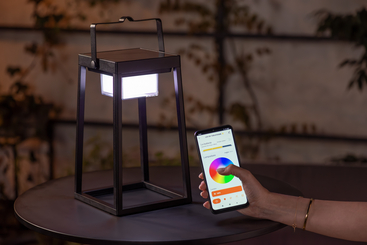

Table Frame SOLAR smartphone control 01
Table Frame SOLAR smartphone control 01
Application pictures

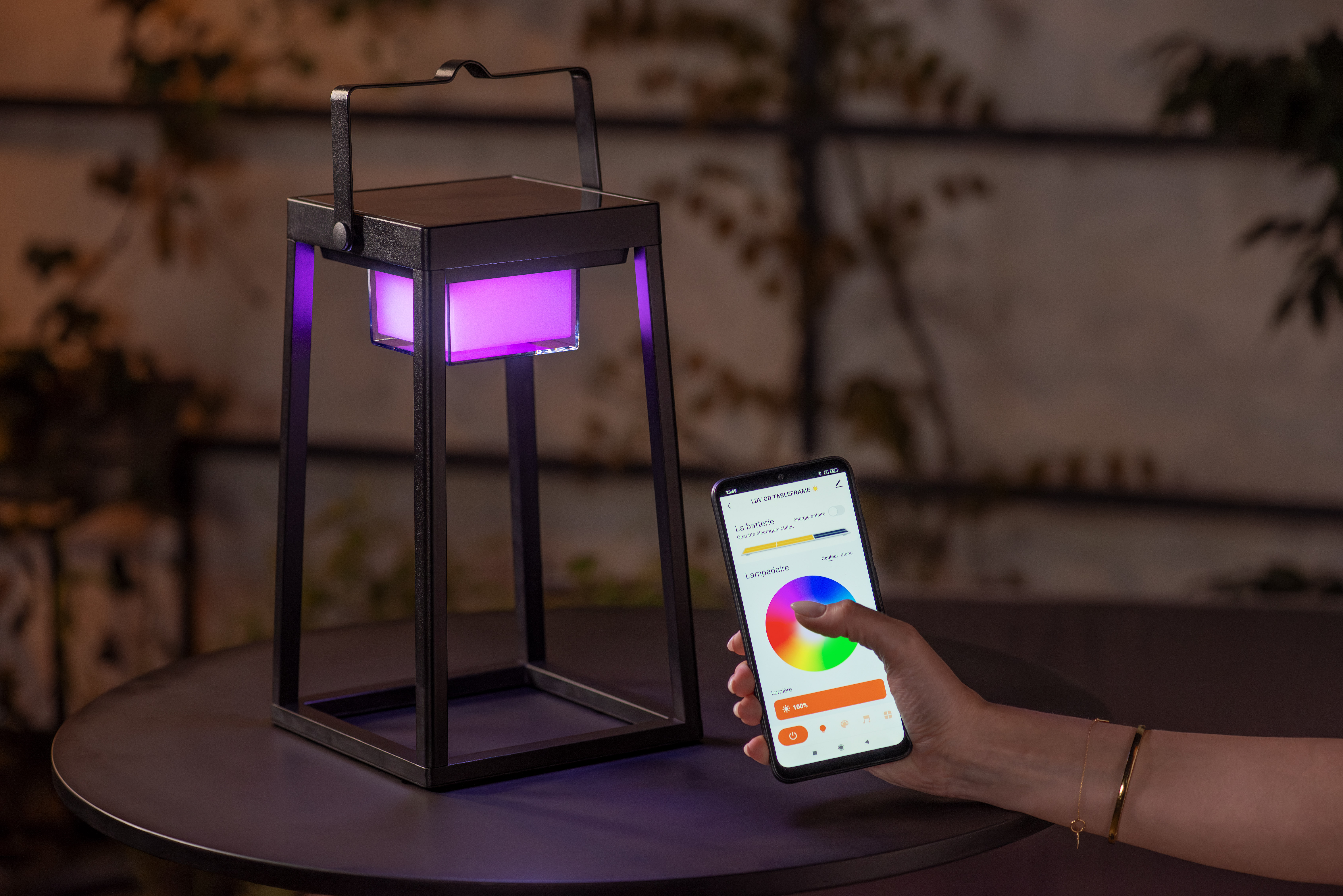

Table Frame SOLAR smartphone control RGB 02
Table Frame SOLAR smartphone control RGB 02
Application pictures

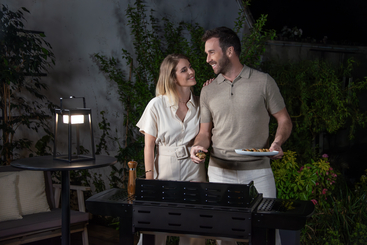

Table Frame SOLAR couple at barbecue ww 20
Table Frame SOLAR couple at barbecue ww 20
Application pictures
Table Frame SOLAR couple at barbecue ww 21
Table Frame SOLAR couple at barbecue ww 21
Application pictures
Table Frame SOLAR couple at barbecue ww 22
Table Frame SOLAR couple at barbecue ww 22
Application pictures

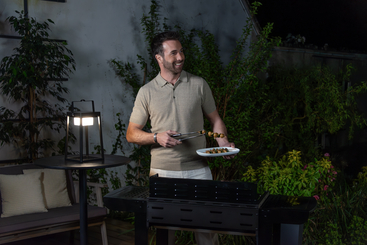

Table Frame SOLAR couple at barbecue ww 23
Table Frame SOLAR couple at barbecue ww 23
Application pictures

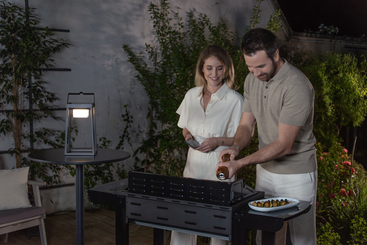

Table Frame SOLAR couple at barbecue ww 03
Table Frame SOLAR couple at barbecue ww 03
Application pictures
Table Frame SOLAR smartphone control ww 03
Table Frame SOLAR smartphone control ww 03
Application pictures
Table Frame SOLAR smartphone control RGB 04
Table Frame SOLAR smartphone control RGB 04
Application pictures
Table Frame SOLAR couple at barbecue ww 04
Table Frame SOLAR couple at barbecue ww 04
Application pictures

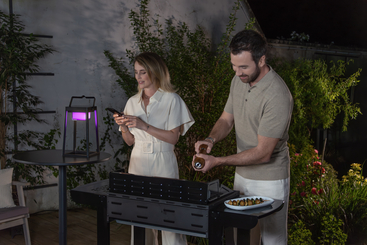

Table Frame SOLAR couple at barbecue RGB 05
Table Frame SOLAR couple at barbecue RGB 05
Application pictures

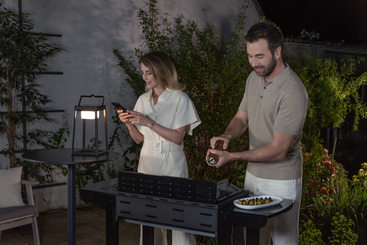

Table Frame SOLAR couple at barbecue ww 06
Table Frame SOLAR couple at barbecue ww 06
Application pictures

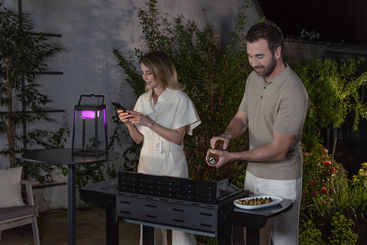

Table Frame SOLAR couple at barbecue RGB 07
Table Frame SOLAR couple at barbecue RGB 07
Application pictures
Table Frame SOLAR couple at barbecue ww 08
Table Frame SOLAR couple at barbecue ww 08
Application pictures

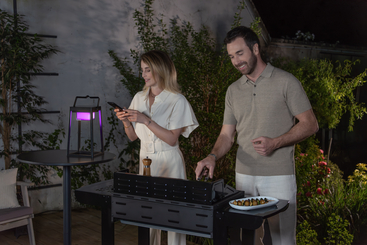

Table Frame SOLAR couple at barbecue RGB 09
Table Frame SOLAR couple at barbecue RGB 09

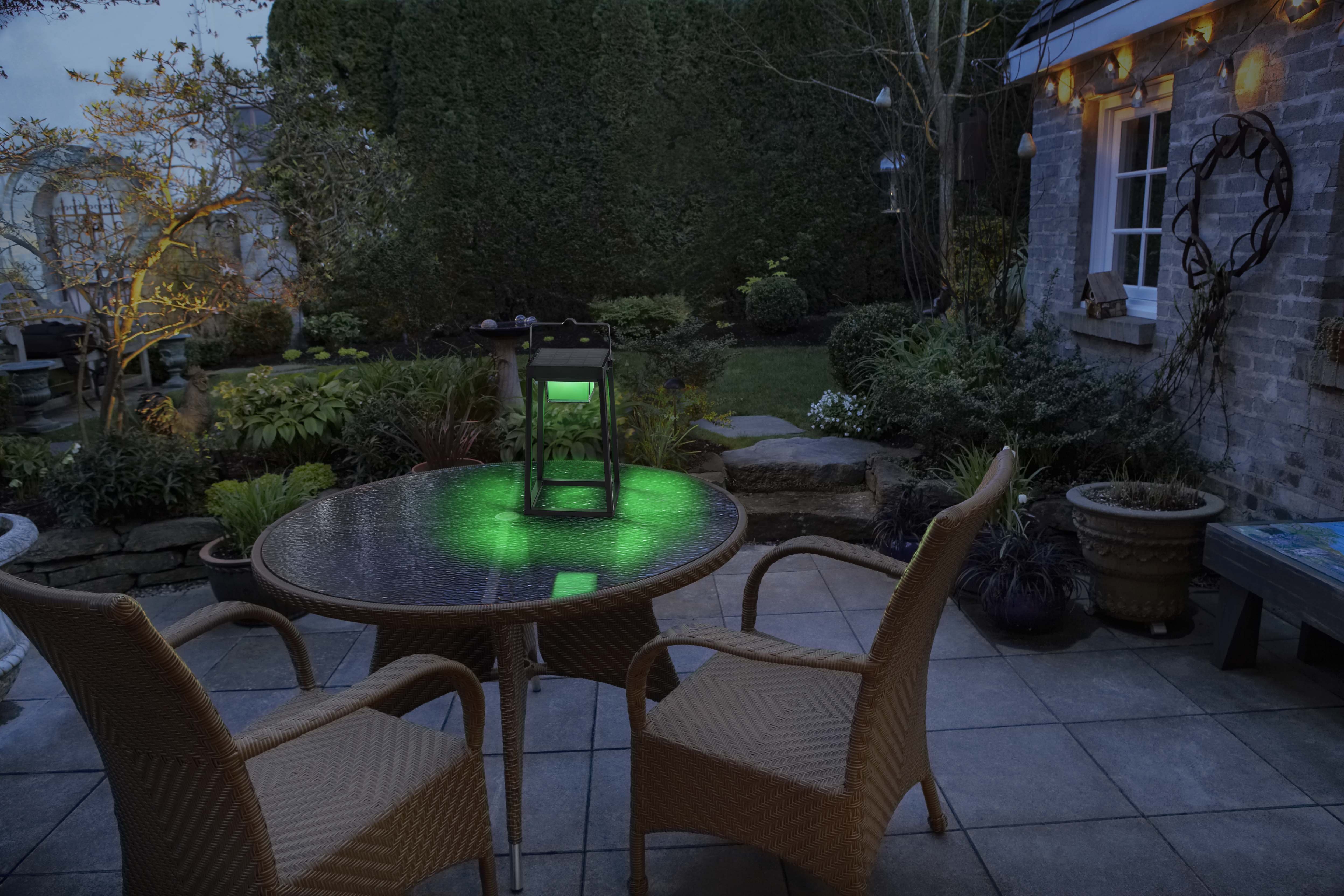

Application pictures Getty
