SMART+ WIFI OUTDOOR FLEX
Smart+ Wifi Outdoor Flex IP44 5M RGB TW
GTIN: 4099854095184
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Easy and quick installation
- Uses multi color and cold or warm white light for most flexible lighting scenes
Areas of application
- Outdoor applications
- Indirect lighting
Product features
- Dimmable
- RGB color control, approx. 16 million color options adjustable
- Adjustable color temperature via Tunable White: 2,700…6,500 K
- Flexible, bendable LED strips
- Type of protection: IP44
- Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0)
Equipment / Accessories
- Control via app or voice control requires compatible Smart home system
- Complete mounting and connecting accessories included
- For control via SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
- Do not connect the rope light to the supply while it is wound onto a reel. Do not use the lightstrip when covered or recessed into a surface. The string of lights may not be operated within the packaging. Do not open the lightstrip.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
References / Links
- Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
| Nominal wattage | 14.50 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 85.000 mA |
| Inrush current | 28 mA |
| Power factor λ | > 0.5 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
Photometrical data
| Luminous flux | 960 lm |
| Total luminous flux of contained light sources | 1600 lm |
| Luminous efficacy | 66 lm/W |
| Color temperature | 2700…6500 K |
| Light color (designation) | Red, Green, Blue, Tunable White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | < 6 sdcm |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | < 0.4 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 120 ° |
Dimensions & Weight
| Length | 5000.00 mm |
| Height | 4.50 mm |
| Width | 11.50 mm |
| Product weight | 510.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Silicone |
| Cover material | Silicone |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…80 °C |
| Type of connection | Plug type C (EU) |
| Type of protection | IP44 |
| Dimmable | Yes |
| Type of dimming | WiFi |
| Mounting type | Surface |
| Application environment | Outdoor |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h |
| Number of switching cycles | 15000 |
Certificates & Standards
| Standards | CE |
Additional product data
| Product remark | Reset settings to default by switching the product on for three seconds and off for three seconds and repeating this five times. |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854095184 | Folding box 1 |
70 mm x 210 mm x 200 mm | 655.00 g | 2.94 dm³ |
| 4099854095191 | Shipping box 4 |
420 mm x 235 mm x 165 mm | 3006.00 g | 16.29 dm³ |
User instruction / safety instructions
UI SMART WIFI OUTDOOR FLEX
UI SMART WIFI OUTDOOR FLEX
Legal information
Legal Insert SMART WIFI OUTD FLEX
Legal Insert SMART WIFI OUTD FLEX
Declarations of conformity
SMART WIFI OUTD FLEX 5M RGB TW IP44
SMART WIFI OUTD FLEX 5M RGB TW IP44
EU Data Act
SMART WiFi Lamps and Luminaires
SMART WiFi Lamps and Luminaires

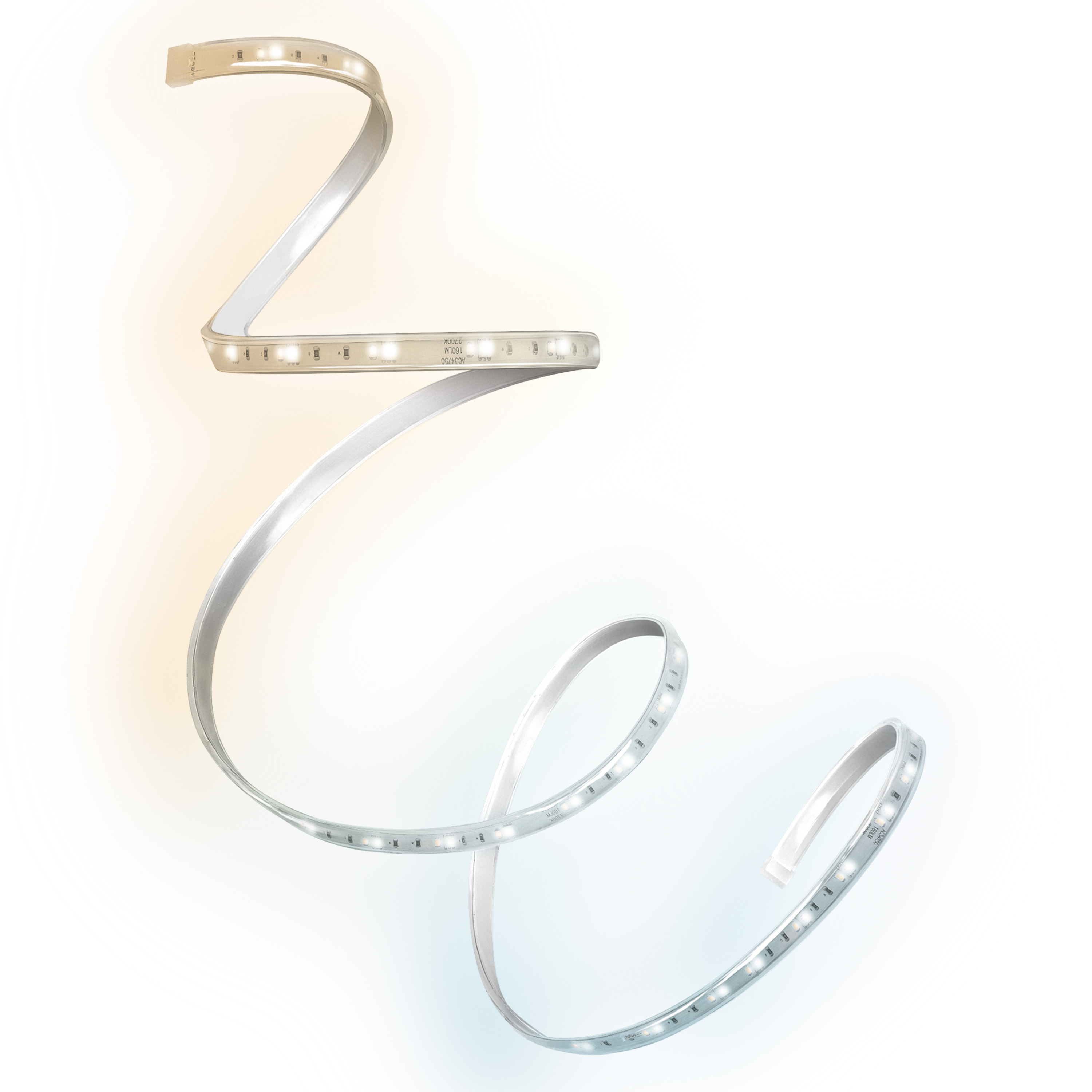

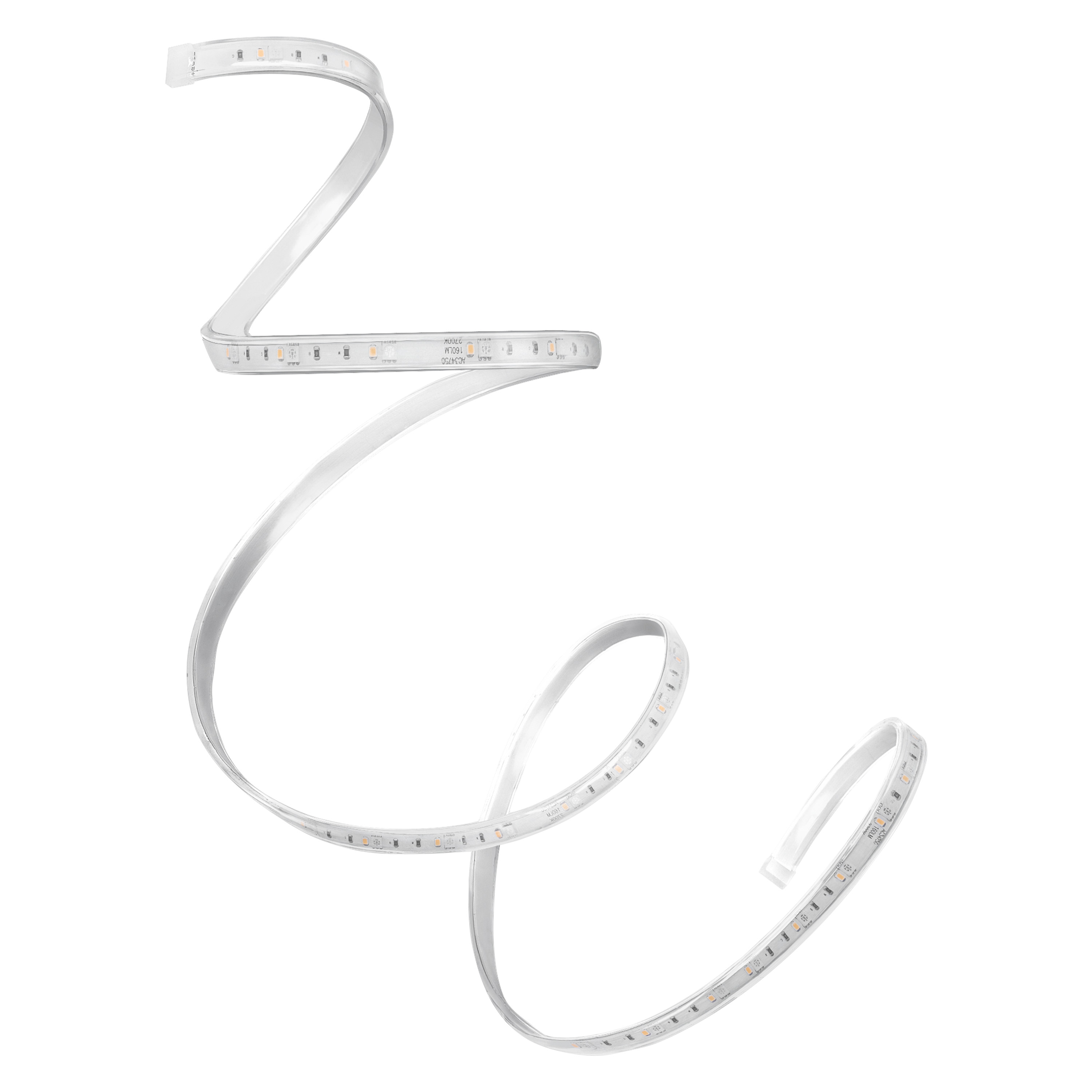

Product image: white background, upright
SMART WIFI OUTD FLEX 5M RGB TW
SMART WIFI OUTD FLEX 5M RGB TW

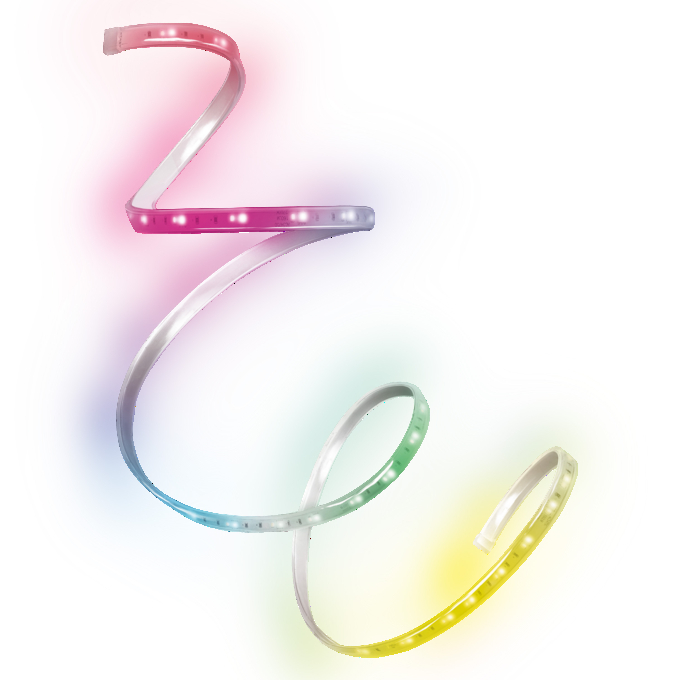

Product image: white background, upright, switched on
SMART WIFI OUTD FLEX 5M RGB TW
SMART WIFI OUTD FLEX 5M RGB TW
Product image: white background, upright, switched on
SMART WIFI OUTD FLEX 5M RGB TW
SMART WIFI OUTD FLEX 5M RGB TW
Product infographic (application image with text and graphic)
SmartP Wifi Magic E-Com_Grafik 1200x1200px 2023 EN
SmartP Wifi Magic E-Com_Grafik 1200x1200px 2023 EN
Product line drawing with letters
SMART WIFI OUTD FLEX 3M RGB TW
SMART WIFI OUTD FLEX 3M RGB TW
Product line drawing with numbers
SMART WIFI OUTD FLEX 5M RGB TW
SMART WIFI OUTD FLEX 5M RGB TW
Product line drawing, front, no dimensions
SMART WIFI OUTD FLEX 3M RGB TW
SMART WIFI OUTD FLEX 3M RGB TW
Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI OD FLEX 5M RGBTW MiPRC
SH FC WIFI OD FLEX 5M RGBTW MiPRC
Packaging image, frontal
SH FC WIFI OD FLEX 5M RGBTW MiPRC
SH FC WIFI OD FLEX 5M RGBTW MiPRC
Packaging image, spacial
SH FC WIFI OD FLEX 5M RGBTW MiPRC
SH FC WIFI OD FLEX 5M RGBTW MiPRC
Application pictures
SMART+ Wifi Flexible Light Strips Colored
SMART+ Wifi Flexible Light Strips Colored

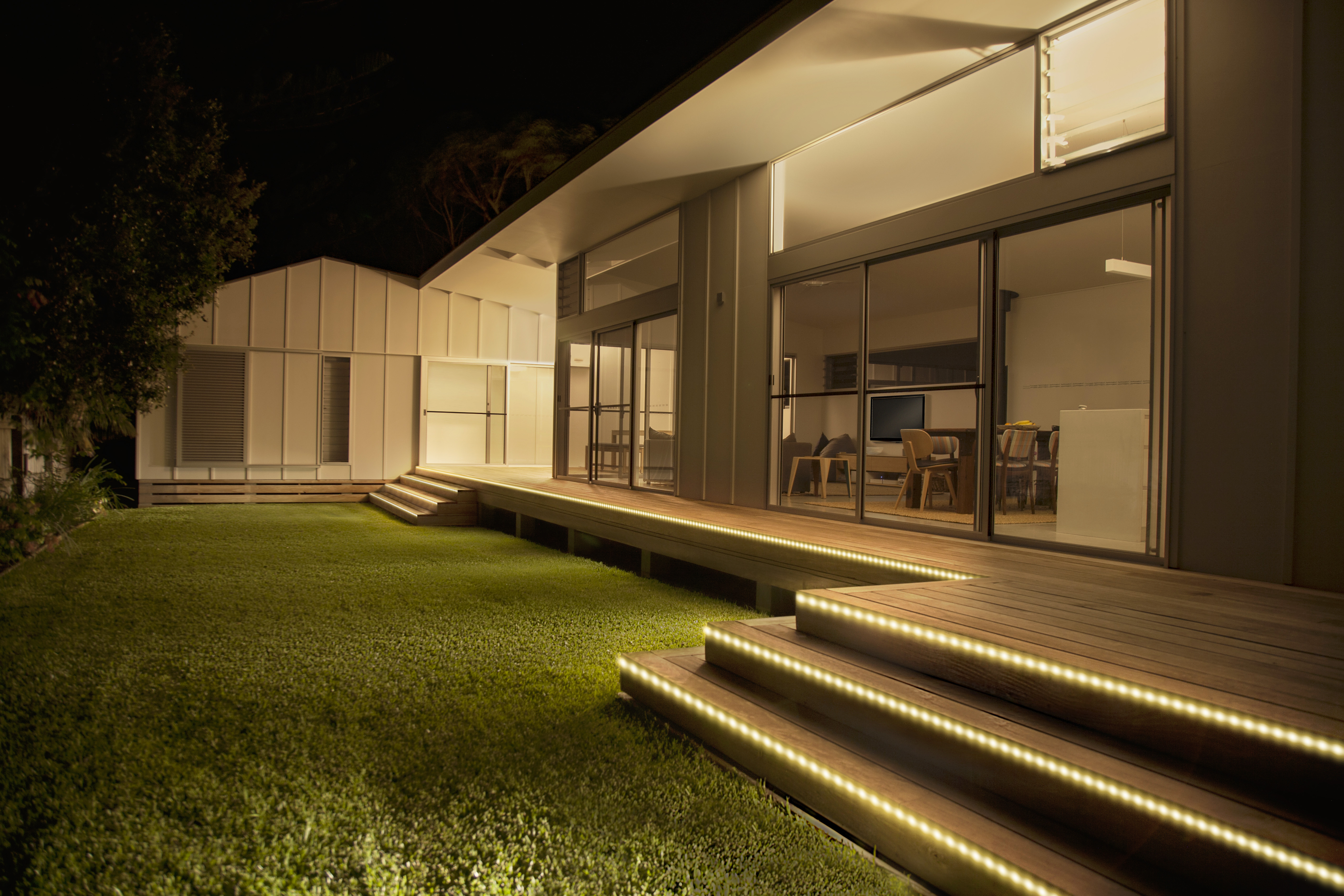

Application pictures Getty
Smart WIFI Outdoorf Flex WW
Smart WIFI Outdoorf Flex WW

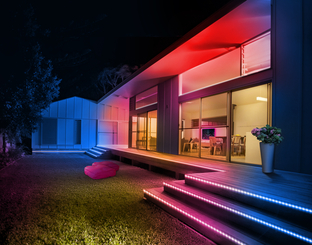

Application pictures Getty
