Smart+ Camera Cloud
SMART+ CLOUD CAMERA
GTIN: 4058075763401
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Easy and quick installation
- Increased perception of safety thanks to high brightness
- The recorded data is saved on the unit's memory card or cloud storage
- High-quality materials
Areas of application
- Outdoor use (IP44)
- Garages
- Entrance areas
Product features
- Controllable via LEDVANCE SMART+ App (with minimum Android 8.0 or iOS 14.0)
- Controllable via voice control available: Google Assistant or Amazon Alexa
- Built in speaker and alarm siren
- Color temperature: 3,000 K (Warm White)
- Network protocol: WiFi
- Type of protection: IP44
- HD Live view camera
- 3 MP camera
- Talk from mobile phone to camera
- Automatic night mode
- Motion sensor with activity schedule
- Auto record of motions (SD card required)
Equipment / Accessories
- For control via LEDVANCE SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
- Mounting screws and dowels included
- SD card not supplied
- Compatible with SD card type (SD/SDHC/SDXC)
- SD Class recommended 120-160MB/s
- Minimum card capacity 8GB/Maximum 128GB
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
References / Links
- Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
| Nominal wattage | 15.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 110.000 mA |
| Power factor λ | > 0.5 |
| Protection class | II |
Photometrical data
| Luminous flux | 1000 lm |
| Total luminous flux of contained light sources | 1400 lm |
| Luminous efficacy | 66 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | ≥80 |
| Flickering metric (Pst LM) | - |
| Stroboscope effect metric (SVM) | - |
| Beam angle | 110 ° |
Dimensions & Weight
| Length | 100.00 mm |
| Height | 252.00 mm |
| Width | 80.00 mm |
| Product weight | 500.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Type of connection | Terminal, 2-Pole (L, N) |
| Type of protection | IP44 |
| Dimmable | Yes |
| Type of dimming | WiFi |
| Mounting type | Surface |
| Application environment | Outdoor |
| With light source | Yes |
Lifespan
| Number of switching cycles | 12500 |
Sensor
| Type of sensor | Motion, Daylight |
| Sensor controlled switching time | 60 s |
| Detection range of motion sensor | 3…7 m |
| Detection threshold of daylight sensor | 0…20 lx |
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Product remark | Reset settings to default by switching the product on for three seconds and off for three seconds and repeating this five times. |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075763401 | Folding box 1 |
120 mm x 265 mm x 100 mm | 580.00 g | 3.18 dm³ |
| 4058075763418 | Shipping box 2 |
285 mm x 140 mm x 200 mm | 1375.00 g | 7.98 dm³ |
User instruction / safety instructions
SMART OUTD WIFI CLOUD CAM
SMART OUTD WIFI CLOUD CAM
Declarations of conformity
SMART OUTD WIFI CLOUD CAM
SMART OUTD WIFI CLOUD CAM

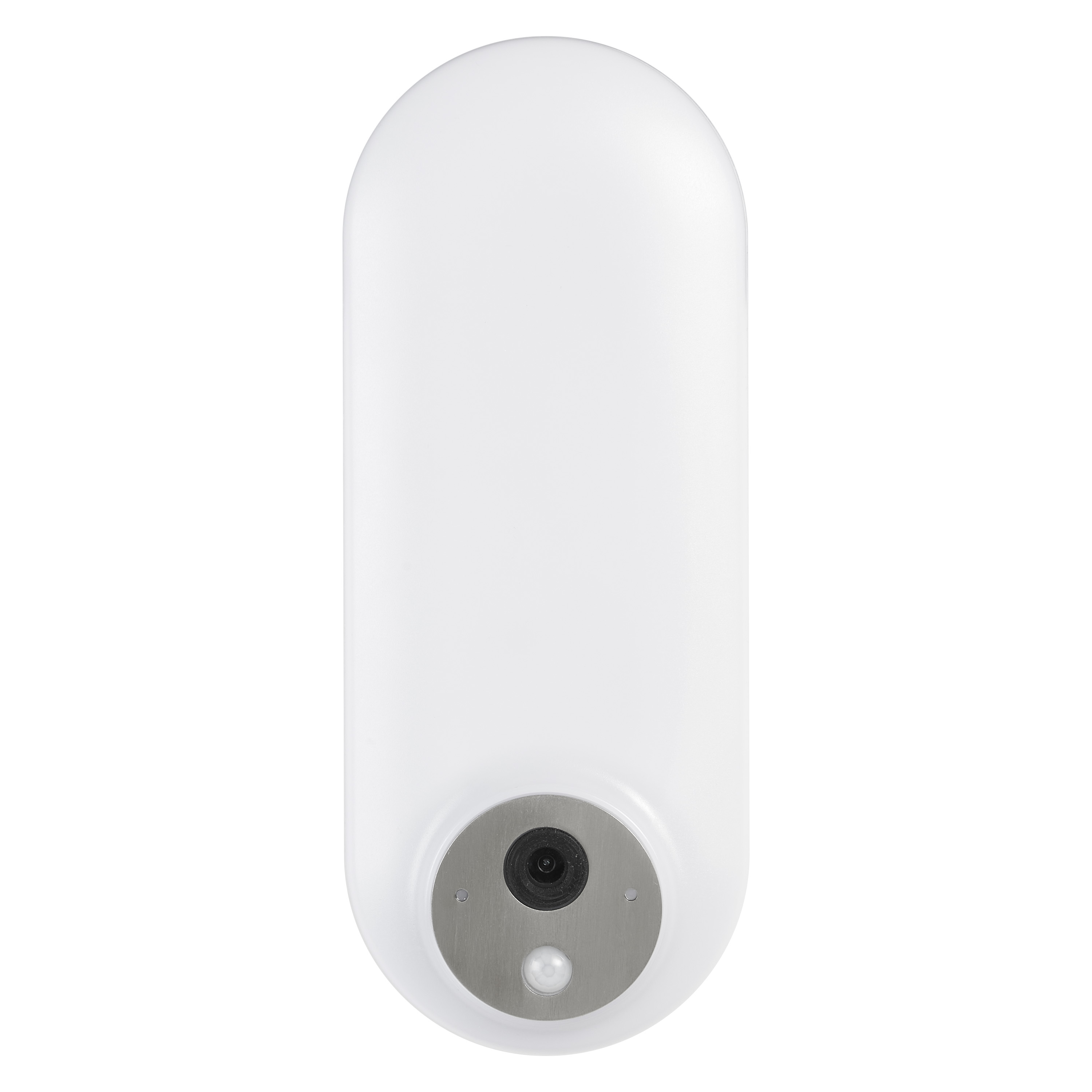

Product image: white background, upright
SMART OUTD WIFI CLOUD CAM RGBW
SMART OUTD WIFI CLOUD CAM RGBW

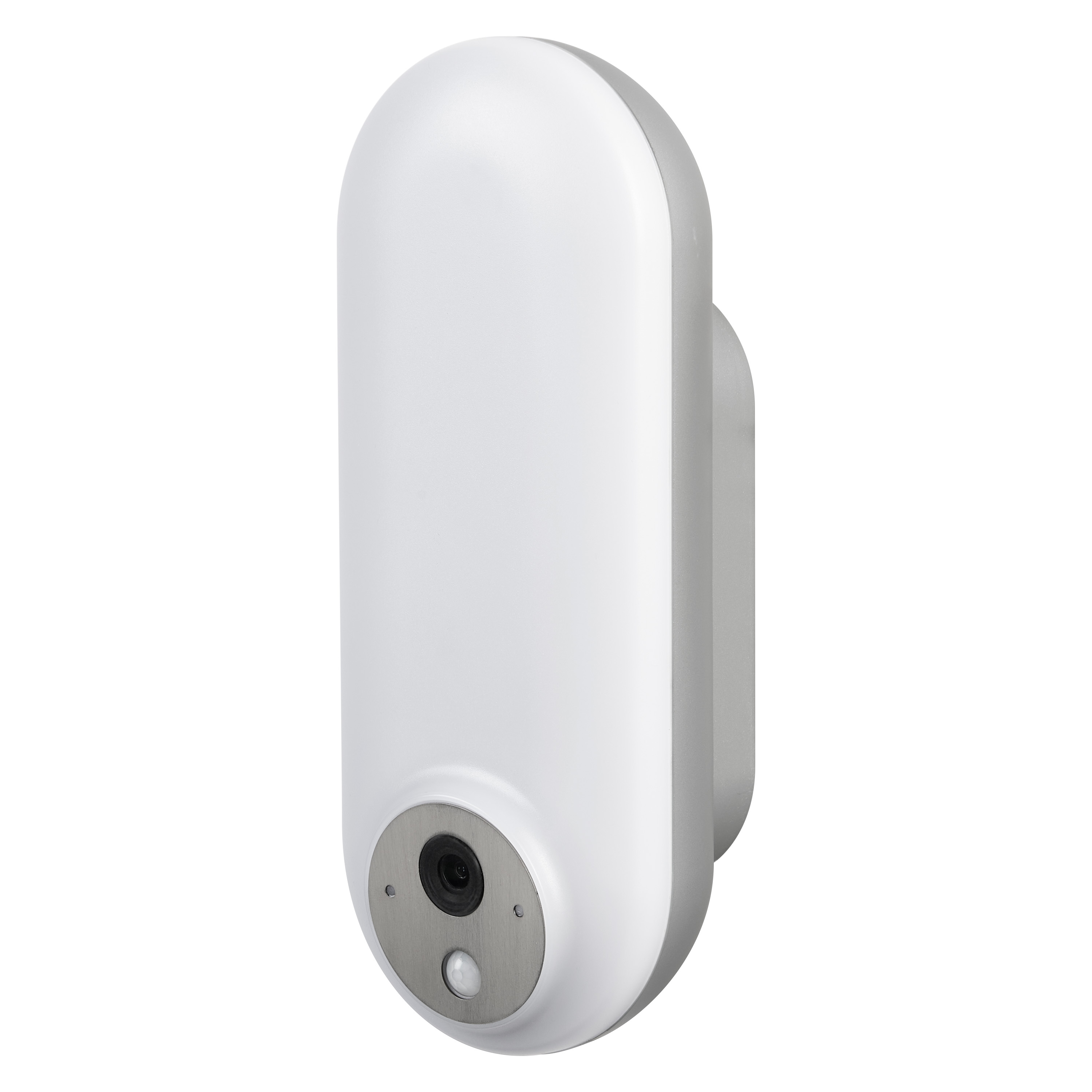

Product image: white background, upright, alternative image
SMART OUTD WIFI CLOUD CAM RGBW
SMART OUTD WIFI CLOUD CAM RGBW

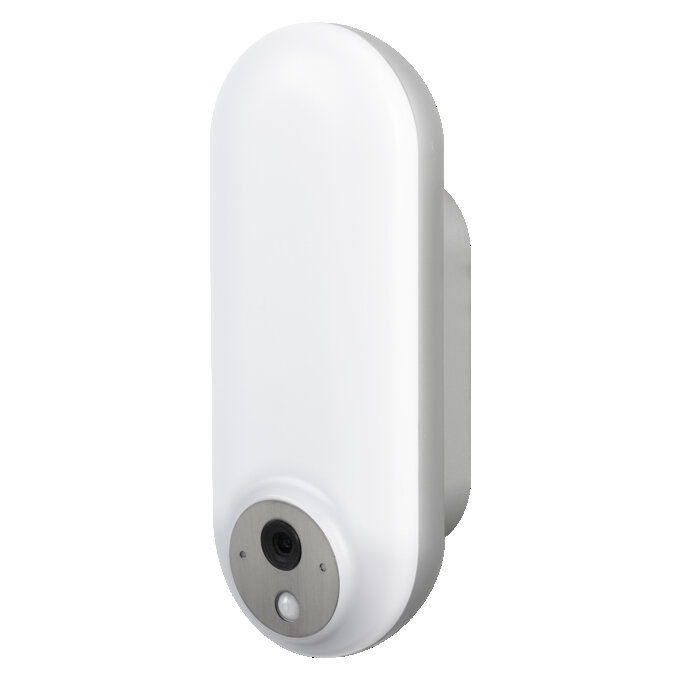

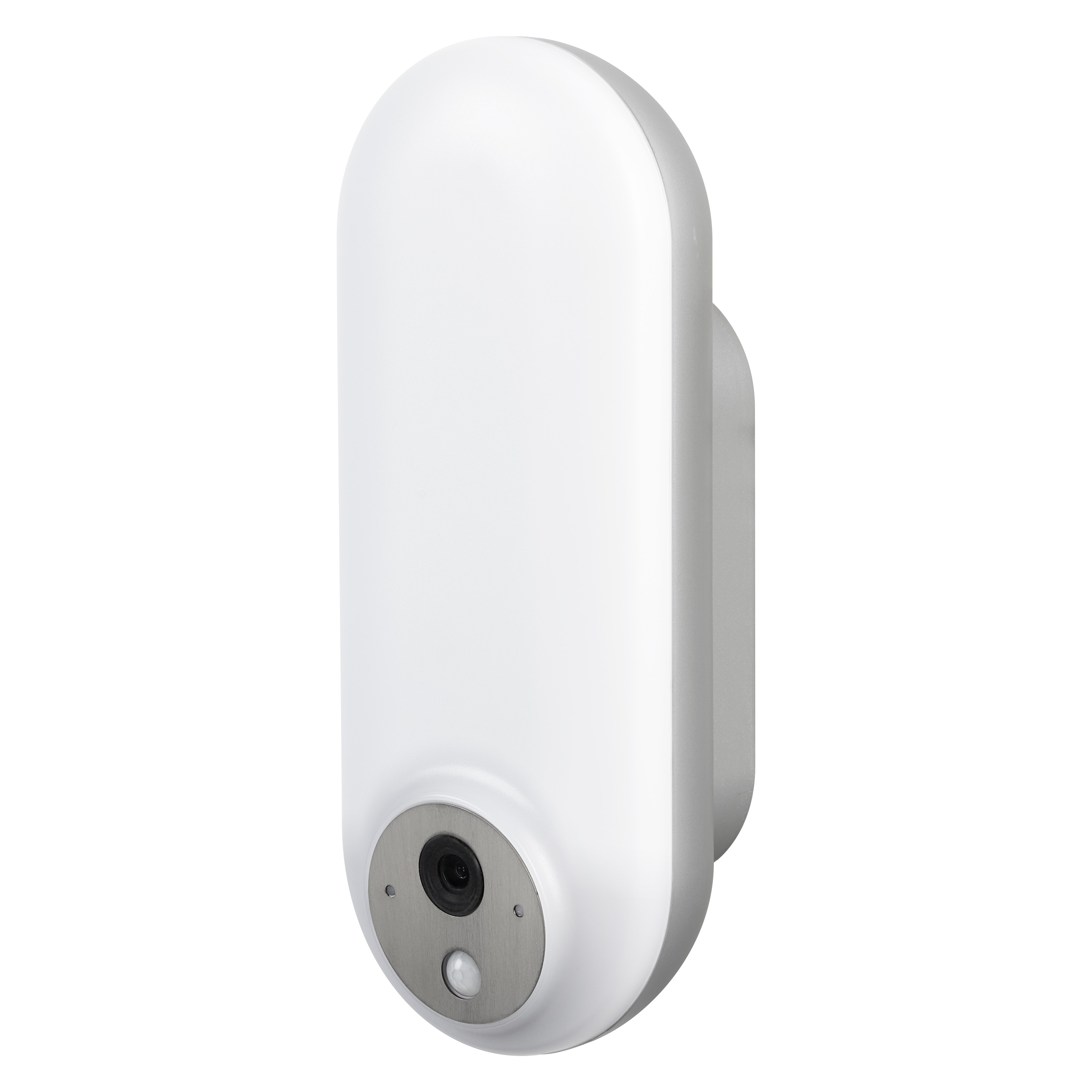

Product image: white background, upright, switched on
SMART OUTD WIFI CLOUD CAM RGBW
SMART OUTD WIFI CLOUD CAM RGBW
Product infographic (application image with text and graphic)
SmartPlus Kameraleuchten assortment E-Com-Grafik 1200x1200 2023 EN
SmartPlus Kameraleuchten assortment E-Com-Grafik 1200x1200 2023 EN
Product infographic (application image with text and graphic)
SmartPlus assortment E-Com-Grafik V3 1200x1200 2023 EN
SmartPlus assortment E-Com-Grafik V3 1200x1200 2023 EN
Product infographic (application image with text and graphic)
Solar assortment E-Com-Grafik V2 1200x1200 2023 EN
Solar assortment E-Com-Grafik V2 1200x1200 2023 EN
Product line drawing with letters
SMART OUTD WIFI CLOUD CAM RGBW
SMART OUTD WIFI CLOUD CAM RGBW
Product line drawing with numbers
SMART OUTD WIFI CLOUD CAM RGBW
SMART OUTD WIFI CLOUD CAM RGBW
Product line drawing, front, no dimensions
SMART OUTD WIFI CLOUD CAM RGBW
SMART OUTD WIFI CLOUD CAM RGBW

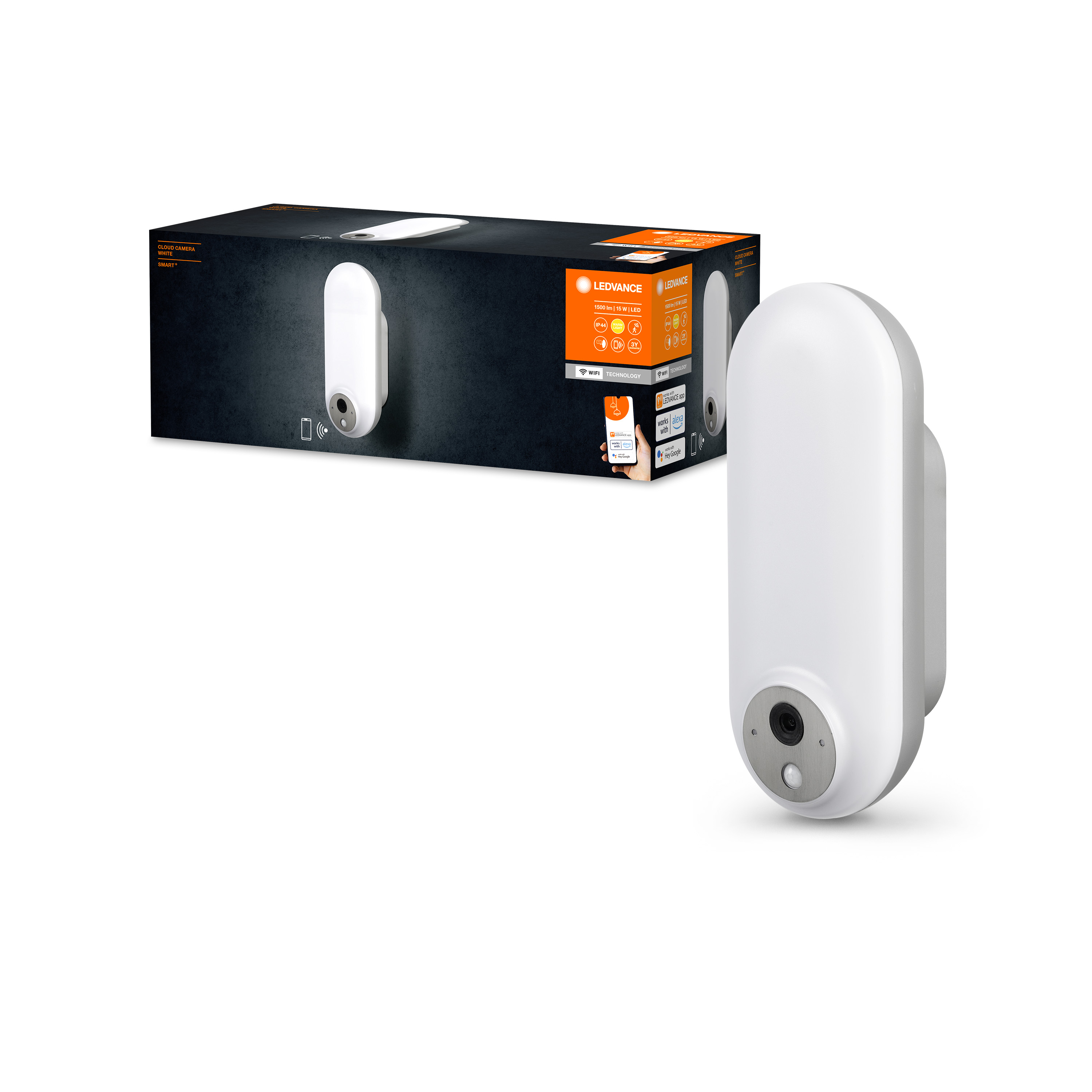

Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI CLOUD CAM RGBW MiPRC
SH FC WIFI CLOUD CAM RGBW MiPRC
Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI CLOUD CAM RGBW MiPRC
SH FC WIFI CLOUD CAM RGBW MiPRC

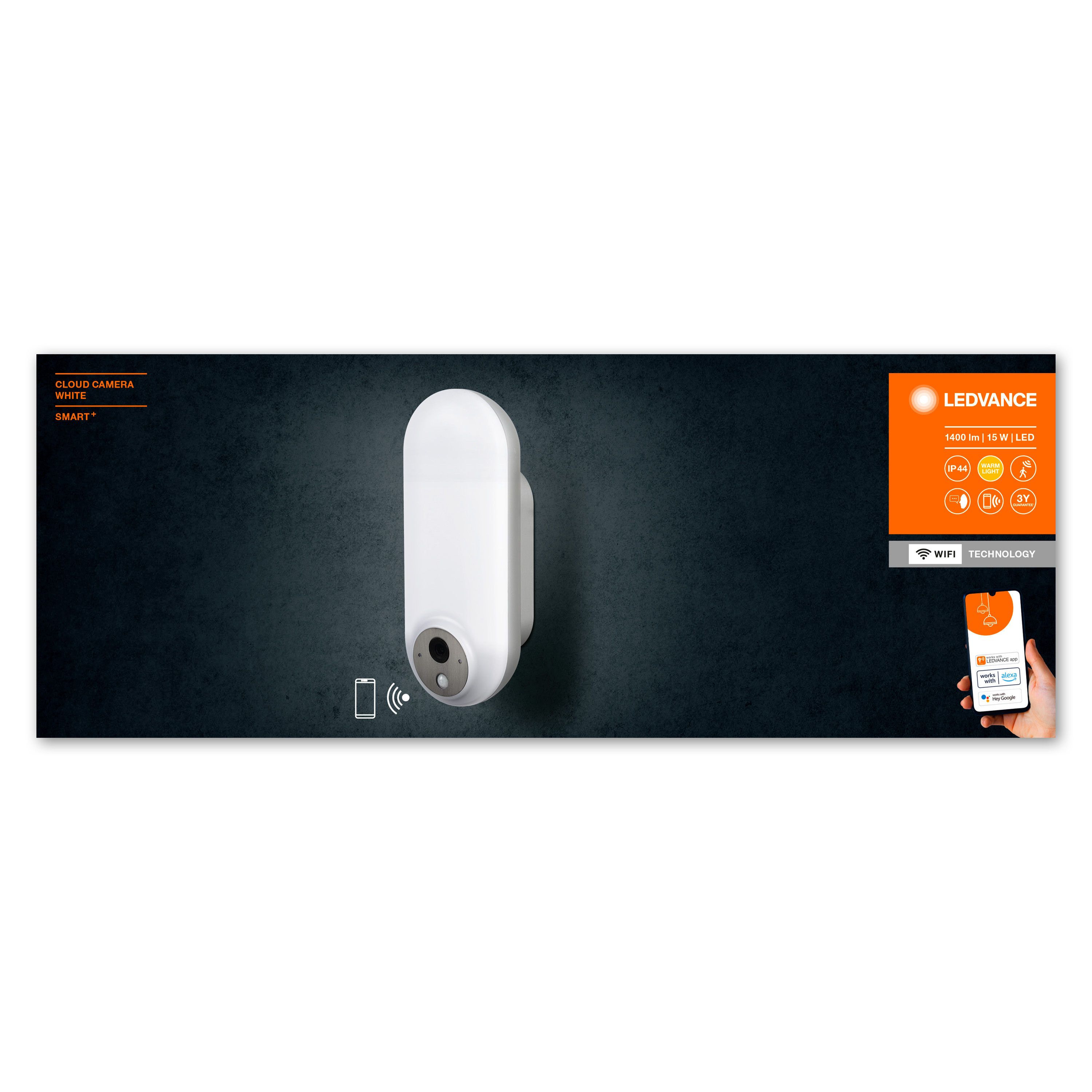

Packaging image, frontal
SH FC WIFI CLOUD CAM RGBW MiPRC
SH FC WIFI CLOUD CAM RGBW MiPRC

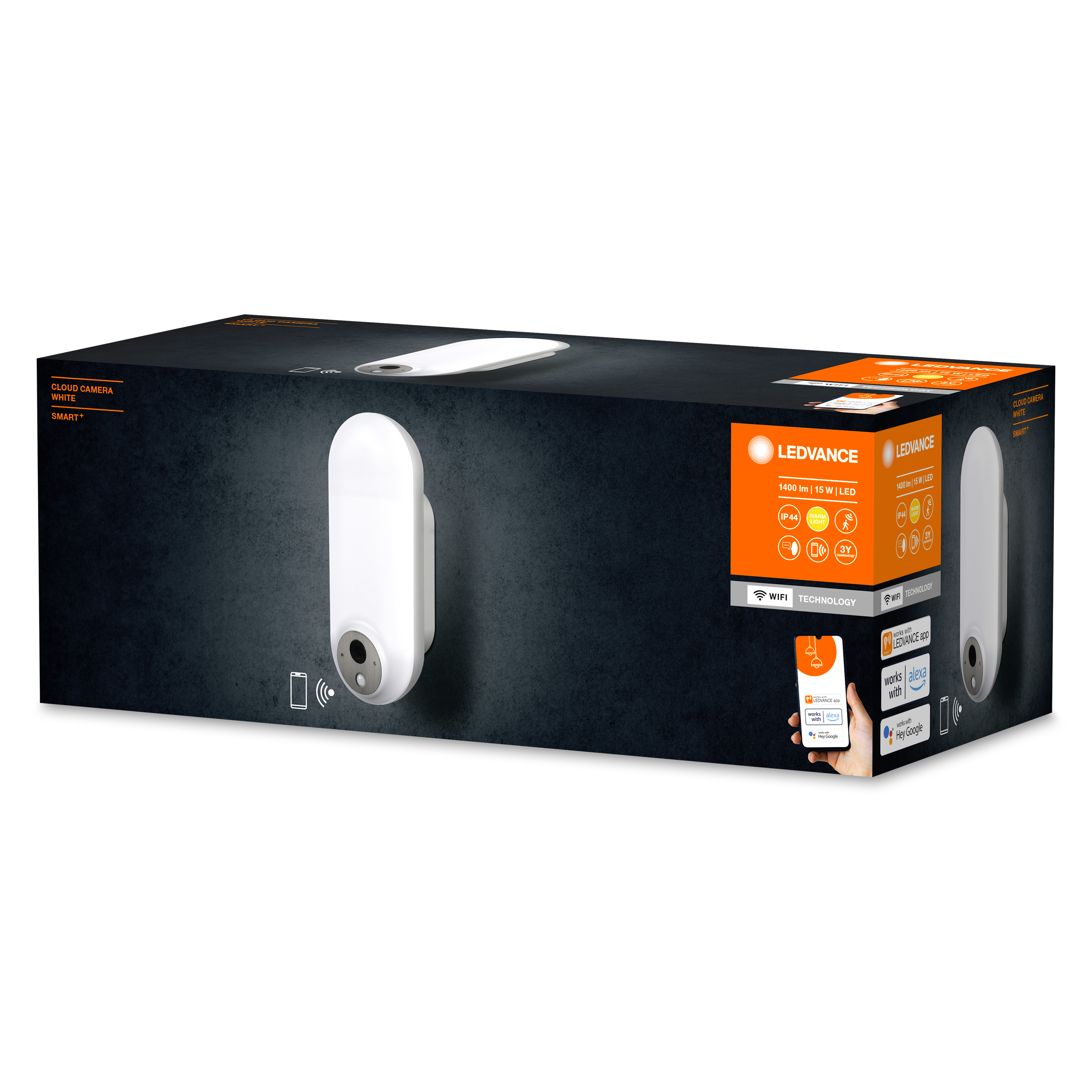

Packaging image, spacial
SH FC WIFI CLOUD CAM RGBW MiPRC
SH FC WIFI CLOUD CAM RGBW MiPRC

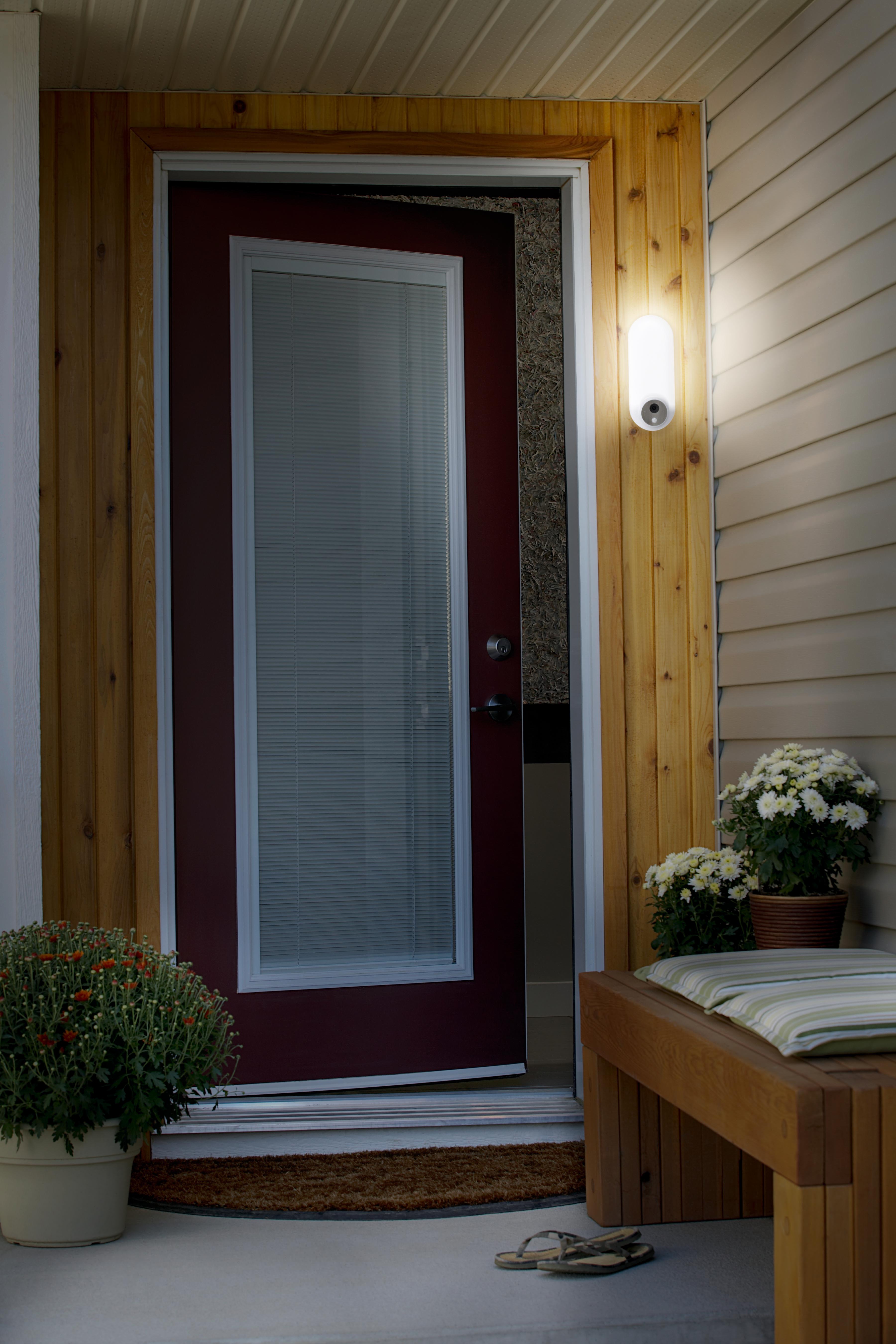

Application pictures Getty
WIFI OUTDOOR CAMERA CLOUD
WIFI OUTDOOR CAMERA CLOUD
| EAN | ELDAS number |
|---|---|
| 4058075763401 | 941264300 |
