Smart+ Recess Slim Downlight Tunable White
SMART+ Wifi Orbis Downlight Slim 225 TW
GTIN: 4058075573277
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Very slim design
- Ideal when few space in the ceiling
Areas of application
- Indoor applications
- Corridors, entrance areas, stairwells, living rooms, basements
- Bedrooms
- Kitchens
Product features
- Integrated driver
- Controllable via LEDVANCE SMART+ App (with minimum Android 8.0 or iOS 14.0)
- Controllable via voice control available: Google Assistant or Amazon Alexa
- Adjustable color temperature via Tunable White: 3,000…6,500 K
- Dimmable
- Network protocol: WiFi
- Housing material: plastic
Equipment / Accessories
- For control via LEDVANCE SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- The luminaires are not suitable for covering with thermally insulated material.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
References / Links
- Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
| Nominal wattage | 22.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 150.000 mA |
| Inrush current | 25 A |
| Inrush current time Th50 | < 1500 µs |
| Max. number of luminaires per miniature circuit breaker C10 | - |
| Power factor λ | > 0.70 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Operating mode | External LED driver |
Photometrical data
| Luminous flux | 2000 lm |
| Total luminous flux of contained light sources | 2400 lm |
| Luminous efficacy | 90 lm/W |
| Color temperature | 3000…6500 K |
| Light color (designation) | Tunable White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | < 6 sdcm |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 110 ° |
Dimensions & Weight
| Diameter | 225.00 mm |
| Height | 25.00 mm |
| Product weight | 273.00 g |
| Cable length | 150 mm |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Plastic |
| Cover material | Polystyrene (PS) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+70 °C |
| Type of connection | Screw terminal |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | Yes |
| Type of dimming | WiFi |
| Mounting type | Recessed |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Mounting diameter | 200 mm |
| Mounting depth | 35,0 mm |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 25000 h |
| Number of switching cycles | 15000 |
Emergency lighting
| Type of emergency operation test | None |
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075573277 | Folding box 1 |
42 mm x 234 mm x 237 mm | 297.00 g | 2.33 dm³ |
| 4058075573284 | Shipping box 12 |
482 mm x 268 mm x 260 mm | 5107.00 g | 33.59 dm³ |
User instruction / safety instructions
SMART+ WIFI DOWNLIGHT SLIM
SMART+ WIFI DOWNLIGHT SLIM
Legal information
Legal insert Residential luminaires
Legal insert Residential luminaires
Declarations of conformity
SMART WIFI DL SP SLIM
SMART WIFI DL SP SLIM
EU Data Act
SMART WiFi Lamps and Luminaires
SMART WiFi Lamps and Luminaires
Product image: white background, upright
HCL SMART Downlight 225 TW
HCL SMART Downlight 225 TW
Product image: white background, upright, alternative image
HCL SMART Downlight 225 TW
HCL SMART Downlight 225 TW

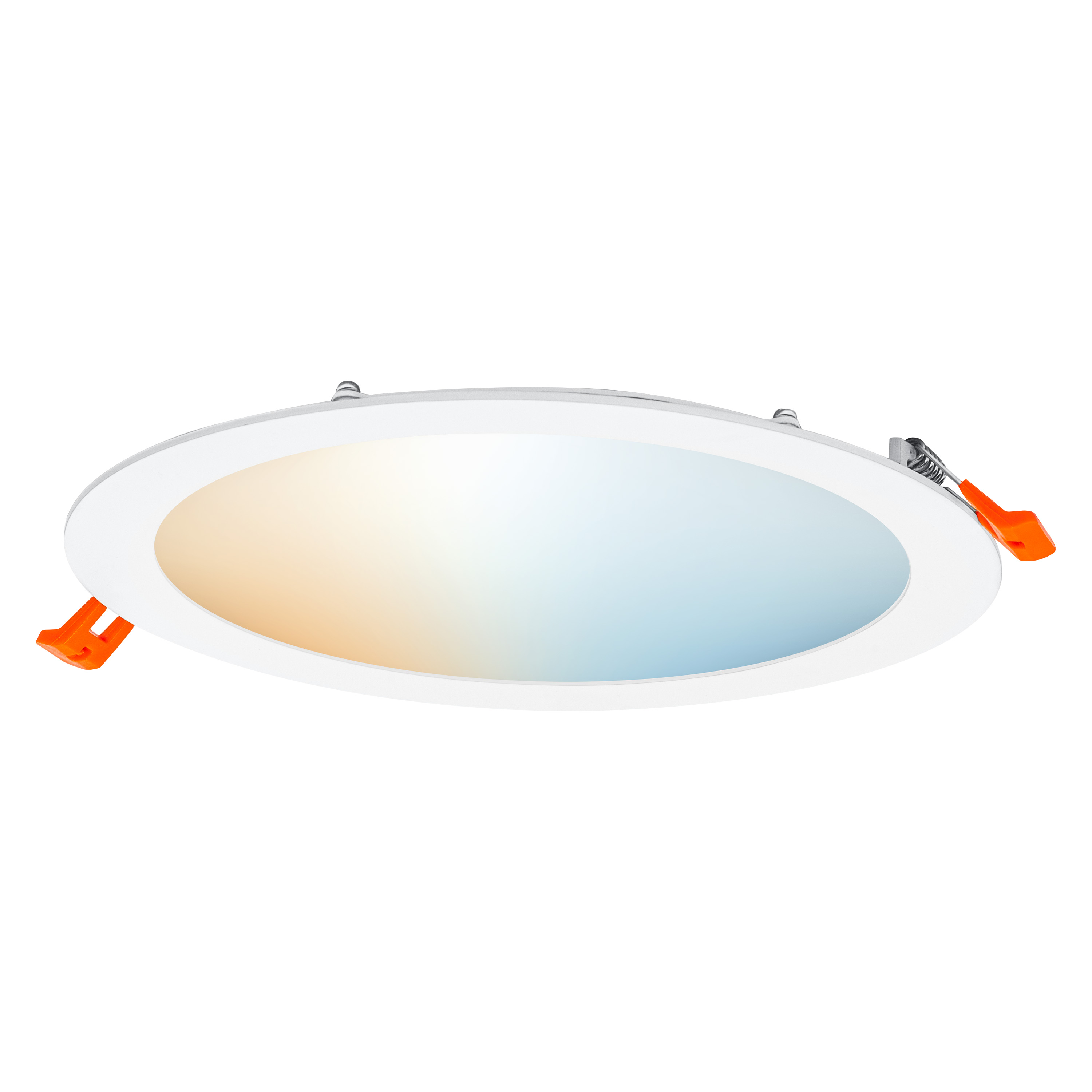

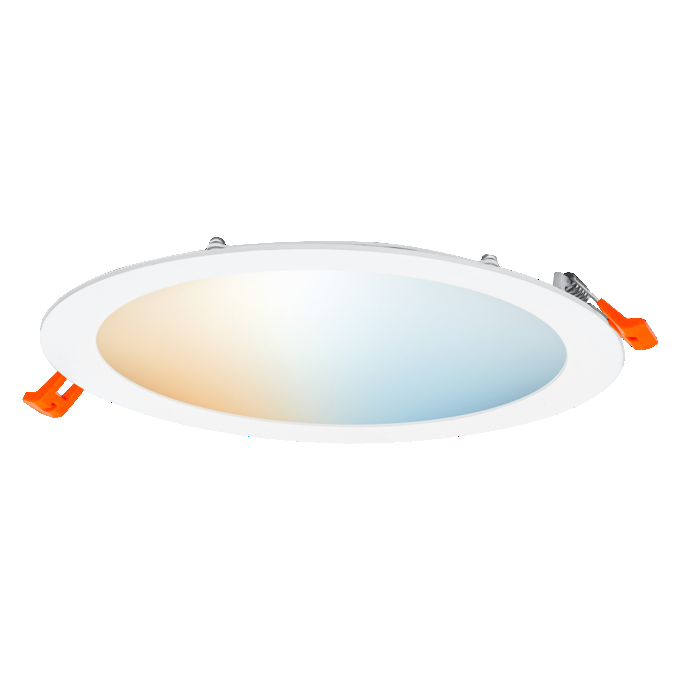

Product image: white background, upright, switched on
SMART WIFI DOWNLIGHT SLIM
SMART WIFI DOWNLIGHT SLIM
Product line drawing with letters
DOWNLIGHT SLIM 225MM
DOWNLIGHT SLIM 225MM
Product line drawing with numbers
DOWNLIGHT SLIM 225MM
DOWNLIGHT SLIM 225MM
Product line drawing, front, no dimensions
DOWNLIGHT SLIM 225MM
DOWNLIGHT SLIM 225MM

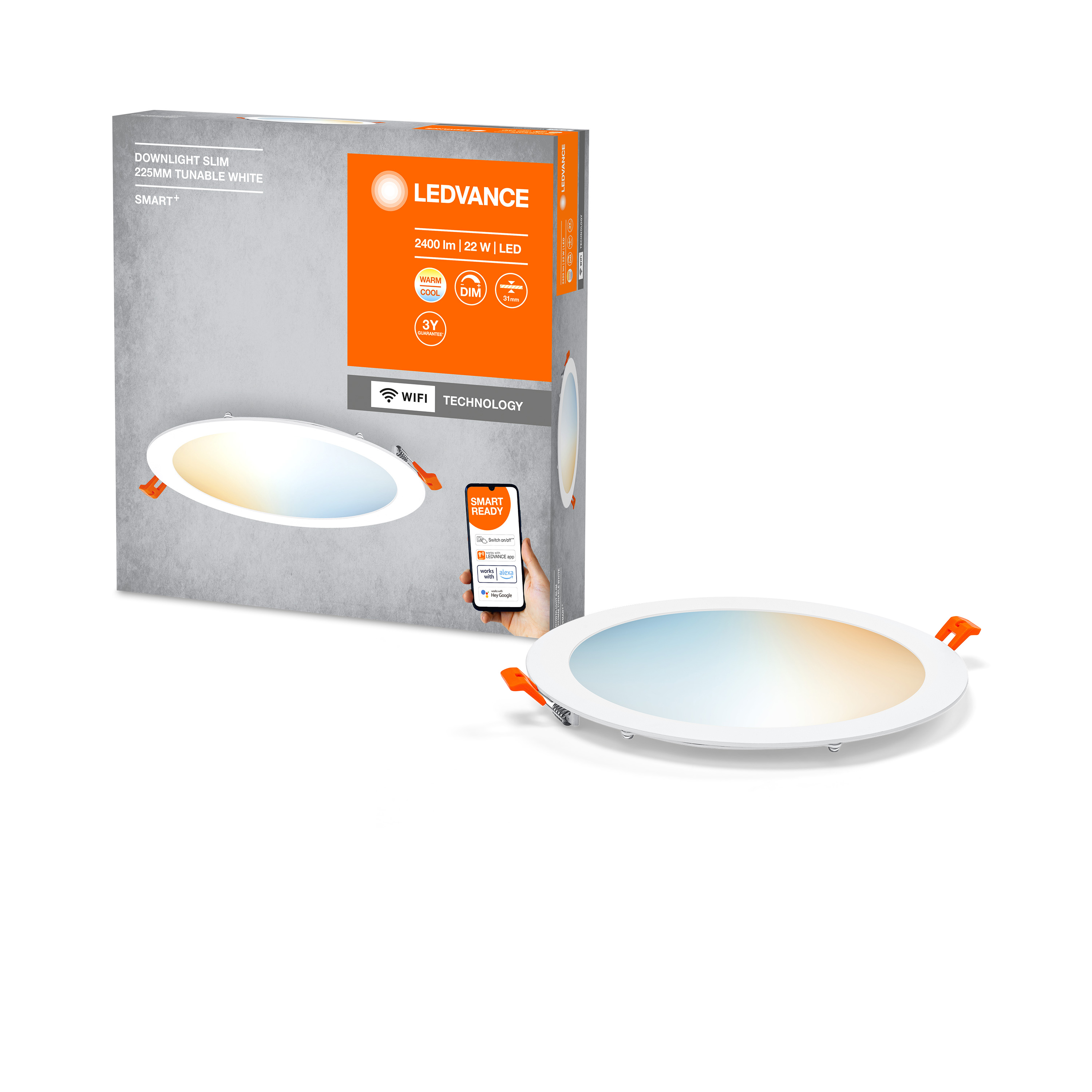

Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI DL SLIM 225MM TW WT MiPRC
SH FC WIFI DL SLIM 225MM TW WT MiPRC

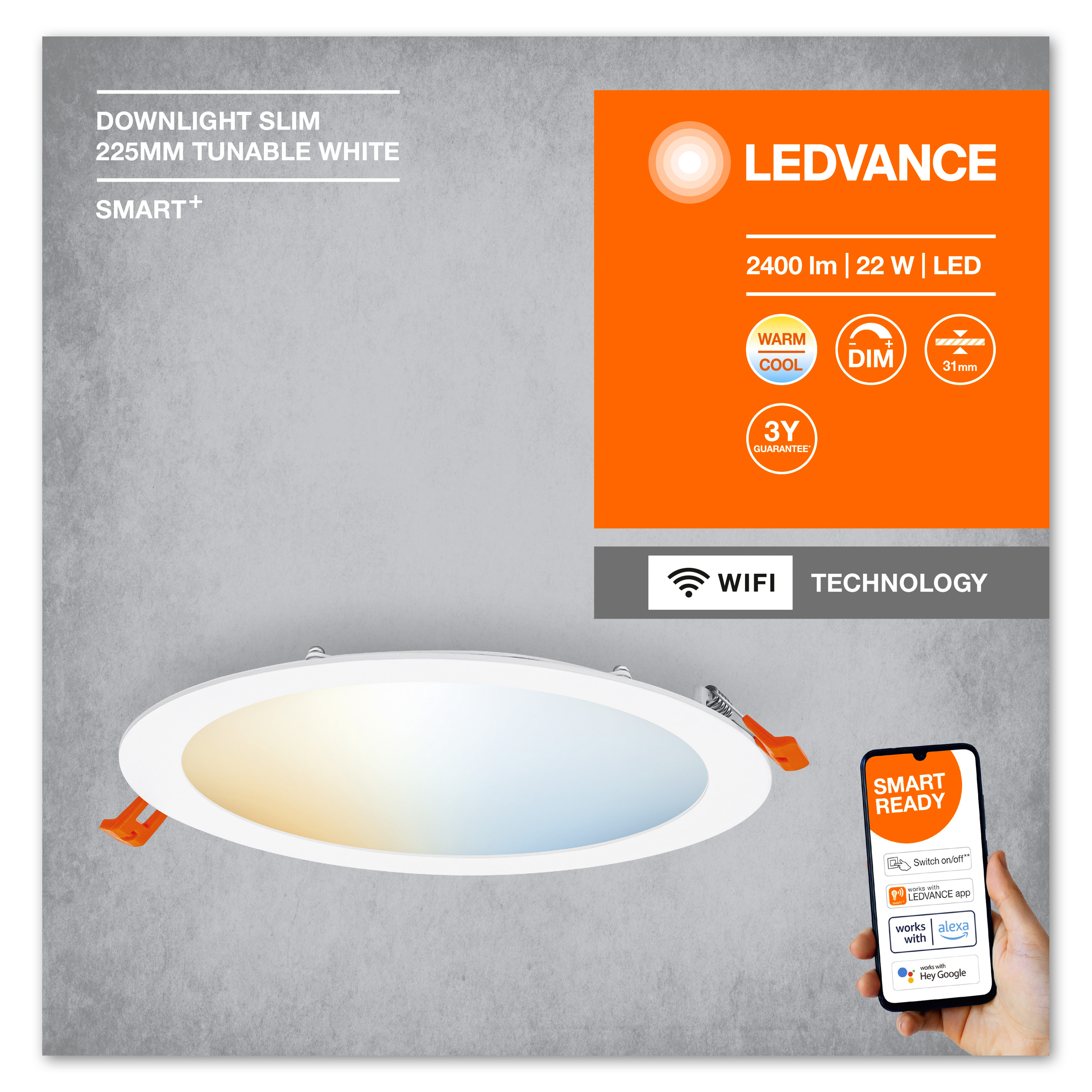

Packaging image, frontal
SH FC WIFI DL SLIM 225MM TW WT MiPRC
SH FC WIFI DL SLIM 225MM TW WT MiPRC

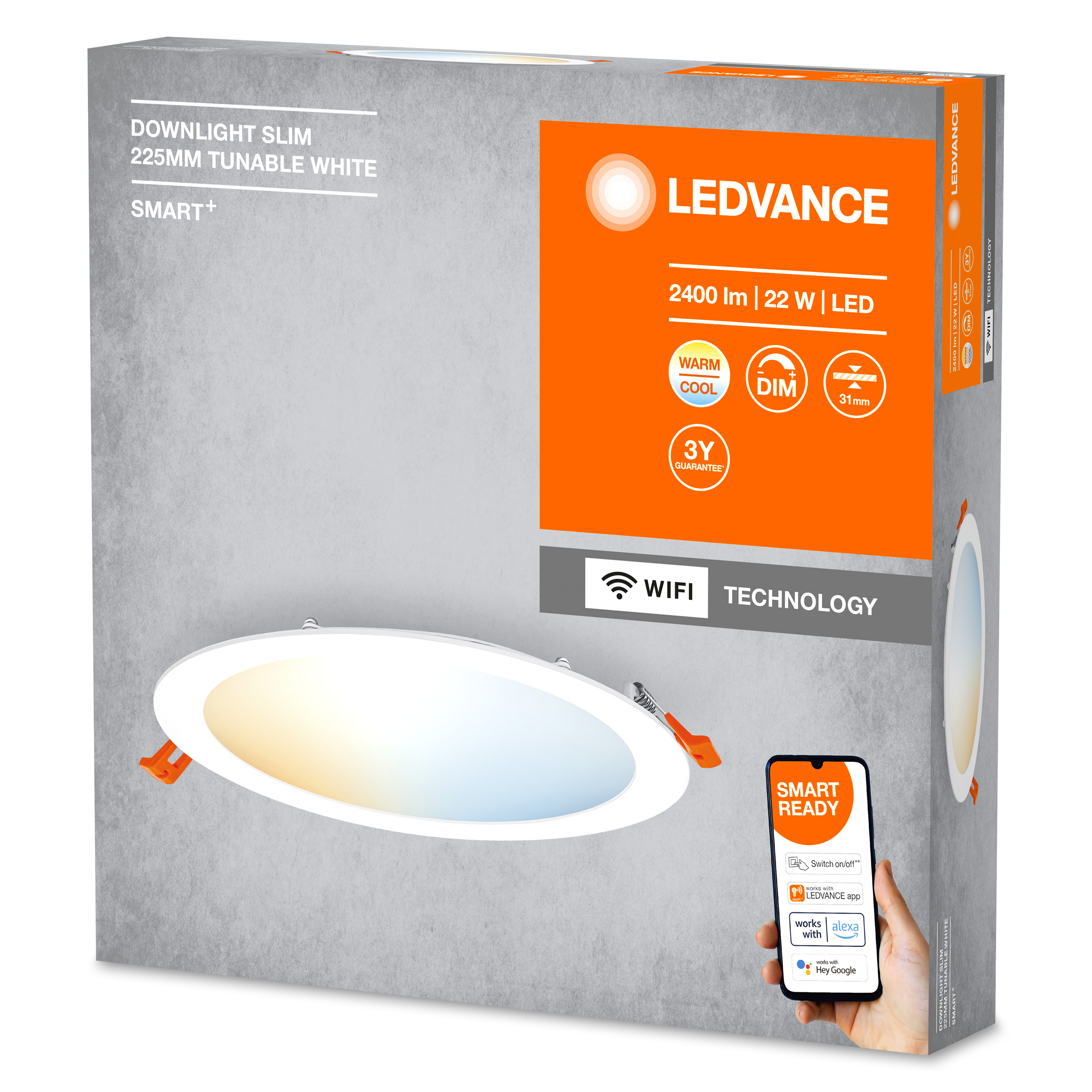

Packaging image, spacial
