SMART+ Matter Planon Plus
SMART+ Matter Planon Plus 450x450mm Tunable White
GTIN: 4099854471575
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Creating individual light scenes according to your needs with cold white to warm white (3000 K to 6500 K)
- Easy and quick installation
Areas of application
- Indoor applications
- Kitchens, living rooms, children's rooms or home offices
Product features
- Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0)
- Controllable via voice control available: Google Assistant or Amazon Alexa
- Adjustable color temperature via Tunable White: 3,000…6,500 K
- Dimmable
- Network protocol: Matter over WiFi (2.4 GHz)
Equipment / Accessories
- For control via SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
- Control via app or voice control requires compatible Smart home system
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
References / Links
- Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
| Nominal wattage | 28.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 170 mA |
| Max. number of luminaires per miniature circuit breaker B16 | 16 |
| Max. number of luminaires per miniature circuit breaker C16 | 24 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 2000 lm |
| Total luminous flux of contained light sources | 2950 lm |
| Luminous efficacy | 71 lm/W |
| Color temperature | 3000…6500 K |
| Light color (designation) | Tunable White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | < 6 sdcm |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 110 ° |
Dimensions & Weight
| Length | 450.00 mm |
| Height | 56.00 mm |
| Width | 450.00 mm |
| Product weight | 1970.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Aluminum |
| Cover material | Polymethylmethacrylate (PMMA) |
| Light emitting surface material | PMMA |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+40 °C |
| Type of connection | Terminal, 2-Pole (L, N) |
| Type of protection | IP20 |
| Dimmable | Yes |
| Type of dimming | WiFi |
| Mounting type | Surface |
| Application environment | Indoor |
| With light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 25000 h |
| Number of switching cycles | 15000 |
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Product remark | Available from October 2025, Reset settings to default by switching the product on for five seconds and off for five seconds and repeating this five times. |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854471575 | Folding box 1 |
518 mm x 83 mm x 524 mm | 2700.00 g | 22.53 dm³ |
| 4099854471582 | Shipping box 4 |
537 mm x 347 mm x 560 mm | 10800.00 g | 104.35 dm³ |
User instruction / safety instructions
SMART WIFI MAT PLANON PLUS
SMART WIFI MAT PLANON PLUS
Legal information
Safety Insert G11243080
Safety Insert G11243080
Legal information
Legal Insert G11233093 SMART WIFI MAT
Legal Insert G11233093 SMART WIFI MAT
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Declarations of conformity
SMART WIFI PLANON PLUS 45X45 TW LEDV
SMART WIFI PLANON PLUS 45X45 TW LEDV
EU Data Act
SMART MATTER Lamps Luminaires Plugs
SMART MATTER Lamps Luminaires Plugs
EU Data Act
SMART WiFi Lamps and Luminaires
SMART WiFi Lamps and Luminaires

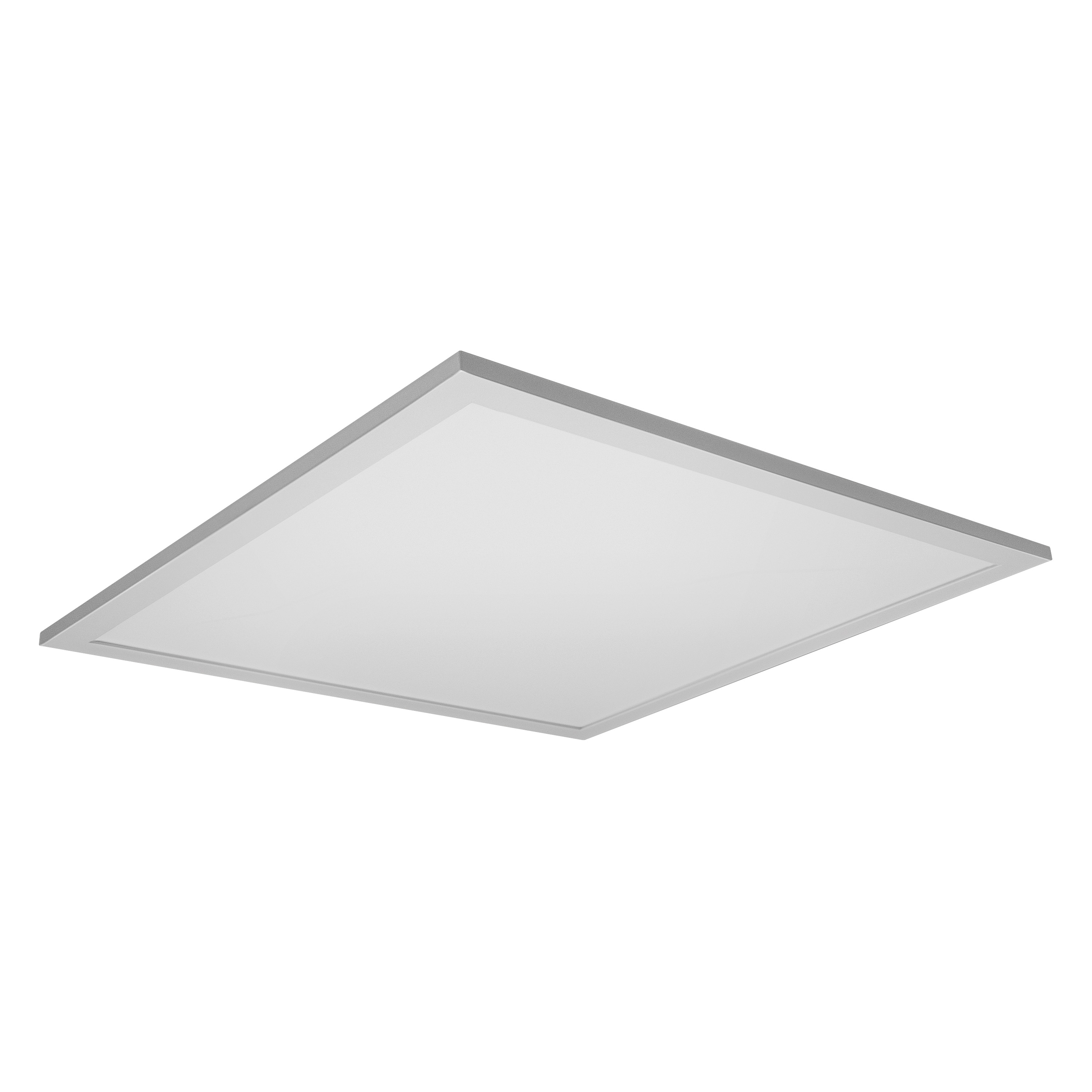

Product image: white background, upright
SMART WIFI PLANON PLUS 45X45 TW
SMART WIFI PLANON PLUS 45X45 TW

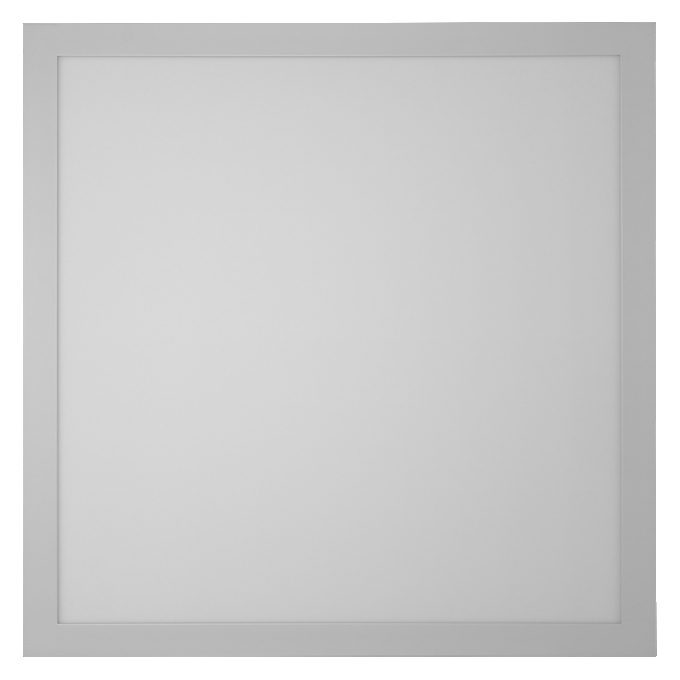

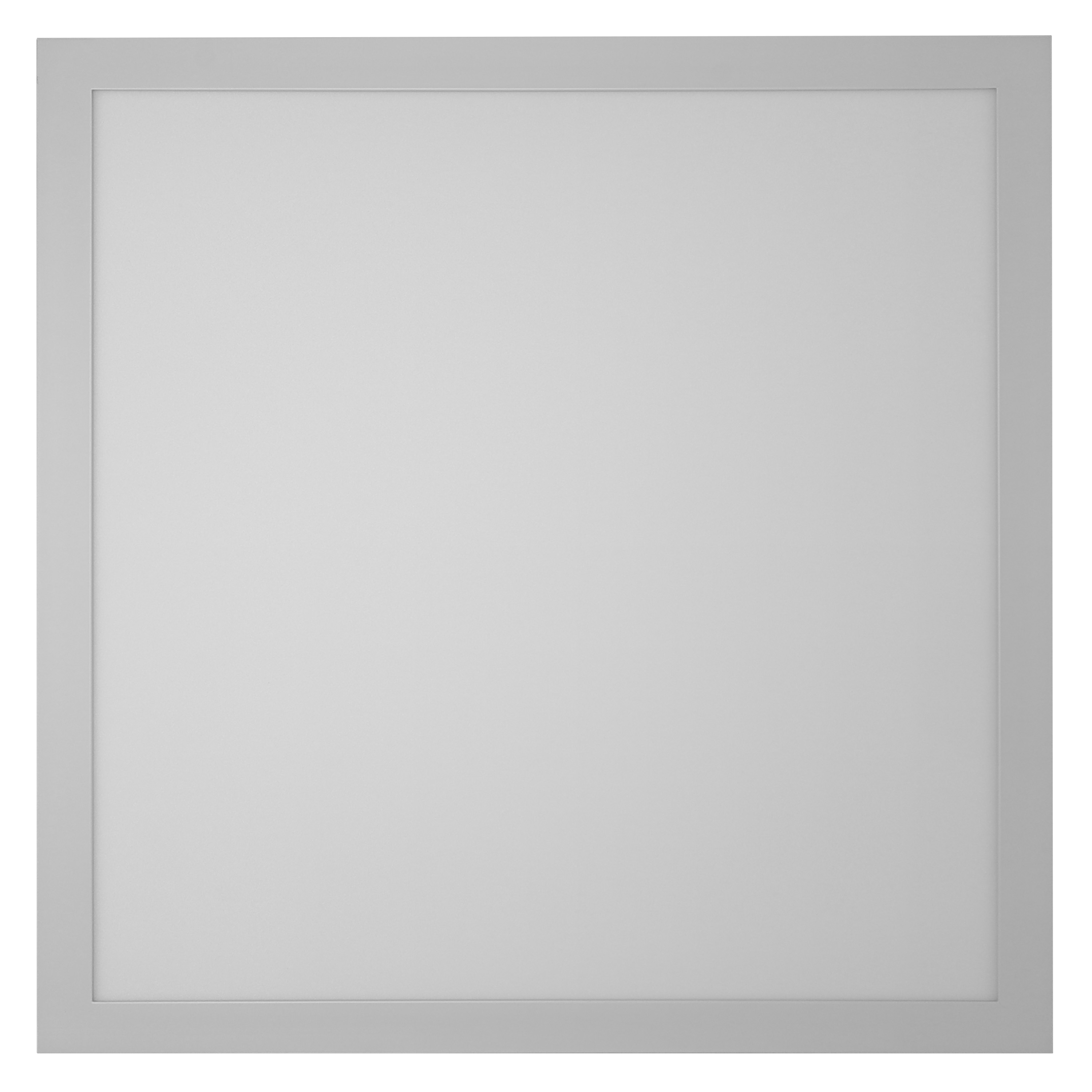

Product image: white background, upright, alternative image
SMART WIFI PLANON PLUS 45X45 TW
SMART WIFI PLANON PLUS 45X45 TW

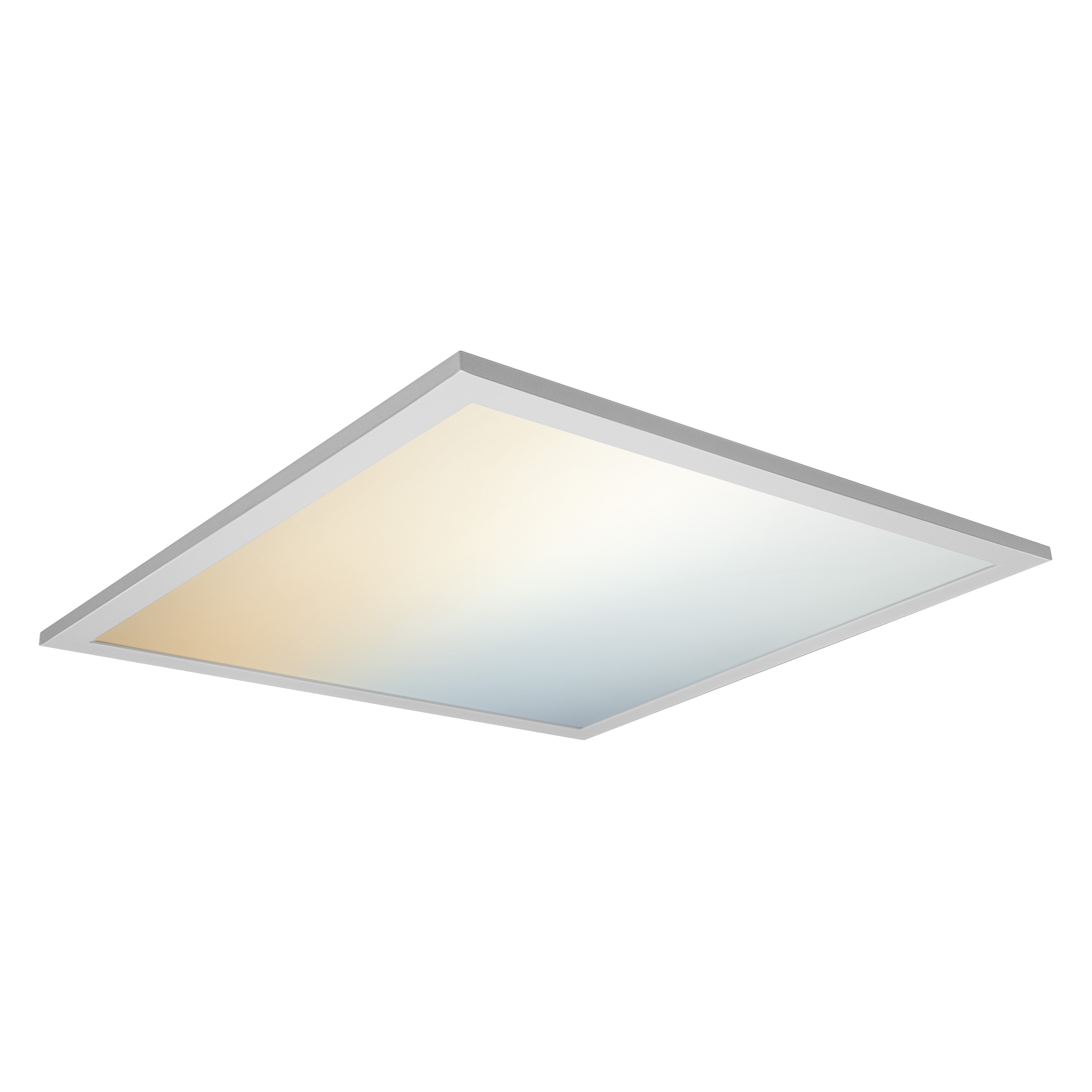

Product image: white background, upright, switched on
SMART WIFI PLANON PLUS 45X45 TW
SMART WIFI PLANON PLUS 45X45 TW
Product line drawing with letters
SMART WIFI PLANON PLUS 45X45 TW
SMART WIFI PLANON PLUS 45X45 TW
Product line drawing with numbers
SMART WIFI PLANON PLUS 45X45 TW
SMART WIFI PLANON PLUS 45X45 TW
Product line drawing, front, no dimensions
SMART WIFI PLANON PLUS 45X45 TW
SMART WIFI PLANON PLUS 45X45 TW

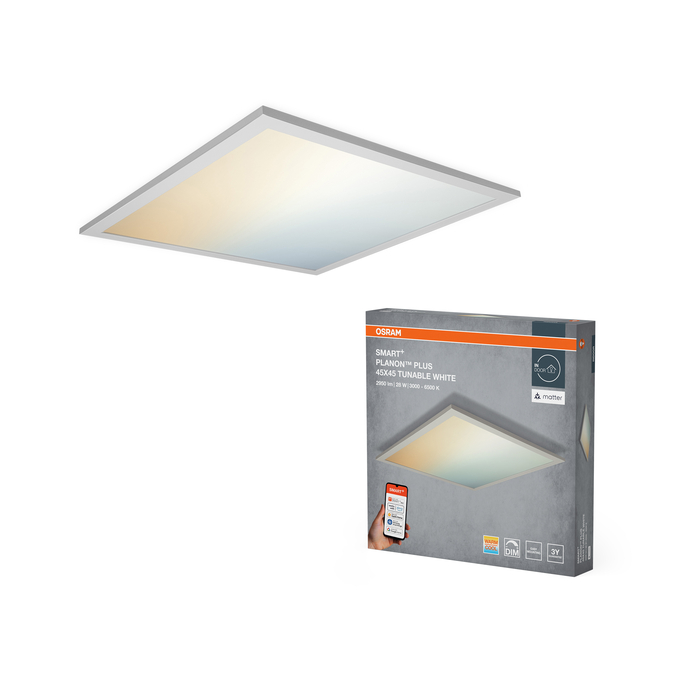

Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI PL PL 45X45 TW OSRAM
SH FC WIFI PL PL 45X45 TW OSRAM
Packaging image, frontal
SH FC WIFI PL PL 45X45 TW OSRAM
SH FC WIFI PL PL 45X45 TW OSRAM
Packaging image, spacial
SH FC WIFI PL PL 45X45 TW OSRAM
SH FC WIFI PL PL 45X45 TW OSRAM
Application pictures
SMART INDOOR WIFI PLANON PLUS 450x450 TW 4000K
SMART INDOOR WIFI PLANON PLUS 450x450 TW 4000K

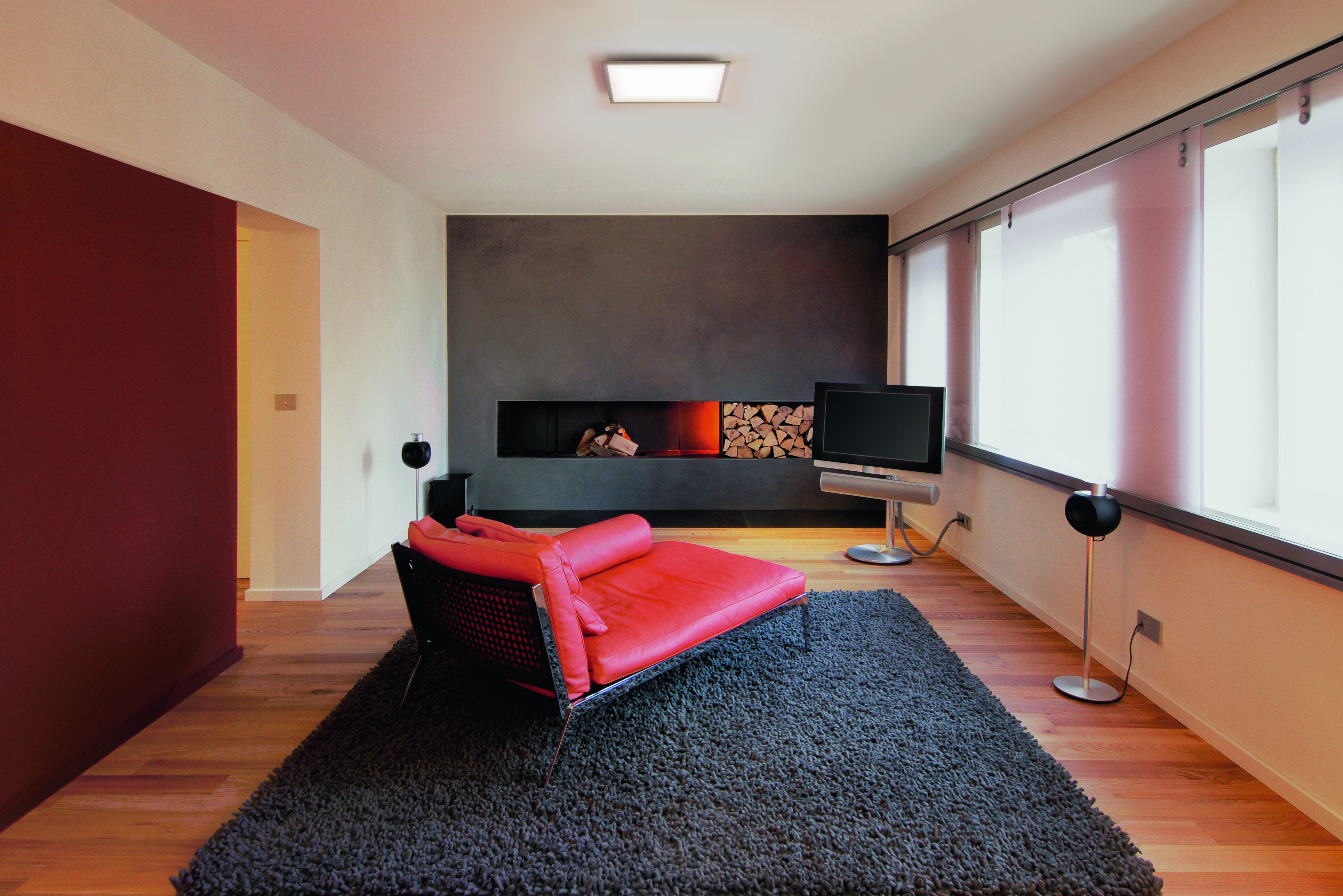

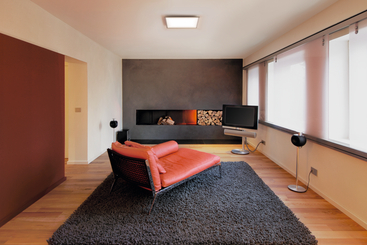

Application pictures
