Sun@Home FLEX 3M
SUN@Home Flex 3M
GTIN: 4058075576117
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Enable increased concentration and efficiency
- Improve overall activity level and daytime alertness
- Improve sleeping rhythm and –intensity
- Improve optic convenience
- Enables an improved level of clean-air-safety by killing residential germs and bad odors
- Homogenous light distribution
- Easy and quick installation
Areas of application
- Indoor applications
- Kitchens, living rooms, children's rooms or home offices
Product features
- Adjustable color temperature via Tunable White: 2,200…5,000 K
- Controllable via LEDVANCE SMART+ App (with minimum Android 8.0 or iOS 14.0)
- Controllable via voice control available: Google Assistant or Amazon Alexa
- Dimmable
- Innovative Fullspectrum SunLike LEDs with CRI95
- SunLike LEDs with reduced Blue Light in LED Spectrum
- Innovative luminaire coating-technology fighting household germs and odors
- Automated biorhythm feature
Equipment / Accessories
- Control via app or voice control requires compatible Smart home system
- For control via LEDVANCE SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
- Complete mounting and connecting accessories included
Safety advice
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
References / Links
- Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
| Nominal wattage | 13.50 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 72.000 mA |
| Power factor λ | > 0.5 |
| Total harmonic distortion | ≤ 70 % |
| Protection class | II |
| Operating mode | External LED driver |
Photometrical data
| Luminous flux | 850 lm |
| Total luminous flux of contained light sources | 1140 lm |
| Luminous efficacy | 60 lm/W |
| Color temperature | 2200…5000 K |
| Reference control setting of contained light source (Kelvin) | 2700 K |
| Light color (designation) | Tunable White |
| Color rendering index Ra | > 95 |
| Standard deviation of color matching | < 6 sdcm |
| Flickering metric (Pst LM) | ≤ 1 |
| Stroboscope effect metric (SVM) | ≤0.4 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 120 ° |
Dimensions & Weight
| Length | 3000.00 mm |
| Height | 2.80 mm |
| Width | 10.00 mm |
| Product weight | 138.5 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Silicone |
| Cover material | Silicone |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Plug type C (EU) |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | Yes |
| Type of dimming | WiFi |
| Mounting type | Surface |
| Mounting location | All surfaces |
| Application environment | Indoor |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h |
| Number of switching cycles | 15000 |
Emergency lighting
| Luminous flux in maintained operation mode | - |
Certificates & Standards
| Standards | CE |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075576117 | Folding box 1 |
62 mm x 107 mm x 113 mm | 159.00 g | 0.75 dm³ |
| 4058075576124 | Shipping box 4 |
264 mm x 129 mm x 143 mm | 778.00 g | 4.87 dm³ |
User instruction / safety instructions
SUN@HOME FLEX
SUN@HOME FLEX
User instruction / safety instructions
SUNATHOME FLEX 3M TW
SUNATHOME FLEX 3M TW
Legal information
SUN@HOME
SUN@HOME
Legal information
SUN@HOME
SUN@HOME
Legal information
Legal Insert SUNATHOME AND SMART WIFI
Legal Insert SUNATHOME AND SMART WIFI
Declarations of conformity
SUN@HOME SMART+ WIFI NEON FLEX 3M WIFI TW IP44
SUN@HOME SMART+ WIFI NEON FLEX 3M WIFI TW IP44

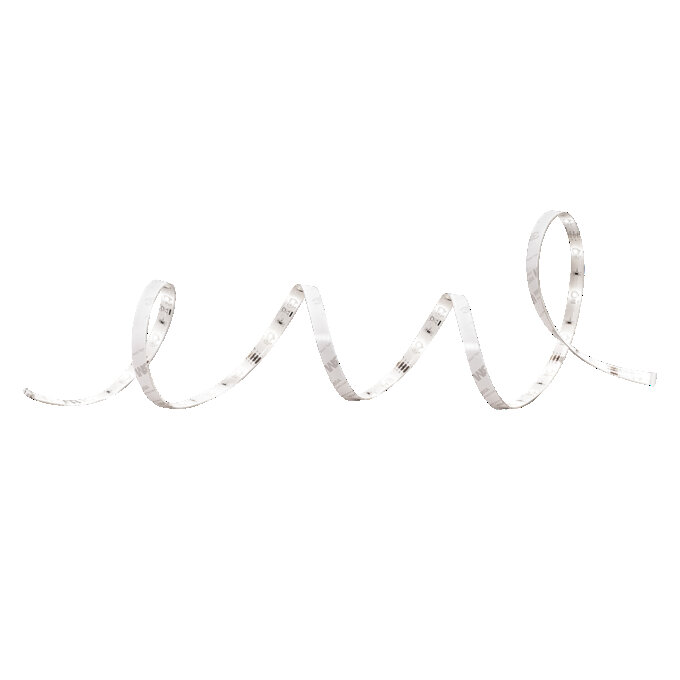

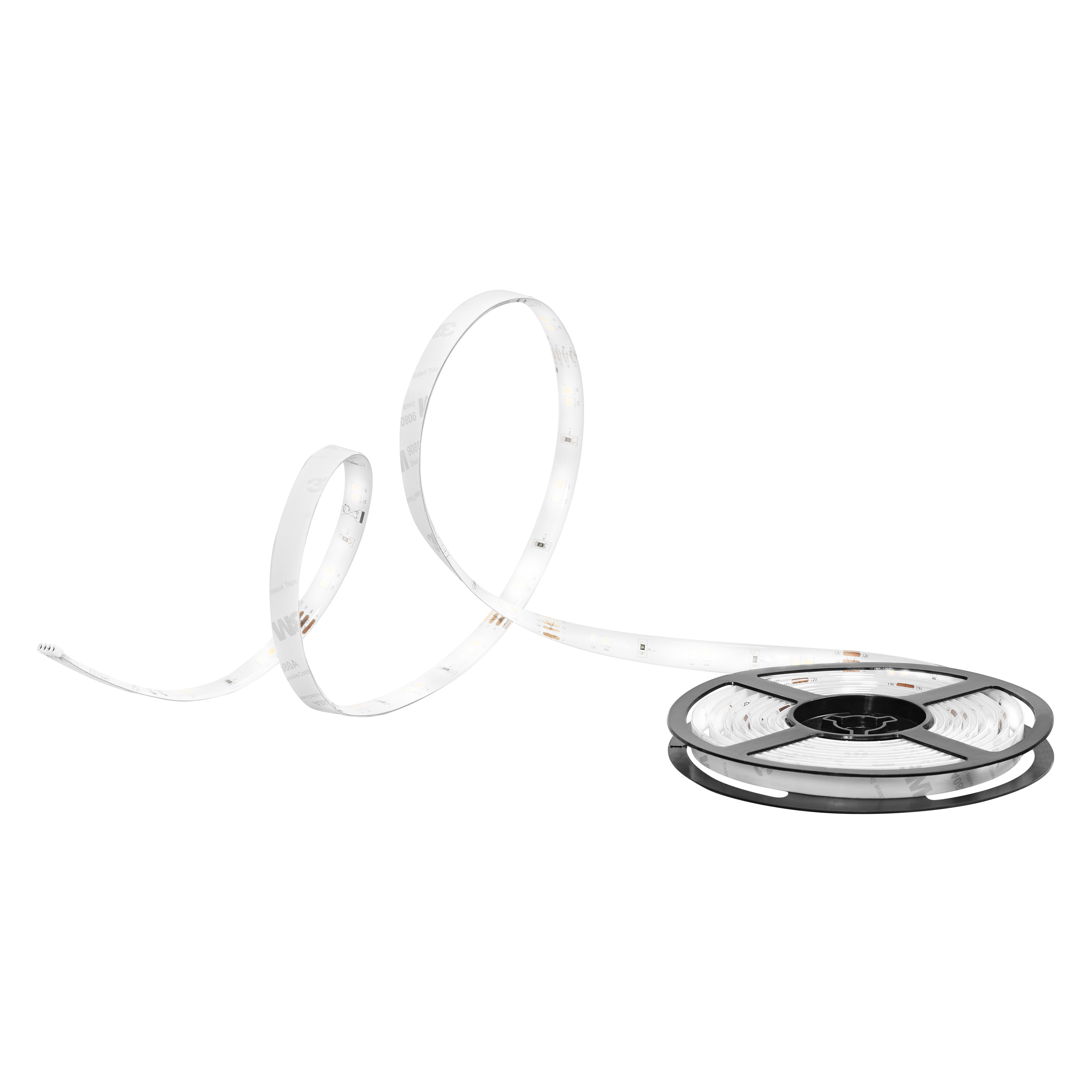

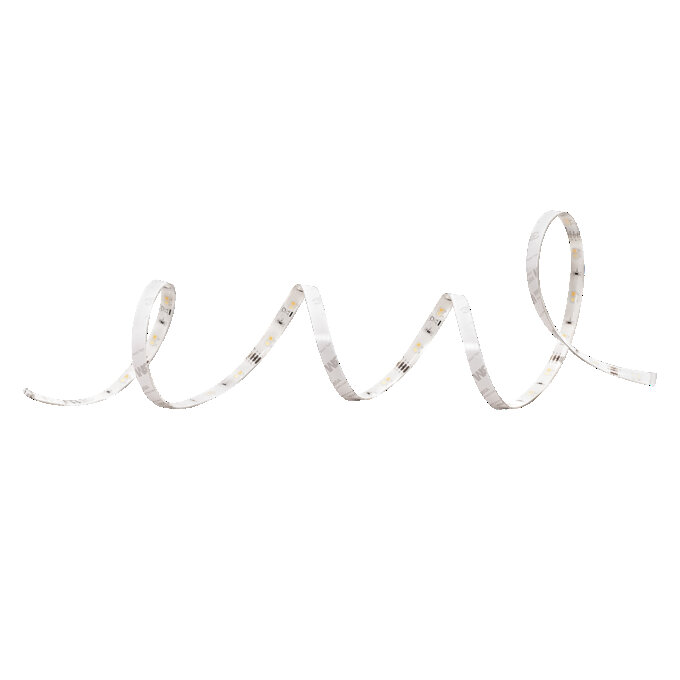

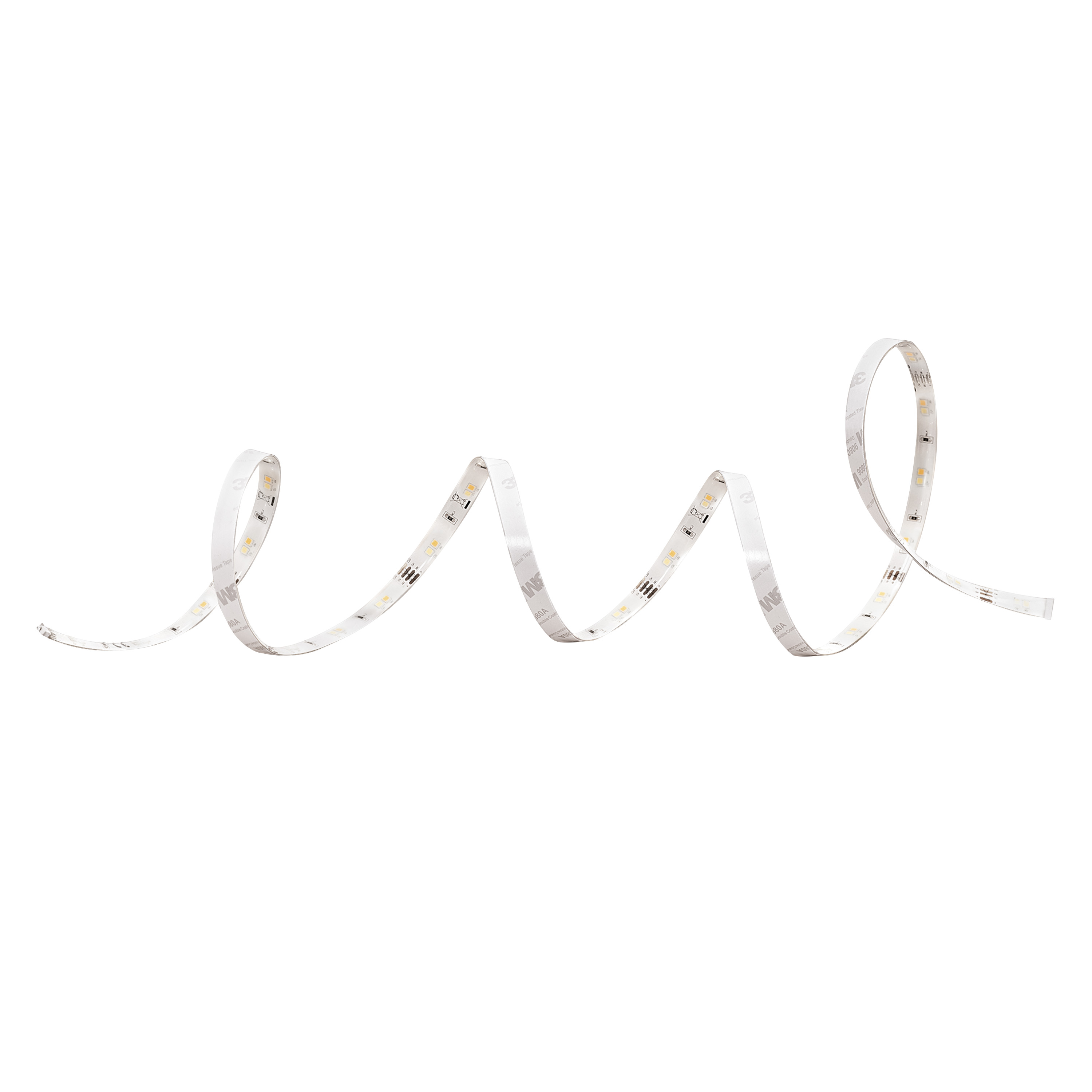

Product image: white background, upright
HCL SMART FLEX 3M TW
HCL SMART FLEX 3M TW

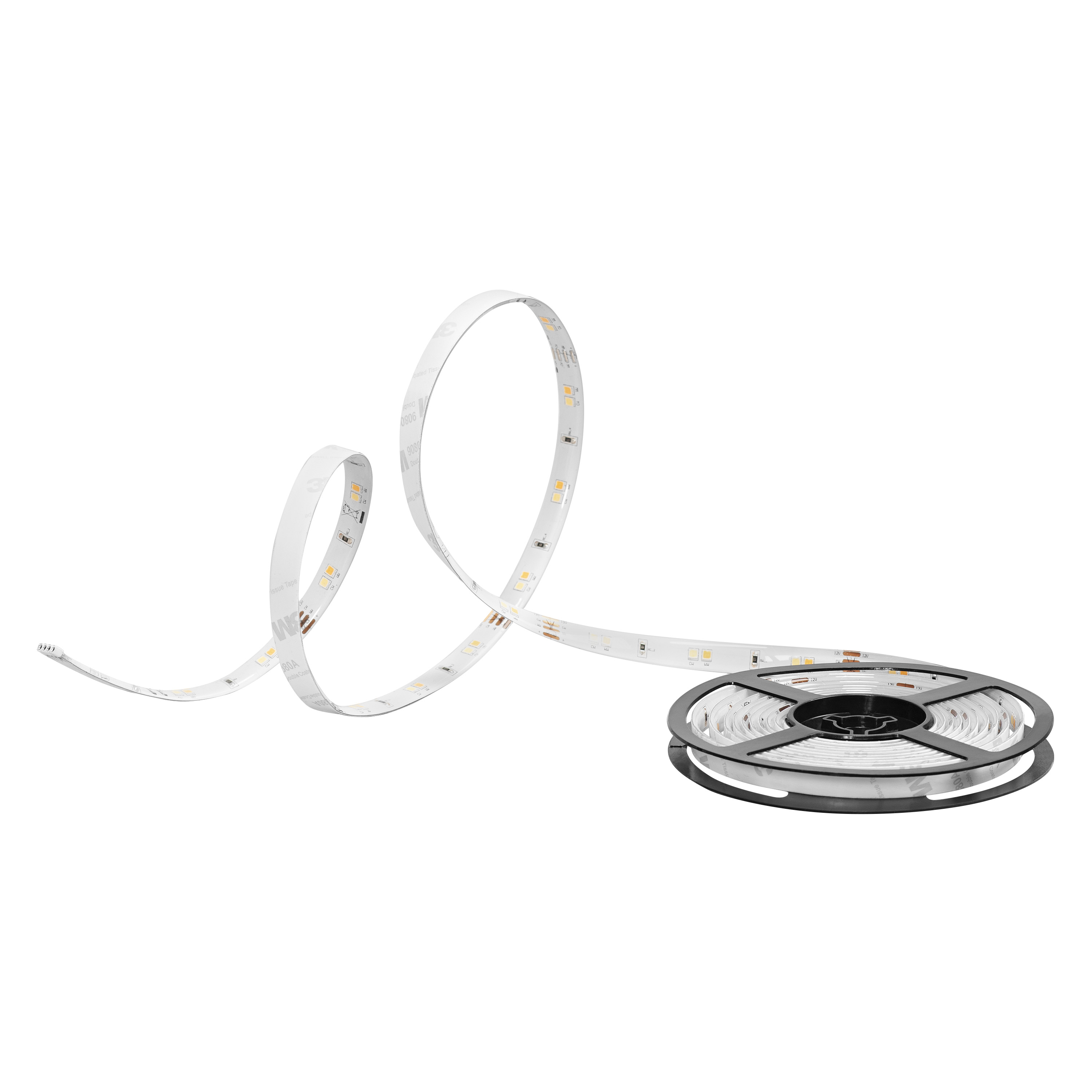

Product image: white background, upright
HCL SMART FLEX 3M TW
HCL SMART FLEX 3M TW

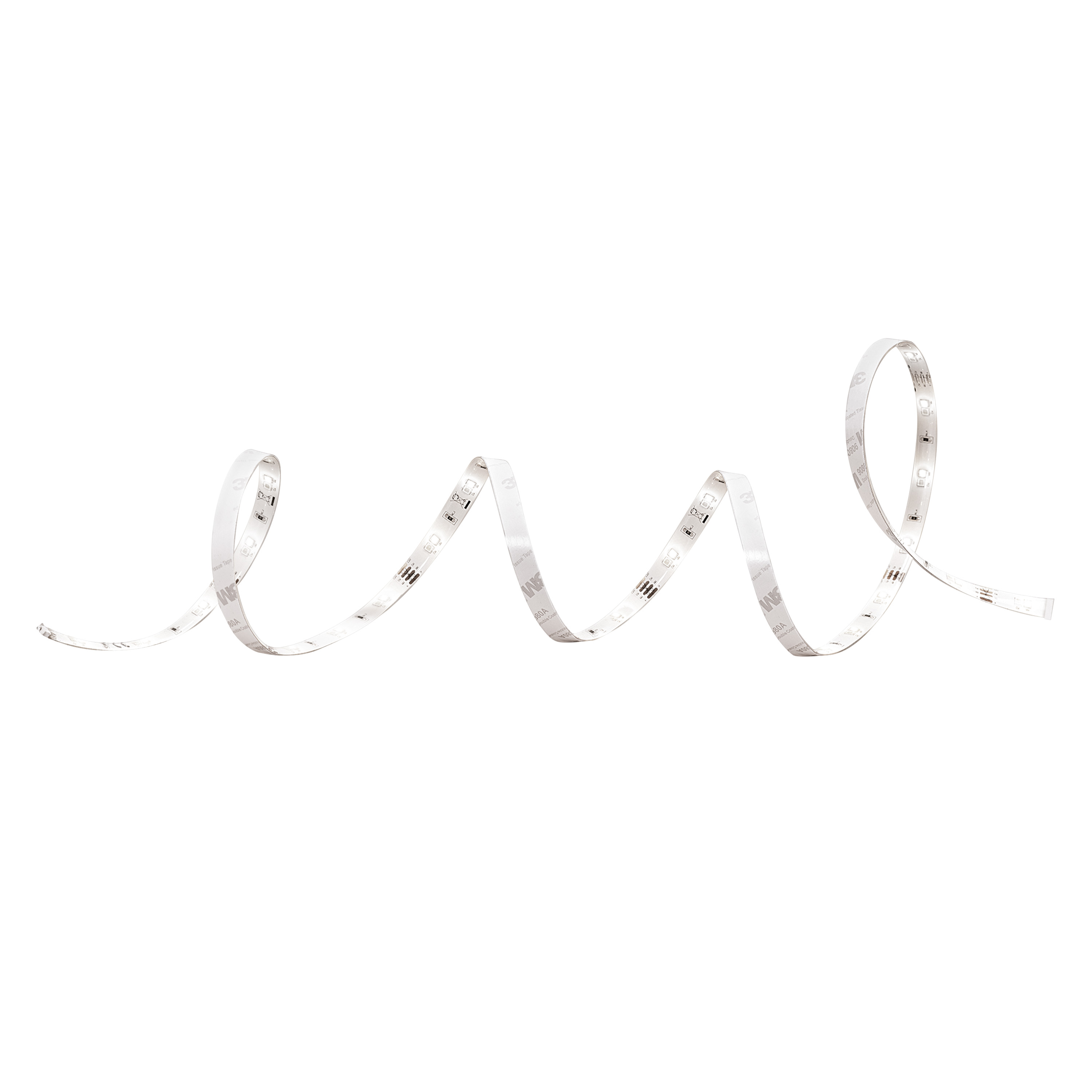

Product image: white background, upright, switched on
HCL SMART FLEX 3M TW
HCL SMART FLEX 3M TW
Product image: white background, upright, switched on
HCL SMART FLEX 3M TW
HCL SMART FLEX 3M TW
Product line drawing with letters
HCL SMART FLEX 3M TW
HCL SMART FLEX 3M TW
Product line drawing with numbers
HCL SMART FLEX 3M TW
HCL SMART FLEX 3M TW
Product line drawing, front, no dimensions
HCL SMART FLEX 3M TW
HCL SMART FLEX 3M TW

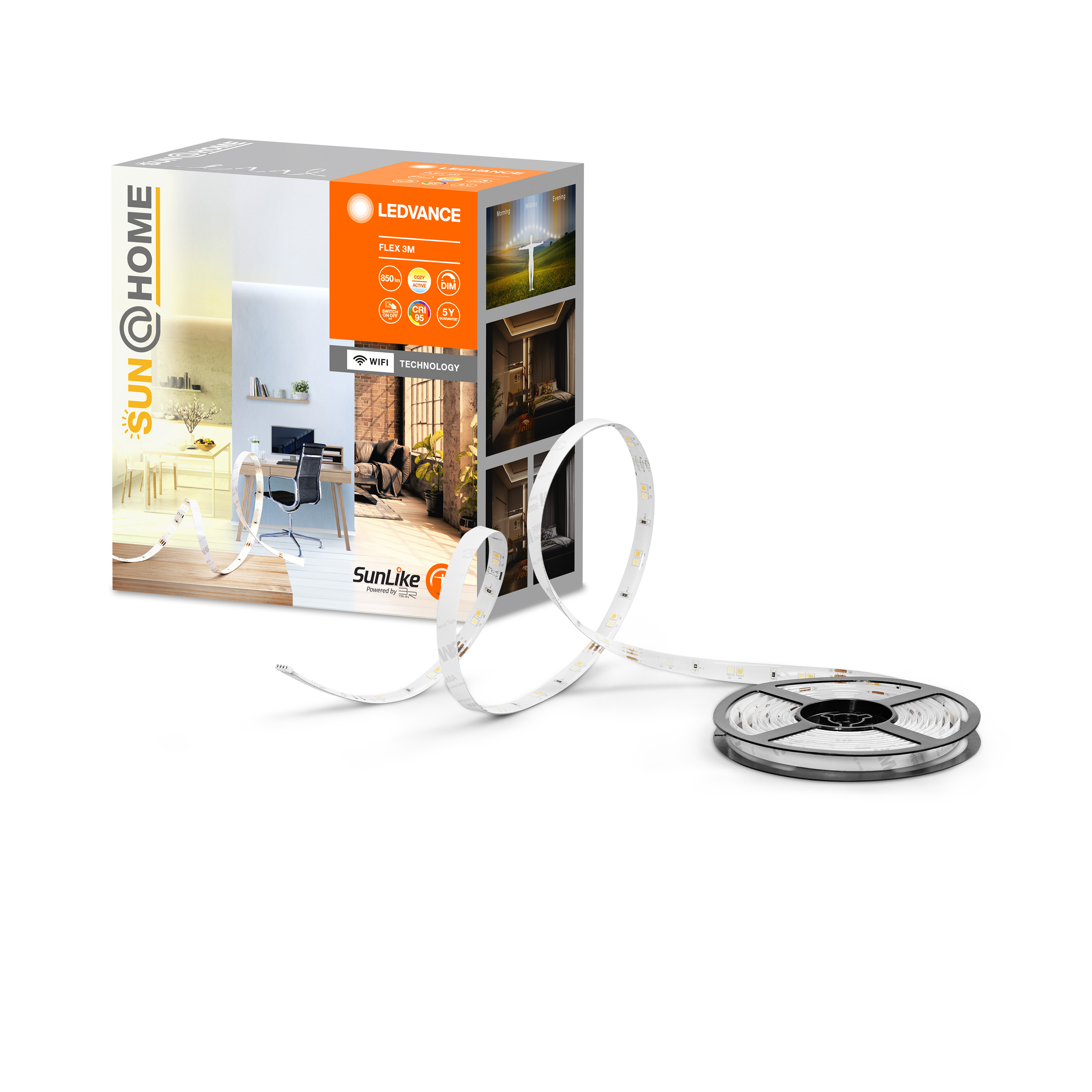

Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI FLEX 3M TW MiPRC
SH FC WIFI FLEX 3M TW MiPRC

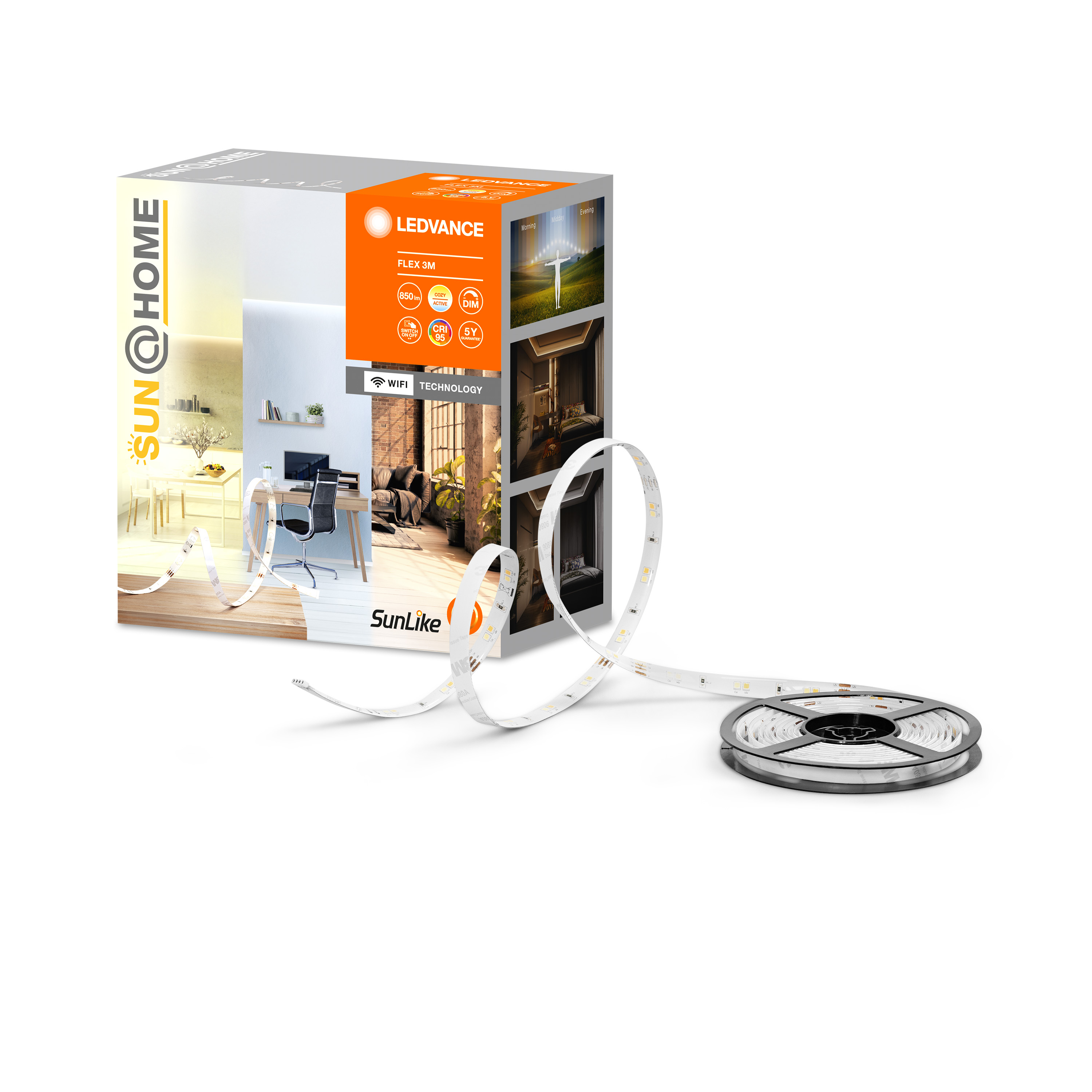

Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI FLEX 3M TW MiPRC
SH FC WIFI FLEX 3M TW MiPRC
Packaging image, frontal
SH FC WIFI FLEX 3M TW MiPRC
SH FC WIFI FLEX 3M TW MiPRC
Packaging image, spacial
SH FC WIFI FLEX 3M TW MiPRC
SH FC WIFI FLEX 3M TW MiPRC
BIM Step 3D
Sun@Home Flex 3M
Sun@Home Flex 3M
Application pictures
SUN@HOME SMART Indoor HCL Packaging Front
SUN@HOME SMART Indoor HCL Packaging Front

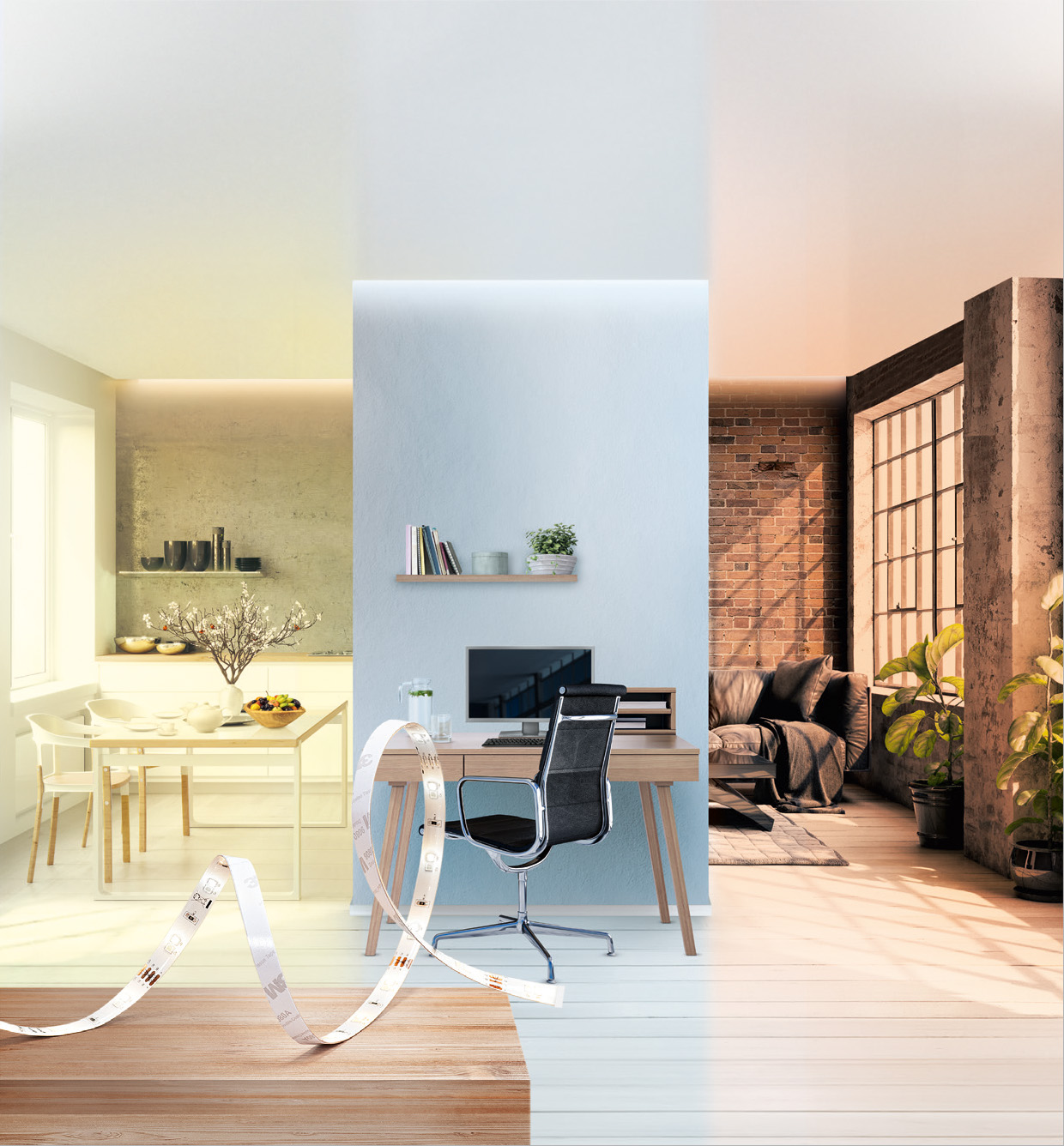

Application pictures
SUN@HOME SMART Indoor Flex 3M on packaging front
SUN@HOME SMART Indoor Flex 3M on packaging front
Application pictures
influencer buildmyhomebytm instagram campaign sun-home livingroom
influencer buildmyhomebytm instagram campaign sun-home livingroom
Application pictures
influencer buildmyhomebytm instagram campaign sun-home products
influencer buildmyhomebytm instagram campaign sun-home products
Application pictures
influencer jesswayoflife instagram campaign sun-home kitchen close up
influencer jesswayoflife instagram campaign sun-home kitchen close up
Application pictures
influencer jesswayoflife instagram campaign sun-home kitchen
influencer jesswayoflife instagram campaign sun-home kitchen
Application pictures
influencer buildmyhomebytm instagram campaign sun-home livingroom
influencer buildmyhomebytm instagram campaign sun-home livingroom
Application pictures
influencer jesswayoflife instagram campaign sun-home kitchen
influencer jesswayoflife instagram campaign sun-home kitchen
Application pictures
influencer jesswayoflife instagram campaign sun-home kitchen close up
influencer jesswayoflife instagram campaign sun-home kitchen close up
Application pictures
influencer buildmyhomebytm instagram campaign sun-home products
influencer buildmyhomebytm instagram campaign sun-home products
Application pictures Getty
SMART INDOOR WIFI HCL NEON FLEX TW 5000K
SMART INDOOR WIFI HCL NEON FLEX TW 5000K
Application pictures Getty
SMART INDOOR WIFI HCL NEON FLEX TW 3000K
SMART INDOOR WIFI HCL NEON FLEX TW 3000K

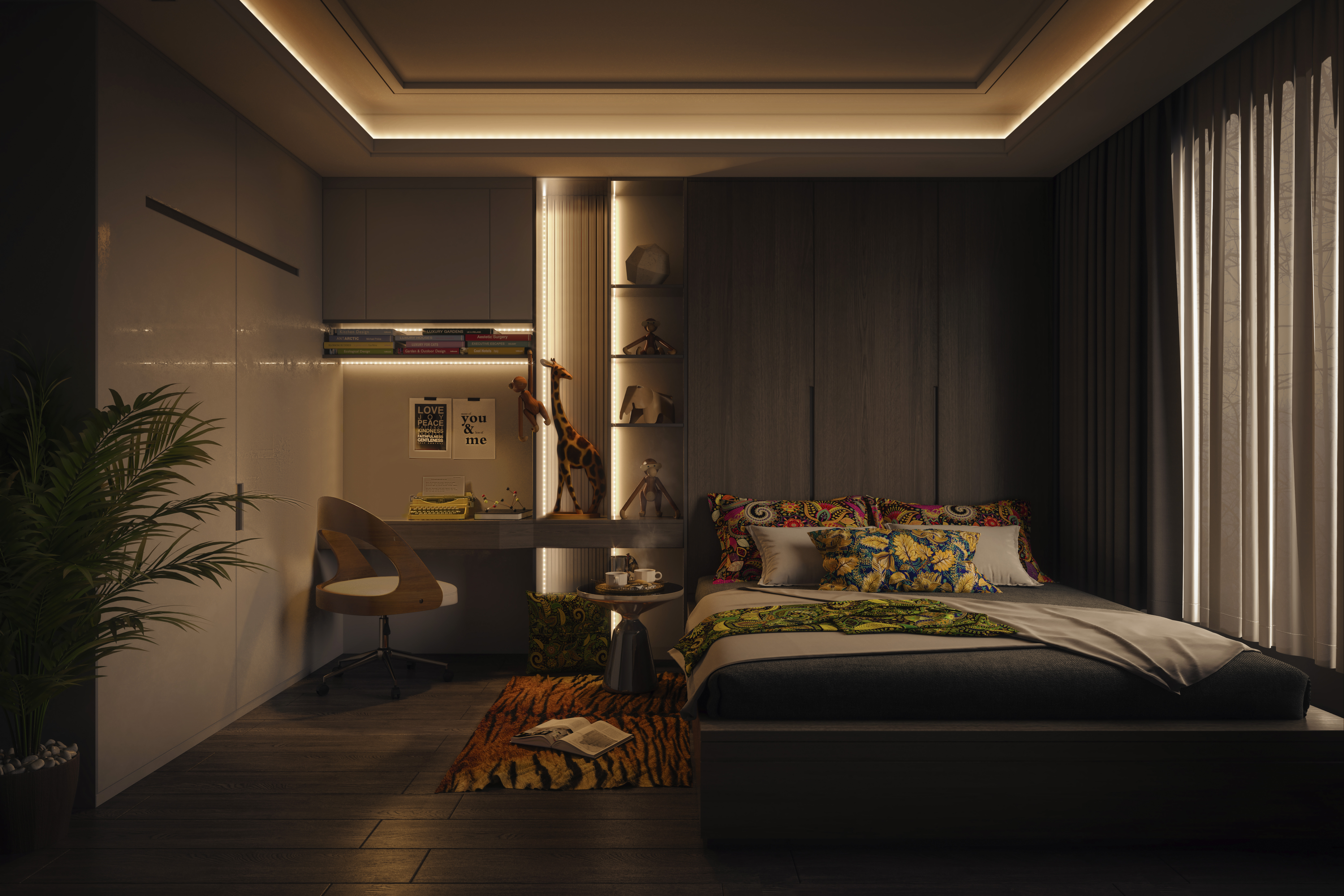

Application pictures Getty
