WORKLIGHT VALUE TRIPOD
LED WORKLIGHT VALUE TRIPOD 2x10W 865
GTIN: 4058075831353
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Foldable for easy storage
- Portable worklight for flexible applications
Areas of application
- Renovation
- Garages
- Workshops
- Basement
Product features
- Available with 1 or 2 luminaire heads
- Rotation angle luminaire head: 360°, swiveling: 180°
- Type of protection, luminaire head and housing: IP65/IP54, Type of protection, plug: IP44
- Height adjustment of tripod up to 1.8 m total height
Equipment / Accessories
- 1,5m power cable for flexible installation
Safety advice
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
Electrical data
| Nominal wattage | 20.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 120.000 mA |
| Inrush current | 3.20 A |
| Inrush current time Th50 | 1 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 106 |
| Max. number of luminaires per miniature circuit breaker C16 | 106 |
| Power factor λ | ≥0.7 |
| Protection class | I |
| Operating mode | Integrated LED driver |
Photometrical data
| Luminous flux | 2000 lm |
| Total luminous flux of contained light sources | 2600 lm |
| Luminous efficacy | 100 lm/W |
| Color temperature | 6500 K |
| Light color (designation) | Cool Daylight |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | < 6 sdcm |
| Luminous intensity | 800 cd |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | <0.9 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 115 ° |
Dimensions & Weight
| Length | 1153.00 mm |
| Height | 1758.00 mm |
| Width | 1000.00 mm |
| Product weight | 3700.00 g |
| Cable length | 1500 mm |
Materials & Colors
| Product color | Black/Gray |
| Housing color | Black/Gray |
| Body material | Aluminum |
| Cover material | Plastic |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Plug type F |
| Type of protection | IP54 |
| Protection class IK (shock resistance) | IK06 |
| Dimmable | No |
| Mounting type | Standing |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 15000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075831353 | Folding box 1 |
128 mm x 158 mm x 598 mm | 4045.00 g | 12.09 dm³ |
| 4099854159886 | Shipping box 2 |
835 mm x 239 mm x 321 mm | 9040.00 g | 64.06 dm³ |
User instruction / safety instructions
LED WORKLIGHT VAL TRIPOD
LED WORKLIGHT VAL TRIPOD
Legal information
Legal insert LED WORKLIGHT VAL
Legal insert LED WORKLIGHT VAL
Declarations of conformity
LED WORKLIGHT VAL
LED WORKLIGHT VAL

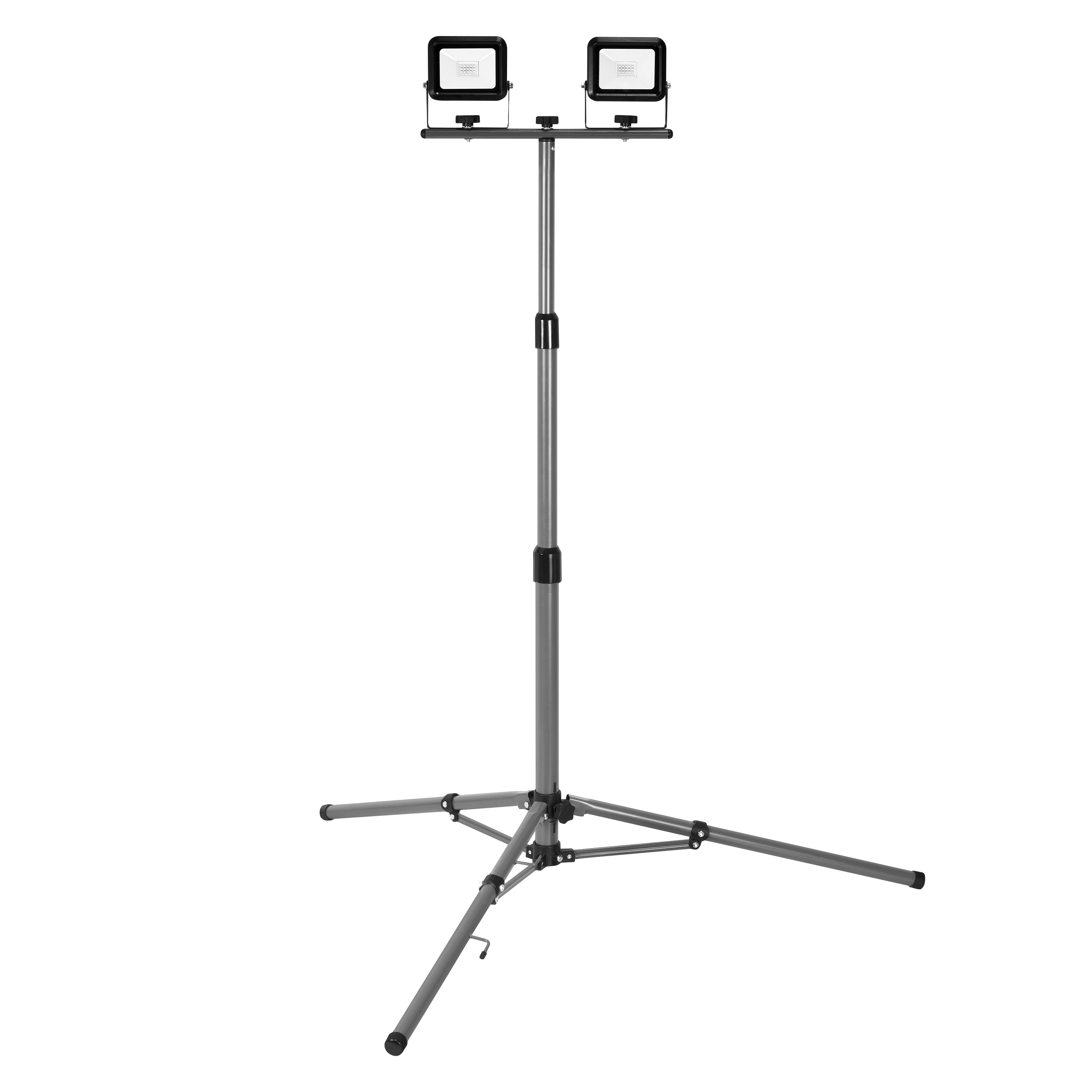

Product image: white background, upright
LED WORKLIGHT VAL 2X10W 865 TRIPOD
LED WORKLIGHT VAL 2X10W 865 TRIPOD

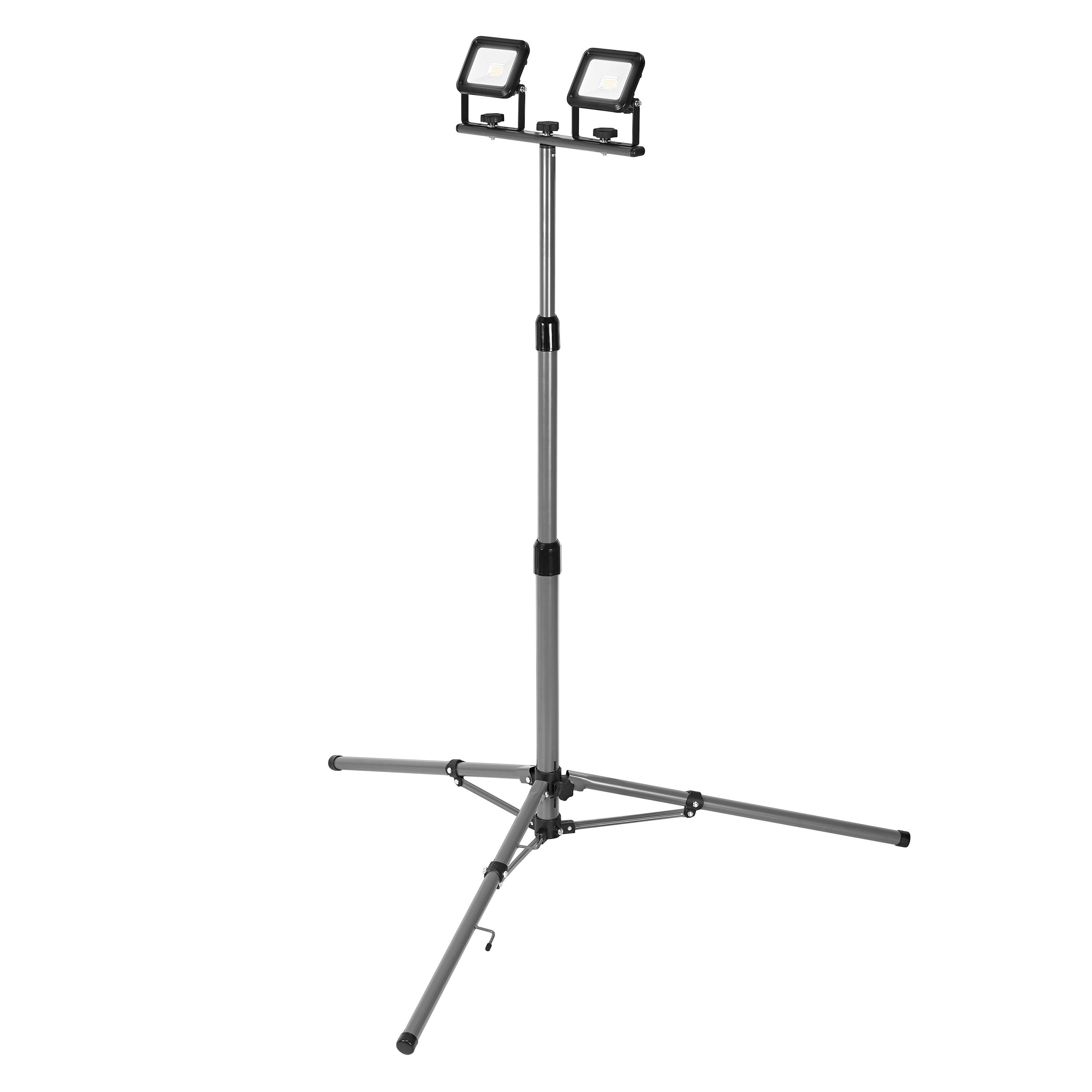

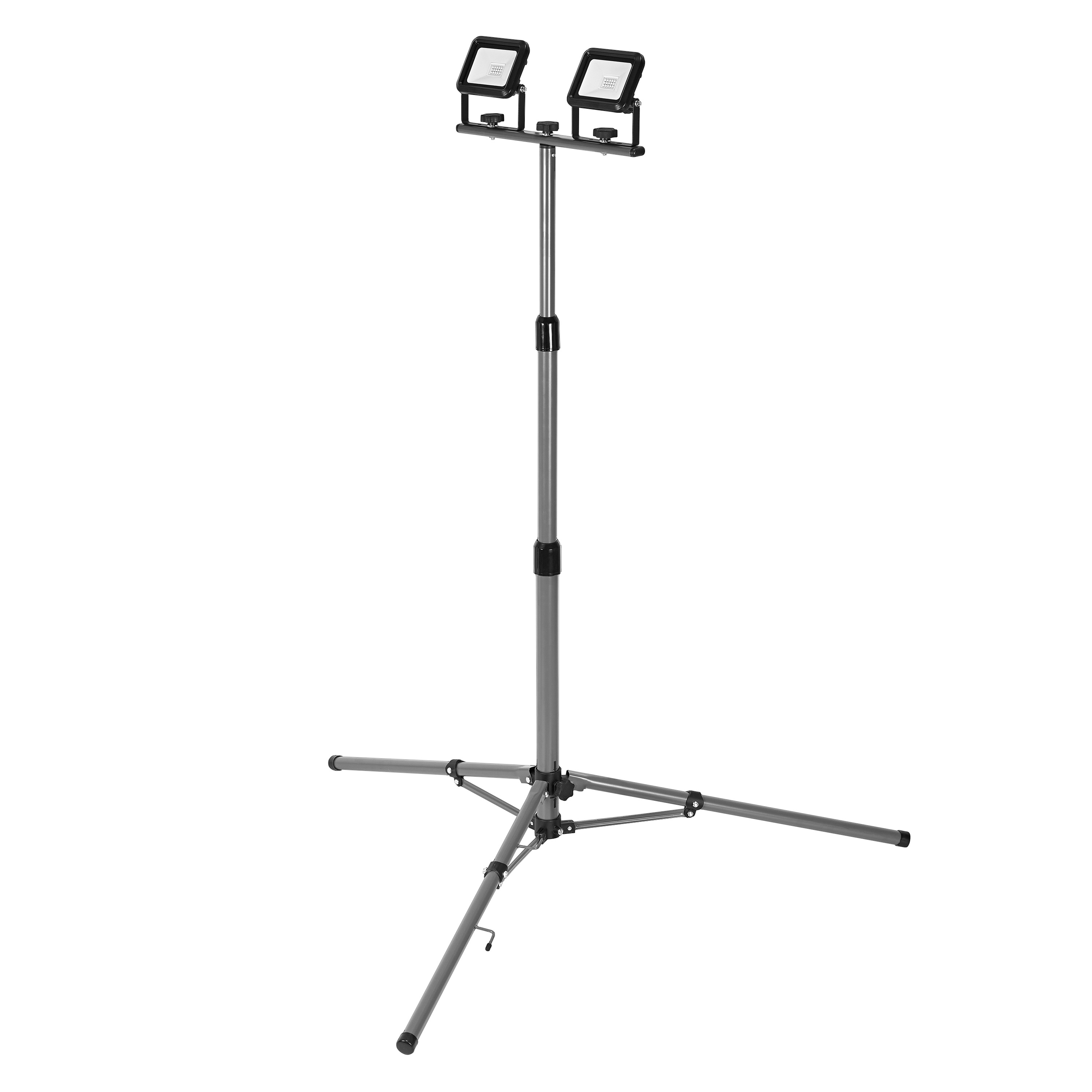

Product image: white background, upright, alternative image
LED WORKLIGHT VAL 2X10W 865 TRIPOD
LED WORKLIGHT VAL 2X10W 865 TRIPOD
Product image: white background, upright, switched on
LED WORKLIGHT VAL 2X10W 865 TRIPOD
LED WORKLIGHT VAL 2X10W 865 TRIPOD

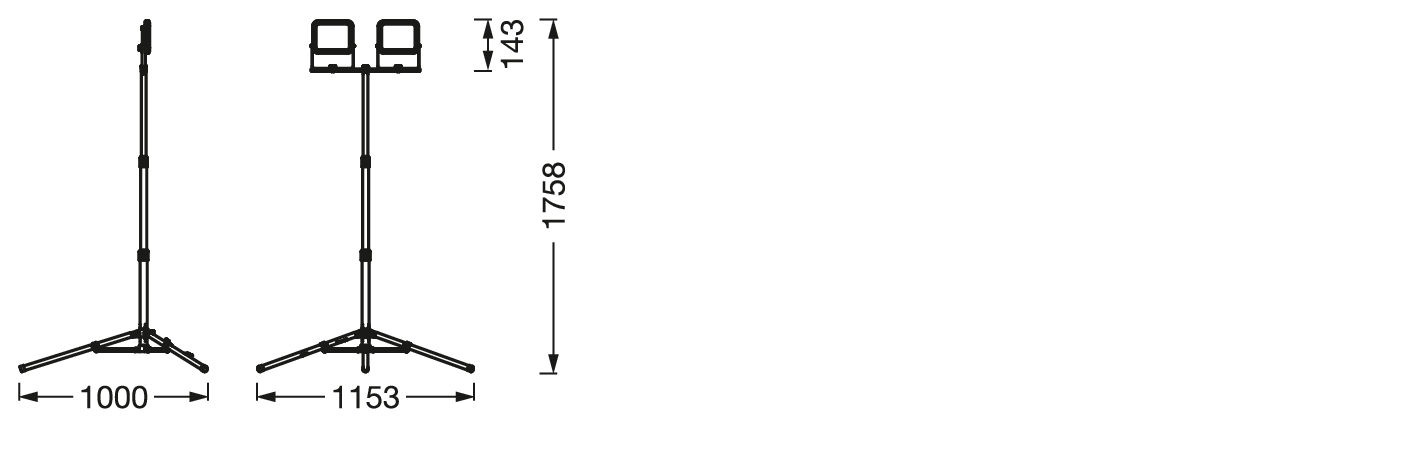

Product line drawing with letters
