Endura Style IP65 Wall
Endura Style IP65 Wall Idri Dark Gray
GTIN: 4099854217524
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Easy and quick installation
Areas of application
- Decorative outdoor lighting
- Building facades
- Entrance lighting
- Patios, balconies
Product features
- Durable housing material
- Type of protection: IP65
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Electrical data
| Nominal wattage | 12.50 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 61.000 mA |
| Inrush current | 5 A |
| Max. number of luminaires per miniature circuit breaker B16 | 69 |
| Max. number of luminaires per miniature circuit breaker C10 | 58 |
| Max. number of luminaires per miniature circuit breaker C16 | 93 |
| Power factor λ | > 0.5 |
| Total harmonic distortion | < 70 % |
| Protection class | II |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 700 lm |
| Total luminous flux of contained light sources | 1700 lm |
| Luminous efficacy | 56 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | 80 |
| Standard deviation of color matching | 6 sdcm |
| Flickering metric (Pst LM) | <1 % |
| Stroboscope effect metric (SVM) | <0.4 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 123 ° |
Dimensions & Weight
| Length | 230.00 mm |
| Height | 101.00 mm |
| Width | 90.00 mm |
| Product weight | 645.00 g |
Materials & Colors
| Product color | Dark gray |
| Housing color | Dark gray |
| Body material | Polycarbonate (PC) |
| Cover material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+45 °C |
| Type of connection | Terminal, 2-Pole (L, N) |
| Type of protection | IP65 |
| Protection class IK (shock resistance) | IK06 |
| Dimmable | No |
| Mounting type | Surface |
| Application environment | Outdoor |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 15000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854217524 | Folding box 1 |
102 mm x 242 mm x 119 mm | 756.00 g | 2.94 dm³ |
| 4099854217531 | Shipping box 4 |
257 mm x 222 mm x 269 mm | 3396.00 g | 15.35 dm³ |
User instruction / safety instructions
Endura Style Idri
Endura Style Idri
Legal information
Legal insert
Legal insert
Declarations of conformity
CE Declaration Endura Style
CE Declaration Endura Style

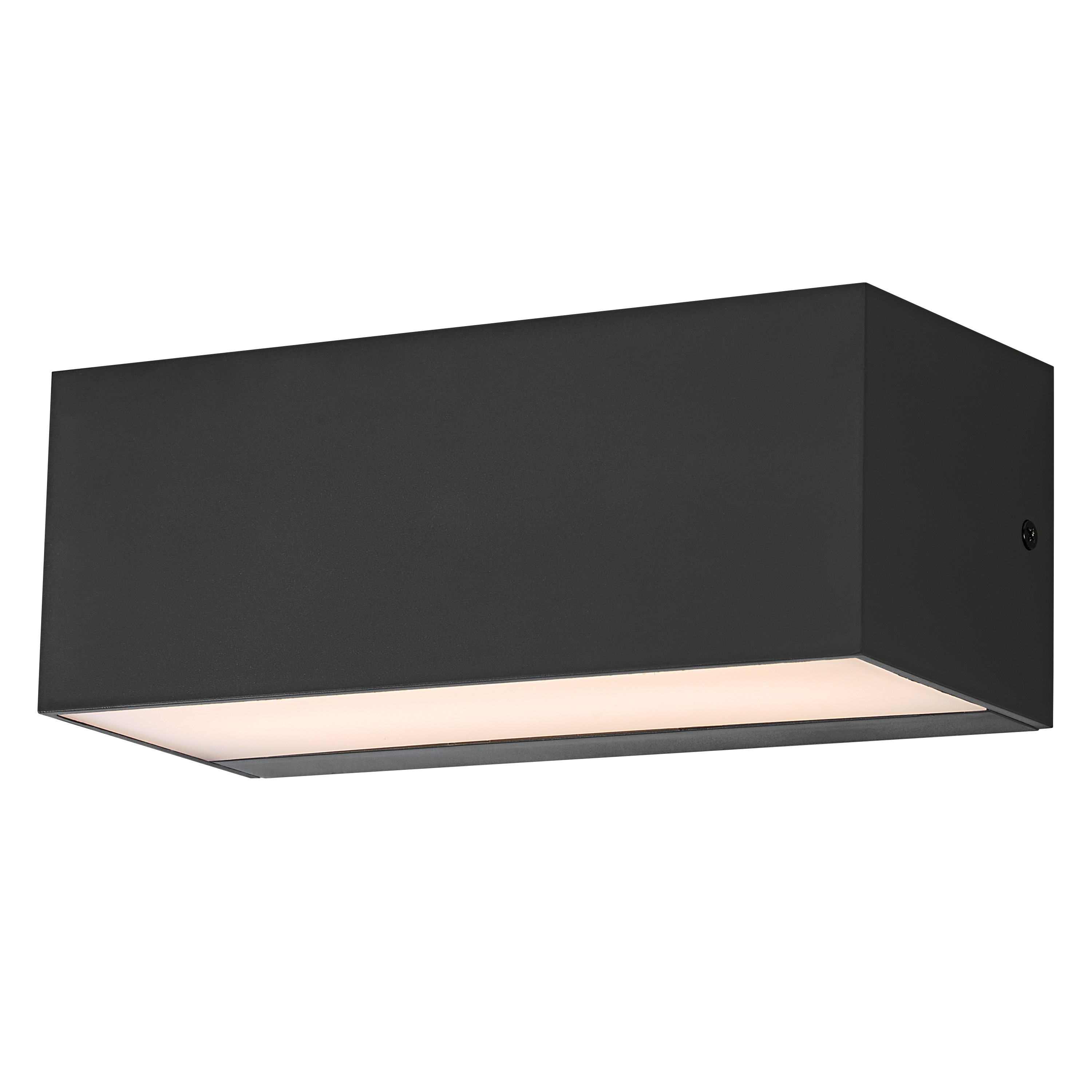

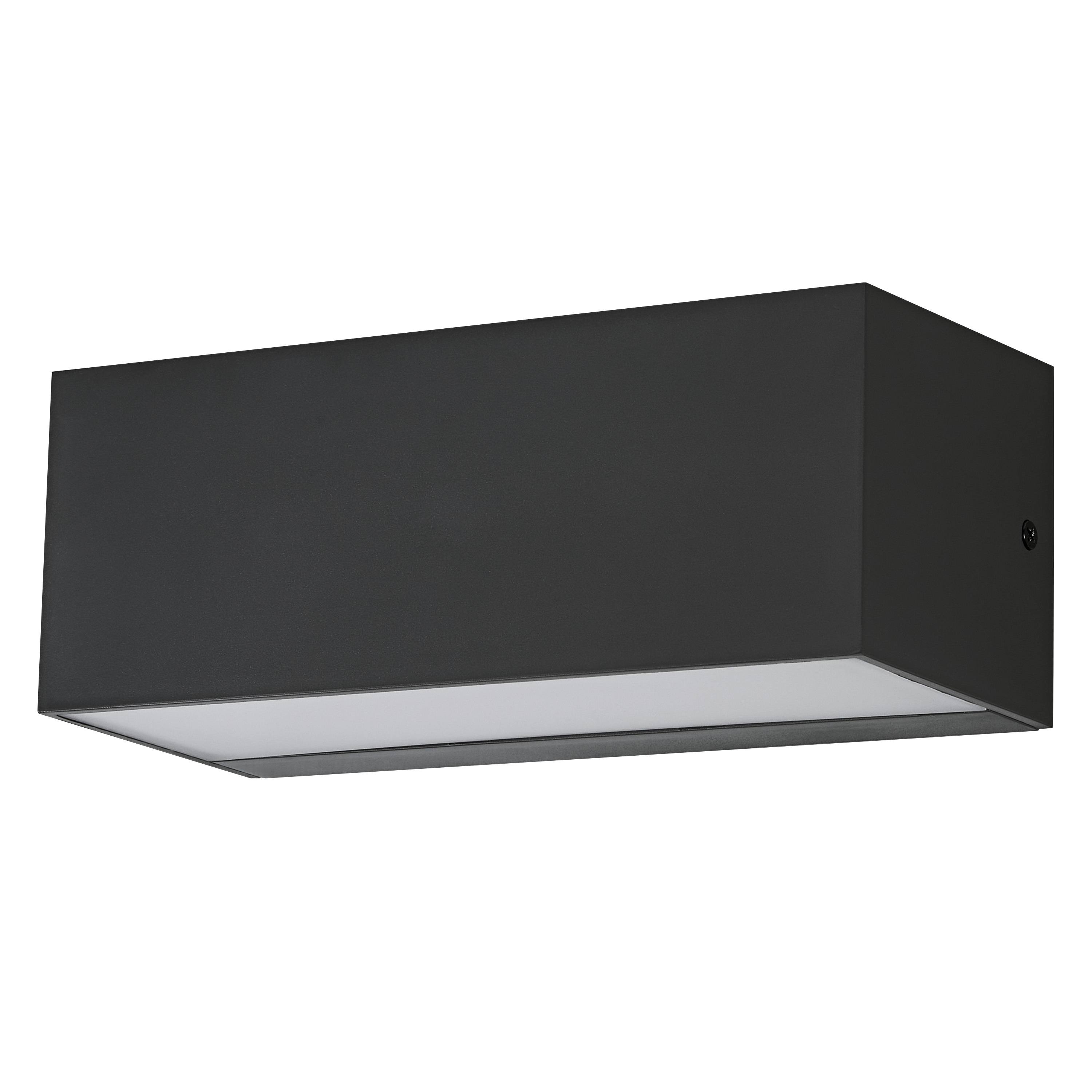

Product image: white background, upright
ENDURA STYLE IDRI WALL IP65 DG
ENDURA STYLE IDRI WALL IP65 DG

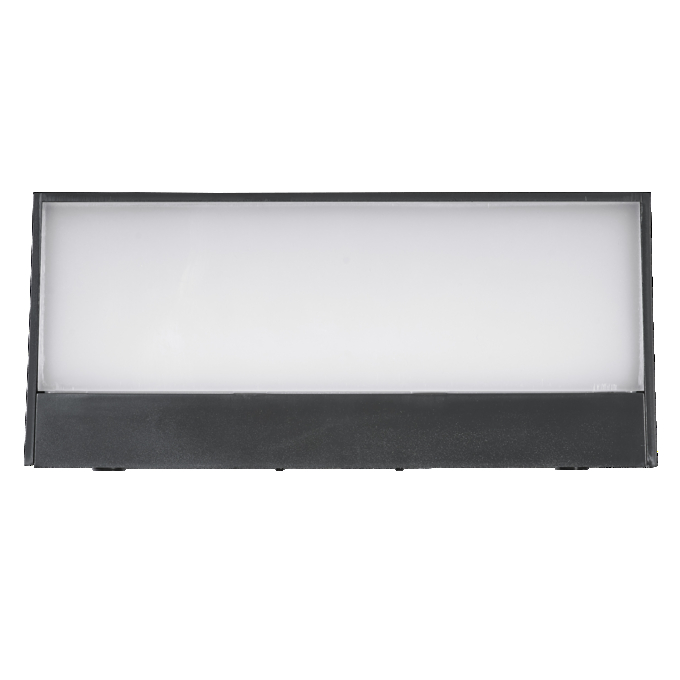

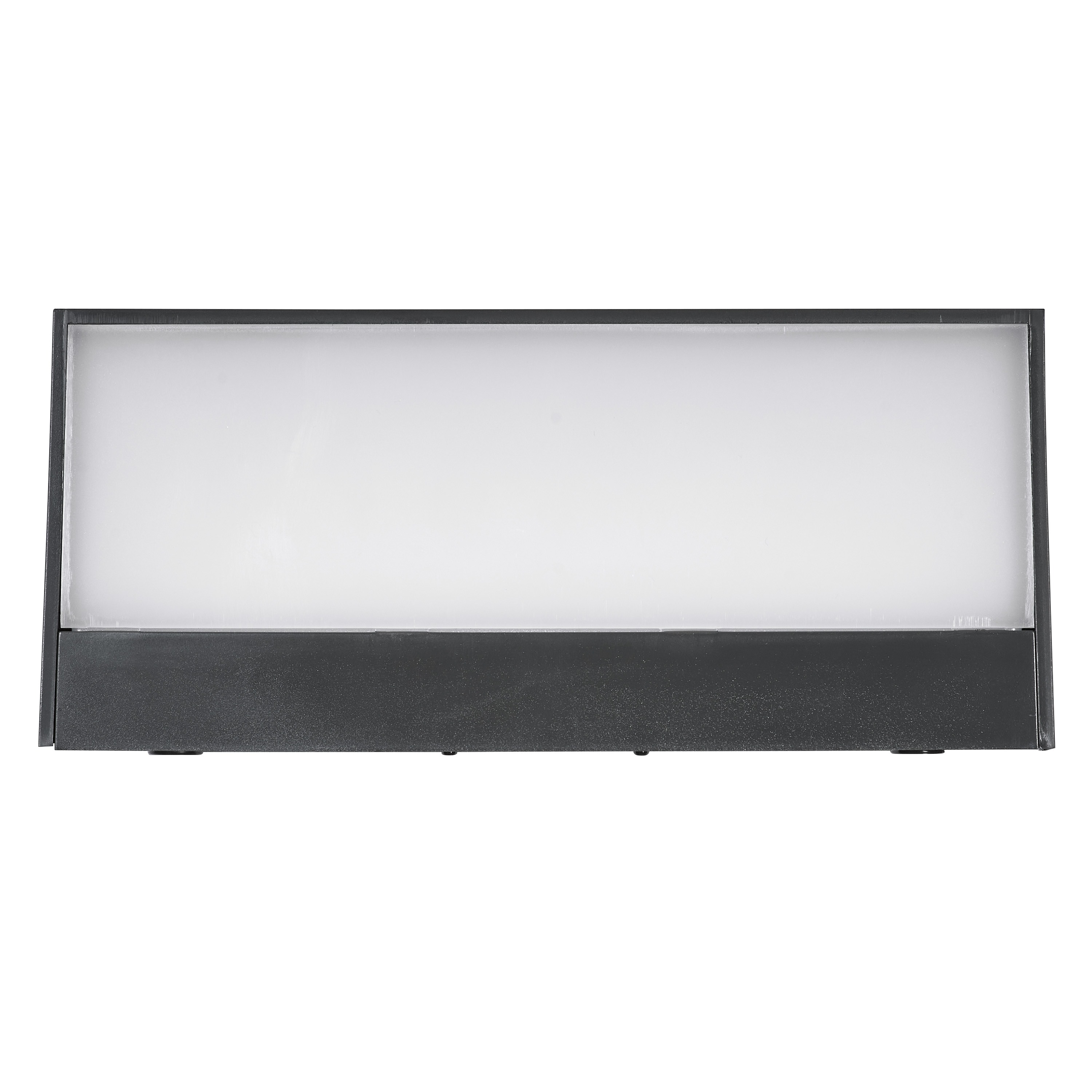

Product image: white background, upright, alternative image
ENDURA STYLE IDRI WALL IP65 DG
ENDURA STYLE IDRI WALL IP65 DG
Product image: white background, upright, switched on
ENDURA STYLE IDRI WALL IP65 DG
ENDURA STYLE IDRI WALL IP65 DG
Product infographic (application image with text and graphic)
Outdoor light e-Com graphic 1200x1200px 2024 EN
Outdoor light e-Com graphic 1200x1200px 2024 EN

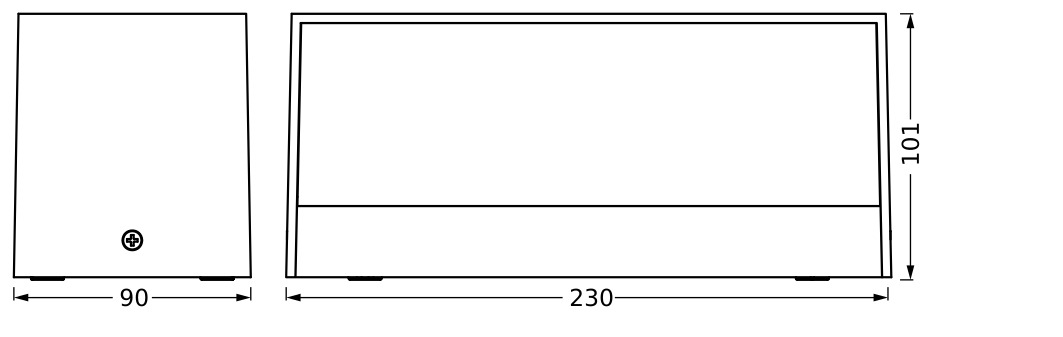

Product line drawing with letters
ENDURA STYLE IDRI WALL IP65 DG
ENDURA STYLE IDRI WALL IP65 DG
Product line drawing with numbers
ENDURA STYLE IDRI WALL IP65 DG
ENDURA STYLE IDRI WALL IP65 DG
Product line drawing, front, no dimensions
ENDURA STYLE IDRI WALL IP65 DG
ENDURA STYLE IDRI WALL IP65 DG

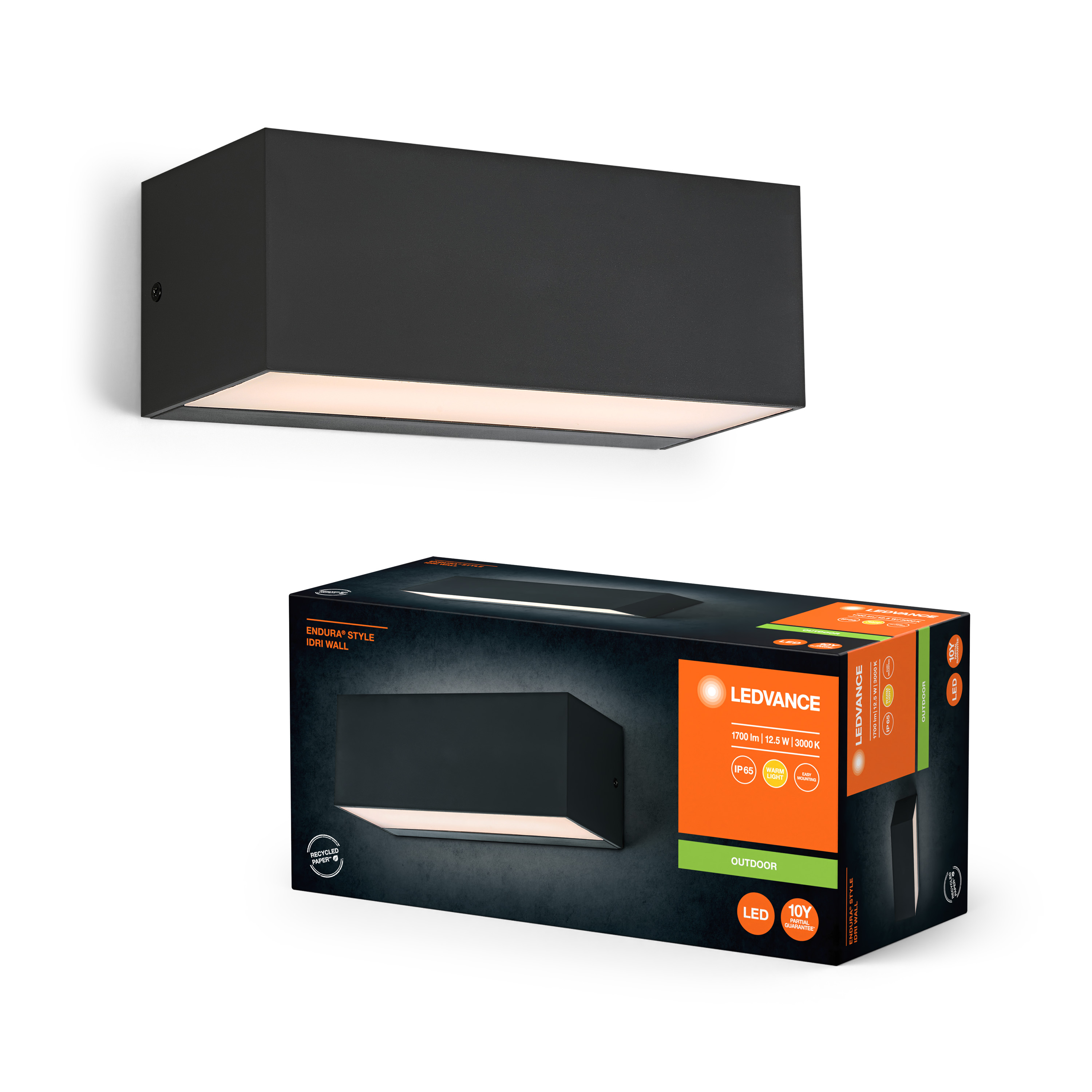

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC ES IDRI WALL IP65 DG MiPRC LDV
LUM FC ES IDRI WALL IP65 DG MiPRC LDV
Packaging image, frontal
LUM FC ES IDRI WALL IP65 DG MiPRC LDV
LUM FC ES IDRI WALL IP65 DG MiPRC LDV
Packaging image, spacial
LUM FC ES IDRI WALL IP65 DG MiPRC LDV
LUM FC ES IDRI WALL IP65 DG MiPRC LDV

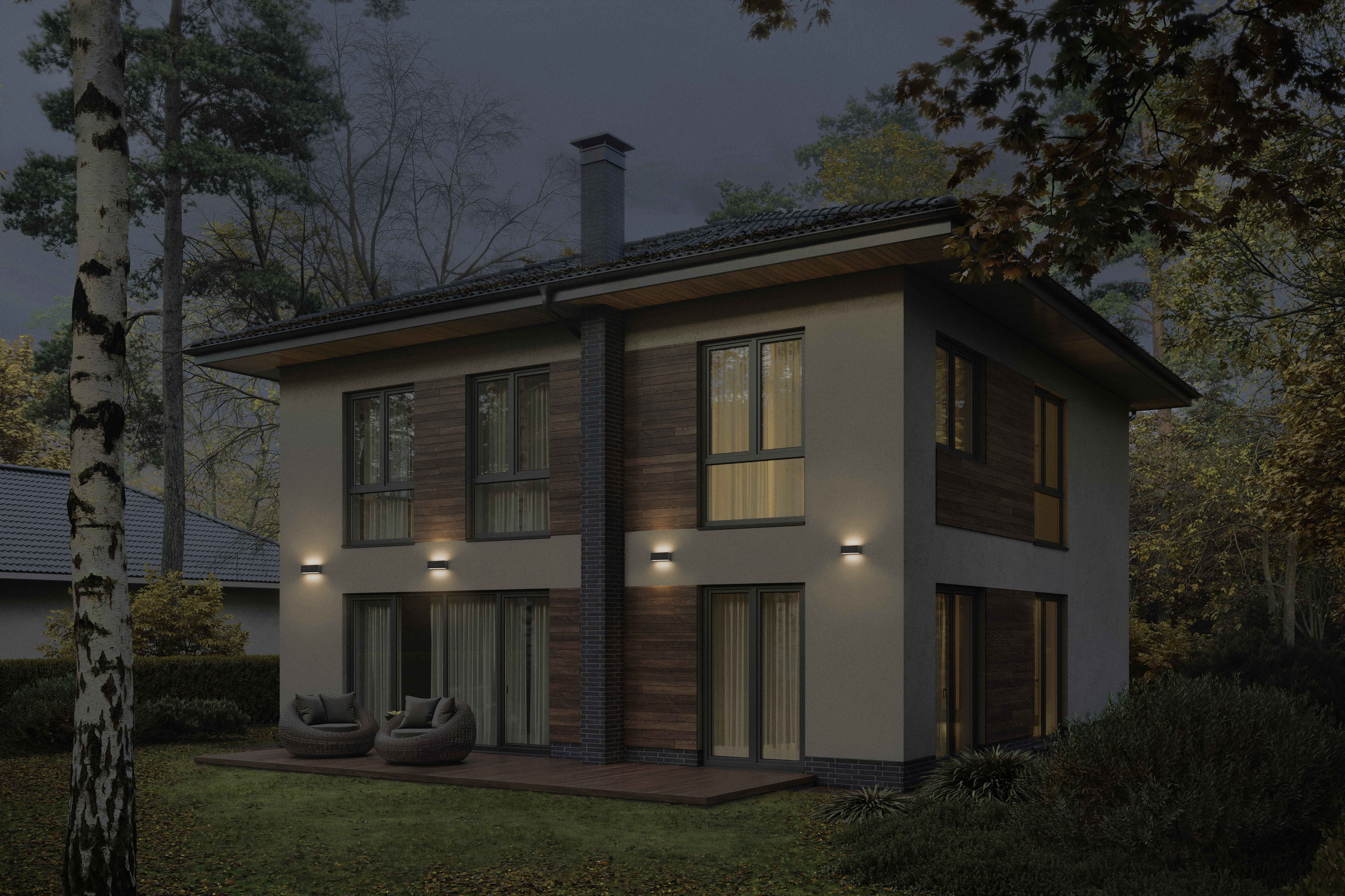

Application pictures Getty
