Endura Classic IP65 GU10

Endura Classic GU10 IP65 Itys Wall Dark Gray

GTIN: 4099854183041 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • High flexibility in the choice of the light source thanks to GU10 socket
  • Easy and quick installation
Areas of application
  • Building facades
  • Entrance lighting
  • Patios, balconies
  • Pathway lighting
  • Driveways
Product features
  • Options with PIR motion detector and daylight sensor available
  • Indirect illumination
  • Die-cast aluminum housing
  • Glass or PMMA diffuser
  • Anthracite housing color
Equipment / Accessories
  • Complete mounting and connecting accessories included
  • No light sources included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
Electrical data
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Protection class I
Operating mode Mains voltage
Dimensions & Weight
Length 65.00 mm
Height 158.00 mm
Width 100.00 mm
Product weight 560.00 g
Materials & Colors
Product color Dark gray
Housing color Dark gray
Body material Aluminum
Cover material Glass
Glow Wire Test according to IEC 60695-2-12 650 °C
Application & Mounting
Ambient temperature range -20…+40 °C
Type of connection Terminal, 3-Pole (L, N, PE)
Type of protection IP65
Protection class IK (shock resistance) IK05
Dimmable No
Mounting type Surface
Mounting location Wall
Application environment Outdoor
With light source No
Replaceable light source No
Holder designation GU10
Certificates & Standards
Standards CE, UKCA
Luminaire with limited surface temperature, "D sign" No
Additional product data
Product remark Maximum bulb wattage: 2 x 35W (2 x 7W LED)
Number of illuminants 2
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854183041 Folding box
1		 72 mm x 112 mm x 172 mm 606.00 g 1.39 dm³
4099854183058 Shipping box
4		 250 mm x 170 mm x 205 mm 2640.00 g 8.71 dm³
User instruction / safety instructions
Endura Itys and Ive
PDF (670.59 KB)
Legal information
Legal insert I-Outdoor
PDF (2.62 MB)
Declarations of conformity
Endura Classic IP65
PDF (218.1 KB)

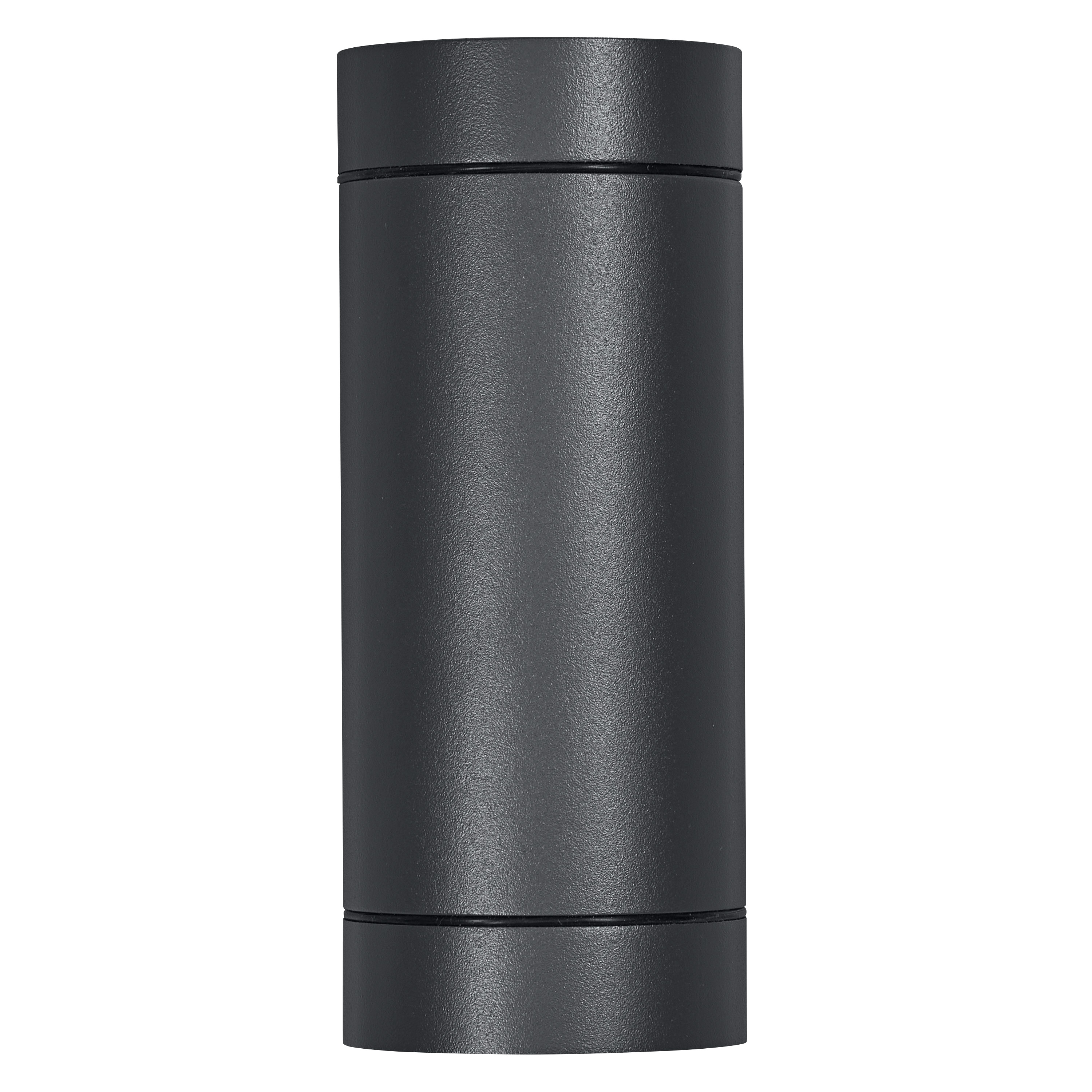

Product image: white background, upright
ENDURA CLASSIC ITYS W GU10 IP65 DG
JPG (954.37 KB)

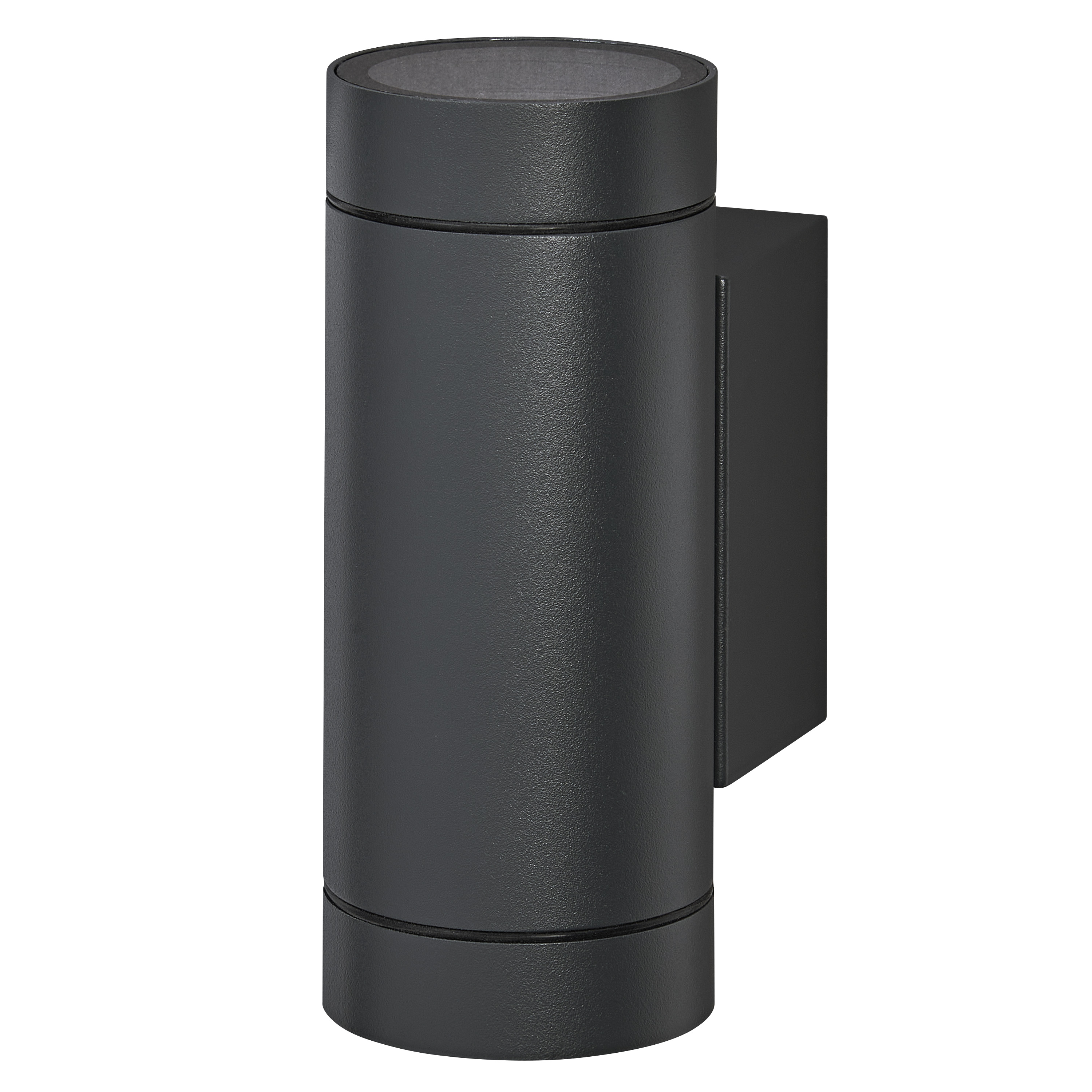

Product image: white background, upright, alternative image
ENDURA CLASSIC ITYS W GU10 IP65 DG
JPG (1.06 MB)

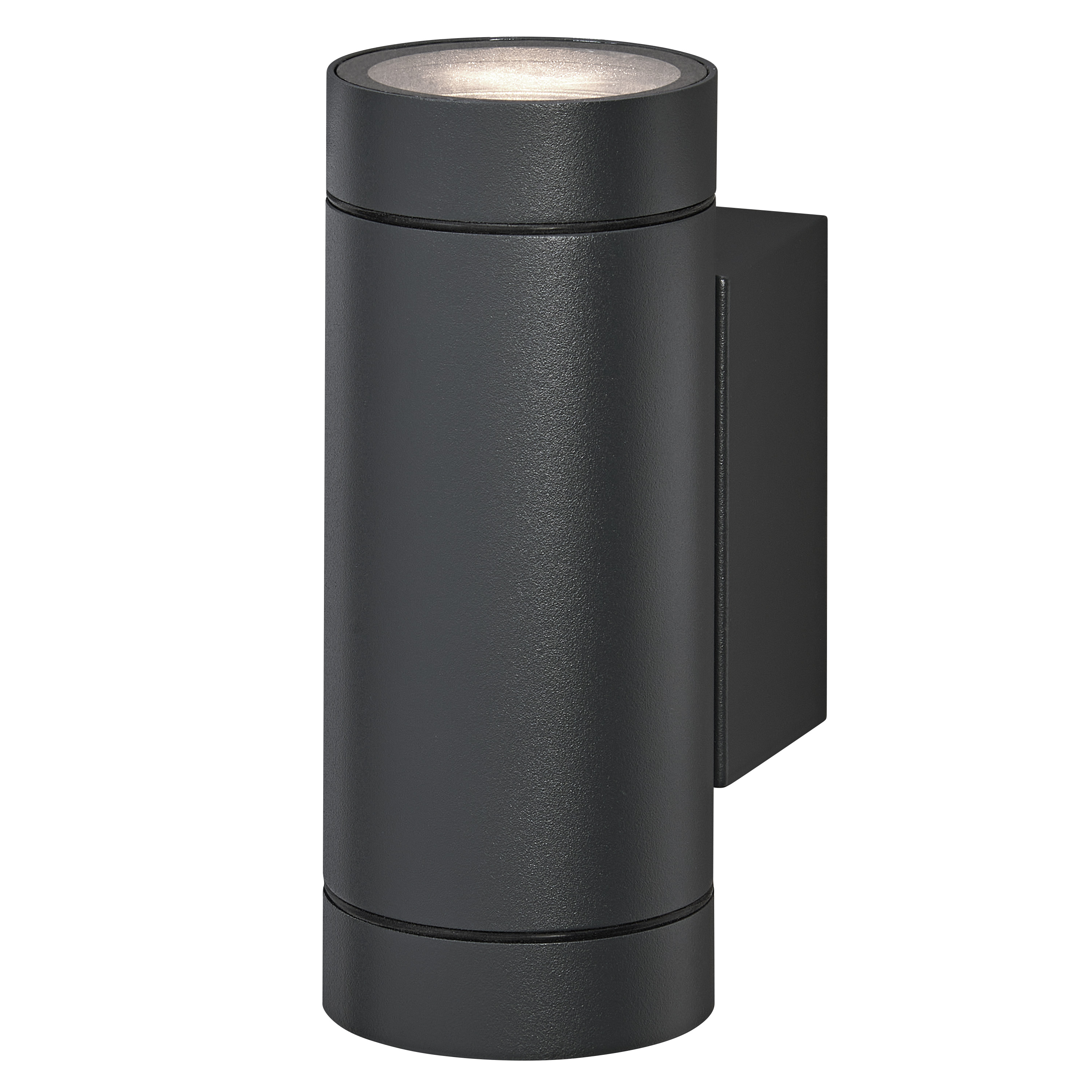

Product image: white background, upright, switched on
ENDURA CLASSIC ITYS W GU10 IP65 DG
JPG (969.87 KB)

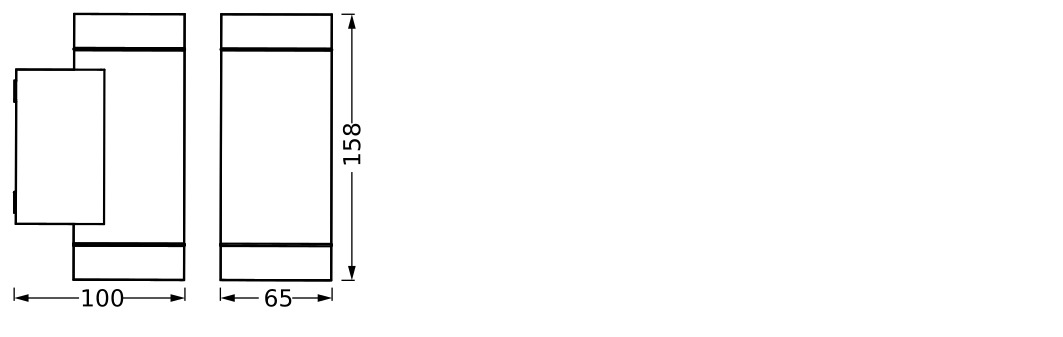

Product line drawing with letters
ENDURA CLASSIC ITYS W GU10 IP65
SVG (105.28 KB)
Product line drawing with numbers
ENDURA CLASSIC ITYS W GU10 IP65
JPG (14.31 KB)
Product line drawing, front, no dimensions
ENDURA CLASSIC ITYS W GU10 IP65
SVG (9.82 KB)
Combo Shot = Product Beauty Shot + Packaging Image
LUM FC EC ITYS W GU10 IP65 DG
JPG (1.57 MB)
Packaging image, frontal
LUM FC EC ITYS W GU10 IP65 DG
JPG (1.2 MB)
Packaging image, spacial
LUM FC EC ITYS W GU10 IP65 DG
JPG (1.36 MB)

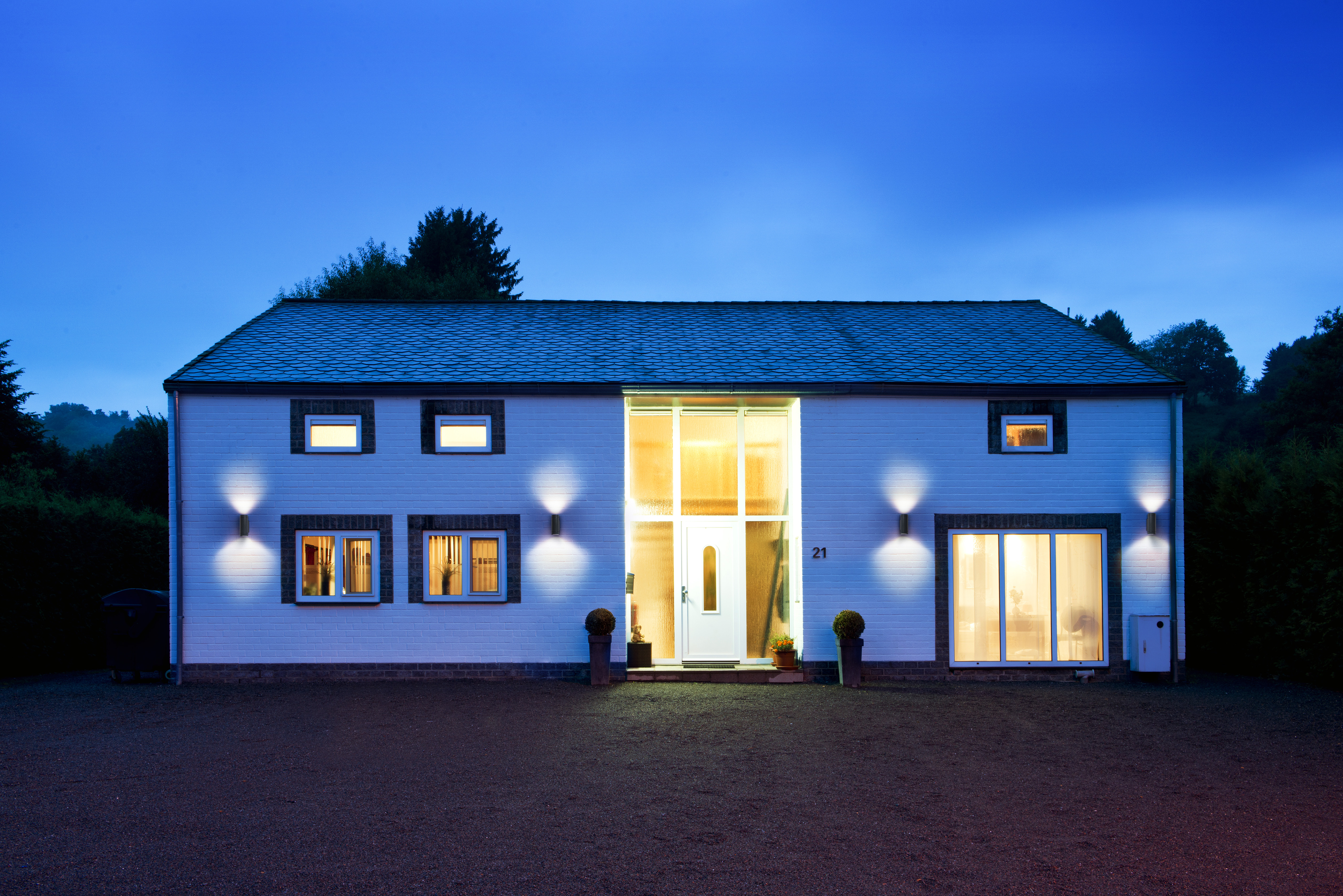

Application pictures Getty
ENDURA CLASSIC ITYS WALL GU10 IP65
JPG (5.05 MB)
