Endura Classic Tubular
Endura Classic Tubular Wall Sensor E27 IP44 Dark Grey
GTIN: 4099854415630
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- High flexibility in the choice of the light source thanks to E27 socket
- Easy and quick installation
- Option with PIR motion detection and daylight sensor, matching with housing color available
- Long-term energy and cost savings (sensor version)
Areas of application
- Building facades
- Entrance lighting
- Patios, balconies
- Pathway lighting
- Driveways
Product features
- Suitable for smart applications thanks to compatibility with SMART+ lamps
- Lower light smog, on-demand lighting (sensor version)
- Direct illumination
- Light cover material: glass
- Light cover appearance: clear
- Housing material: aluminum
- Housing color: RAL 7016
- Type of protection: IP44
Equipment / Accessories
- Complete mounting and connecting accessories included
- No light sources included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
Electrical data
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Protection class | I |
| Operating mode | Mains voltage |
Dimensions & Weight
| Length | 82.00 mm |
| Height | 278.00 mm |
| Width | 118.00 mm |
| Product weight | 920.00 g |
Materials & Colors
| Product color | Dark gray |
| Housing color | Dark gray |
| Body material | Aluminum |
| Cover material | Glass |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Terminal, 3-Pole (L, N, PE) |
| Type of protection | IP44 |
| Protection class IK (shock resistance) | IK06 |
| Dimmable | No |
| Mounting type | Surface |
| Application environment | Outdoor |
| With light source | No |
| Replaceable light source | No |
| Holder designation | E27 |
Sensor
| Type of sensor | Light, Motion |
| Sensor technology | Passive infrared (PIR) |
| Sensor detection angle | 100 ° |
| Sensor controlled switching time | 10 s…5 m |
| Detection range of motion sensor | 4…10 m |
| Detection threshold of daylight sensor | 30…10000 lx |
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
Additional product data
| Product remark | Maximum bulb wattage: 40W (15W LED), Available from June 2025 |
| Number of illuminants | 1 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854415630 | Folding box 1 |
96 mm x 130 mm x 296 mm | 1018.00 g | 3.69 dm³ |
| 4099854415647 | Shipping box 4 |
276 mm x 218 mm x 325 mm | 4569.00 g | 19.55 dm³ |
User instruction / safety instructions
Endura Classic Tubular
Endura Classic Tubular
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Legal information
Safety insert G11219578
Safety insert G11219578
Declarations of conformity
CE Declaration Endura Classic IP44
CE Declaration Endura Classic IP44

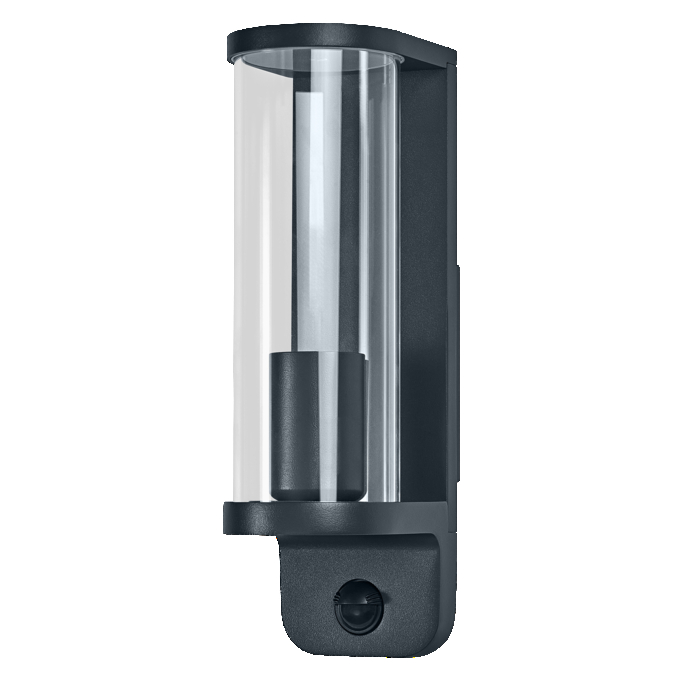

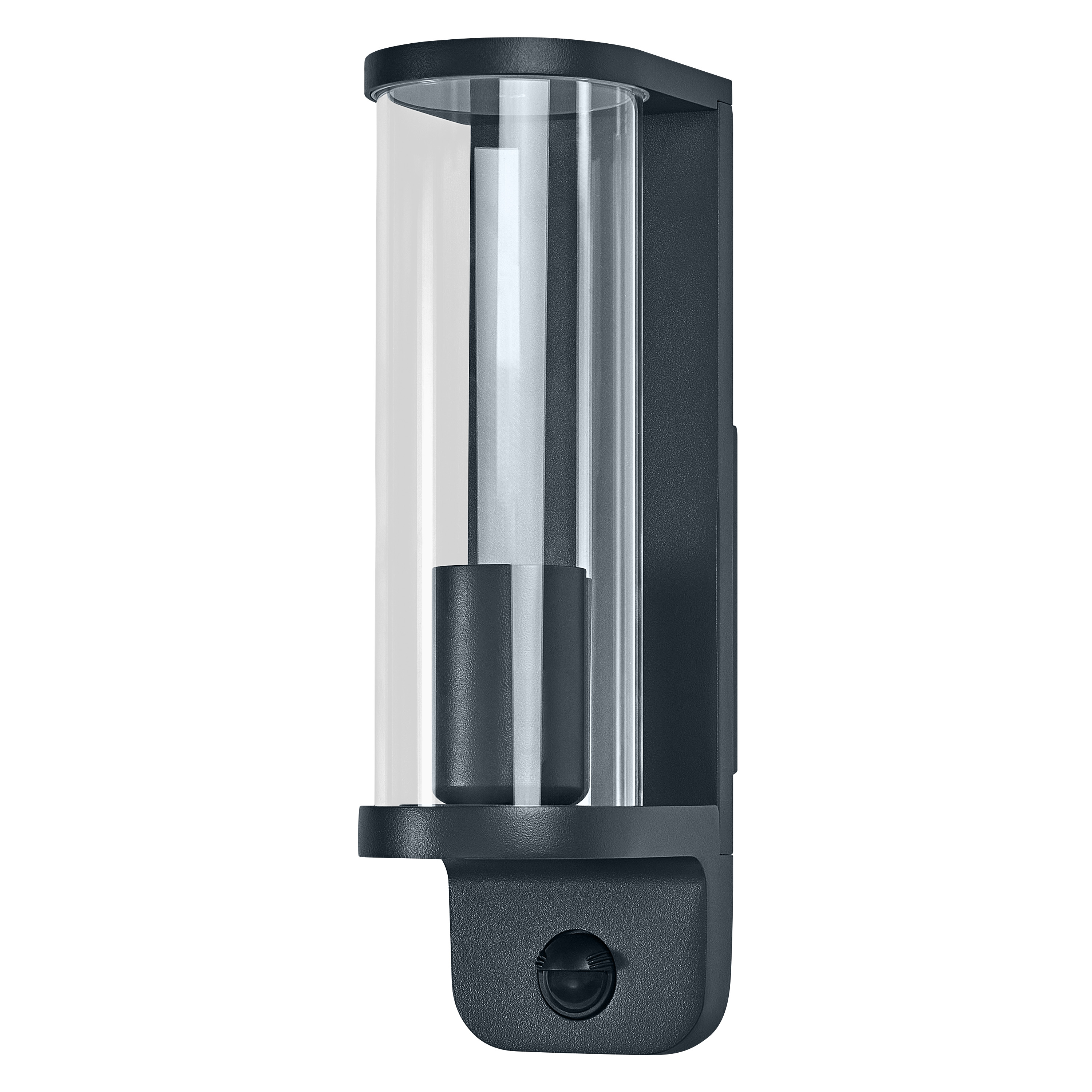

Product image: white background, upright
ENDURA CLA TUBULAR W S E27 IP44 DG
ENDURA CLA TUBULAR W S E27 IP44 DG

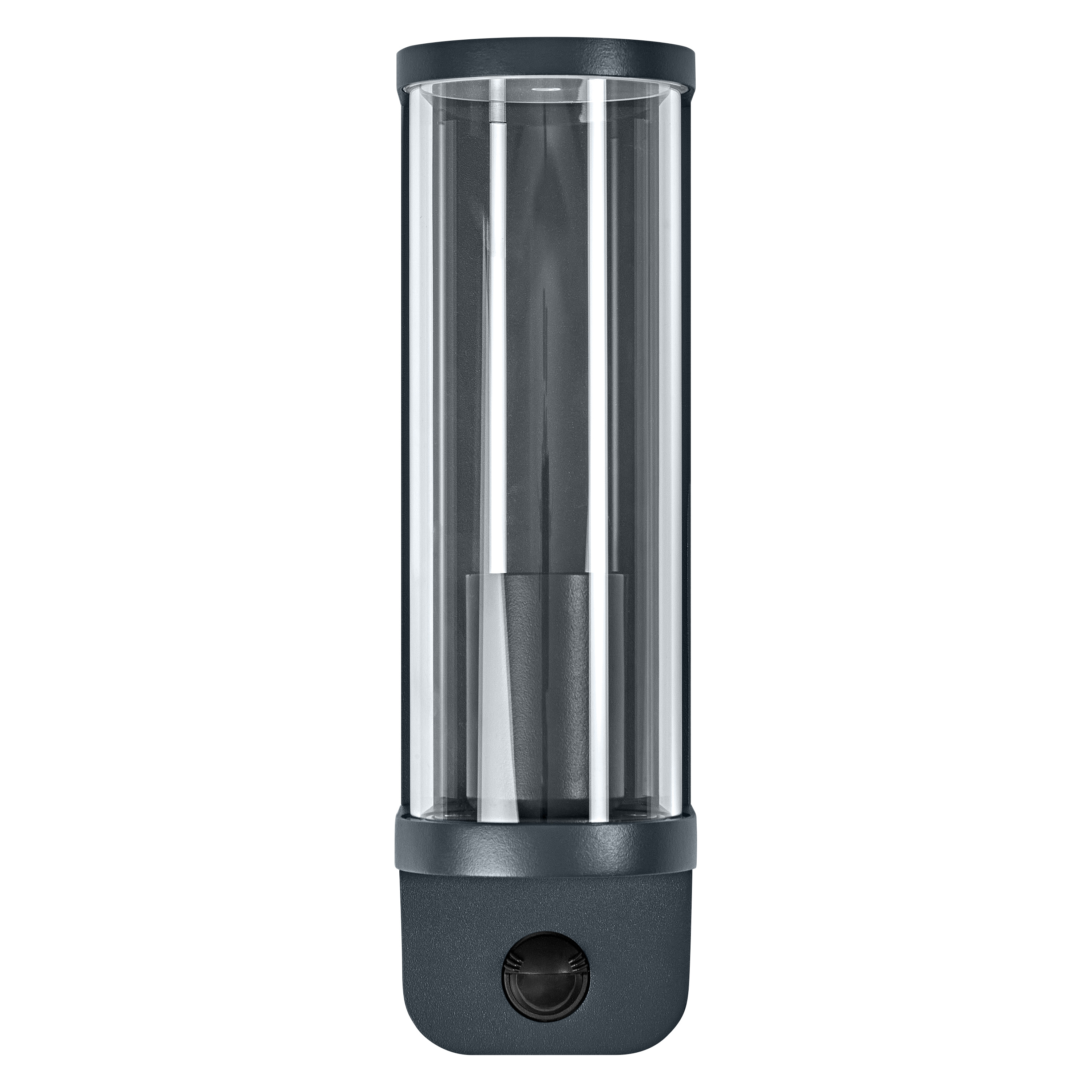

Product image: white background, upright, alternative image
ENDURA CLA TUBULAR W S E27 IP44 DG
ENDURA CLA TUBULAR W S E27 IP44 DG

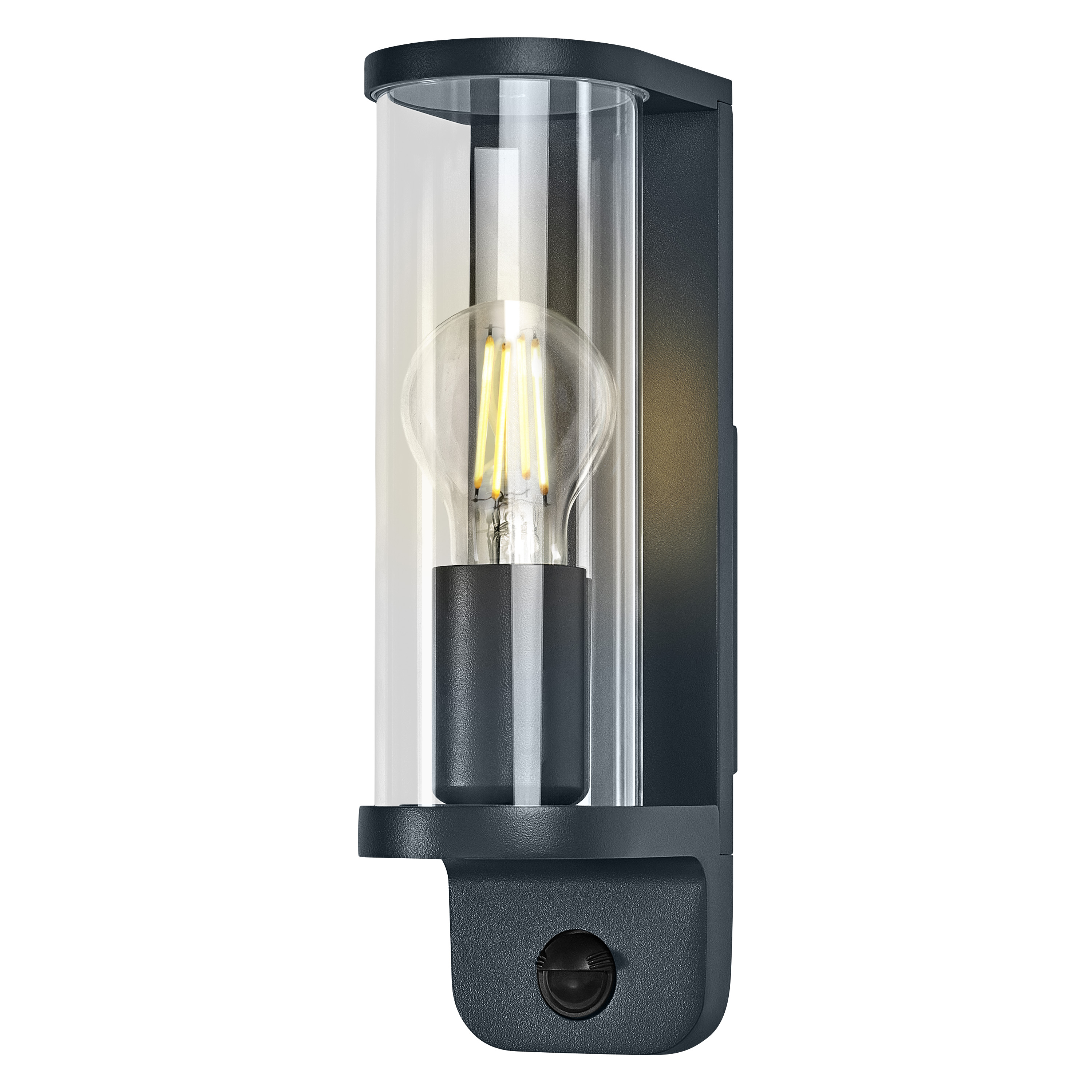

Product image: white background, upright, switched on
ENDURA CLA TUBULAR W S E27 IP44 DG
ENDURA CLA TUBULAR W S E27 IP44 DG
Product line drawing with letters
ENDURA CLA TUBULAR W S E27 IP44 DG
ENDURA CLA TUBULAR W S E27 IP44 DG
Product line drawing with numbers
ENDURA CLA TUBULAR W S E27 IP44 DG
ENDURA CLA TUBULAR W S E27 IP44 DG
Product line drawing, front, no dimensions
ENDURA CLA TUBULAR W S E27 IP44 DG
ENDURA CLA TUBULAR W S E27 IP44 DG

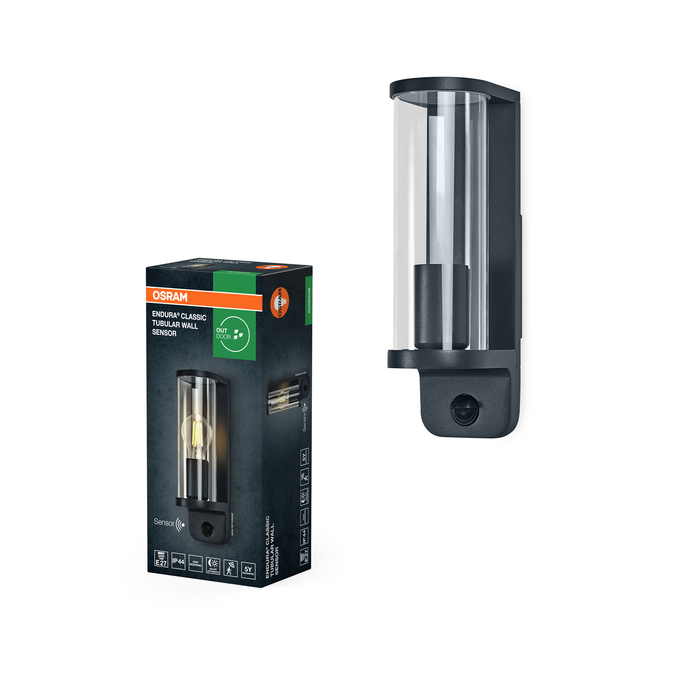

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC EC TUBULAR WS E27 IP44 OSRAM
LUM FC EC TUBULAR WS E27 IP44 OSRAM
Packaging image, frontal
LUM FC EC TUBULAR WS E27 IP44 OSRAM
LUM FC EC TUBULAR WS E27 IP44 OSRAM
Packaging image, spacial
LUM FC EC TUBULAR WS E27 IP44 OSRAM
LUM FC EC TUBULAR WS E27 IP44 OSRAM

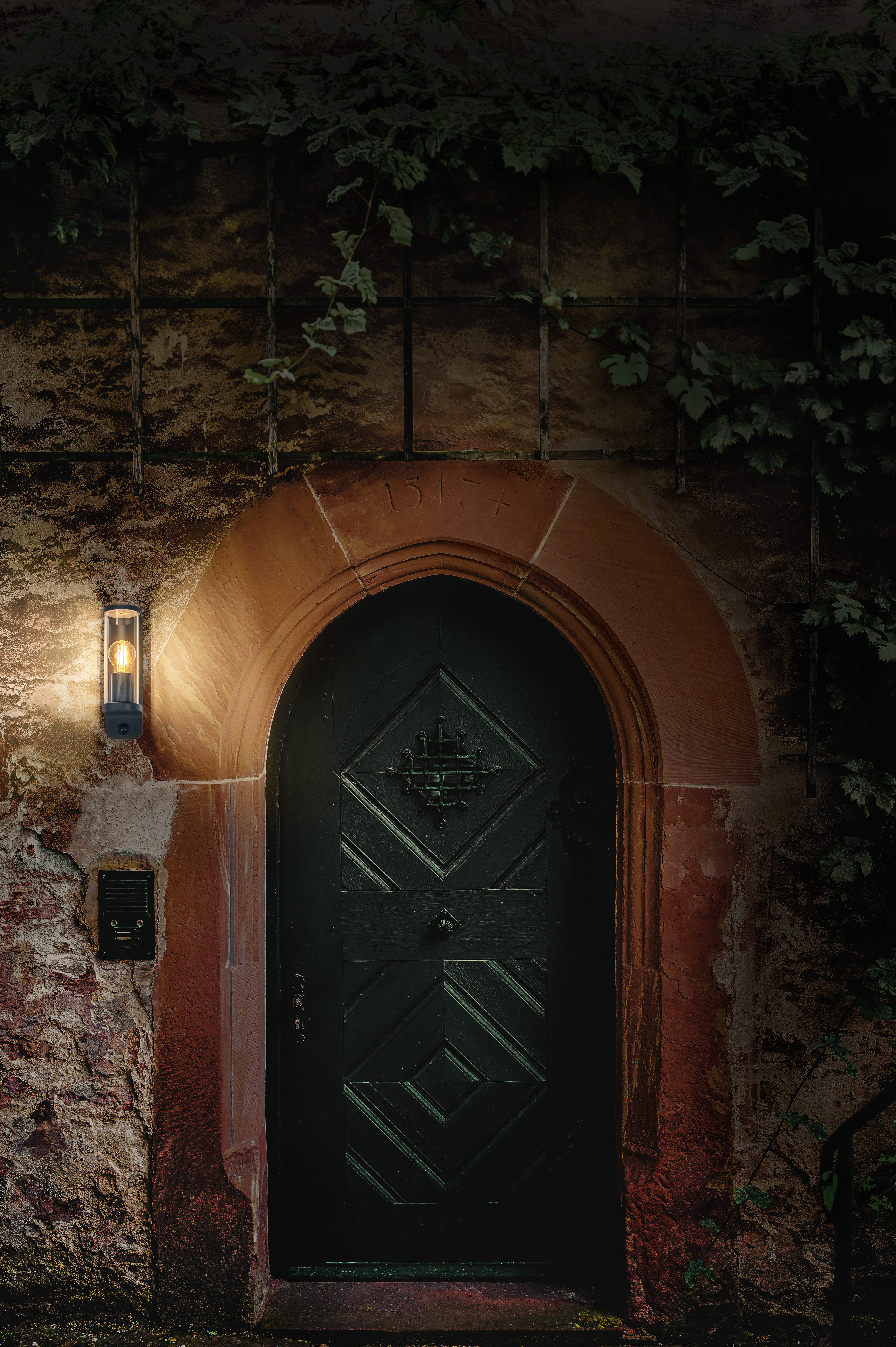

Application pictures Getty
