ENDURA STYLE SPOT ROUND
ENDURA Style Spot 8W Dark Grey
GTIN: 4099854453533
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Energy-efficient thanks to LED technology
- Easy and quick installation
Areas of application
- Outdoor use (IP44)
- Building facades
- Entrance lighting
- Patios, balconies
Product features
- Bright and functional outdoor LED luminaires
- Die-cast aluminum housing
- Available in two housing colors
- Adjustable modules: rotation angle 320°
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
Electrical data
| Nominal wattage | 8.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 40.000 mA |
| Power factor λ | > 0.5 |
| Protection class | I |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 440 lm |
| Luminous efficacy | 55 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | ≤6 sdcm |
Dimensions & Weight
| Length | 135.00 mm |
| Height | 140.00 mm |
| Width | 90.00 mm |
| Product weight | 600.00 g |
Materials & Colors
| Product color | Dark gray |
| Housing color | Dark gray |
| Body material | Aluminum |
| Cover material | Polycarbonate (PC) |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+85 °C |
| Type of connection | Screw terminal |
| Type of protection | IP44 |
| Dimmable | No |
| Mounting type | Surface |
| Application environment | Outdoor |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 12500 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, UKCA, EAC |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854453533 | Folding box 1 |
124 mm x 154 mm x 166 mm | 793.00 g | 3.17 dm³ |
| 4099854453540 | Shipping box 6 |
385 mm x 170 mm x 355 mm | 4760.00 g | 23.23 dm³ |
User instruction / safety instructions
ENDURA STYLE SPOT
ENDURA STYLE SPOT
Legal information
Safety insert G11219578
Safety insert G11219578
Declarations of conformity
ENDURA STYLE LUM
ENDURA STYLE LUM
Product image: white background, upright
ENDURA STYLE Spot RD 8W DG
ENDURA STYLE Spot RD 8W DG
Product line drawing with letters
PG ENDURA STYLE Spot RD MiPRC
PG ENDURA STYLE Spot RD MiPRC
Product line drawing with numbers
PG ENDURA STYLE Spot RD MiPRC
PG ENDURA STYLE Spot RD MiPRC
Product line drawing, front, no dimensions
PG ENDURA STYLE Spot RD MiPRC
PG ENDURA STYLE Spot RD MiPRC

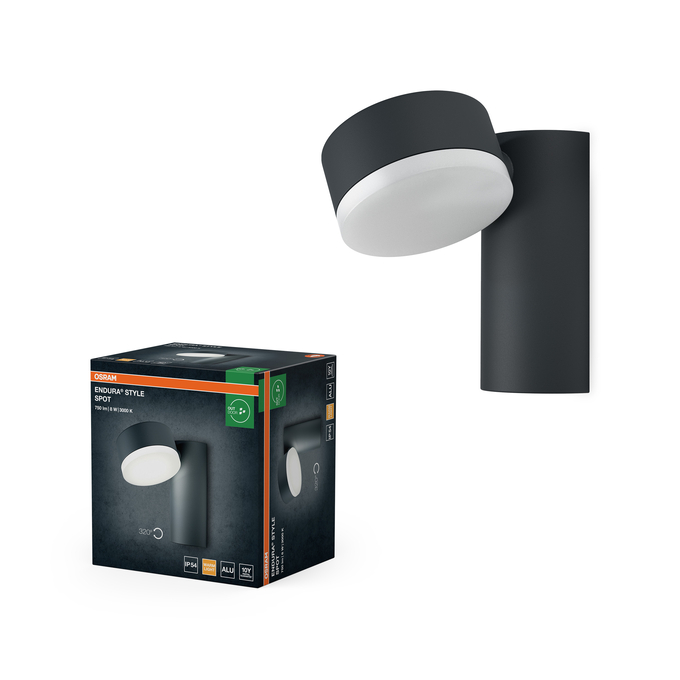

Combo Shot = Product Beauty Shot + Packaging Image
