Endura Hybrid Bollard
Endura Hybrid Rondo 50cm 4W Dark Gray
GTIN: 4058075834507
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Capable of using both, solar energy and power from electric grid
- Easy installation and tool-free electrical connection without professional knowledge, independent from power supply
- 12V direct current voltage for highest safety for human and animal
- Product types for different usecases available
- Sustainable energy
Areas of application
- Gardens and other outdoor areas
- Patios, balconies
Product features
- Maximum connected load per solar panel = 24W
- IP67 protection of connection plugs
- When connected to the power grid, luminaire automatically switches to mains current once solar panel battery runs out of energy
- IP44 protection of luminaires
- Stainless steel housing
Safety advice
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
Electrical data
| Nominal wattage | 4.00 W |
| Nominal voltage | 12 V |
| Nominal current | 333.000 mA |
| Protection class | III |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 250 lm |
| Total luminous flux of contained light sources | 500 lm |
| Luminous efficacy | 62 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | ≥ 80 |
| Standard deviation of color matching | ≤6 sdcm |
| Flickering metric (Pst LM) | <1 % |
| Stroboscope effect metric (SVM) | <0.4 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 120 ° |
Dimensions & Weight
| Diameter | 110.00 mm |
| Height | 500.00 mm |
| Product weight | 800.00 g |
| Cable length | 300 mm |
Materials & Colors
| Product color | Dark gray |
| Housing color | Dark gray |
| Body material | Stainless steel |
| Cover material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
Application & Mounting
| Ambient temperature range | -20…40 °C |
| Type of connection | Fast connector |
| Type of protection | IP44 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | No |
| Mounting type | Surface |
| Application environment | Outdoor |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 25000 h 1) |
| Number of switching cycles | 12500 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075834507 | Folding box 1 |
122 mm x 122 mm x 513 mm | 953.00 g | 7.64 dm³ |
| 4058075834514 | Shipping box 4 |
260 mm x 260 mm x 538 mm | 4438.00 g | 36.37 dm³ |
User instruction / safety instructions
ENDURA HYBRID LUM
ENDURA HYBRID LUM
Addon technical information
Hybrid assembly in 3 steps EN
Hybrid assembly in 3 steps EN
Addon technical information
Hybrid Installation in 3 Schritten DE
Hybrid Installation in 3 Schritten DE
Legal information
ENDURA HYBRID
ENDURA HYBRID
Declarations of conformity
CE Declaration ENDURA HYBRID
CE Declaration ENDURA HYBRID

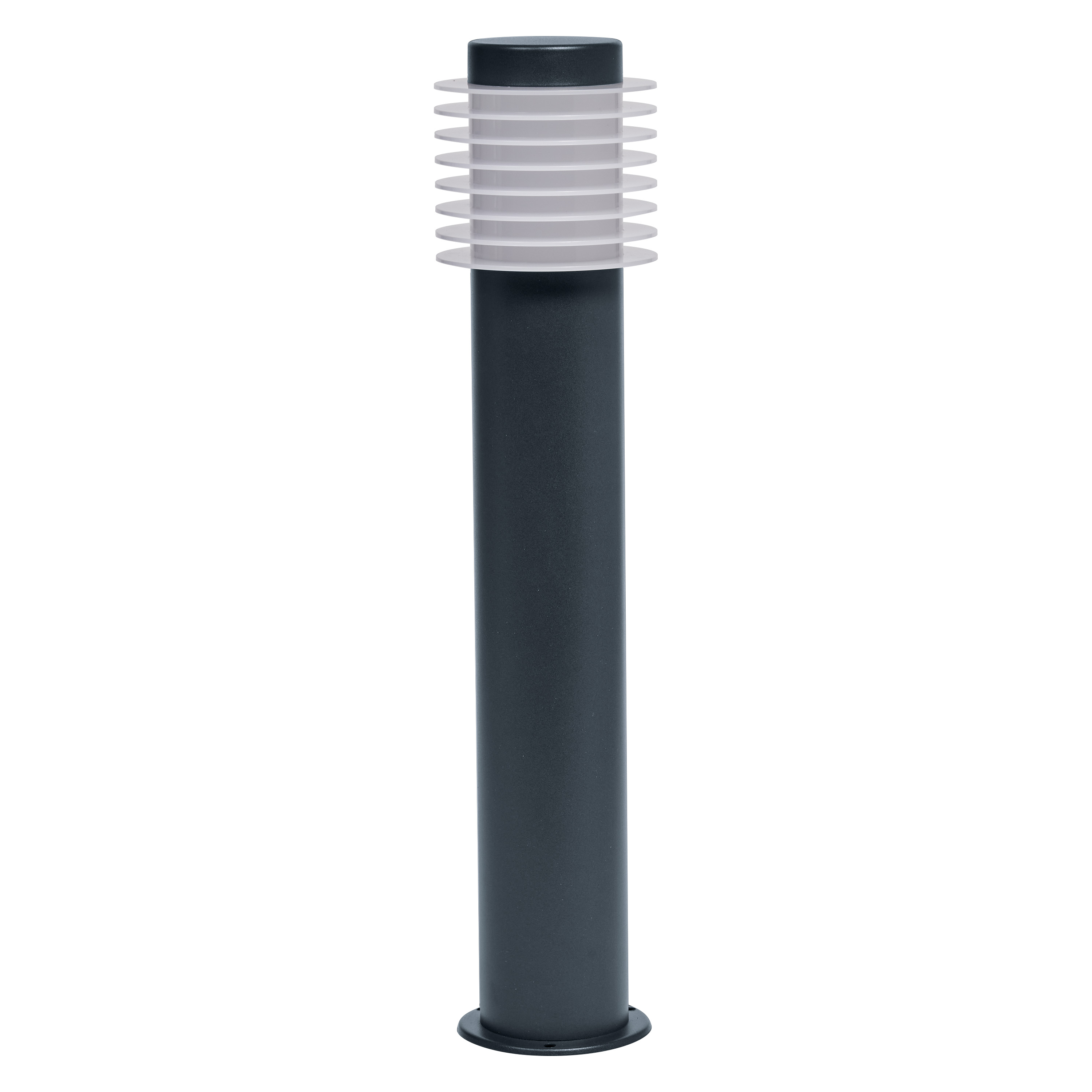

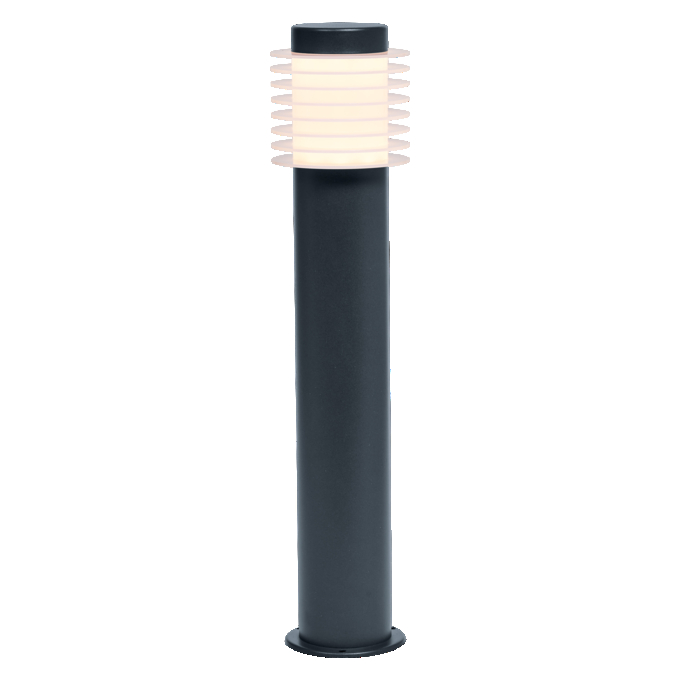

Product image: white background, upright
ENDURA HYBRID RONDO 50CM 4W DG
ENDURA HYBRID RONDO 50CM 4W DG

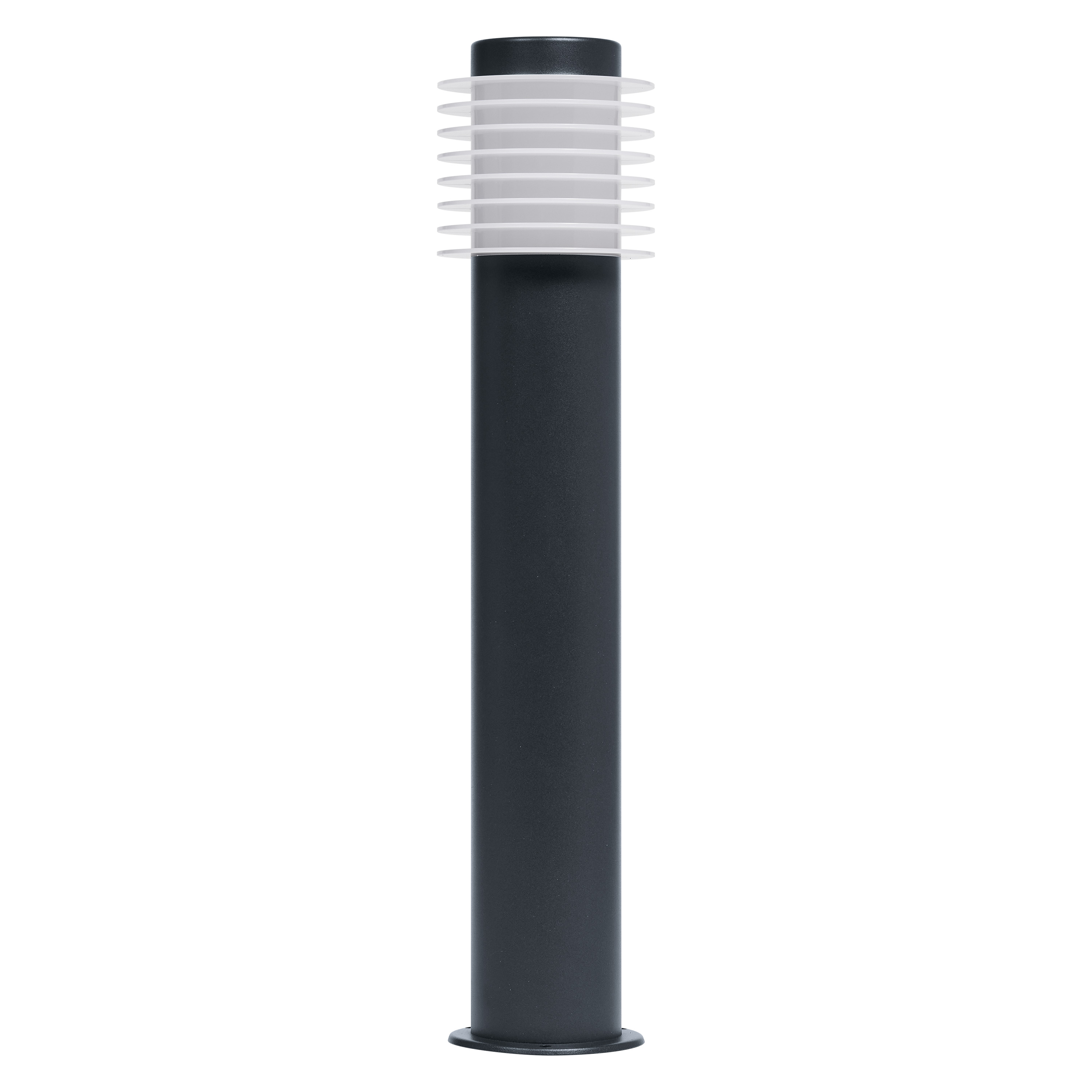

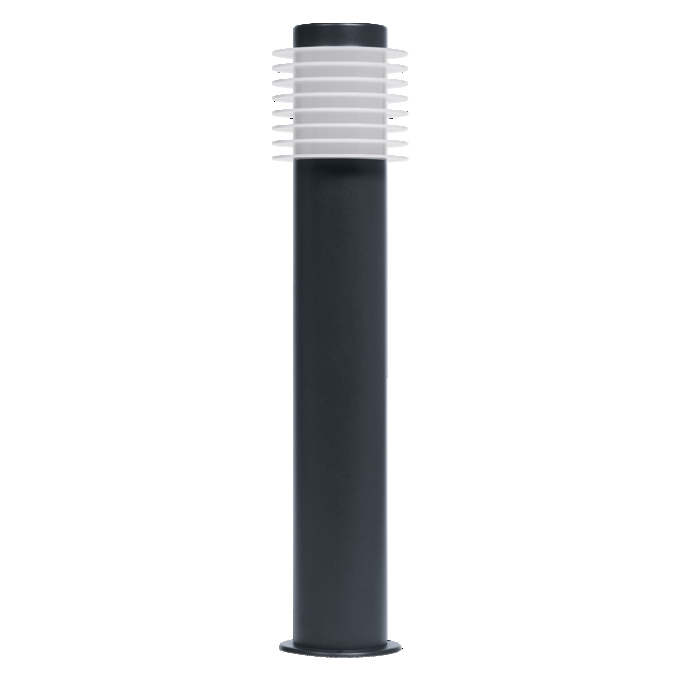

Product image: white background, upright, alternative image
ENDURA HYBRID RONDO 50CM 4W DG
ENDURA HYBRID RONDO 50CM 4W DG
Product image: white background, upright, switched on
ENDURA HYBRID RONDO 50CM 4W DG
ENDURA HYBRID RONDO 50CM 4W DG
Product infographic (application image with text and graphic)
LED solar light e-Com graphic 2024 EN
LED solar light e-Com graphic 2024 EN
Product infographic (application image with text and graphic)
Modular solar system e-Com graphic 2024 EN
Modular solar system e-Com graphic 2024 EN

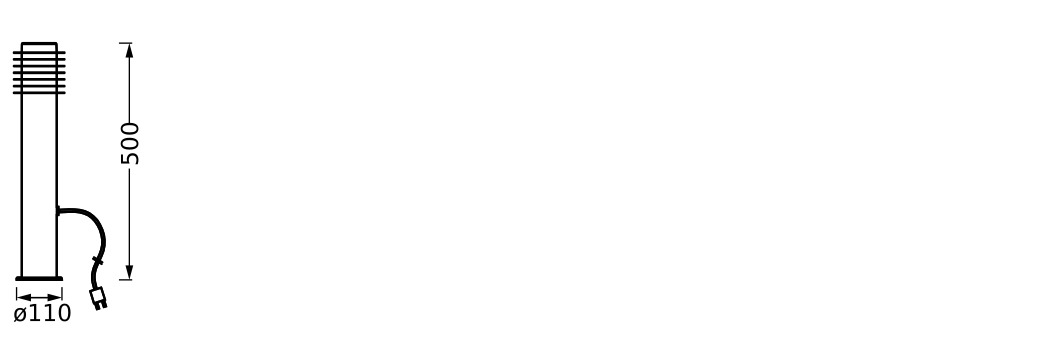

Product line drawing with letters
ENDURA HYBRID RONDO 50CM 4W
ENDURA HYBRID RONDO 50CM 4W
Product line drawing with numbers
ENDURA HYBRID RONDO 50CM 4W
ENDURA HYBRID RONDO 50CM 4W
Product line drawing, front, no dimensions
ENDURA HYBRID RONDO 50CM 4W
ENDURA HYBRID RONDO 50CM 4W

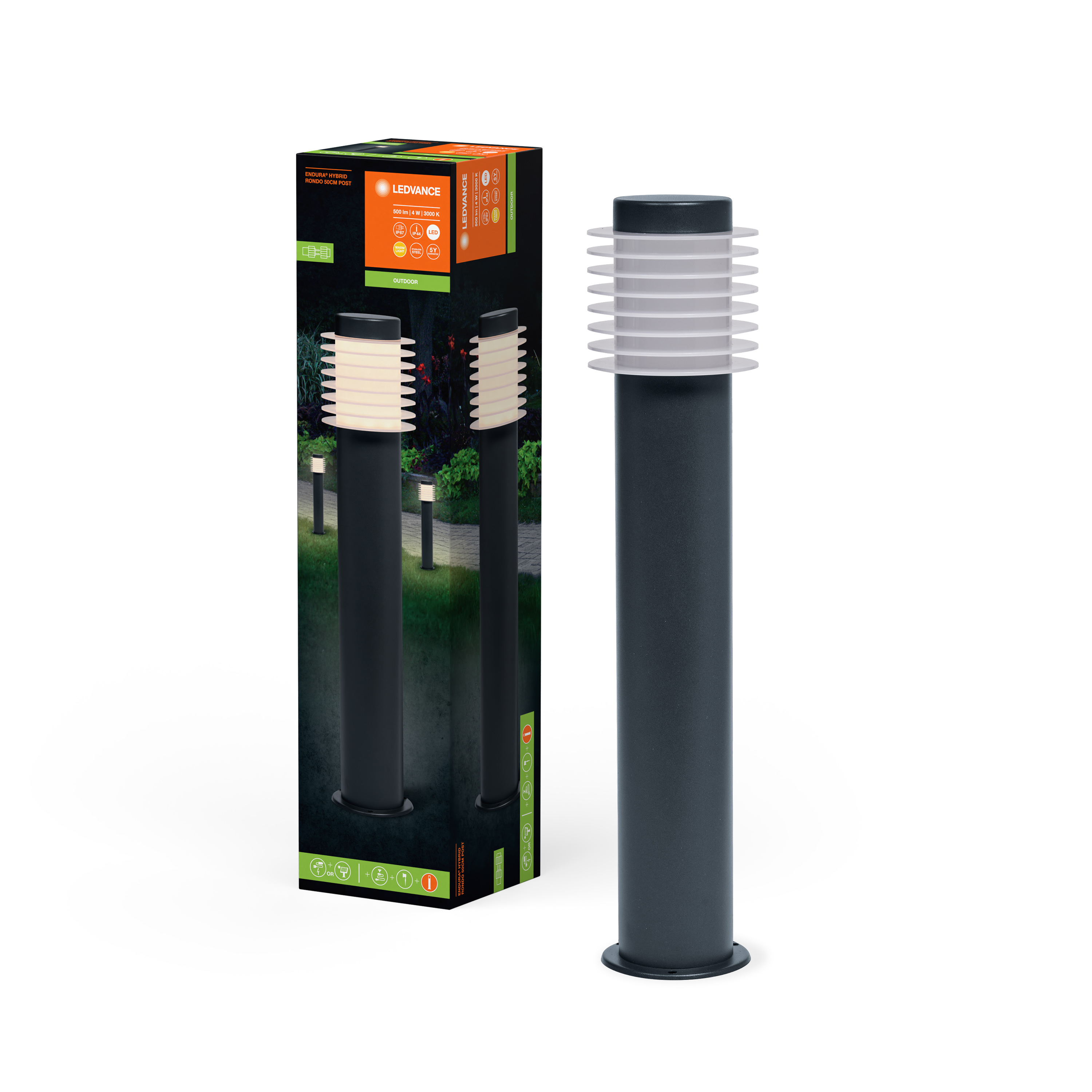

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC EH RONDO 50CM 4W DG
LUM FC EH RONDO 50CM 4W DG

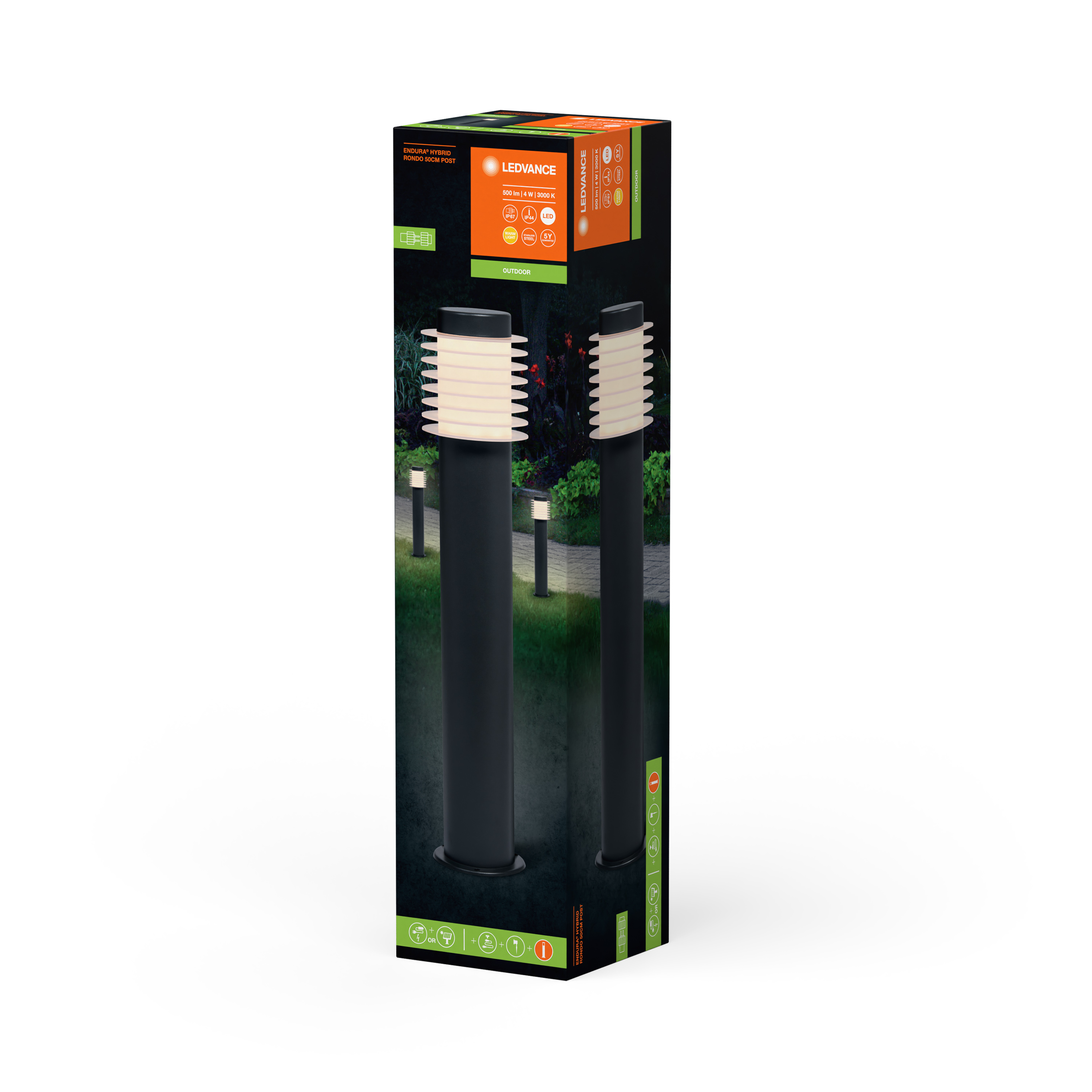

Packaging image, frontal
LUM FC EH RONDO 50CM 4W DG
LUM FC EH RONDO 50CM 4W DG
Packaging image, spacial
LUM FC EH RONDO 50CM 4W DG
LUM FC EH RONDO 50CM 4W DG

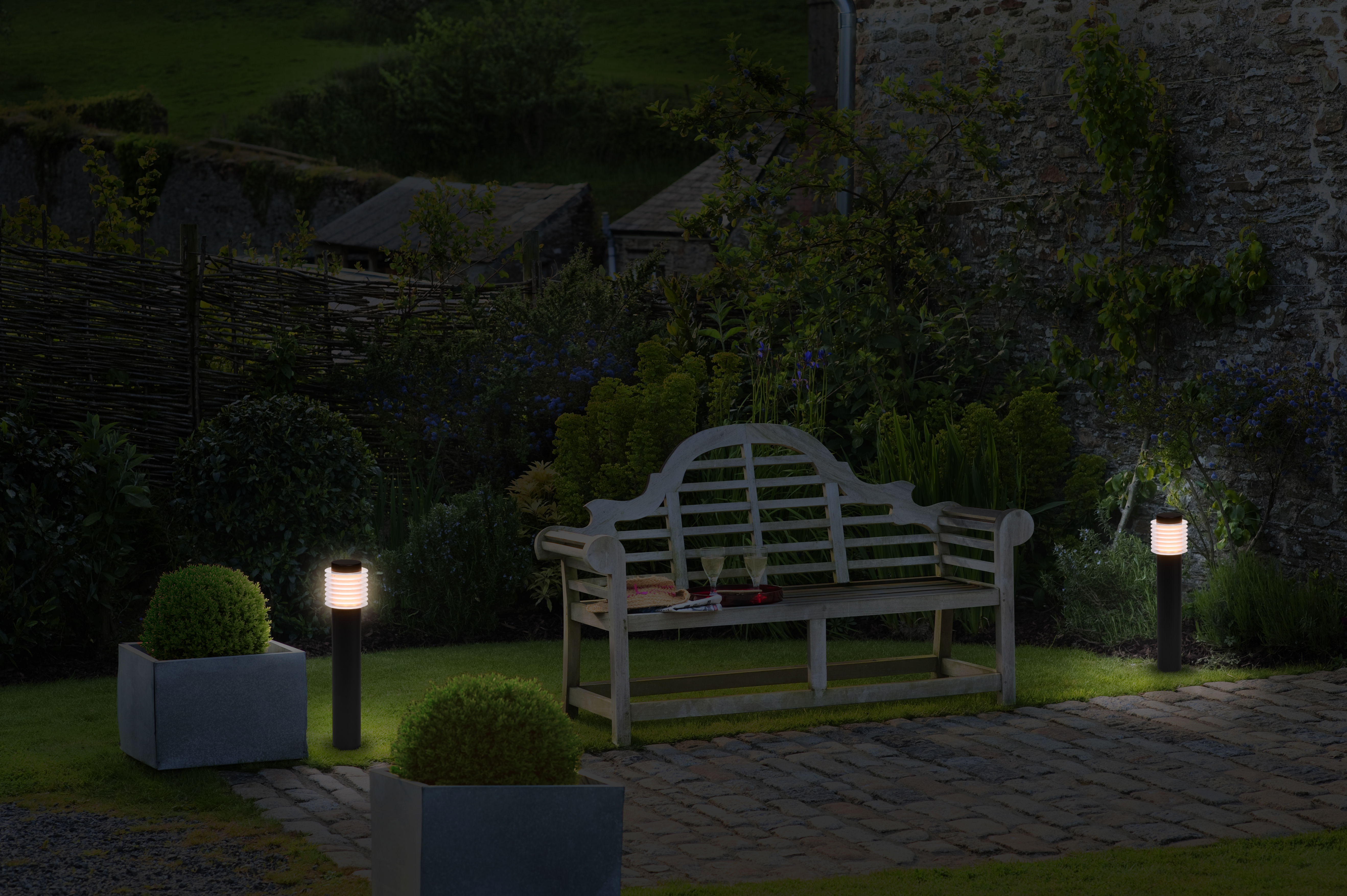

Application pictures Getty
OUTDOOR HYBRID 12V SYSTEM RONDO BOLLARD 2W BLACK
OUTDOOR HYBRID 12V SYSTEM RONDO BOLLARD 2W BLACK

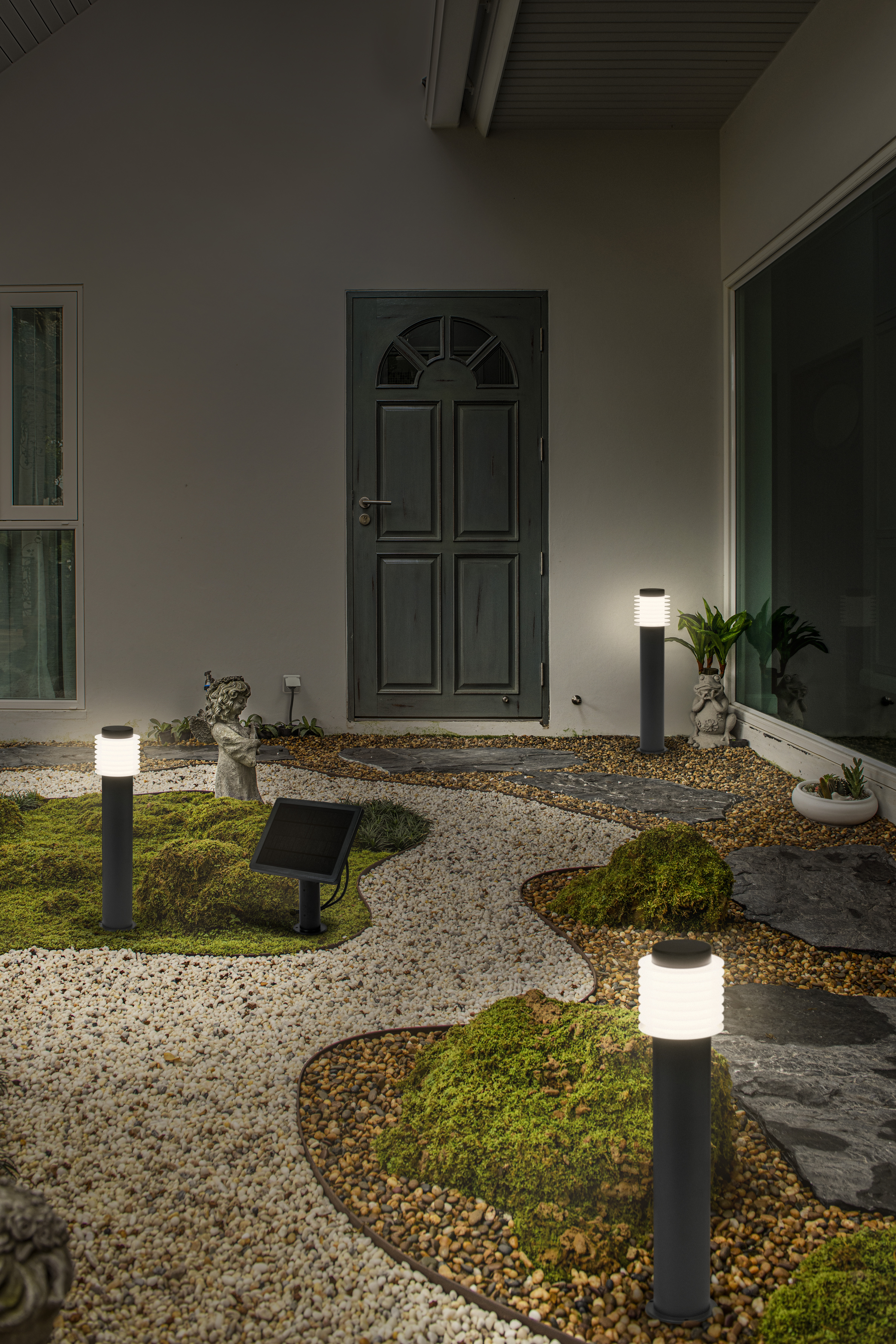

Application pictures Getty
OUTDOOR ENDURA HYBRID RONDO 50CM 4W DG
OUTDOOR ENDURA HYBRID RONDO 50CM 4W DG

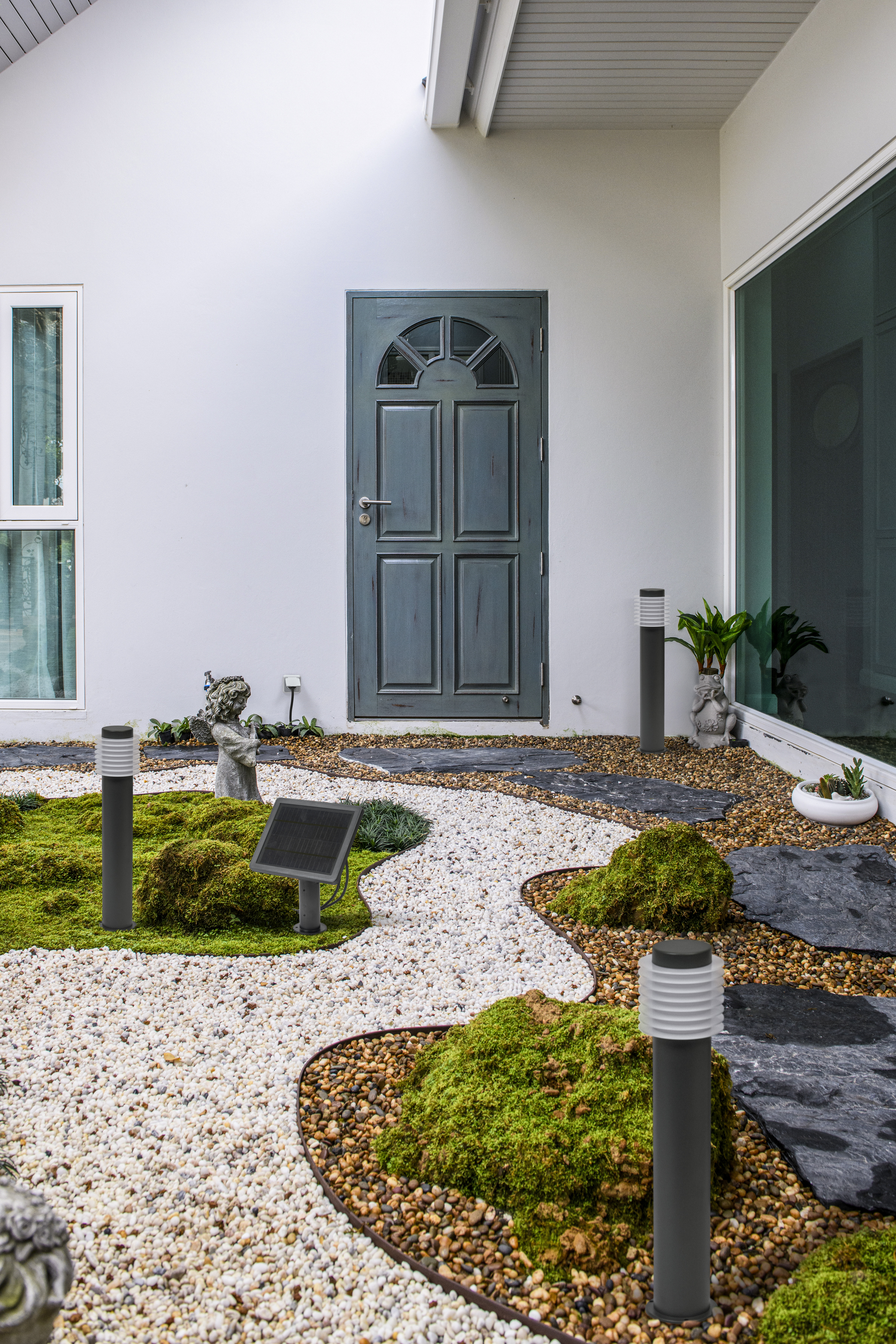

Application pictures Getty
