Spot Magnet
Undercabinet Spot Magnet 75mm 8.5W 3000K
GTIN: 4058075762312
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Modern design with very flat luminaire base
- Spotlights for Undercabinet illumination
- Magnetic closure
- Easy mounting
Areas of application
- Kitchens
- Living areas
- Undercabinet lighting
Equipment / Accessories
- Mounting screws and dowels included
Safety advice
- The luminaires are not suitable for covering with thermally insulated material.
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
Electrical data
| Nominal wattage | 8.50 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 49.000 mA |
| Inrush current time Th50 | 10 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 64 |
| Max. number of luminaires per miniature circuit breaker C16 | 64 |
| Power factor λ | > 0.5 |
| Total harmonic distortion | < 60 % |
| Protection class | III |
| Operating mode | Integrated LED driver |
Photometrical data
| Luminous flux | 390 lm |
| Total luminous flux of contained light sources | 690 lm |
| Luminous efficacy | 45 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | 6 sdcm |
| Flickering metric (Pst LM) | - |
| Stroboscope effect metric (SVM) | - |
| Photobiological safety group acc. to EN62778 | RG1 |
| Photobiological safety group acc. to EN62471 | RG1 |
| Beam angle | 120 ° |
Dimensions & Weight
| Diameter | 75.00 mm |
| Height | 7.00 mm |
| Product weight | 240.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Aluminum|Plastic |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Type of connection | Cable, 3-pole |
| Type of protection | IP20 |
| Dimmable | Yes |
| Type of dimming | CLICKSWITC |
| Mounting type | Surface |
| Application environment | Indoor |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 15000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075762312 | Folding box 1 |
50 mm x 93 mm x 191 mm | 298.00 g | 0.89 dm³ |
| 4058075762329 | Shipping box 8 |
218 mm x 202 mm x 190 mm | 2645.00 g | 8.37 dm³ |
User instruction / safety instructions
UNDERCABINET SPOT
UNDERCABINET SPOT
Declarations of conformity
CE Declaration UNDERCABINET SPOTMAGNET
CE Declaration UNDERCABINET SPOTMAGNET

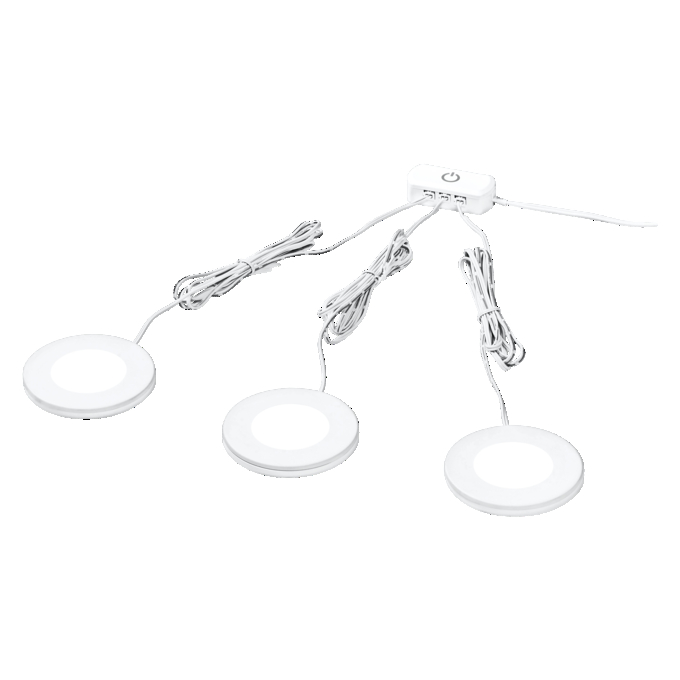

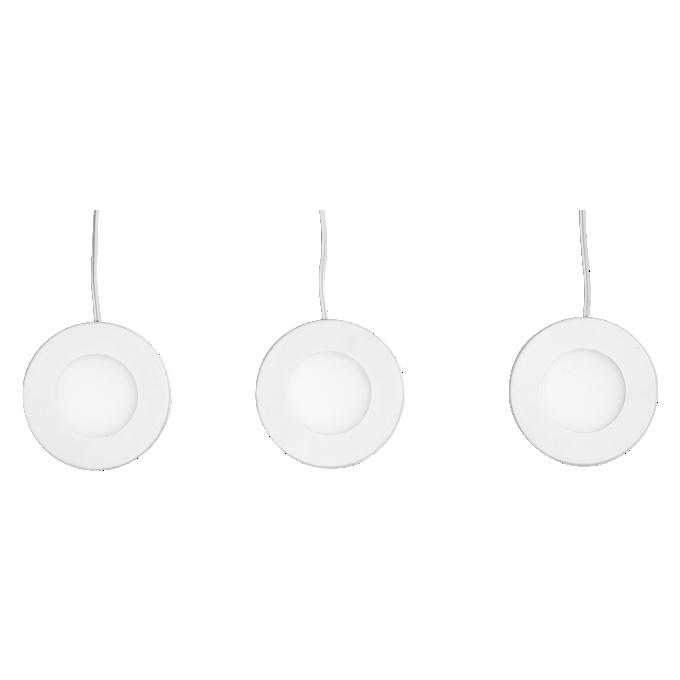

Product image: white background, upright
UNDERCABINET SPOTMAGNET
UNDERCABINET SPOTMAGNET

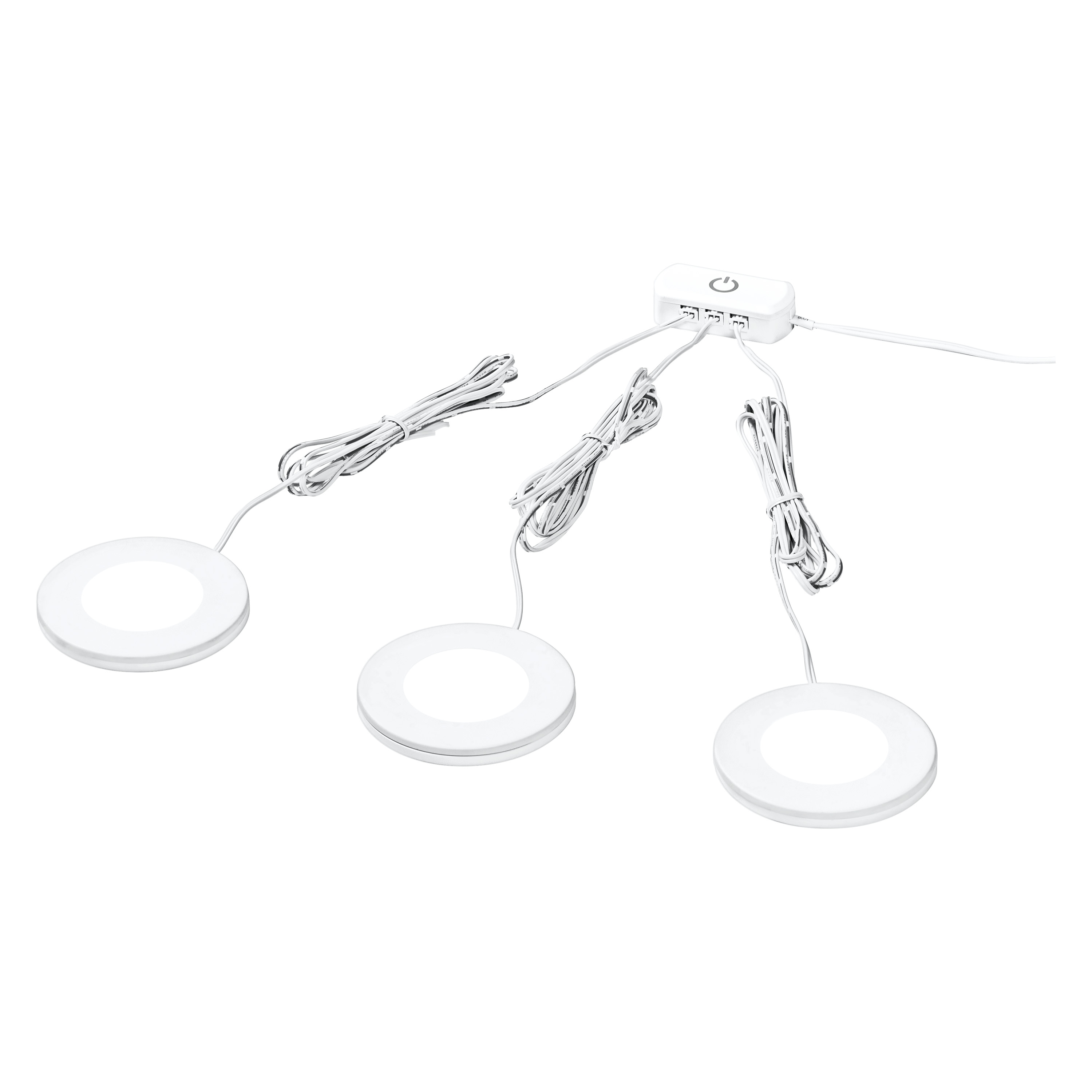

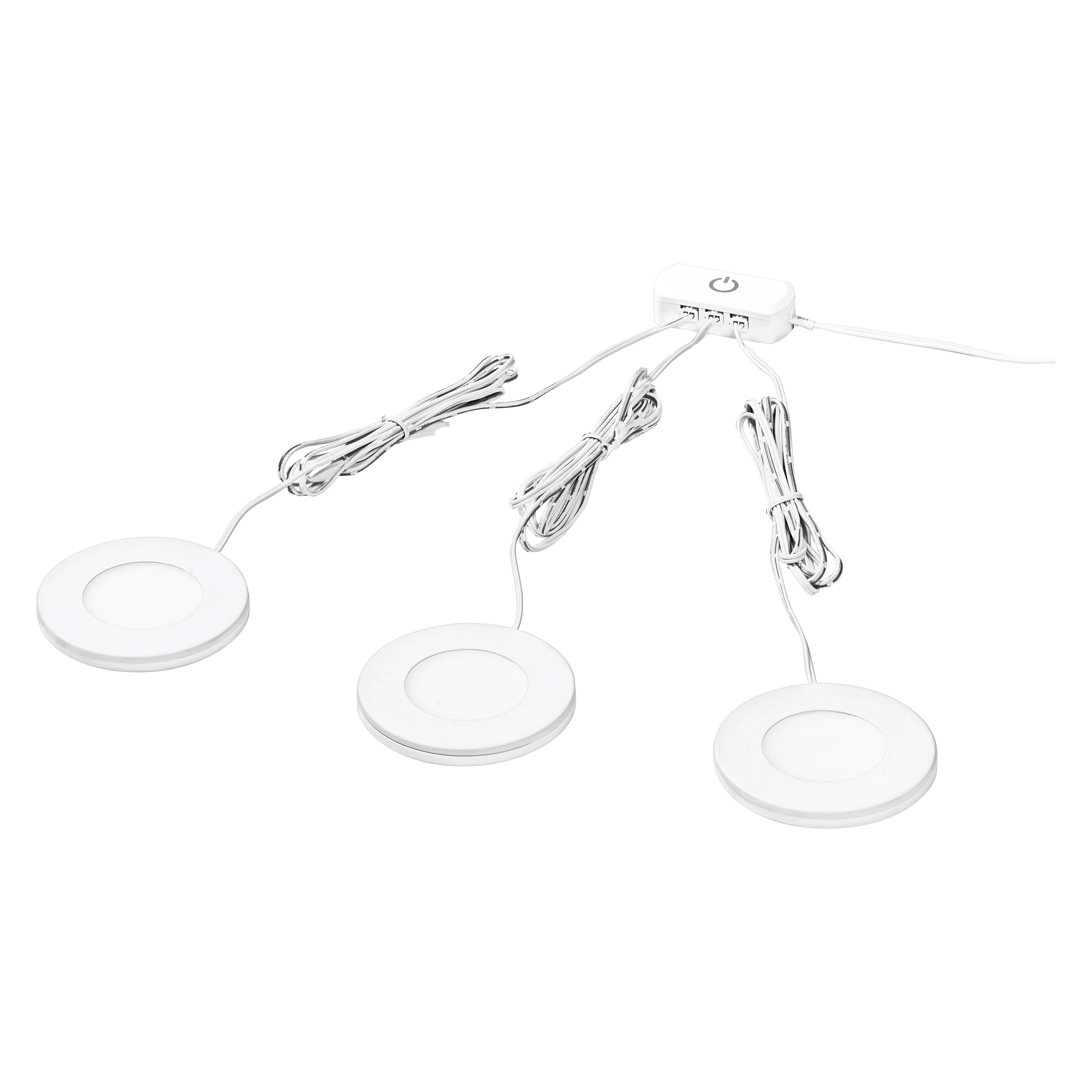

Product image: white background, upright, alternative image
UNDERCABINET SPOTMAGNET
UNDERCABINET SPOTMAGNET

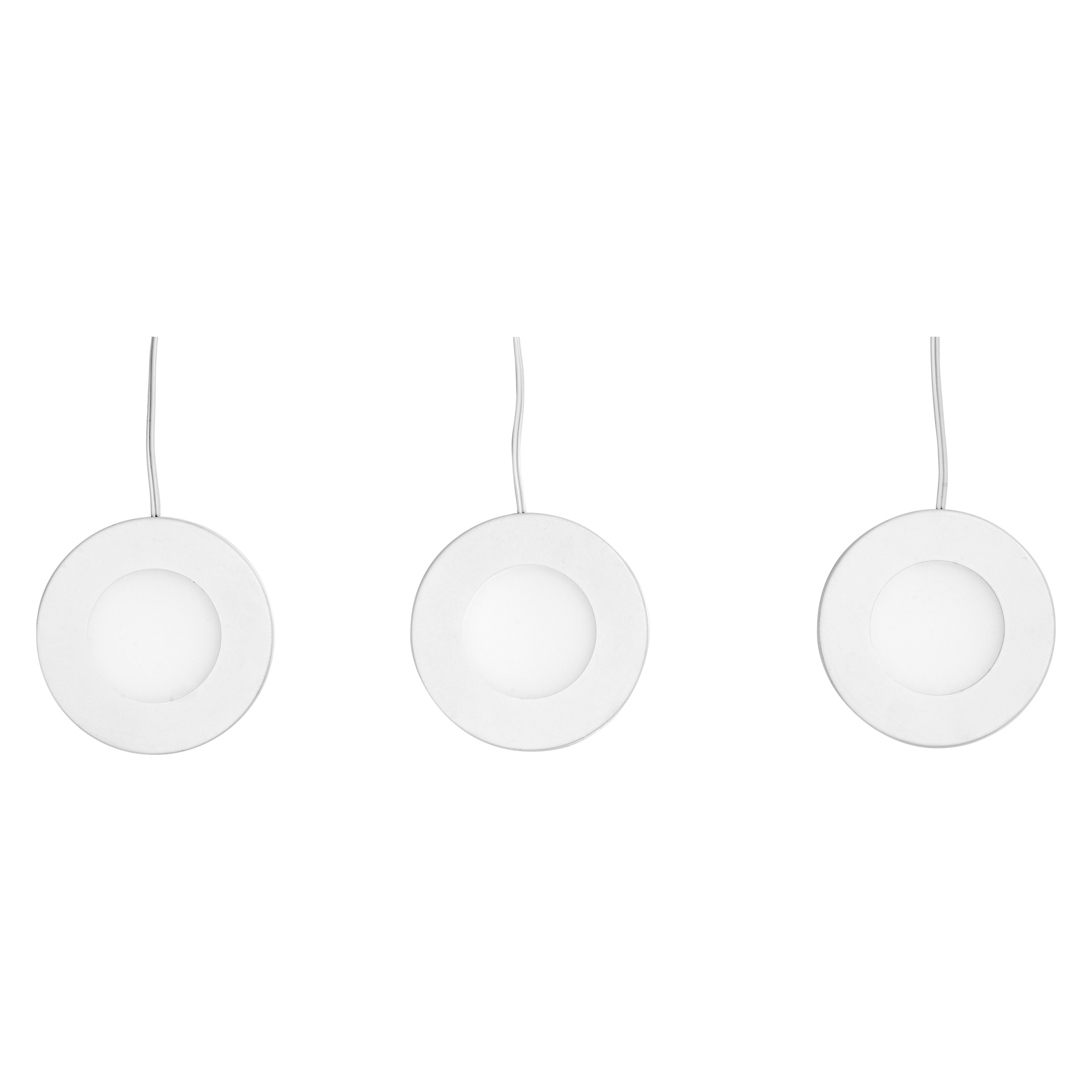

Product image: white background, upright, switched on
UNDERCABINET SPOTMAGNET
UNDERCABINET SPOTMAGNET

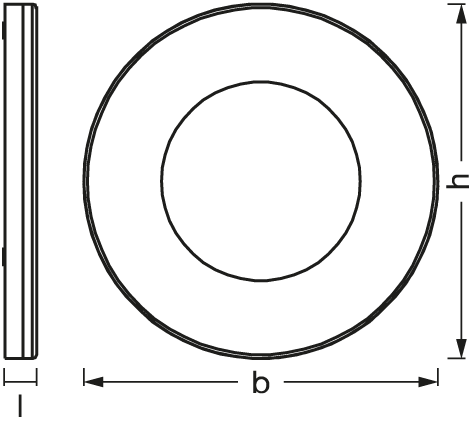

Product line drawing with letters
UNDERCABINET SPOTMAGNET
UNDERCABINET SPOTMAGNET

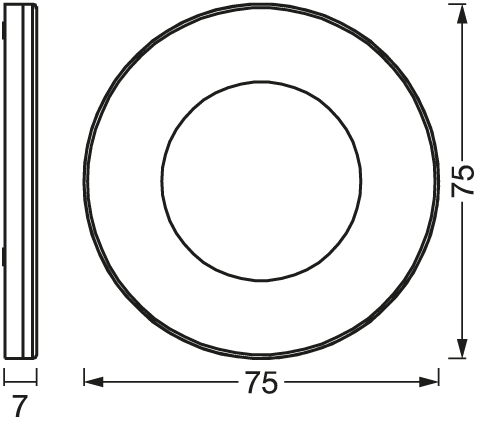

Product line drawing with numbers
UNDERCABINET SPOTMAGNET
UNDERCABINET SPOTMAGNET

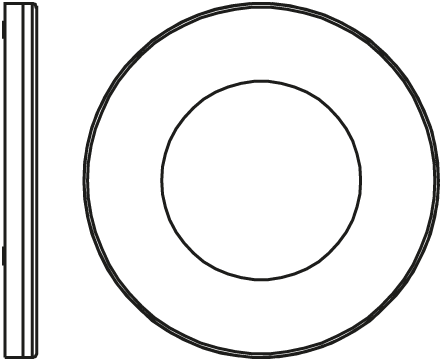

Product line drawing, front, no dimensions
UNDERCABINET SPOTMAGNET
UNDERCABINET SPOTMAGNET

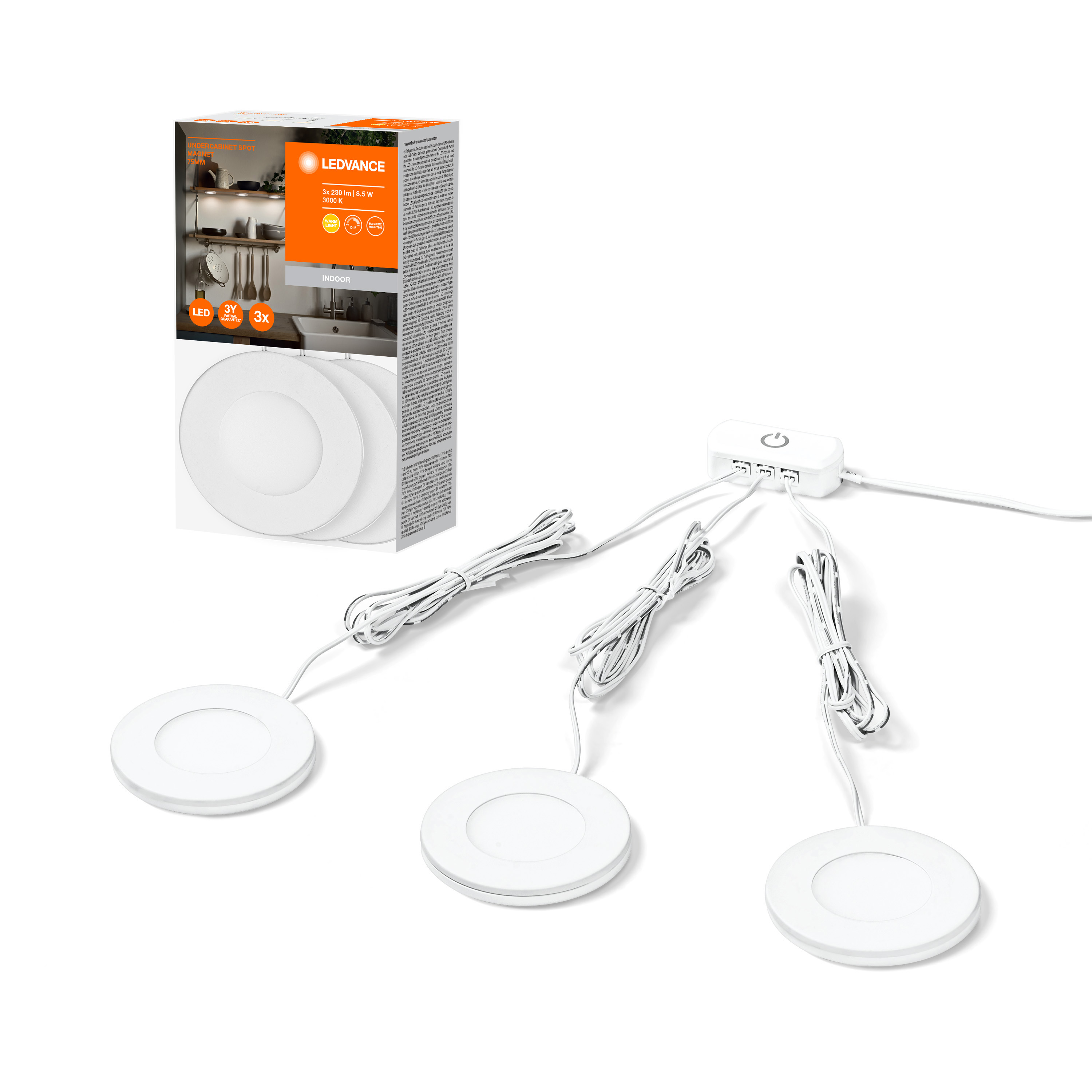

Combo Shot = Product Beauty Shot + Packaging Image
LUM IN UC SPOT MAGNET 68MM WT MiPRC
LUM IN UC SPOT MAGNET 68MM WT MiPRC
Packaging image, frontal
LUM IN UC SPOT MAGNET 68MM WT MiPRC
LUM IN UC SPOT MAGNET 68MM WT MiPRC
Packaging image, spacial
LUM IN UC SPOT MAGNET 68MM WT MiPRC
LUM IN UC SPOT MAGNET 68MM WT MiPRC

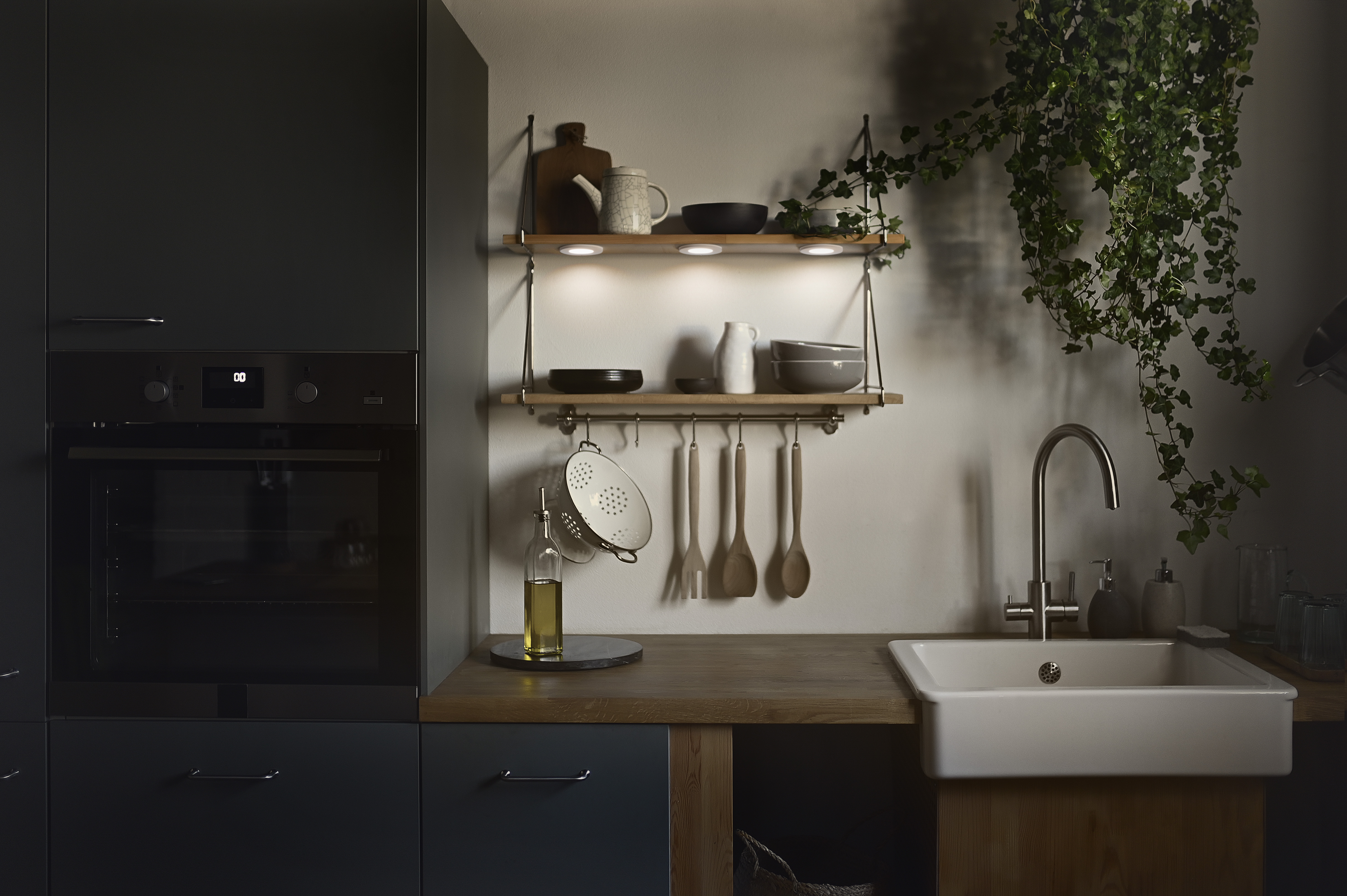

Application pictures Getty
