UNDERCABINET PANEL FRAMELESS
Undercabinet Panel Frameless 30x20cm CCT DIM White
GTIN: 4058075842748
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Easy and quick series connection thanks to simple plug system
- Connection of up to 3 luminaires in a row via enclosed connector cable
- Highly versatile due to selectable CCT
Areas of application
- Kitchens, Living areas, Shelf and undercabinet lighting
Product features
- Low voltage luminaire for DC operation with external driver
- Easy and fast mounting on nearly every surface (adhesive tape)
- Color temperature adjustable in three steps
- Switch on and off and color change by movements with max. 6 cm distance in front of the infrared motion sensor
- Stepless dimming by covering the infrared motion sensor in max. 6 cm distance for at more than one second
- 2 different lengths available
- Lifetime up to 30,000 h
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
Electrical data
| Nominal wattage | 7.50 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 55.000 mA |
| Inrush current | 12.4 A |
| Inrush current time Th50 | 380 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 76 |
| Max. number of luminaires per miniature circuit breaker C10 | 56 |
| Max. number of luminaires per miniature circuit breaker C16 | 90 |
| Power factor λ | ≥0.5 |
| Total harmonic distortion | < 130 % |
| Protection class | III |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 450 lm |
| Total luminous flux of contained light sources | 470 lm |
| Luminous efficacy | 60 lm/W |
| Color temperature | 3000 K / 4000 K / 6500 K |
| Light color (designation) | Warm White, Cool White, Daylight |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | < 6 sdcm |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | <0.4 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 110 ° |
Dimensions & Weight
| Length | 300.00 mm |
| Height | 8.00 mm |
| Width | 200.00 mm |
| Product weight | 575.00 g |
| Cable length | 1500 mm |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Polycarbonate (PC) |
| Cover material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Plug type C (EU) |
| Type of protection | IP20 |
| Dimmable | Yes |
| Type of dimming | PIR STEP |
| Mounting type | Surface |
| Mounting location | Wall, Cabinet undersides |
| Application environment | Indoor |
| Adjustable | No |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 15000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Sensor
| Type of sensor | Infrared sensor |
| Sensor technology | Passive infrared (PIR) |
| Detection range of motion sensor | 60 mm |
Certificates & Standards
| Standards | CE |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075842748 | Folding box 1 |
57 mm x 222 mm x 418 mm | 767.00 g | 5.29 dm³ |
| 4058075842755 | Shipping box 4 |
435 mm x 243 mm x 250 mm | 3626.00 g | 26.43 dm³ |
User instruction / safety instructions
Undercabinet Panel
Undercabinet Panel
Legal information
TRACKLIGHT SPOT ZOOM D85
TRACKLIGHT SPOT ZOOM D85
Declarations of conformity
EU-Declaration of Conformity_PANEL_ANGLE .pdf
EU-Declaration of Conformity_PANEL_ANGLE .pdf

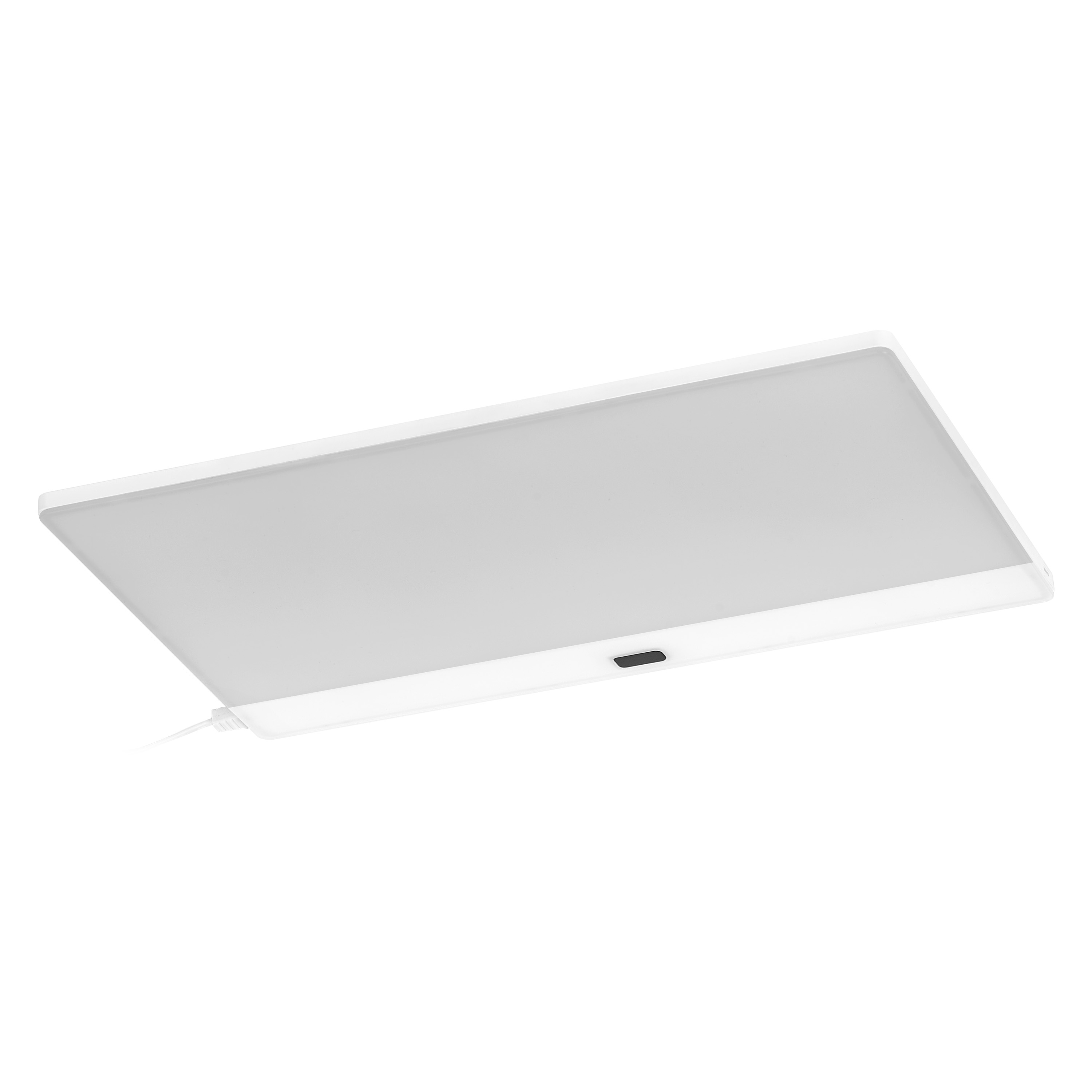

Product image: white background, upright
UNDERCABINET PANEL FL 30X20CCT D WT
UNDERCABINET PANEL FL 30X20CCT D WT

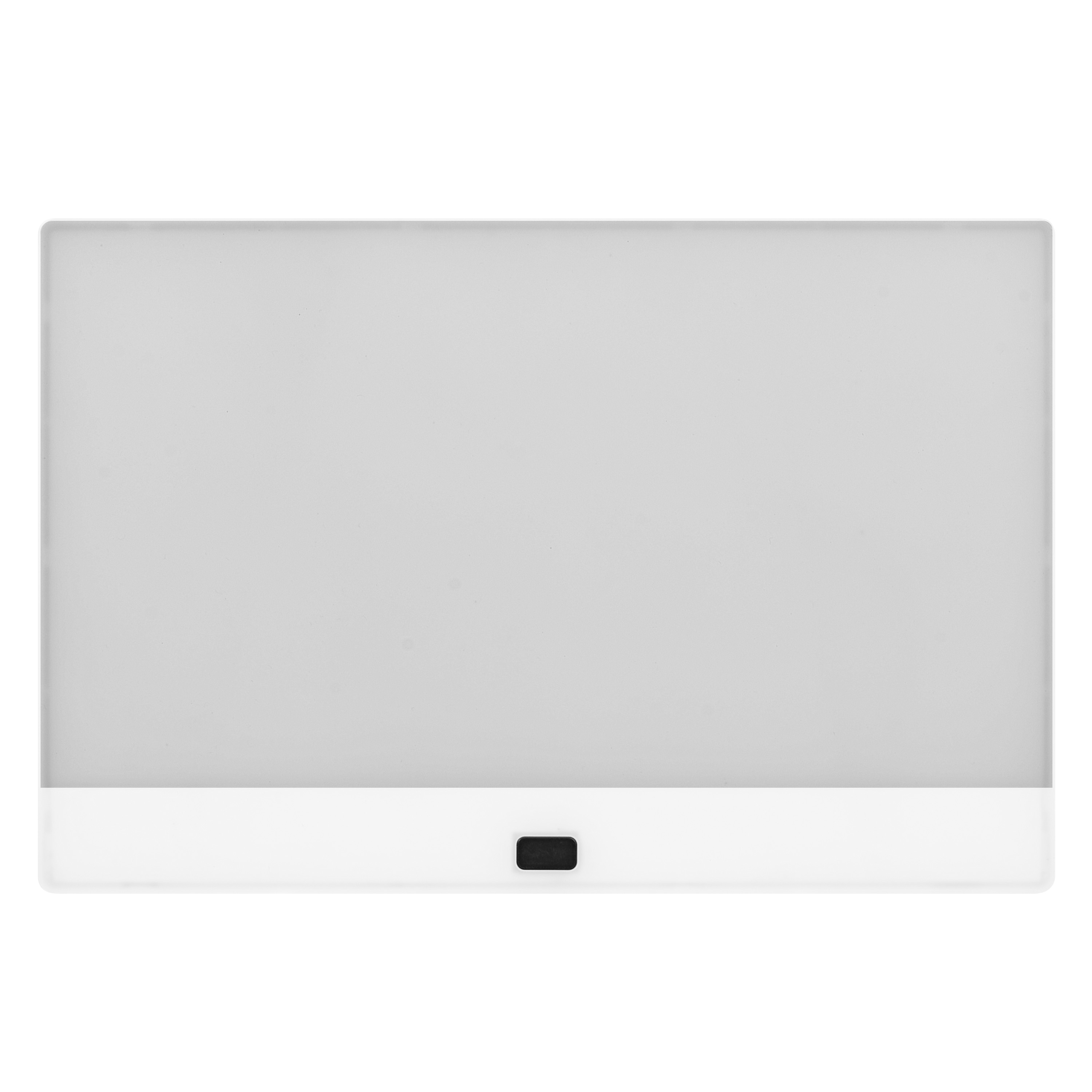

Product image: white background, upright, alternative image
UNDERCABINET PANEL FL 30X20CCT D WT
UNDERCABINET PANEL FL 30X20CCT D WT

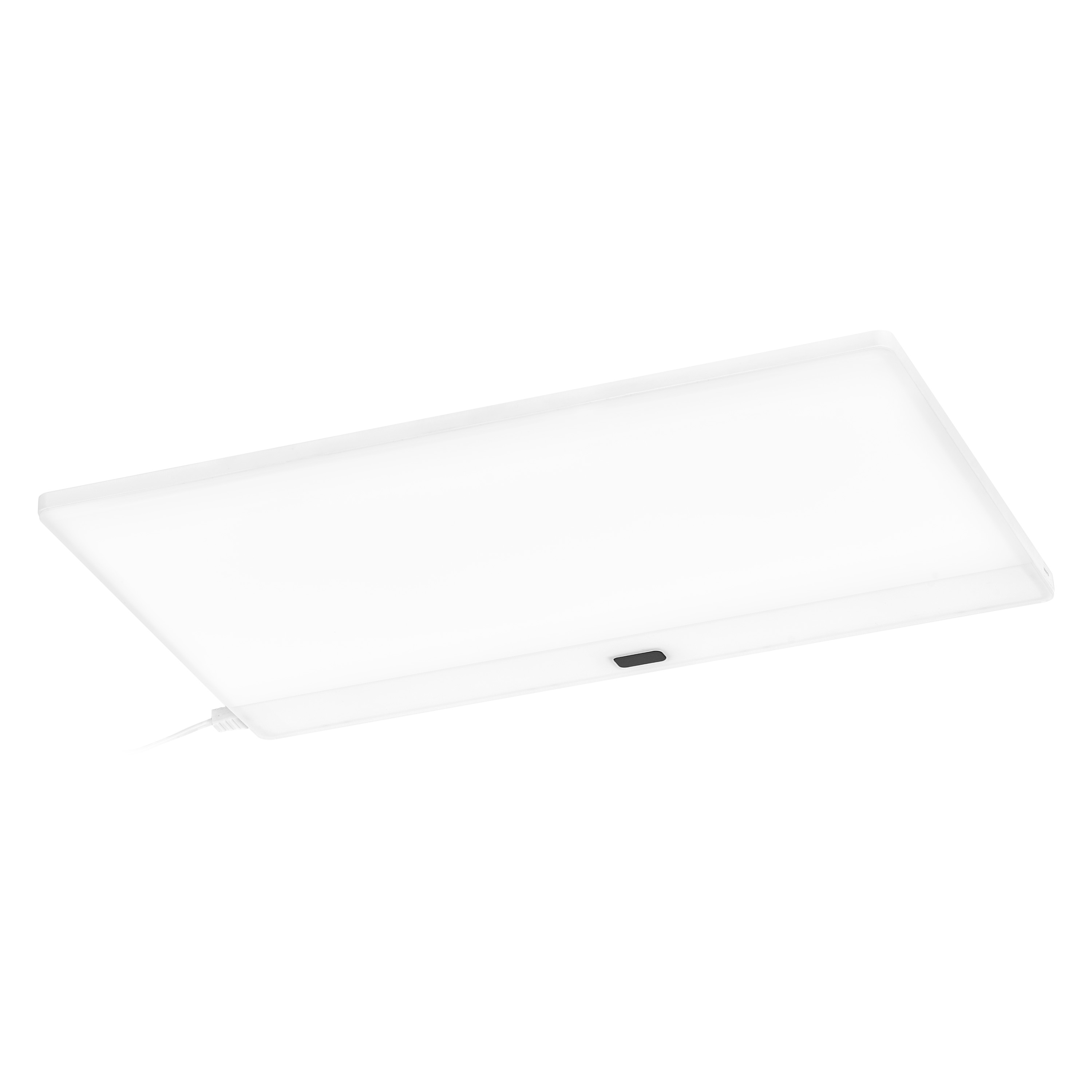

Product image: white background, upright, switched on
UNDERCABINET PANEL FL 30X20CCT D WT
UNDERCABINET PANEL FL 30X20CCT D WT
Product infographic (application image with text and graphic)
Mobile luminaires e-Com graphic 1200x1200px 2024 EN
Mobile luminaires e-Com graphic 1200x1200px 2024 EN
Product line drawing with letters
UNDERCABINET PANEL FL 30X20CCT D BK line drawing
UNDERCABINET PANEL FL 30X20CCT D BK line drawing
Product line drawing with numbers
UNDERCABINET PANEL FL 30X20CCT D BK line drawing
UNDERCABINET PANEL FL 30X20CCT D BK line drawing
Product line drawing, front, no dimensions
UNDERCABINET PANEL FL 30X20CCT D BK line drawing
UNDERCABINET PANEL FL 30X20CCT D BK line drawing

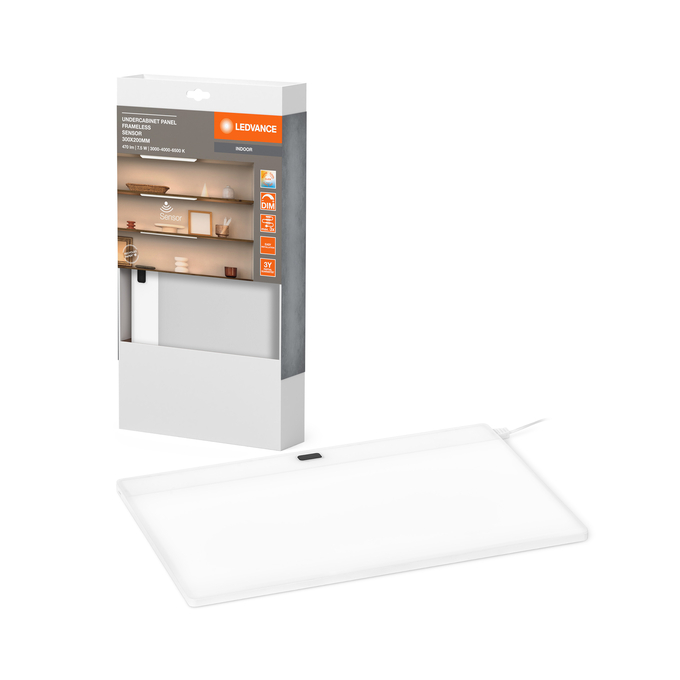

Combo Shot = Product Beauty Shot + Packaging Image
LUM IN UNDERCA PAN FL 30X20 WT
LUM IN UNDERCA PAN FL 30X20 WT
Packaging image, frontal
LUM IN UNDERCA PAN FL 30X20 WT
LUM IN UNDERCA PAN FL 30X20 WT
Packaging image, spacial
LUM IN UNDERCA PAN FL 30X20 WT
LUM IN UNDERCA PAN FL 30X20 WT

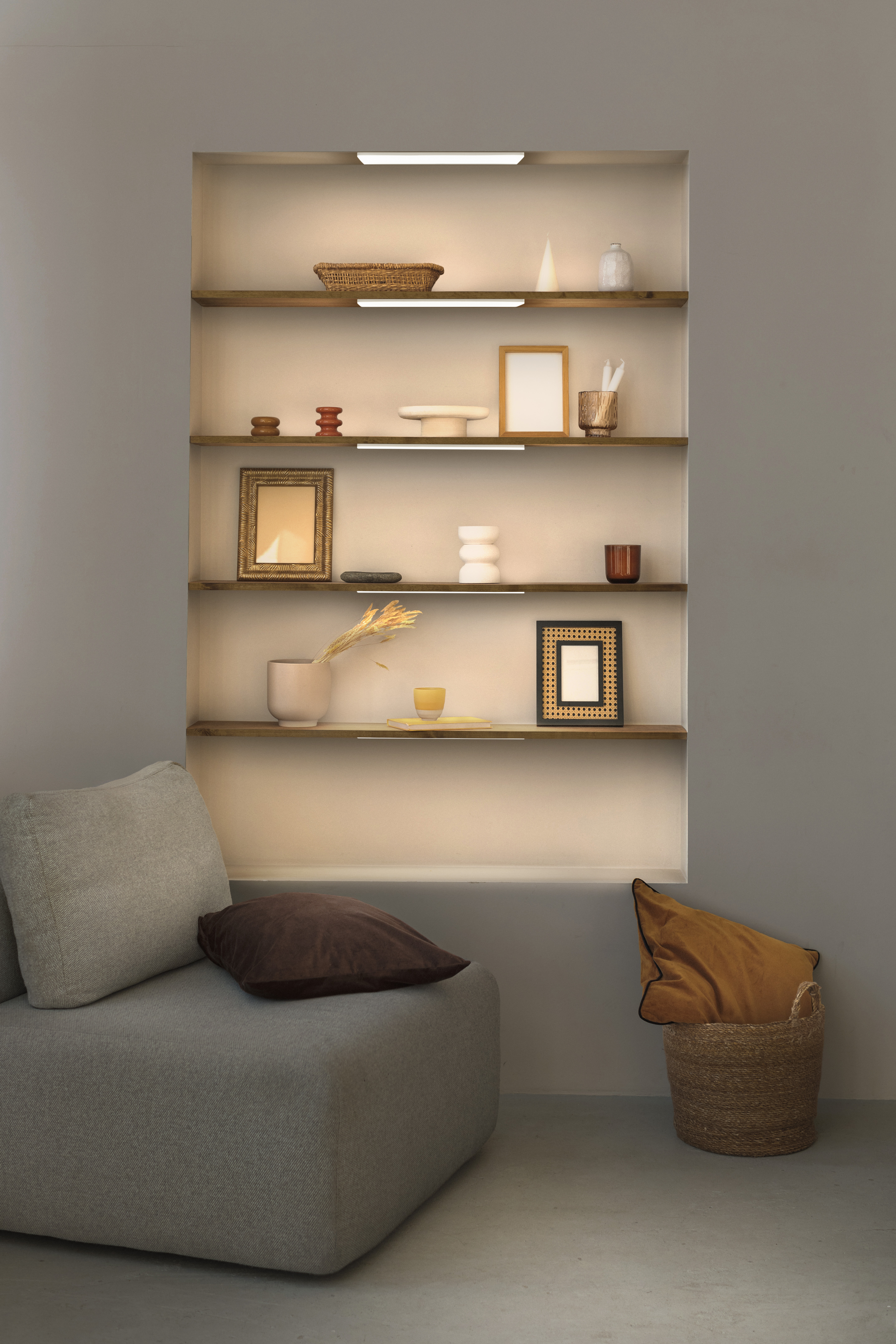

Application pictures Getty
