Tracklight rail and base
Tracklight Round Base White
GTIN: 4058075764224
BAG / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Timeless elegant design
- Made of solid aluminum with high-quality appearance
Areas of application
- Kitchens, living rooms, children's rooms or home offices
- Entrance areas
Product features
- Customisable modular tracklight system
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
| Nominal voltage | 220…240 V |
| Mains frequency | 50/60 Hz |
| Protection class | I |
Dimensions & Weight
| Diameter | 100 mm |
| Height | 32.0 mm |
| Product weight | 90.00 g |
Materials & Colors
| Product color | White |
| Body material | Polycarbonate (PC) |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Type of connection | Terminal, 2-pin |
| Type of protection | IP20 |
| Mounting type | Surface |
| Mounting location | All surfaces |
Certificates & Standards
| Standards | CE, UKCA |
| Ball shot safe | No |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075764224 | BAG 1 |
35 mm x 170 mm x 240 mm | 98.00 g | 1.43 dm³ |
| 4099854114113 | Shipping box 8 |
290 mm x 130 mm x 110 mm | 929.00 g | 4.15 dm³ |
User instruction / safety instructions
TRACKLIGHT ROUND BASE
TRACKLIGHT ROUND BASE
Declarations of conformity
TRACKLIGHT
TRACKLIGHT

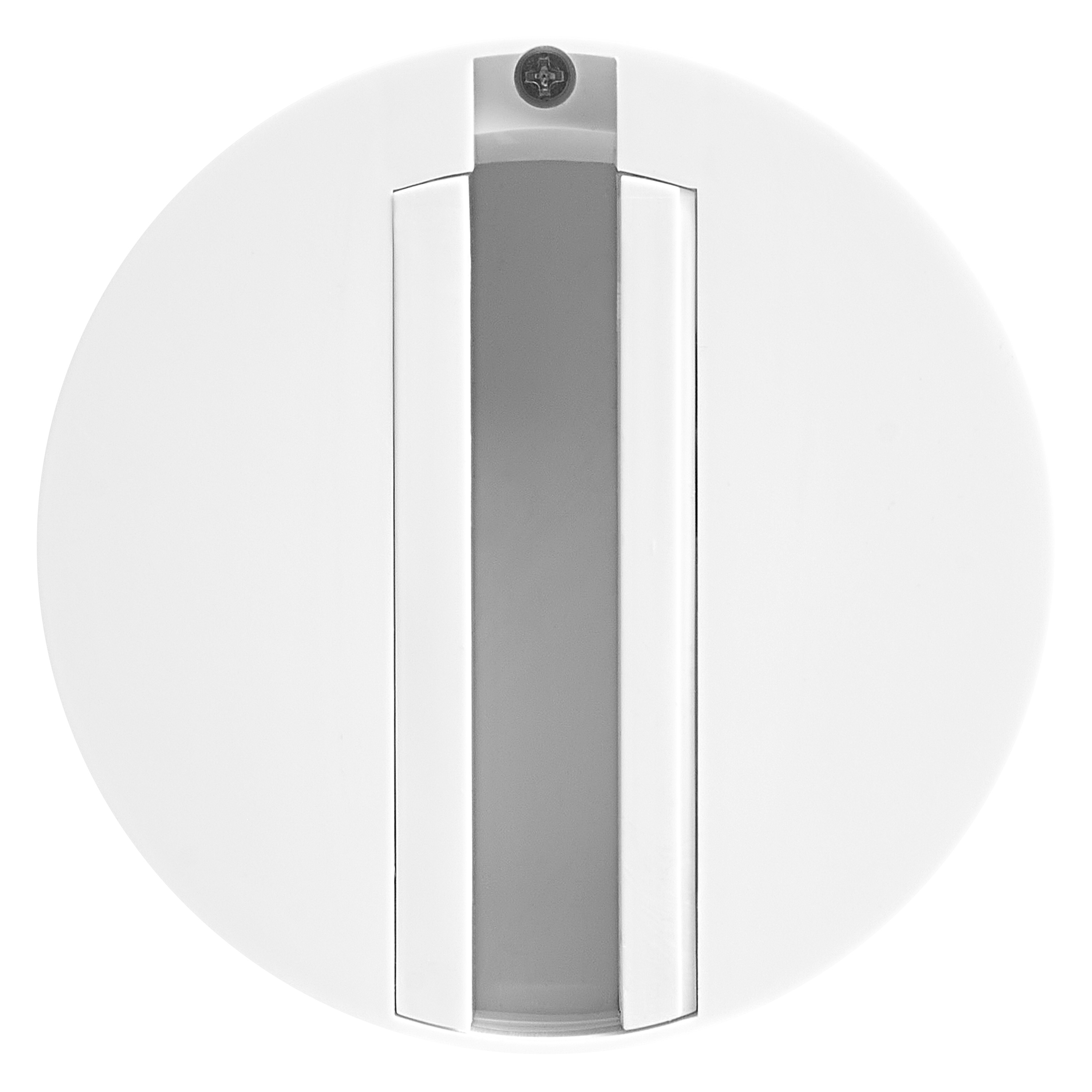

Product image: white background, upright
TRACKLIGHT ROUND BASE WT
TRACKLIGHT ROUND BASE WT
Product image: white background, upright, alternative image
TRACKLIGHT ROUND BASE WT
TRACKLIGHT ROUND BASE WT
Product infographic (application image with text and graphic)
Tracklight assortment E-Com-Grafik V1 1200x1200px 2023 EN
Tracklight assortment E-Com-Grafik V1 1200x1200px 2023 EN
Product infographic (application image with text and graphic)
Tracklight assortment E-Com-Grafik V1 1200x1200px 2023 EN
Tracklight assortment E-Com-Grafik V1 1200x1200px 2023 EN

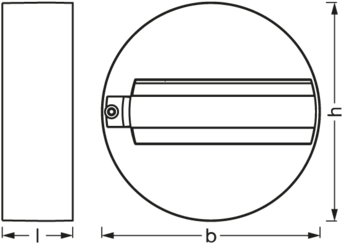

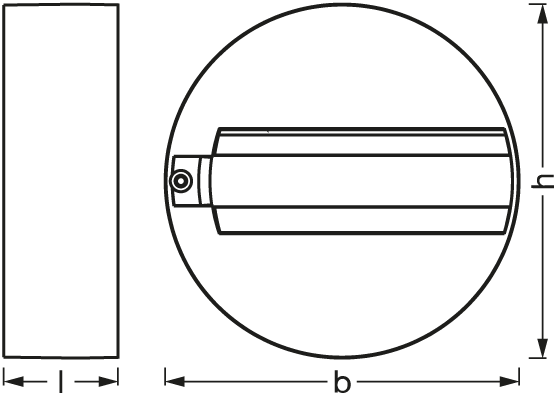

Product line drawing with letters
TRACKLIGHT ROUND BASE BK
TRACKLIGHT ROUND BASE BK

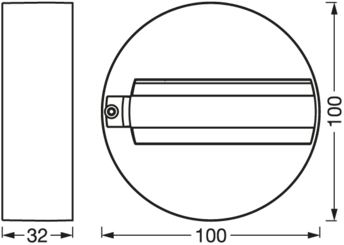

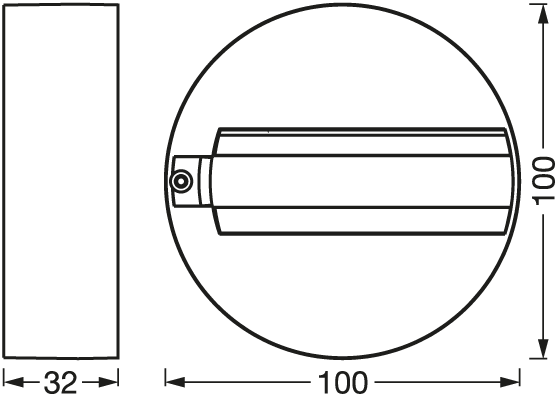

Product line drawing with numbers
TRACKLIGHT ROUND BASE BK
TRACKLIGHT ROUND BASE BK

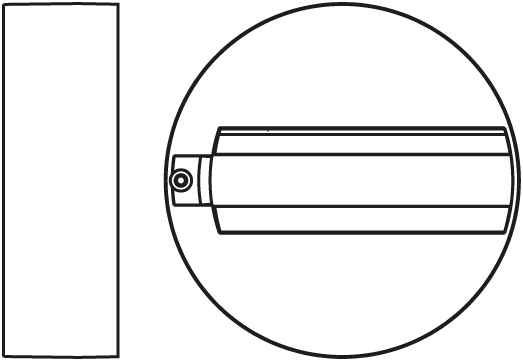

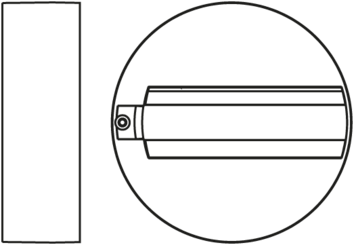

Product line drawing, front, no dimensions
TRACKLIGHT ROUND BASE BK
TRACKLIGHT ROUND BASE BK
Packaging image, frontal
LUM TC TRACKLIGHT BASE RD WT MiPRC
LUM TC TRACKLIGHT BASE RD WT MiPRC

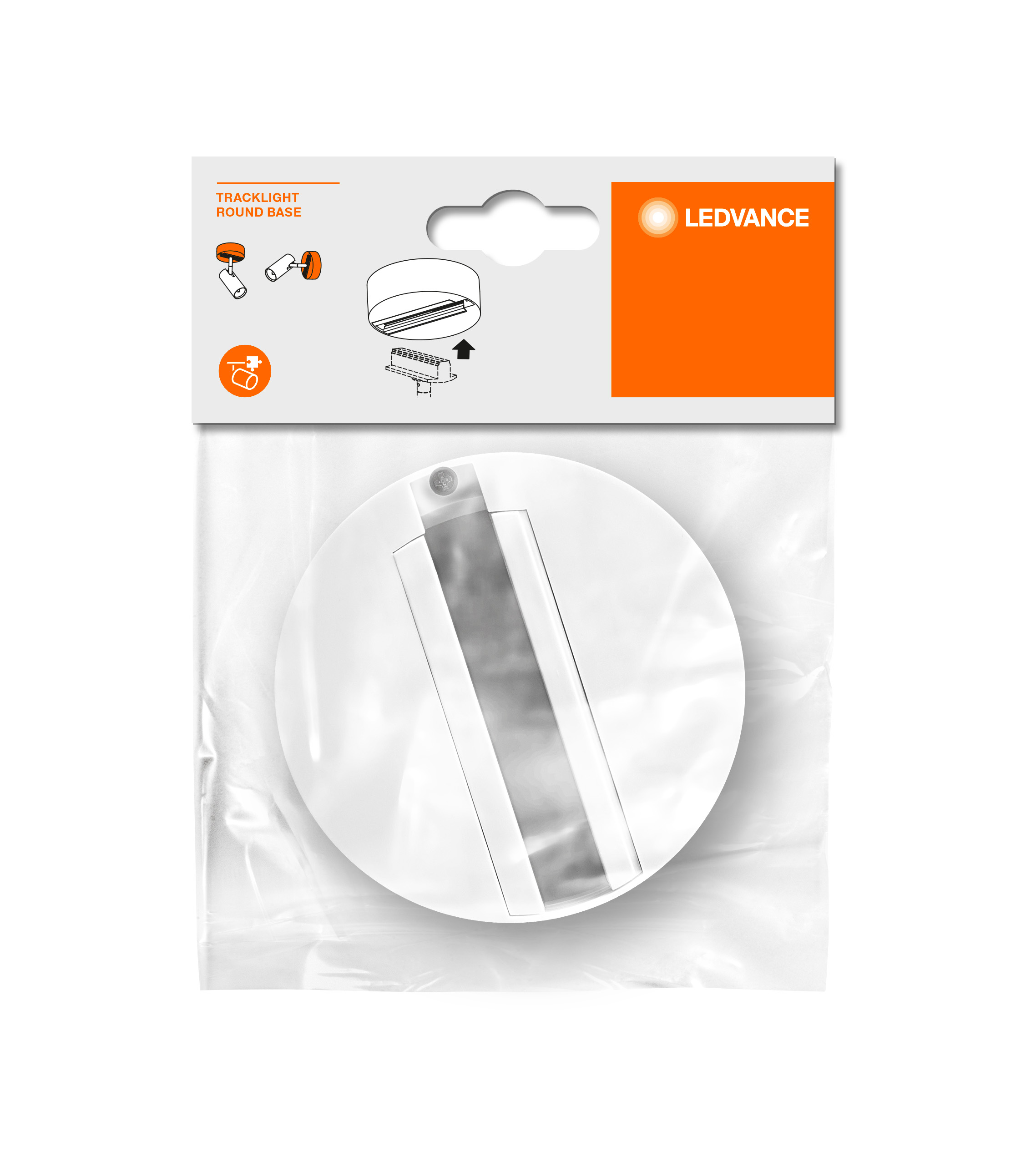

Packaging image, spacial
LUM TC TRACKLIGHT BASE RD WT MiPRC
LUM TC TRACKLIGHT BASE RD WT MiPRC
| EAN | SEG number | EFO number | ELDAS number |
|---|---|---|---|
| 4058075764224 | 7403905 | 3207990 | 941910200 |
