Tracklight accessories
Tracklight Cross Connector Black
GTIN: 4058075764149
BAG / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Timeless elegant design
- High-quality materials
Areas of application
- Kitchens, living rooms, children's rooms or home offices
- Entrance areas
Product features
- Customisable modular tracklight system
- Accessories for tracklight system
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
| Nominal voltage | 220…240 V |
| Mains frequency | 50/60 Hz |
| Protection class | I |
Dimensions & Weight
| Length | 172 mm |
| Height | 18.0 mm |
| Width | 172 mm |
| Product weight | 120.00 g |
Materials & Colors
| Product color | Black |
| Body material | Aluminum/Plastic |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Type of protection | IP20 |
| Replaceable light source | No |
Certificates & Standards
| Standards | CE, UKCA |
| Ball shot safe | No |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075764149 | BAG 1 |
20 mm x 170 mm x 240 mm | 128.00 g | 0.82 dm³ |
| 4099854114151 | Shipping box 8 |
180 mm x 135 mm x 175 mm | 1168.00 g | 4.25 dm³ |
User instruction / safety instructions
TRACKLIGHT CROSS CONNECTOR
TRACKLIGHT CROSS CONNECTOR
Declarations of conformity
TRACKLIGHT
TRACKLIGHT

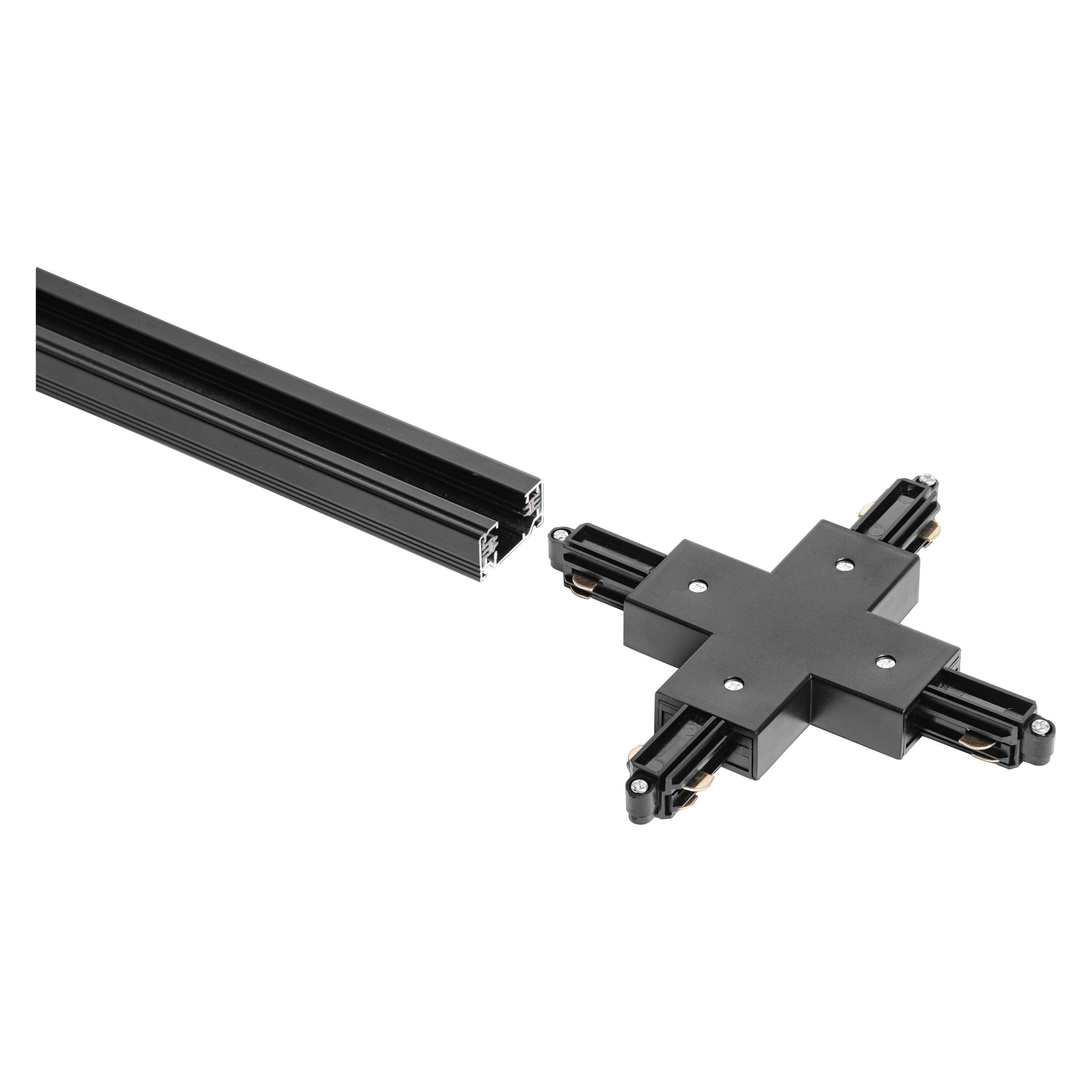

Product image: white background, horizontal
TRACKLIGHT CROSS CONNECTOR BK
TRACKLIGHT CROSS CONNECTOR BK

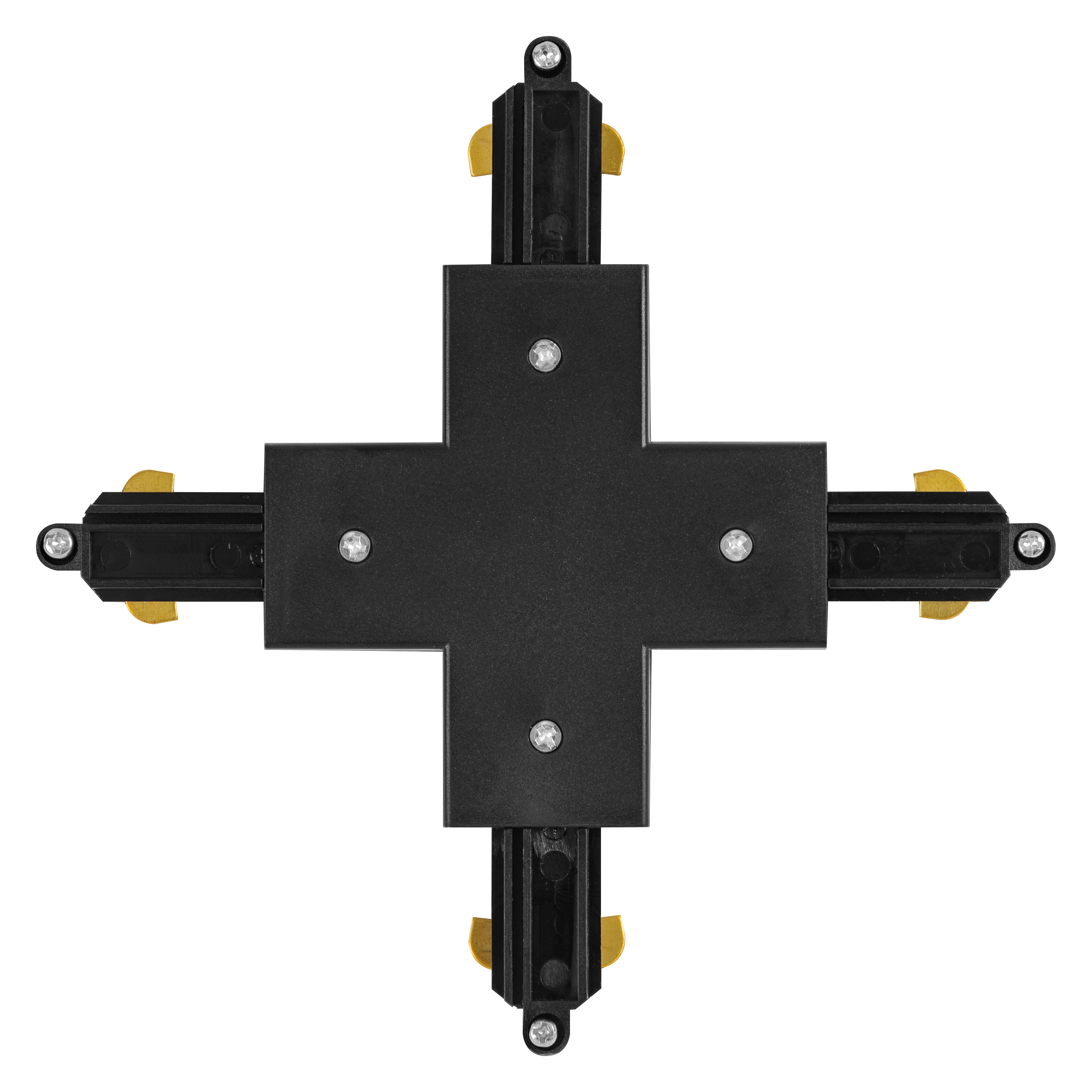

Product image: white background, upright
TRACKLIGHT CROSS CONNECTOR BK
TRACKLIGHT CROSS CONNECTOR BK
Product image: white background, with accessory, alternative image
TRACKLIGHT CROSS CONNECTOR BK
TRACKLIGHT CROSS CONNECTOR BK
Product infographic (application image with text and graphic)
Tracklight assortment E-Com-Grafik V1 1200x1200px 2023 EN
Tracklight assortment E-Com-Grafik V1 1200x1200px 2023 EN
Product infographic (application image with text and graphic)
Tracklight assortment E-Com-Grafik V1 1200x1200px 2023 EN
Tracklight assortment E-Com-Grafik V1 1200x1200px 2023 EN

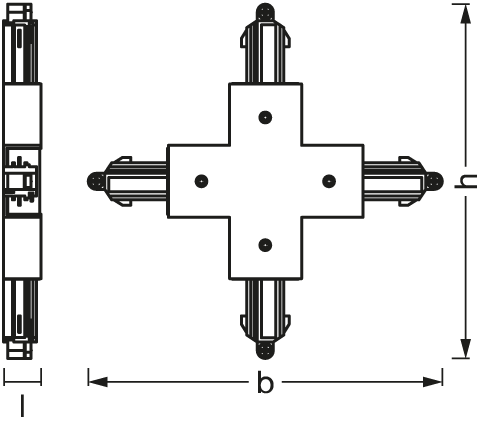

Product line drawing with letters
TRACKLIGHT CROSS CONNECTOR WT
TRACKLIGHT CROSS CONNECTOR WT
Product line drawing, front, no dimensions
TRACKLIGHT CROSS CONNECTOR WT
TRACKLIGHT CROSS CONNECTOR WT
Packaging image, frontal
LUM TC TL CONNECTOR CROSS BK MiPRC
LUM TC TL CONNECTOR CROSS BK MiPRC
Packaging image, spacial
LUM TC TL CONNECTOR CROSS BK MiPRC
LUM TC TL CONNECTOR CROSS BK MiPRC
| EAN | SEG number | EFO number | ELDAS number |
|---|---|---|---|
| 4058075764149 | 7403914 | 3207986 | 941964220 |
