Office Line Desk Banker
Office Line Desk Banker 7W CCT Dimmable White
GTIN: 4058075842960
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Highly versatile due to selectable CCT
- Provides cold white light for an activating and warm white light for a relaxing atmosphere
- Switching and three step dimming via a touch sensitive sensor on the luminaire base
- Swivable luminaire head for individual orientation of light source
- Made of high quality aluminum
Areas of application
- Living areas
- Tables, Desks
- Home offices
Product features
- Desk luminaire in timeless design and with turnable luminaire head
- Adjustable light color: 3000 K, 4000 K, 6500 K
- Material: Aluminium (Housing), Polycarbonate (Diffusor)
- Lifetime up to 25,000 h
Equipment / Accessories
- Equipped with 1.8 m cable and plug
Safety advice
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
Electrical data
| Nominal wattage | 7 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 39.000 mA |
| Inrush current | 3.0 A |
| Inrush current time Th50 | 100 µs |
| Power factor λ | > 0.7 |
| Protection class | II |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 528 lm |
| Total luminous flux of contained light sources | 650 lm |
| Luminous efficacy | 75 lm/W |
| Color temperature | 3000 K / 4000 K / 6500 K |
| Reference control setting of contained light source (Kelvin) | 3000 K |
| Light color (designation) | Warm White, Cool White, Cool Daylight |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | 6 sdcm |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | <0.4 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 112 ° |
Dimensions & Weight
| Length | 121.0 mm |
| Height | 374.00 mm |
| Width | 310.00 mm |
| Product weight | 983.00 g |
| Cable length | 1800 mm |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Aluminium|Acrylonitrile butadiene styrene (ABS) |
| Cover material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Temperature range at storage | -20…+80 °C |
| Type of connection | Plug type C (EU) |
| Type of protection | IP20 |
| Dimmable | Yes |
| Type of dimming | PWM |
| Mounting type | Standing |
| Application environment | Indoor |
| Adjustable | Yes |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 25000 h 1) |
| Number of switching cycles | 15000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, EAC |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Product remark | Available from January 2025 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075842960 | Folding box 1 |
137 mm x 247 mm x 408 mm | 1208.00 g | 13.81 dm³ |
| 4058075842977 | Shipping box 8 |
564 mm x 510 mm x 435 mm | 11258.00 g | 125.12 dm³ |
User instruction / safety instructions
Legal information
Legal insert residential luminaires
Legal insert residential luminaires
Declarations of conformity
OFFICE LINE DESK BANKER 7WCCT D
OFFICE LINE DESK BANKER 7WCCT D

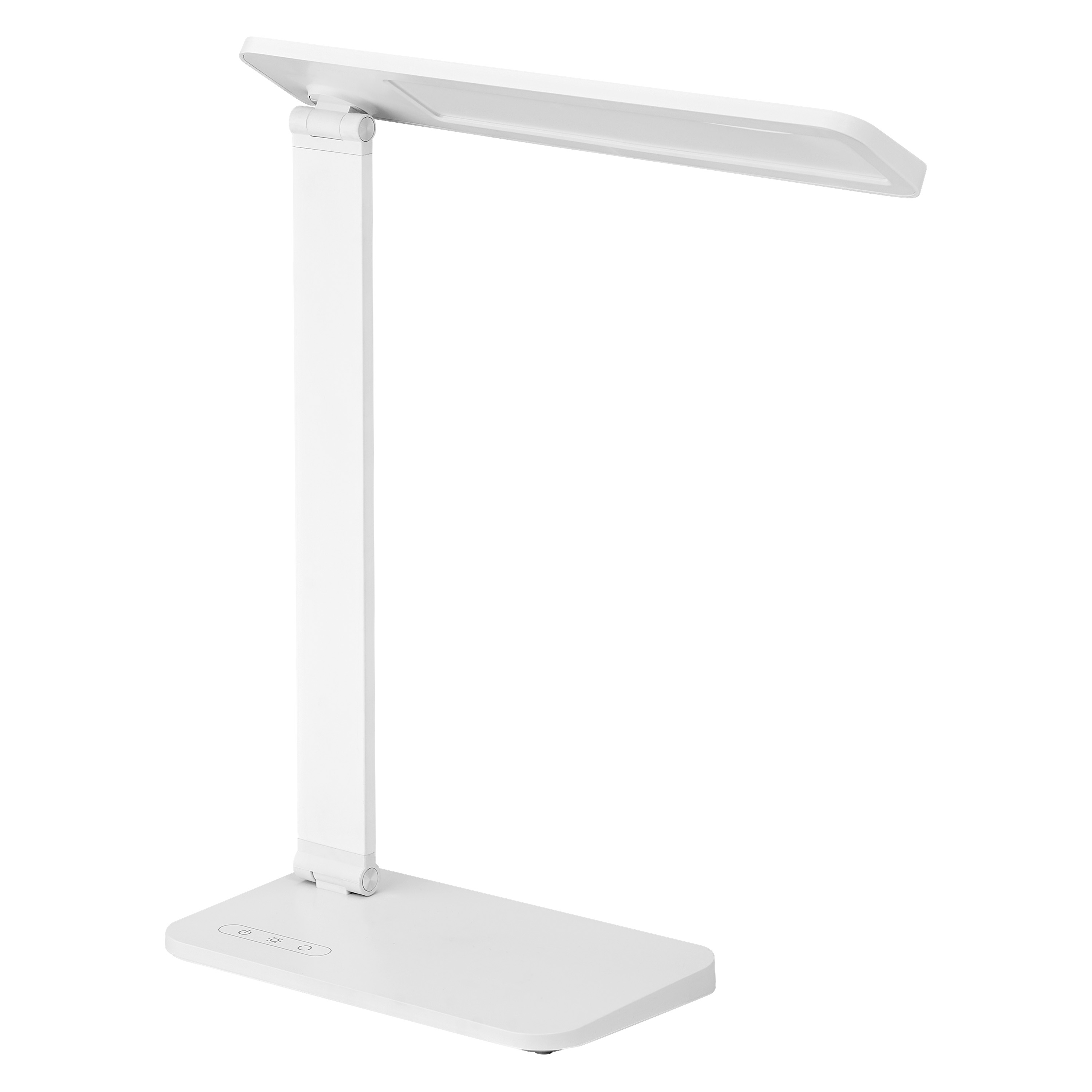

Product image: white background, upright
OFFICE LINE DESK BANKER 7W CCT D WT
OFFICE LINE DESK BANKER 7W CCT D WT

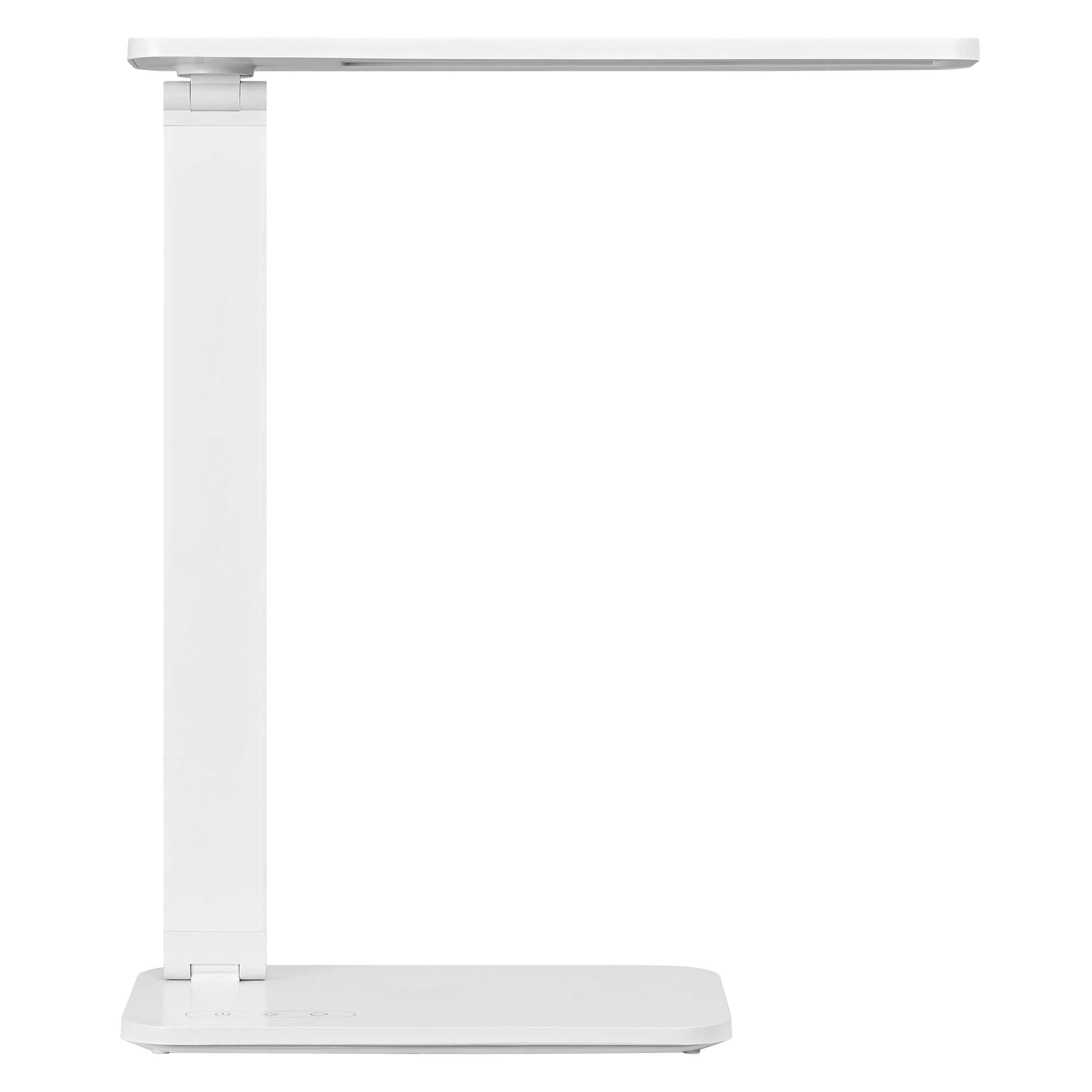

Product image: white background, upright, alternative image
OFFICE LINE DESK BANKER 7W CCT D WT
OFFICE LINE DESK BANKER 7W CCT D WT

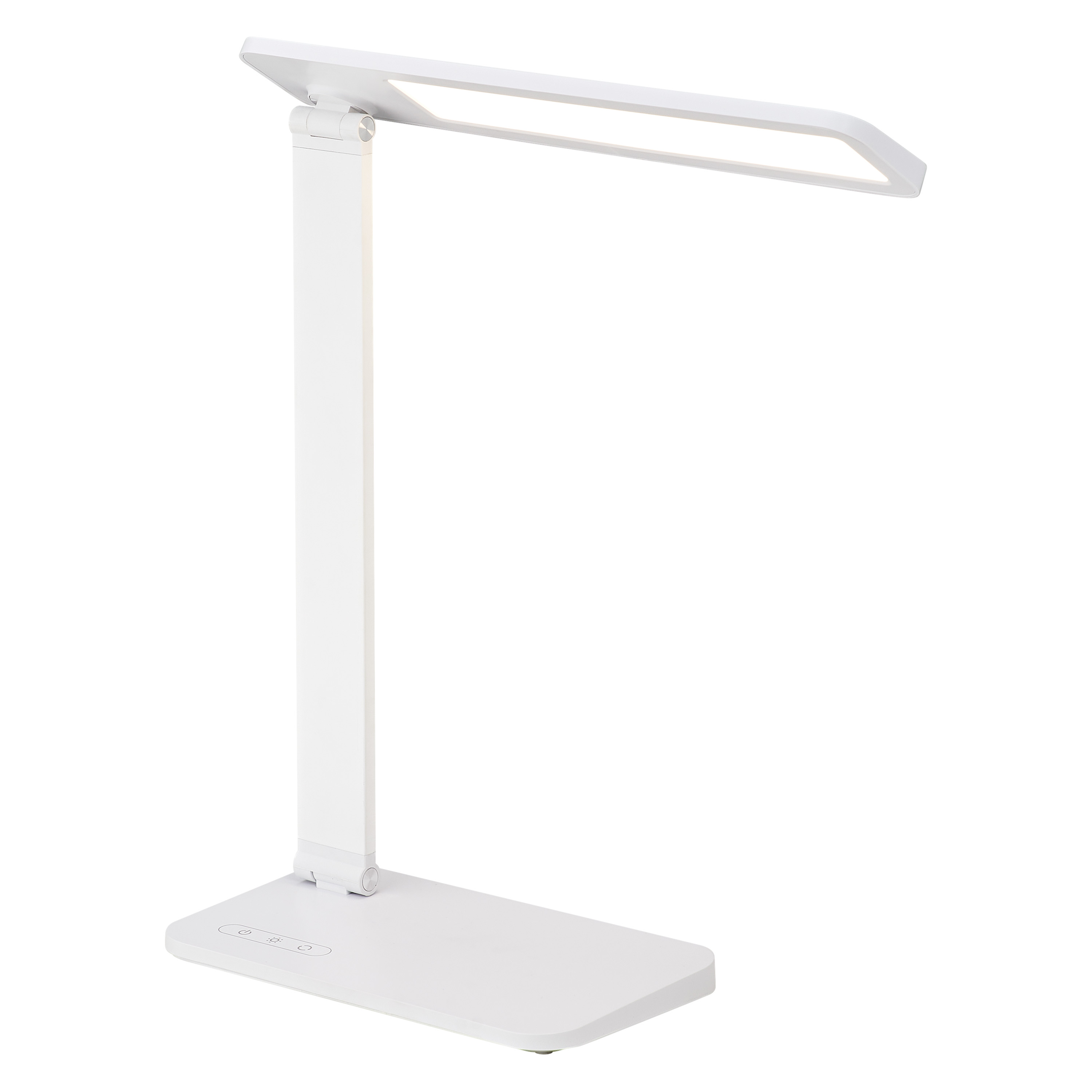

Product image: white background, upright, switched on
OFFICE LINE DESK BANKER 7W CCT D WT
OFFICE LINE DESK BANKER 7W CCT D WT
Product infographic (application image with text and graphic)
Office luminaires e-Com graphic 1200x1200px 2024 EN
Office luminaires e-Com graphic 1200x1200px 2024 EN
Product line drawing with letters
OFFICE LINE DESK BANKER 7W CCT D
OFFICE LINE DESK BANKER 7W CCT D
Product line drawing with numbers
OFFICE LINE DESK BANKER 7W CCT D
OFFICE LINE DESK BANKER 7W CCT D
Product line drawing, front, no dimensions
OFFICE LINE DESK BANKER 7W CCT D
OFFICE LINE DESK BANKER 7W CCT D

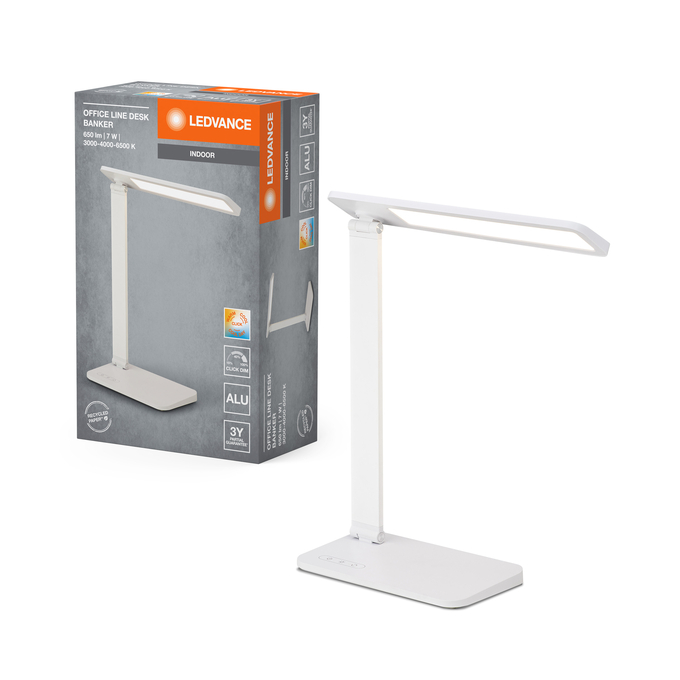

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC OL DESK BANKER CD WT
LUM FC OL DESK BANKER CD WT
Packaging image, frontal
LUM FC OL DESK BANKER CD WT
LUM FC OL DESK BANKER CD WT
Packaging image, spacial
LUM FC OL DESK BANKER CD WT
LUM FC OL DESK BANKER CD WT

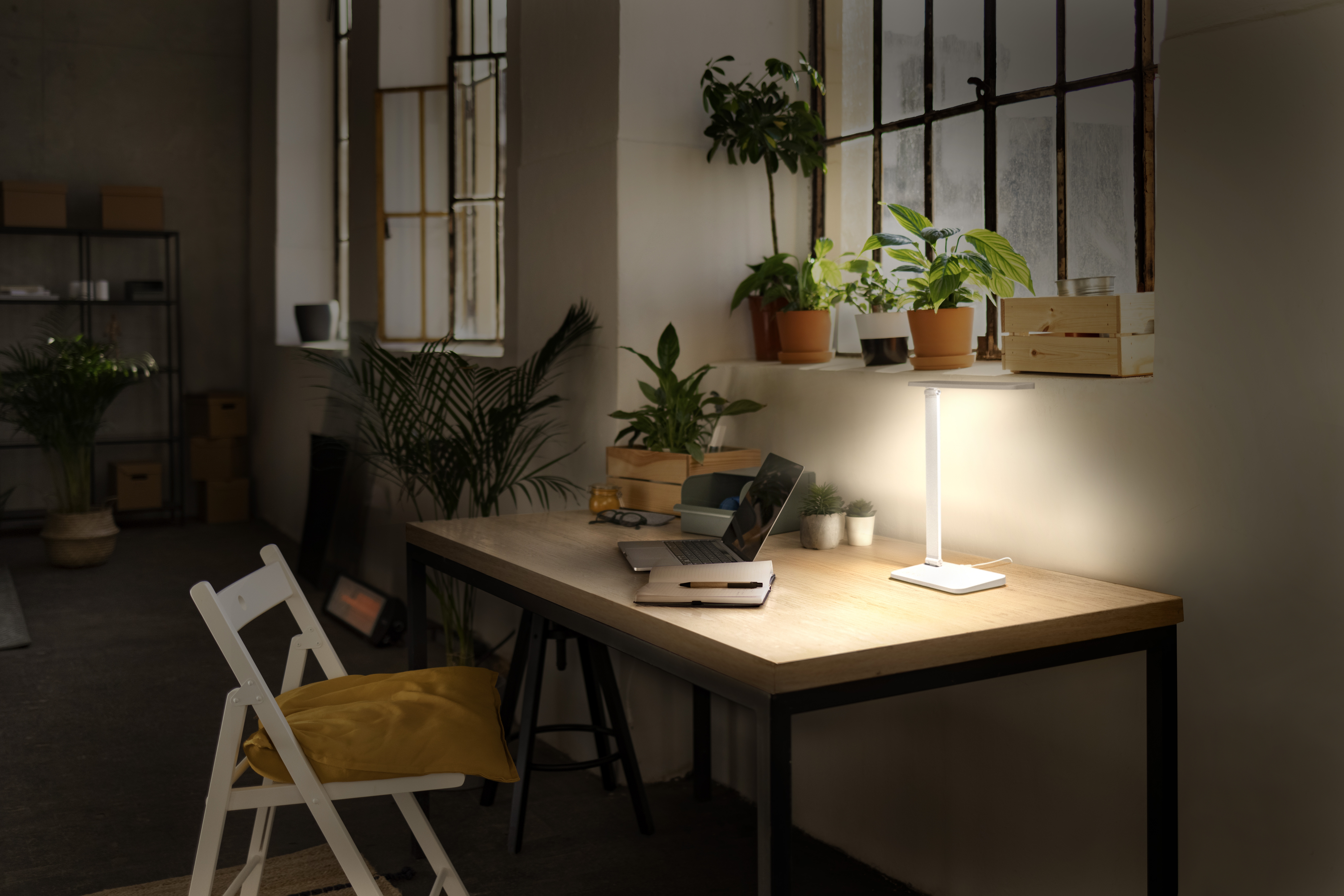

Application pictures Getty
