PLANON™ Frameless
Planon Frameless Round 450mm 28W 830 White
GTIN: 4099854291128
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Homogenous light distribution
- Easy and quick installation
- Slim and sleek design
Areas of application
- Indoor applications
- Decorative domestic lighting
- Wall and ceiling surface mounting
- Offices
- Living rooms
Product features
- Ceiling luminaire with advanced LED technology
- Aluminum housing, frosted PMMA diffuser
- Color temperature: 3,000 K
- Available in square, rectangular and round form
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- The luminaires are not suitable for covering with thermally insulated material.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
| Nominal wattage | 28.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 135.000 mA |
| Inrush current | 0.1 A |
| Inrush current time Th50 | 380 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 23 |
| Max. number of luminaires per miniature circuit breaker C10 | 23 |
| Max. number of luminaires per miniature circuit breaker C16 | 36 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 2700 lm |
| Total luminous flux of contained light sources | 3500 lm |
| Luminous efficacy | 96 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | ≤6 sdcm |
| Flickering metric (Pst LM) | < 1 |
| Stroboscope effect metric (SVM) | < 0.4 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 120 ° |
Dimensions & Weight
| Diameter | 450.00 mm |
| Height | 56.00 mm |
| Product weight | 2480.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Aluminum |
| Cover material | Polystyrene (PS) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Terminal, 2-Pole (L, N) |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK02 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Ceiling |
| Application environment | Indoor |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 25000 h 1) |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854291128 | Folding box 1 |
64 mm x 472 mm x 475 mm | 2799.00 g | 14.35 dm³ |
| 4099854291135 | Shipping box 4 |
485 mm x 270 mm x 498 mm | 12115.00 g | 65.21 dm³ |
User instruction / safety instructions
PLANON FRAMELESS RD 830
PLANON FRAMELESS RD 830
Declarations of conformity
DECOR LUM PLANON
DECOR LUM PLANON

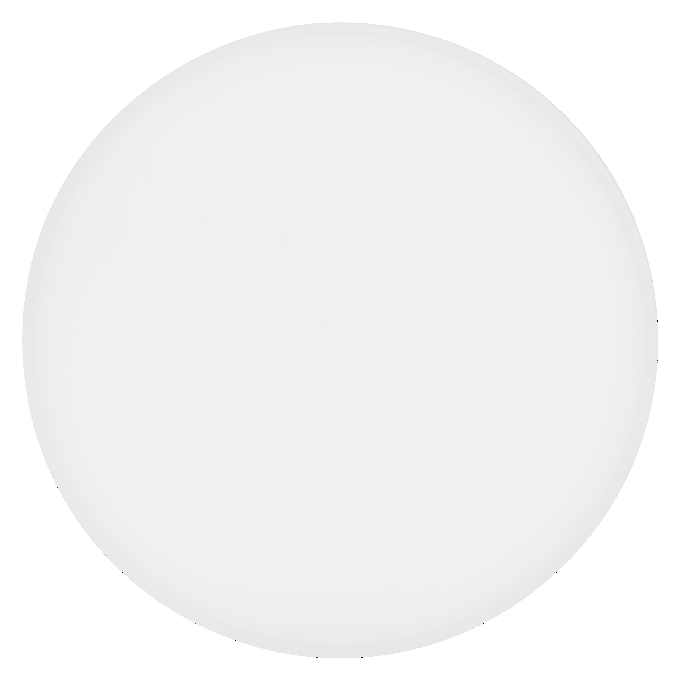

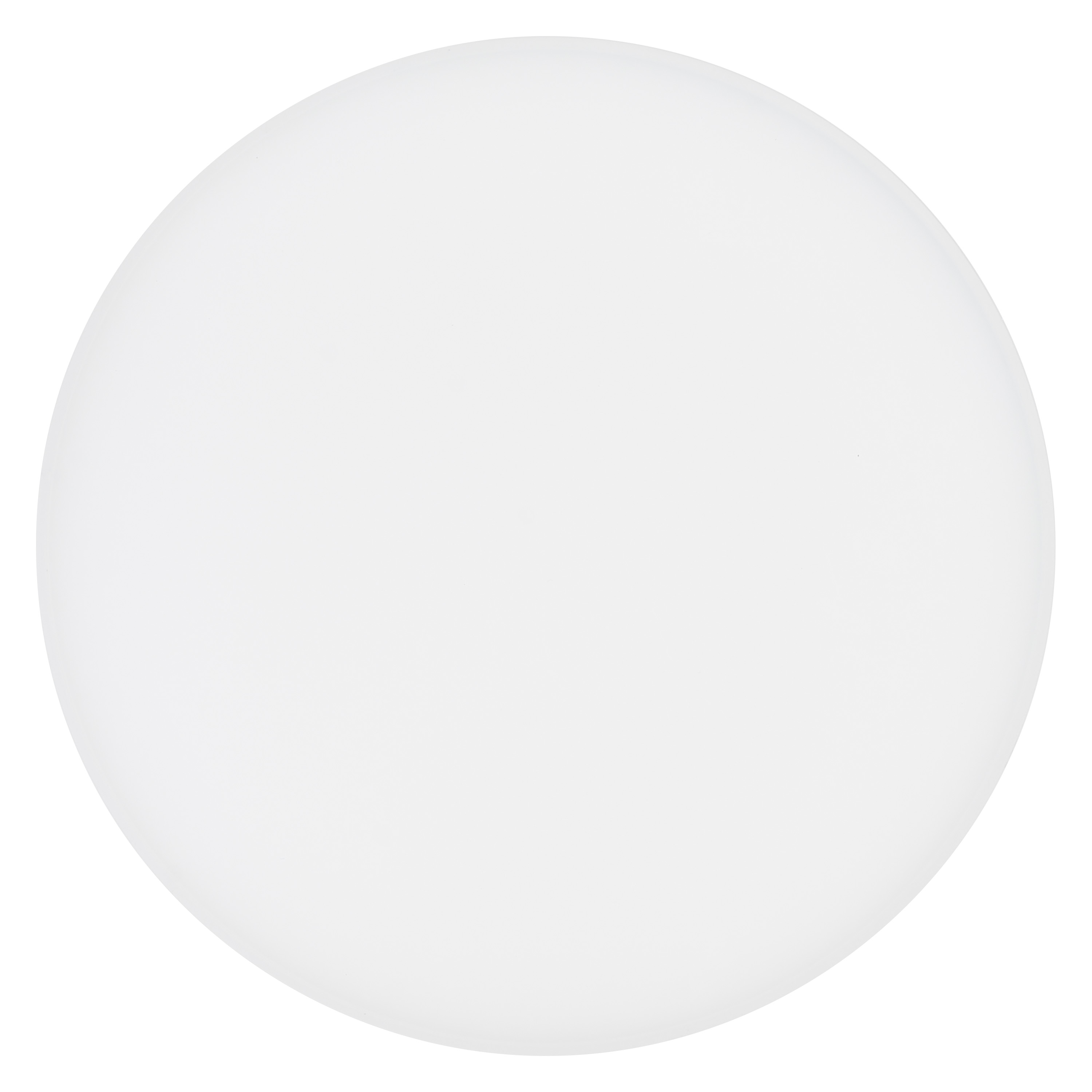

Product image: white background, upright
PLANON FRAMELESS RD 450 28W 830
PLANON FRAMELESS RD 450 28W 830

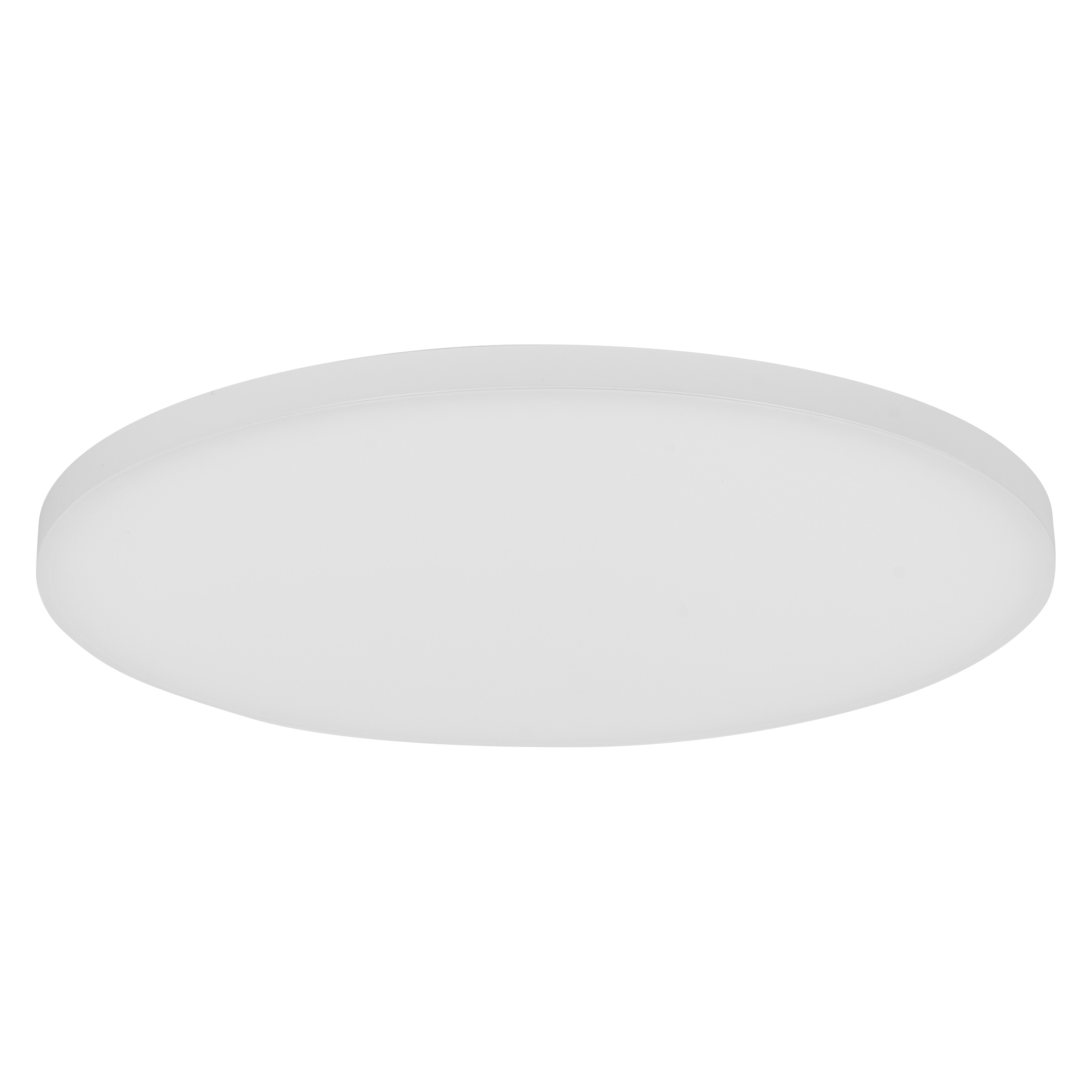

Product image: white background, upright, alternative image
PLANON FRAMELESS RD 450 28W 830
PLANON FRAMELESS RD 450 28W 830

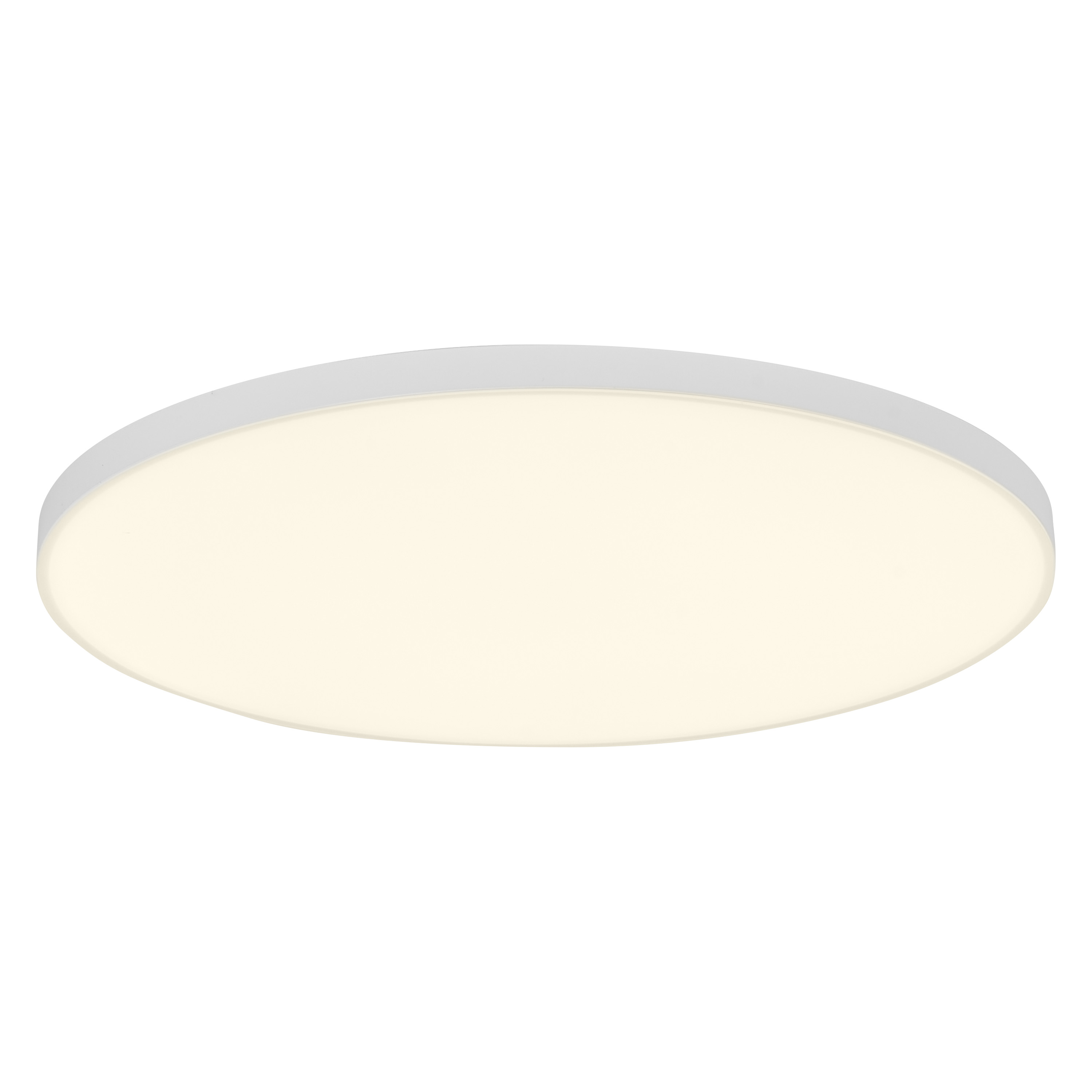

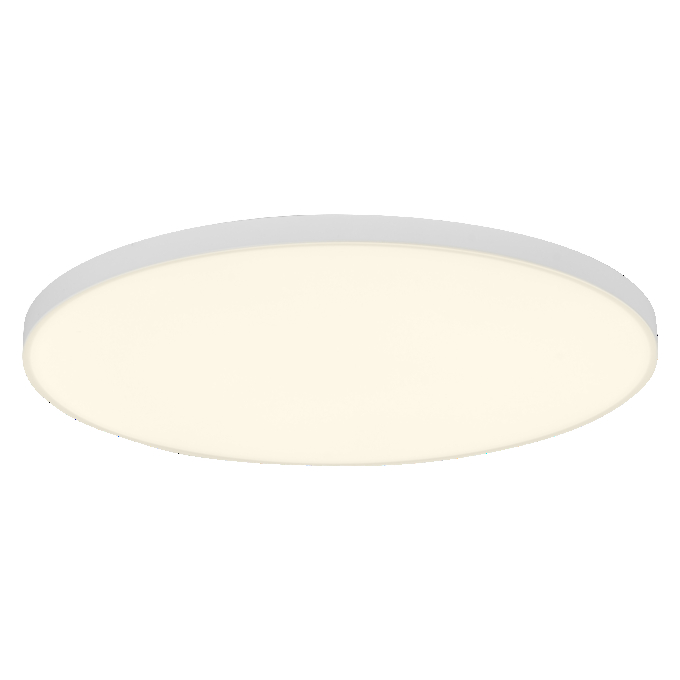

Product image: white background, upright, switched on
PLANON FRAMELESS RD 450 28W 830
PLANON FRAMELESS RD 450 28W 830
Product line drawing with letters
PLANON FRAMELESS RD 450 28W 830
PLANON FRAMELESS RD 450 28W 830
Product line drawing with numbers
PLANON FRAMELESS RD 450 28W 830
PLANON FRAMELESS RD 450 28W 830
Product line drawing, front, no dimensions
PLANON FRAMELESS RD 450 28W 830
PLANON FRAMELESS RD 450 28W 830

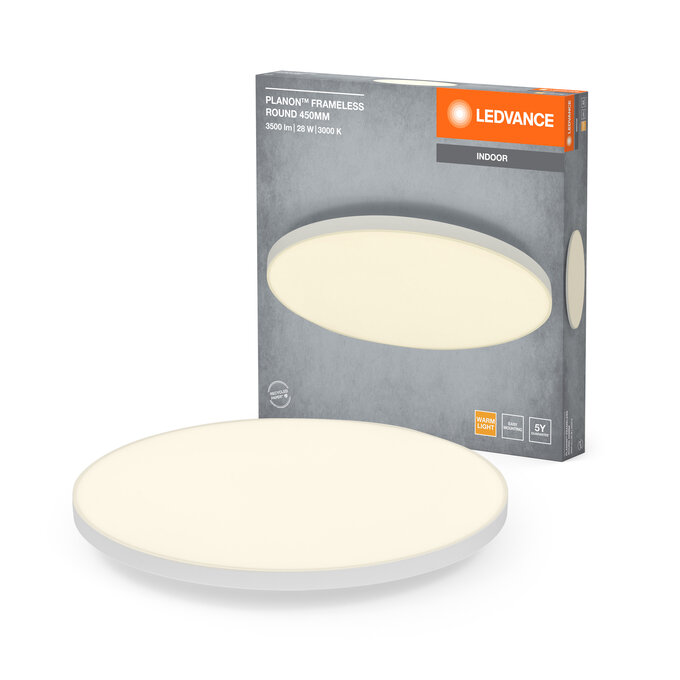

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC PL FL RD450 28W 830
LUM FC PL FL RD450 28W 830
Packaging image, frontal
LUM FC PL FL RD450 28W 830
LUM FC PL FL RD450 28W 830
Packaging image, spacial
LUM FC PL FL RD450 28W 830
LUM FC PL FL RD450 28W 830

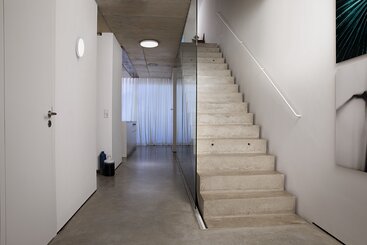

Application pictures
