LED SPOT AND DOWNLIGHT RECESS SLIM
Downlight Slim Set 3 x 85mm 3000K
GTIN: 4058075629387
Folding box / 3
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Very slim design
- Ideal when few space in the ceiling
Areas of application
- Indoor applications
- Corridors, entrance areas, stairwells, living rooms, basements
- Bedrooms
- Kitchens
Product features
- Integrated driver
- Housing material: plastic
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- The luminaires are not suitable for covering with thermally insulated material.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
| Nominal wattage | 4.50 W |
| Nominal voltage | 220…240 V |
| Nominal current | 60.000 mA |
| Power factor λ | > 0.4 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Operating mode | External LED driver |
Photometrical data
| Luminous flux | 720 lm |
| Total luminous flux of contained light sources | 480 lm |
| Luminous efficacy | 56 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | < 6 sdcm |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 110 ° |
Dimensions & Weight
| Diameter | 85.00 mm |
| Height | 23.00 mm |
| Product weight | 50.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Plastic |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Type of connection | Screw terminal |
| Type of protection | IP20 |
| Dimmable | No |
| Mounting type | Recessed |
| Mounting location | Ceiling |
| Mounting diameter | 72,0 mm |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 25000 h 1) |
| Number of switching cycles | 15000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075629387 | Folding box 3 |
136 mm x 161 mm x 103 mm | 252.00 g | 2.26 dm³ |
| 4058075629394 | Shipping box 18 |
355 mm x 182 mm x 247 mm | 1924.00 g | 15.96 dm³ |
User instruction / safety instructions
DOWNLIGHT SLIM
DOWNLIGHT SLIM
Legal information
Legal insert Residential luminaires
Legal insert Residential luminaires
Declarations of conformity
DL SLIM 225M / 85MM
DL SLIM 225M / 85MM

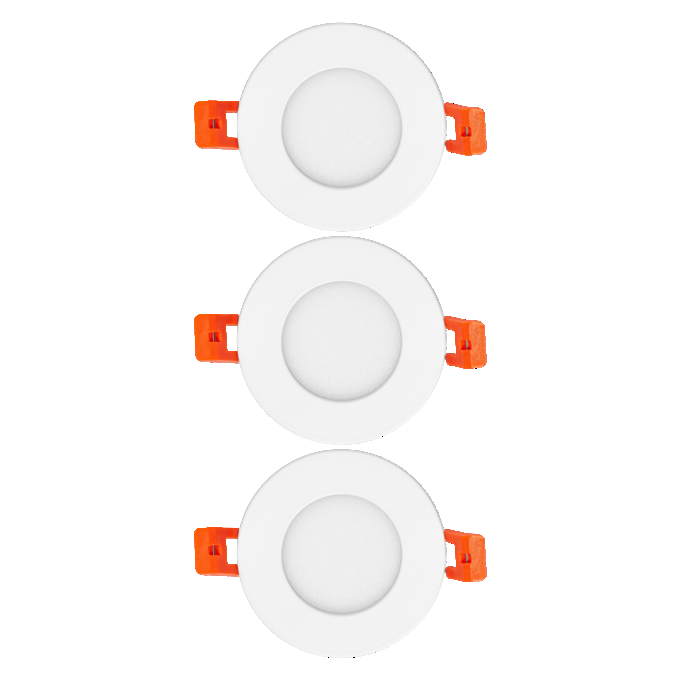

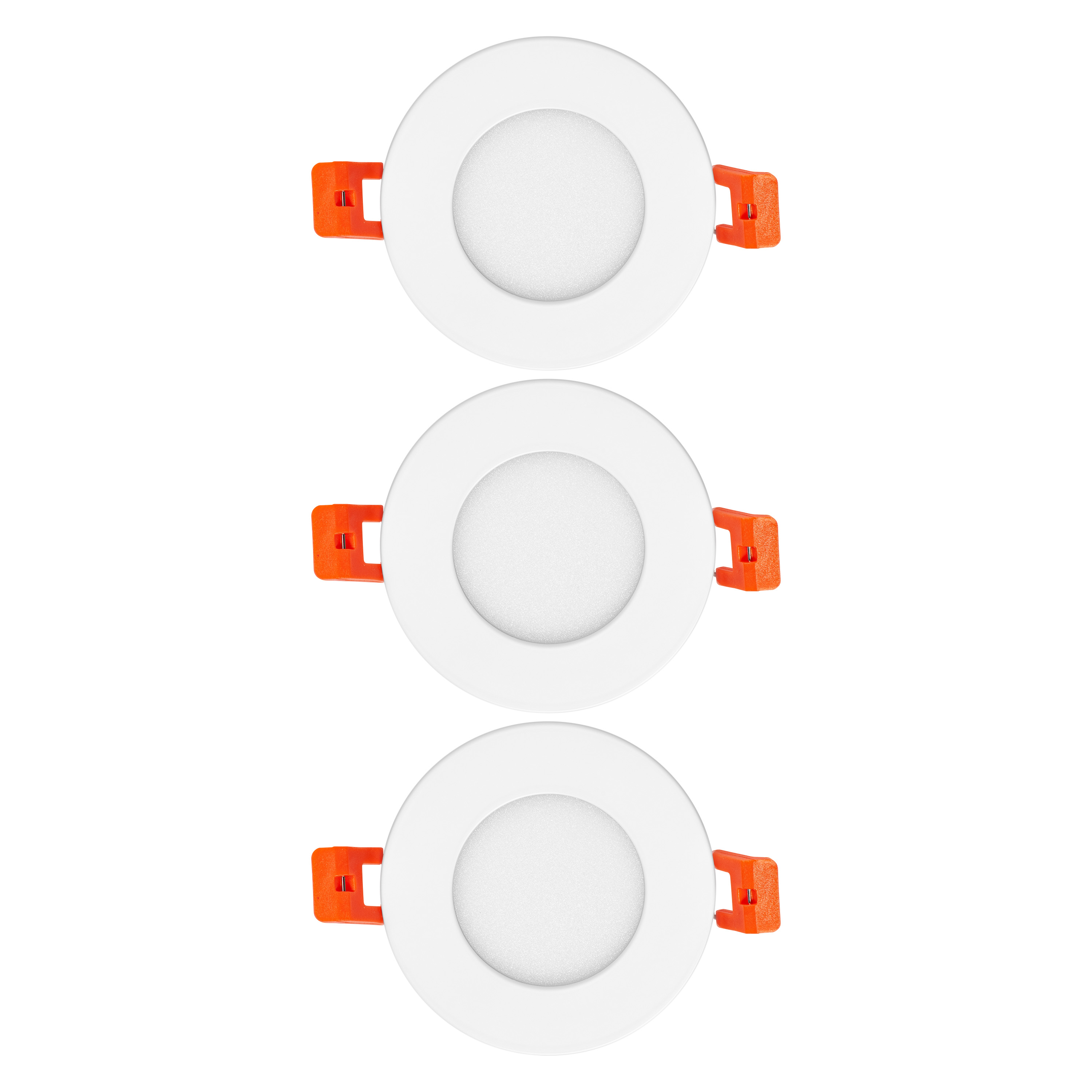

Product image: white background, upright
DL SET 3X4W SLIM 85MM 3000K 230V WT
DL SET 3X4W SLIM 85MM 3000K 230V WT

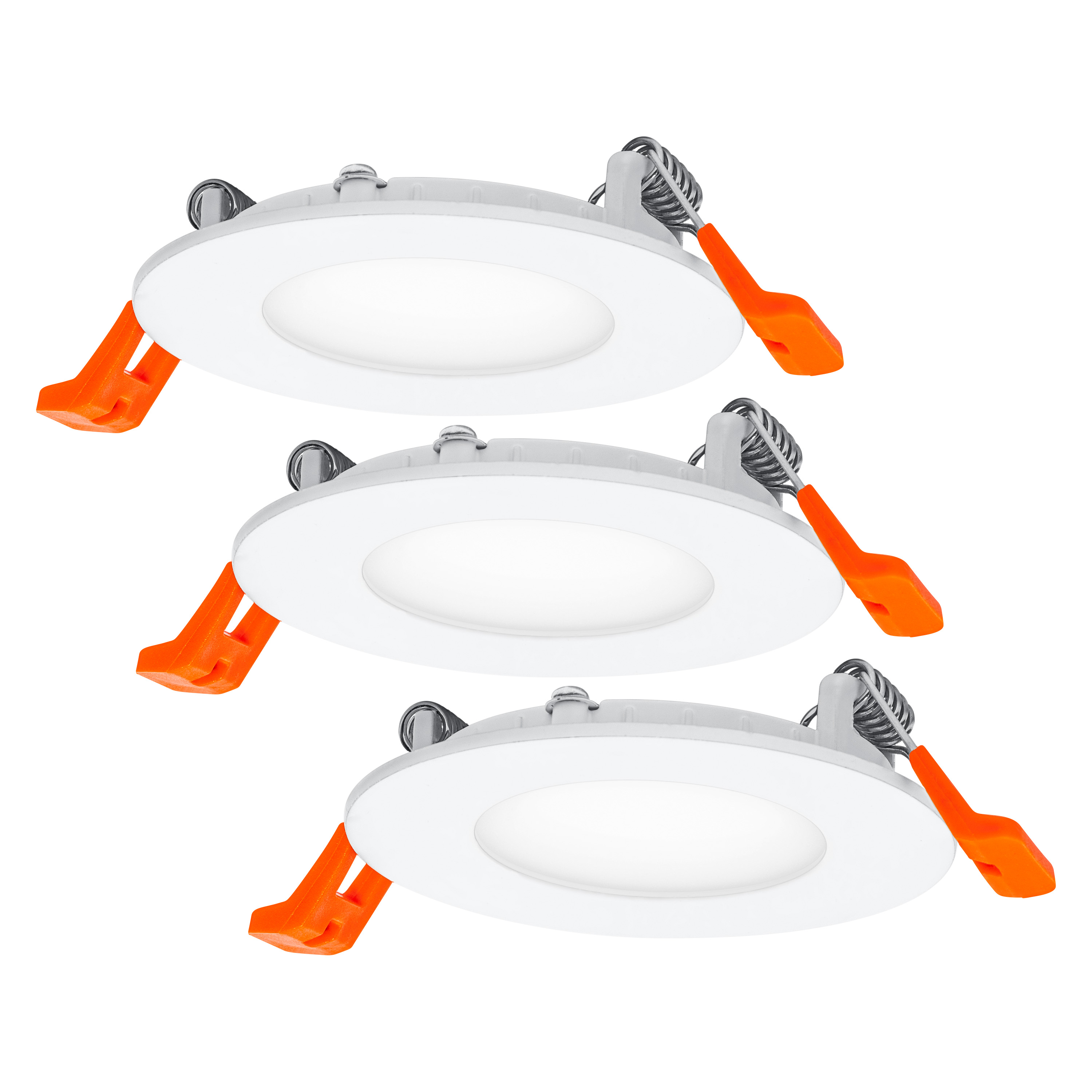

Product image: white background, upright, alternative image
DL SET 3X4W SLIM 85MM 3000K 230V WT
DL SET 3X4W SLIM 85MM 3000K 230V WT
Product image: white background, upright, switched on
DL SET 3X4W SLIM 85MM 3000K 230V WT
DL SET 3X4W SLIM 85MM 3000K 230V WT
Product infographic (application image with text and graphic)
LED-Spots E-Com Grafik 1200x1200px 2023 EN
LED-Spots E-Com Grafik 1200x1200px 2023 EN
Product line drawing with letters
DL SET 3X4W SLIM 85MM 3000K 230V WT
DL SET 3X4W SLIM 85MM 3000K 230V WT
Product line drawing with numbers
DL SET 3X4W SLIM 85MM 3000K 230V WT
DL SET 3X4W SLIM 85MM 3000K 230V WT
Product line drawing, front, no dimensions
DL SET 3X4W SLIM 85MM 3000K 230V WT
DL SET 3X4W SLIM 85MM 3000K 230V WT

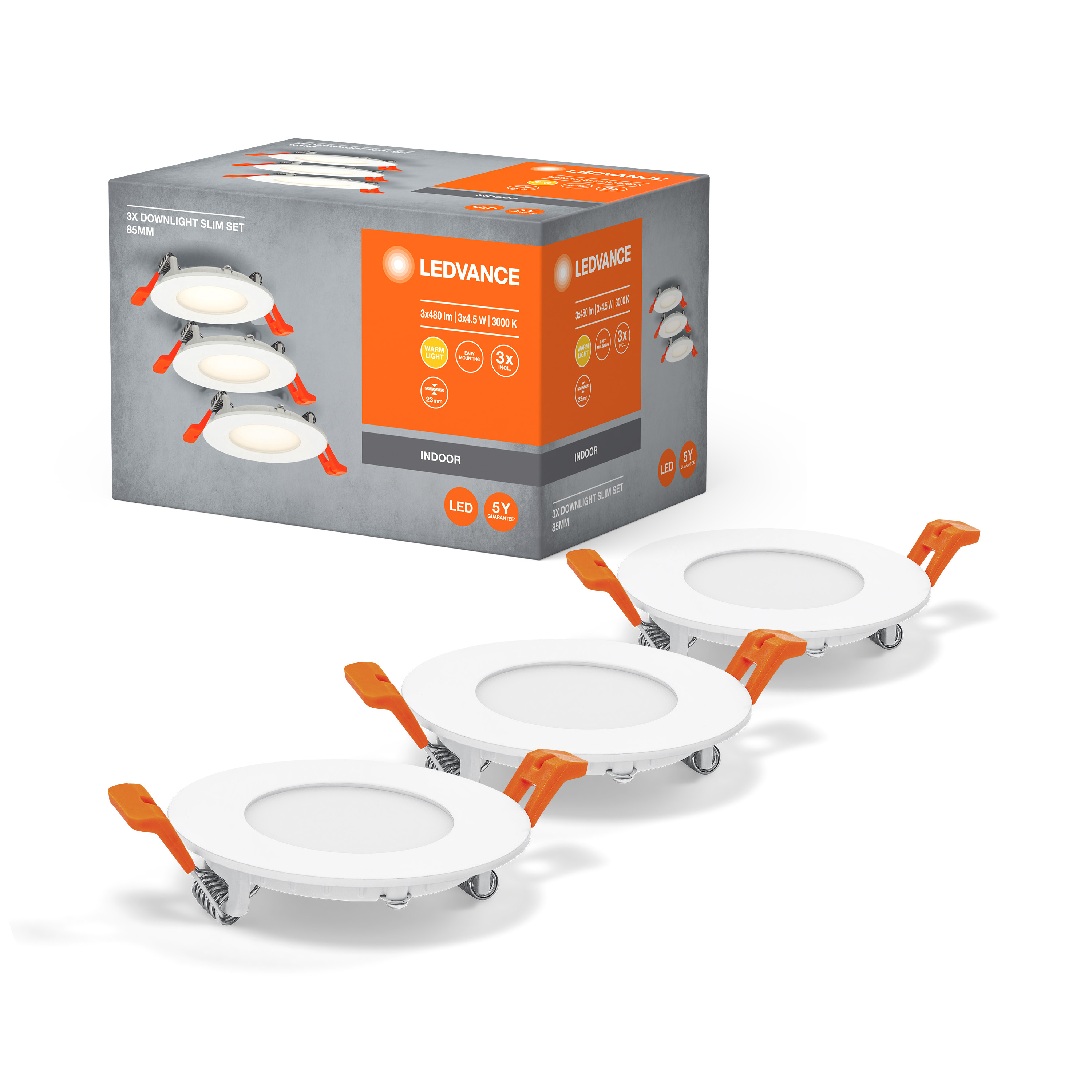

Combo Shot = Product Beauty Shot + Packaging Image
