Coming soon
LED Spot Set CCT Recess IP44
LED Spot Set CCT Recess IP44 Adjustable 4.9W CCT 36° White
GTIN: 4099854596063
Folding box / 3
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Highly versatile due to selectable CCT
- Can be rotated and swiveled for optimum illumination
- Through-wiring possible with included connector box
- Easy mounting
Areas of application
- Suitable for outdoor use
- Bathrooms
- Workshops, garages, covered outdoor storage areas
Product features
- Recessed ceiling mounting
- Click-CCT version: color temperature adjustable in three steps by repeated switching
- Adjustable swivel angle
- With integrated LED module and driver
- Available with color temperature: 2,700 K, 4,000 K, 6,500 K
- Through wiring possible
- Type of protection, front side: IP44
Safety advice
- Luminaire must be disconnected from mains during installation, maintenance and cover removal
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Electrical data
| Nominal wattage | 4.90 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 50.000 mA |
| Power factor λ | 0.40 |
| Protection class | II |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 290 lm |
| Total luminous flux of contained light sources | 420 lm |
| Luminous efficacy | 59 lm/W |
| Color temperature | 2700 K / 4000 K / 6500 K |
| Reference control setting of contained light source (Kelvin) | 2700 K |
| Light color (designation) | Warm White, Cool White, Cool Daylight |
| Color rendering index Ra | 80 |
| Standard deviation of color matching | 6 sdcm |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | <0.4 |
| Beam angle | 36 ° |
Dimensions & Weight
| Diameter | 88.00 mm |
| Height | 40.00 mm |
| Product weight | 220.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Aluminum |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Terminal, 2-Pole (L, N) |
| Type of protection | IP44 |
| Dimmable | No |
| Mounting type | Recessed |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Mounting diameter | 68 mm |
| Mounting depth | 80 mm |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 25000 h 1) |
| Number of switching cycles | 15000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Emergency lighting
| Type of emergency operation test | None |
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Product remark | Available from October 2025 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854596063 | Folding box 3 |
57 mm x 110 mm x 338 mm | 652.00 g | 2.12 dm³ |
| 4099854596070 | Shipping box 24 |
244 mm x 236 mm x 363 mm | 5681.00 g | 20.90 dm³ |

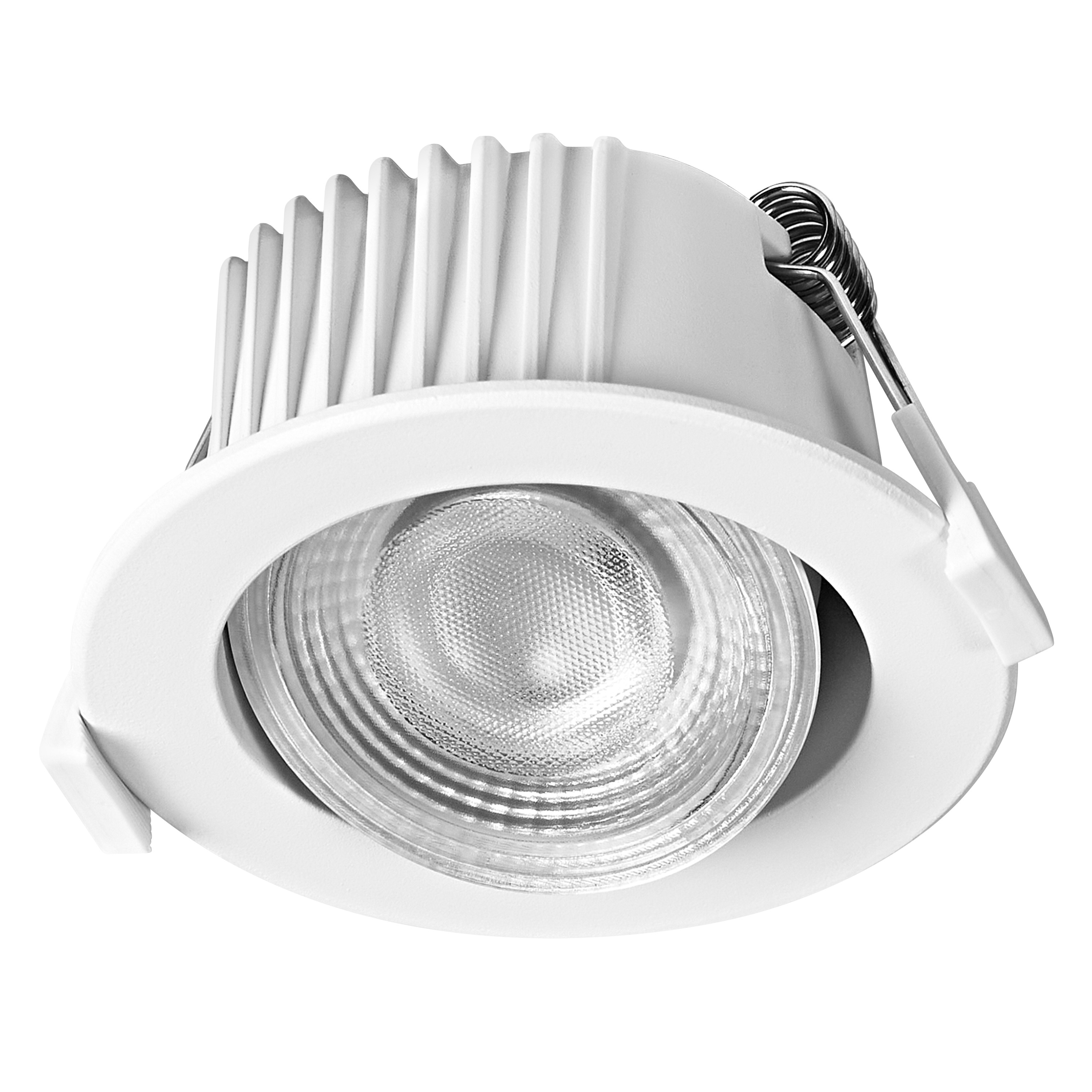

Product image: white background, upright
SP SET ADJ 4.9W CCT IP44 WT 8X3
SP SET ADJ 4.9W CCT IP44 WT 8X3

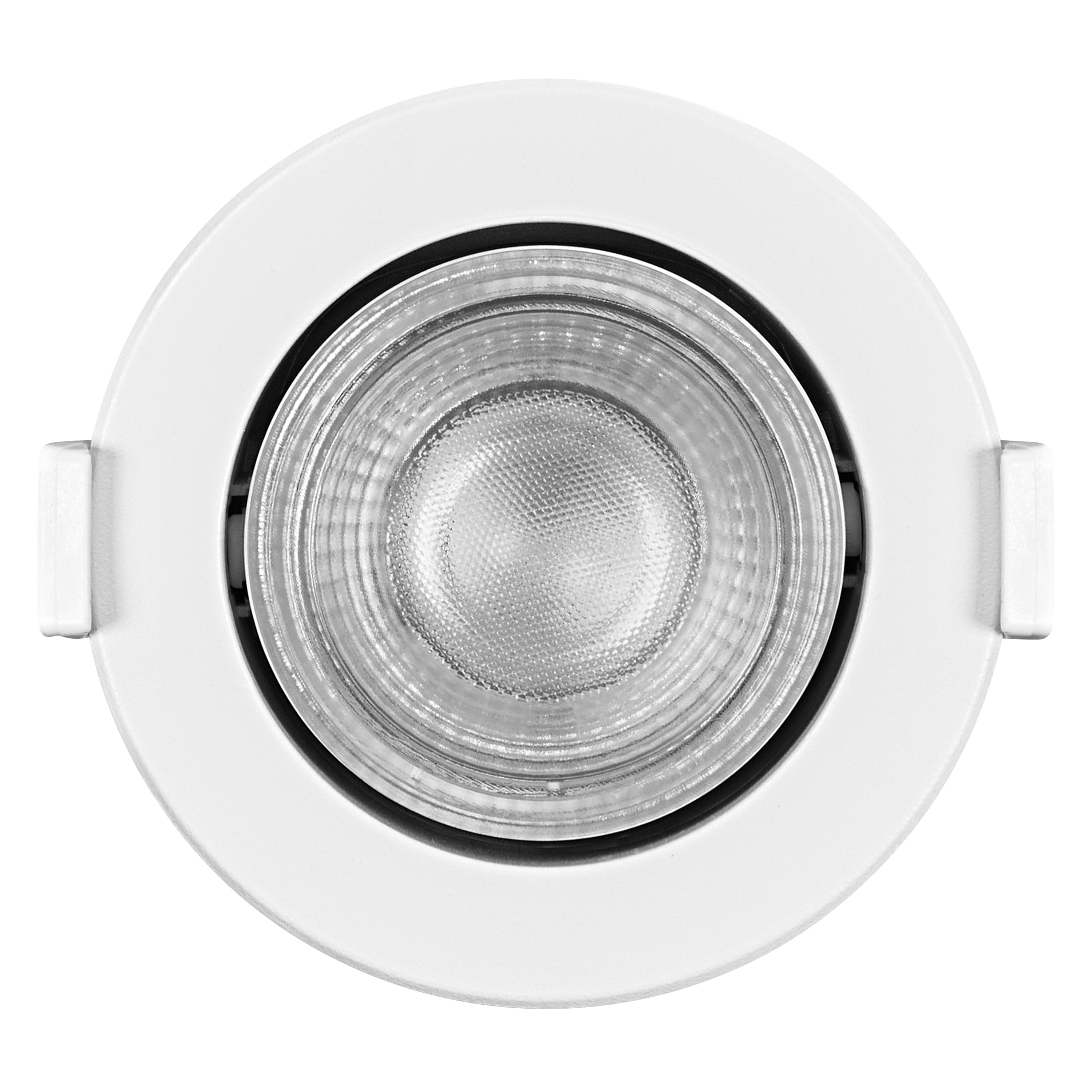

Product image: white background, upright, alternative image
SP SET ADJ 4.9W CCT IP44 WT 8X3
SP SET ADJ 4.9W CCT IP44 WT 8X3

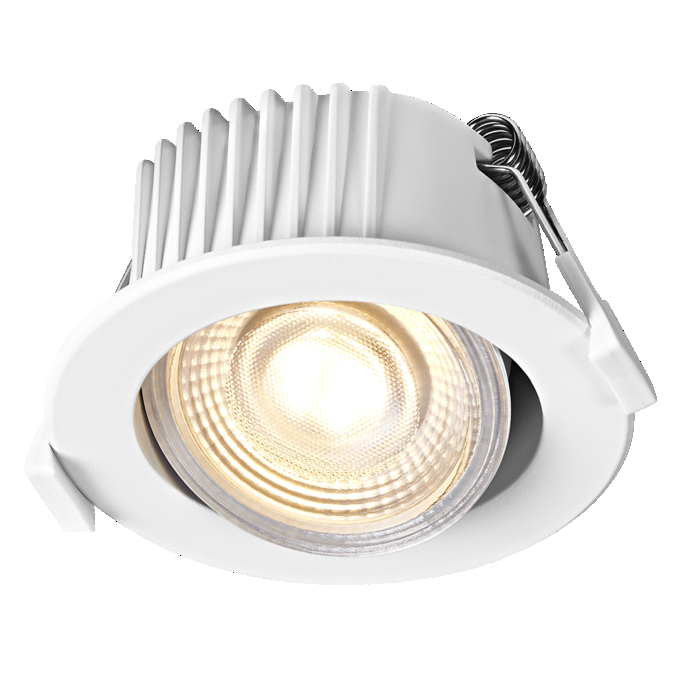

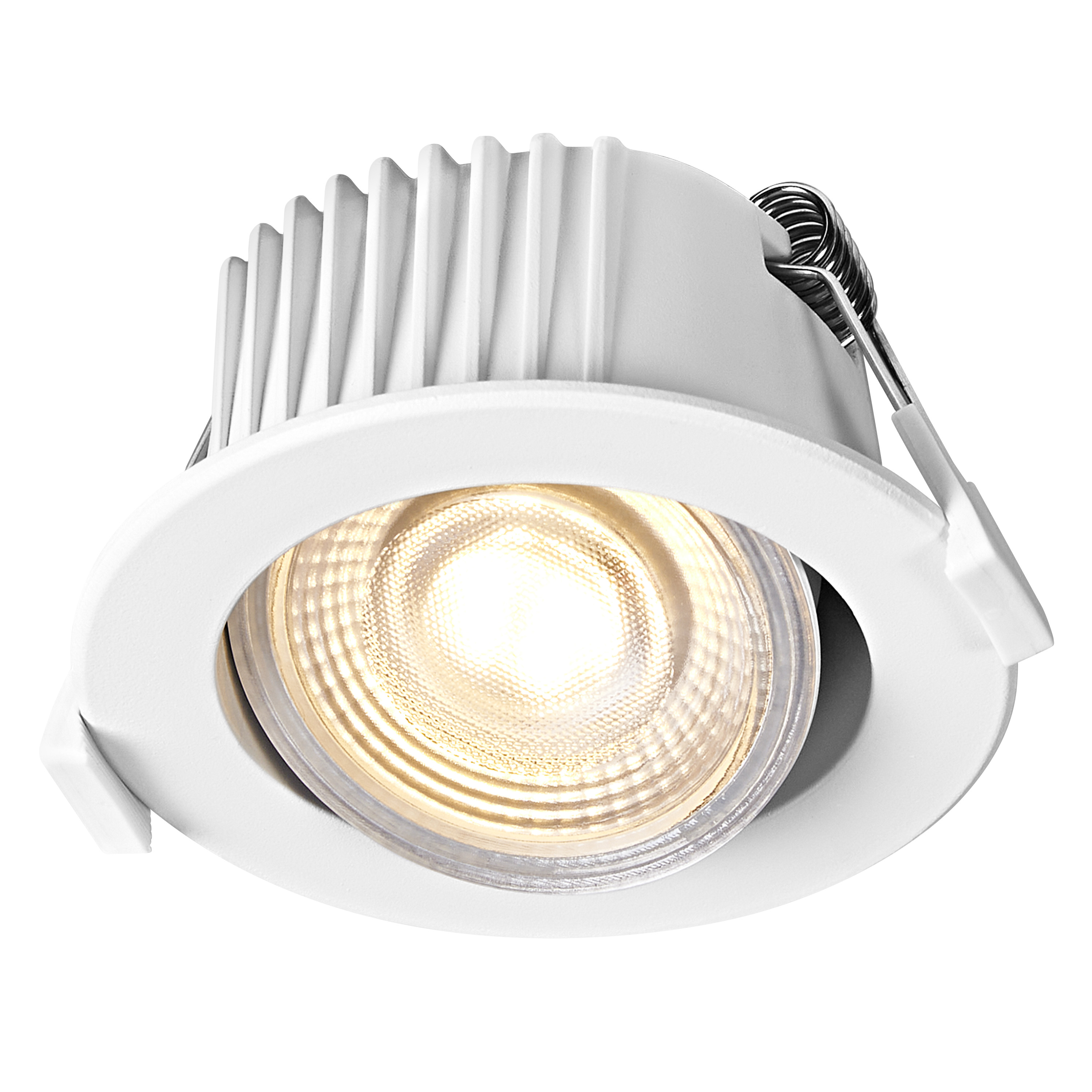

Product image: white background, upright, switched on
SP SET ADJ 4.9W CCT IP44 WT 8X3
SP SET ADJ 4.9W CCT IP44 WT 8X3
Product line drawing with letters
SP SET ADJ 4.9W CCT IP44
SP SET ADJ 4.9W CCT IP44
Product line drawing with numbers
SP SET ADJ 4.9W CCT IP44
SP SET ADJ 4.9W CCT IP44
Product line drawing, front, no dimensions
SP SET ADJ 4.9W CCT IP44
SP SET ADJ 4.9W CCT IP44

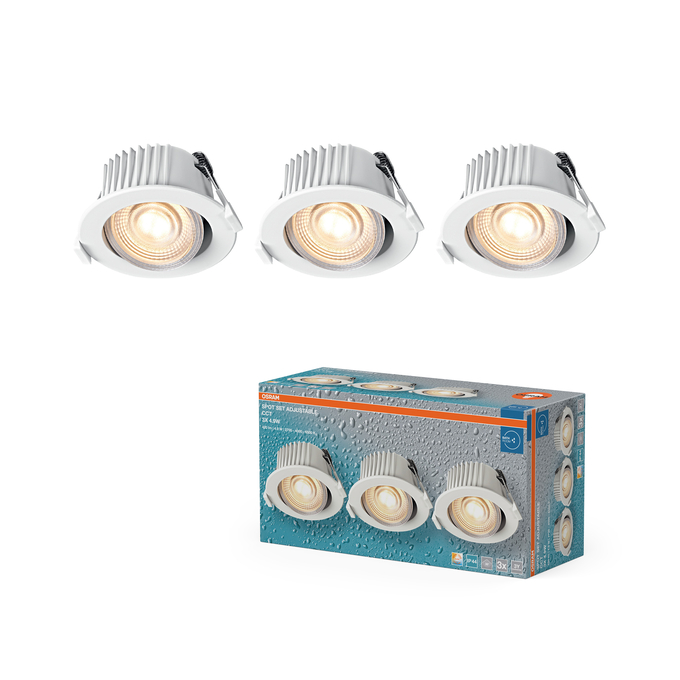

Combo Shot = Product Beauty Shot + Packaging Image
