LED Downlight Adjustable Cut Out
LED Downlight Adjustable Cut Out Slim 120mm 9W 830 White
GTIN: 4058075854376
Folding box / 3
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Through-wiring possible with included connector box
- Easy mounting
Areas of application
- Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
- Recessed ceiling mounting
- Color temperature: 3,000 K
- Type of protection: IP20
Safety advice
- Luminaire must be disconnected from mains during installation, maintenance and cover removal
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Electrical data
| Nominal wattage | 9.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 45.000 mA |
| Power factor λ | > 0.7 |
| Protection class | II |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 810 lm |
| Total luminous flux of contained light sources | 1000 lm |
| Luminous efficacy | 90 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | 6 sdcm |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | <0.4 |
| Beam angle | 120 ° |
Dimensions & Weight
| Diameter | 120.00 mm |
| Height | 37.00 mm |
| Product weight | 124.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Steel |
| Cover material | Polypropylene (PP) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Terminal, 2-Pole (L, N) |
| Type of protection | IP20 |
| Dimmable | No |
| Mounting type | Recessed |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Mounting diameter | 55 mm |
| Mounting depth | 25 mm |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 25000 h 1) |
| Number of switching cycles | 50000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Emergency lighting
| Type of emergency operation test | None |
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Product remark | Available from October 2025 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075854376 | Folding box 3 |
140 mm x 173 mm x 138 mm | 493.00 g | 3.34 dm³ |
| 4058075854383 | Shipping box 24 |
366 mm x 301 mm x 302 mm | 4527.00 g | 33.27 dm³ |
User instruction / safety instructions
DL SET SLIM
DL SET SLIM

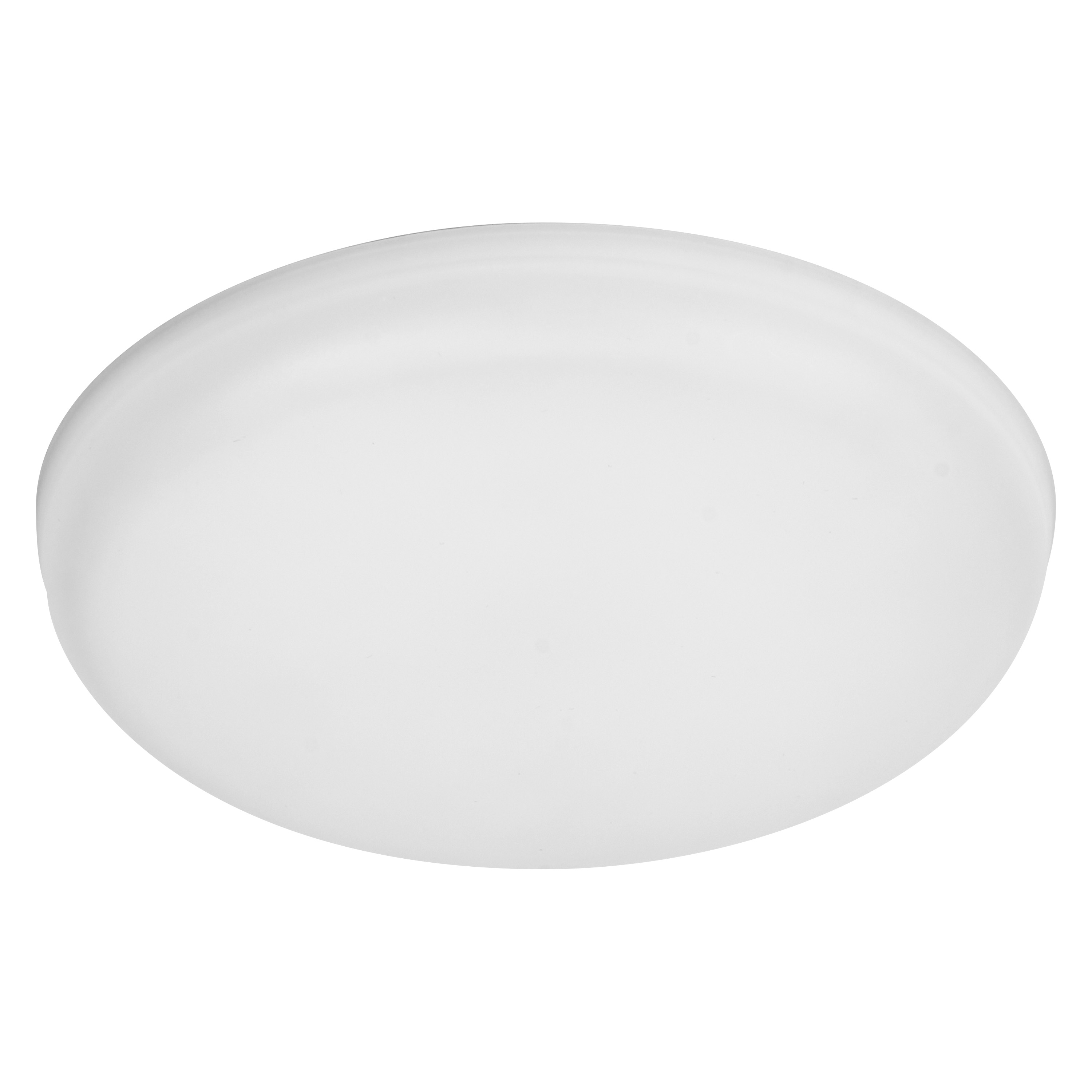

Product image: white background, upright
DL SET SLIM 120 ADJ CUT 830 WT 8X3
DL SET SLIM 120 ADJ CUT 830 WT 8X3
Product image: white background, upright, alternative image
DL SET SLIM 120 ADJ CUT 830 WT 8X3
DL SET SLIM 120 ADJ CUT 830 WT 8X3

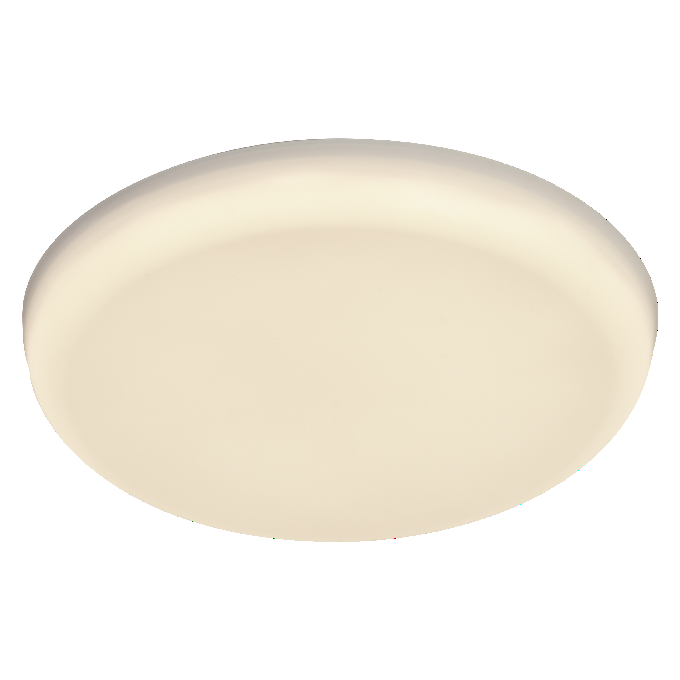

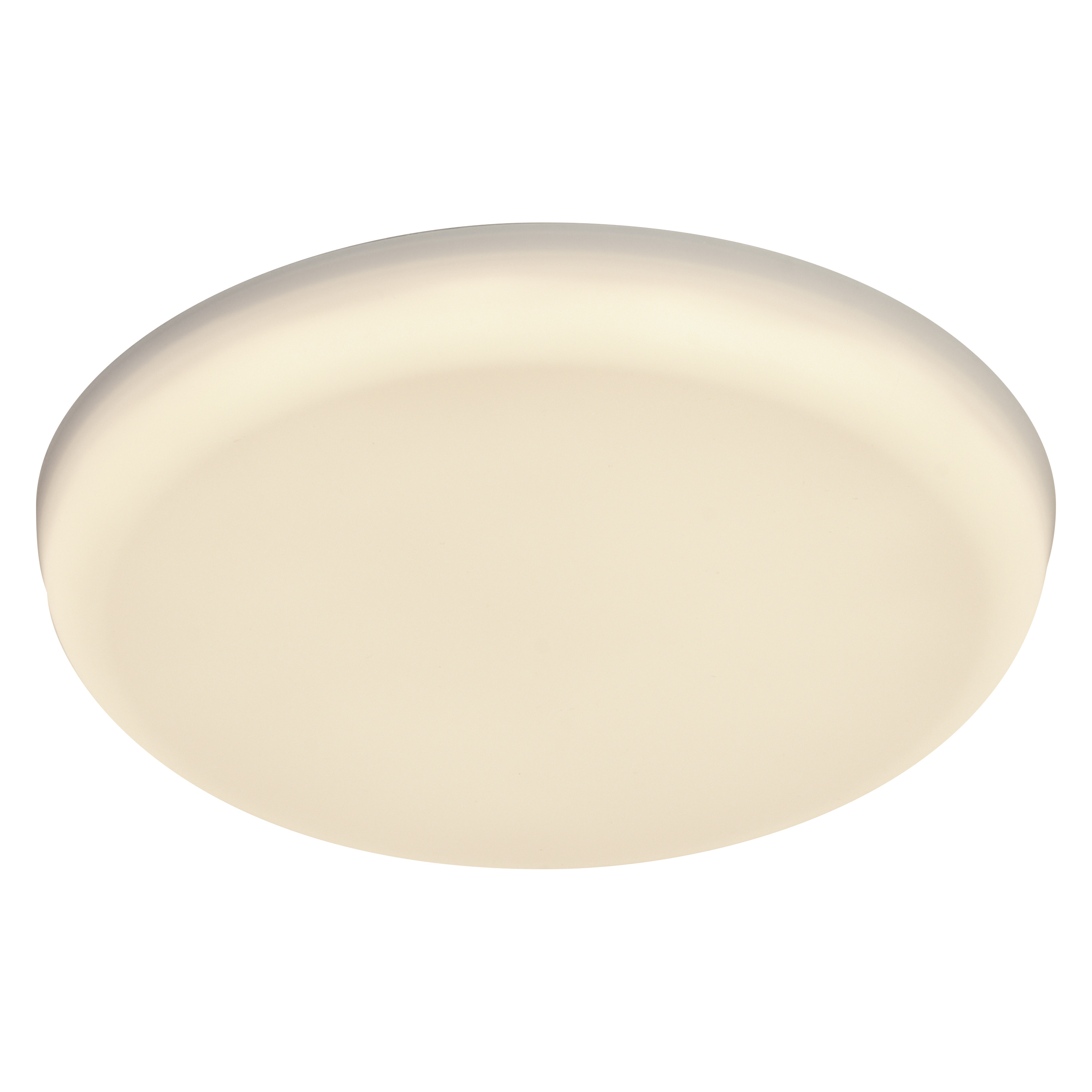

Product image: white background, upright, switched on
DL SET SLIM 120 ADJ CUT 830 WT 8X3
DL SET SLIM 120 ADJ CUT 830 WT 8X3
Product line drawing with letters
DL SET SLIM 190 ADJ CUT 830 WT 12X3
DL SET SLIM 190 ADJ CUT 830 WT 12X3
Product line drawing with numbers
DL SET SLIM 120 ADJ CUT 830 WT 8X3
DL SET SLIM 120 ADJ CUT 830 WT 8X3

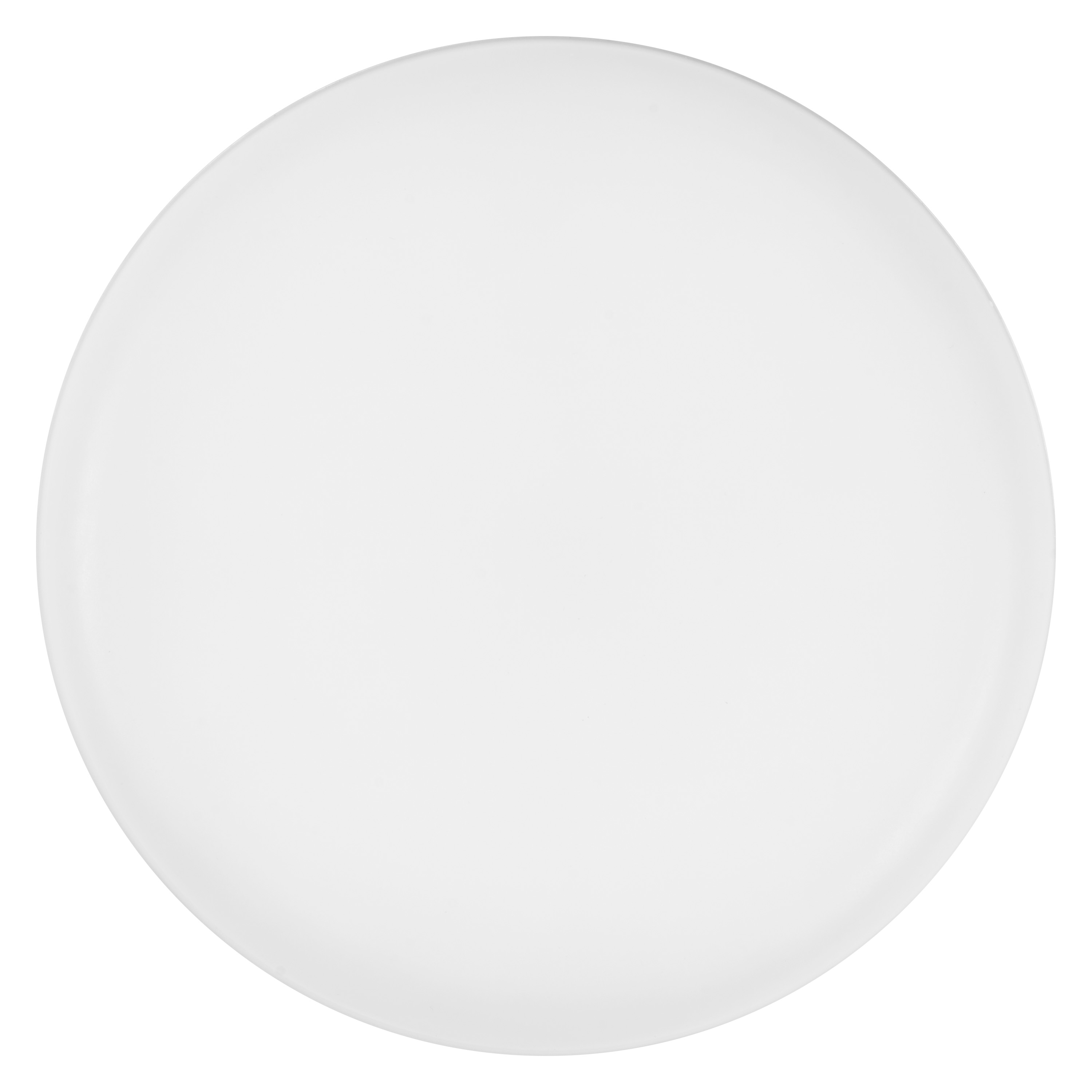

Product line drawing, front, no dimensions
DL SET SLIM 190 ADJ CUT 830 WT 12X3
DL SET SLIM 190 ADJ CUT 830 WT 12X3

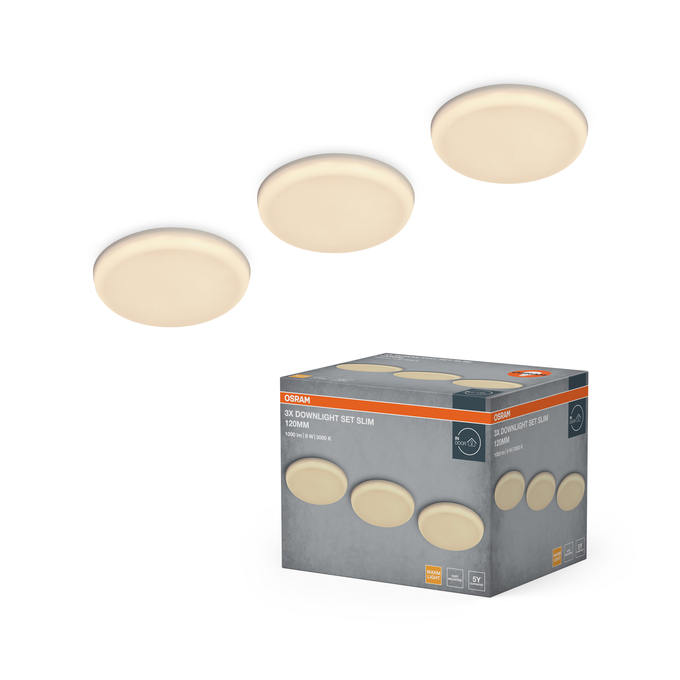

Combo Shot = Product Beauty Shot + Packaging Image
