DECOR SPOT FIREFLY
Decor Spot Firefly 1X2.8W 827 E14 Black
GTIN: 4058075838017
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Fits perfect with industrial style
- On-/Off-switch on 1-spot model for convenient operation
- Sustainable solution thanks to exchangeable light sources
- Easy mounting
- Dimmable OSRAM lamp included
Areas of application
- Indoor applications
- Corridors, entrance areas, stairwells, living rooms, basements
Product features
- Housing material: metal and glass
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Electrical data
| Nominal wattage | 2.80 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 13.000 mA |
| Inrush current | 0.013 A |
| Inrush current time Th50 | 190 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 318 |
| Max. number of luminaires per miniature circuit breaker C10 | 269 |
| Max. number of luminaires per miniature circuit breaker C16 | 430 |
| Power factor λ | > 0.4 |
| Protection class | II |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 250 lm |
| Total luminous flux of contained light sources | 250 lm |
| Luminous efficacy | 89 lm/W |
| Color temperature | 2700 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | 80 |
| Standard deviation of color matching | < 6 sdcm |
| Flickering metric (Pst LM) | ≤1 |
| Stroboscope effect metric (SVM) | ≤0.4 |
| Photobiological safety group acc. to EN62778 | RG0 |
Dimensions & Weight
| Length | 105.00 mm |
| Height | 152.00 mm |
| Width | 145.00 mm |
| Product weight | 380.00 g |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Steel|glass |
| Cover material | Glass |
| Light emitting surface material | Glass |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Terminal, 2-Pole (L, N) |
| Type of protection | IP20 |
| Dimmable | Yes |
| Mounting type | Surface |
| Application environment | Indoor |
| Adjustable | Yes |
| With light source | Yes |
| Replaceable light source | No |
| Holder designation | E14 |
Lifespan
| Lifespan L70/B50 at 25 °C | 15000 h 1) |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
Additional product data
| Product remark | Maximum bulb wattage: 10 W LED |
| Number of illuminants | 1 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075838017 | Folding box 1 |
142 mm x 177 mm x 228 mm | 521.00 g | 5.73 dm³ |
| 4058075838024 | Shipping box 4 |
375 mm x 305 mm x 245 mm | 2660.00 g | 28.02 dm³ |
User instruction / safety instructions
DECOR SPOT FIREFLY E14 BK
DECOR SPOT FIREFLY E14 BK
Declarations of conformity
DECOR SPOT LUM FIREFLY
DECOR SPOT LUM FIREFLY

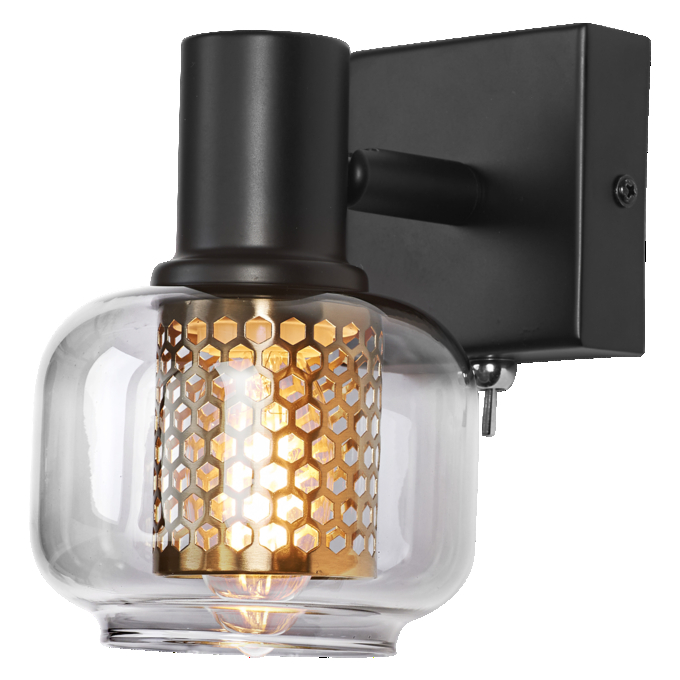

Product image: white background, upright
DECOR SPOT FIREFLY 1X2.8W 827 E14BK
DECOR SPOT FIREFLY 1X2.8W 827 E14BK

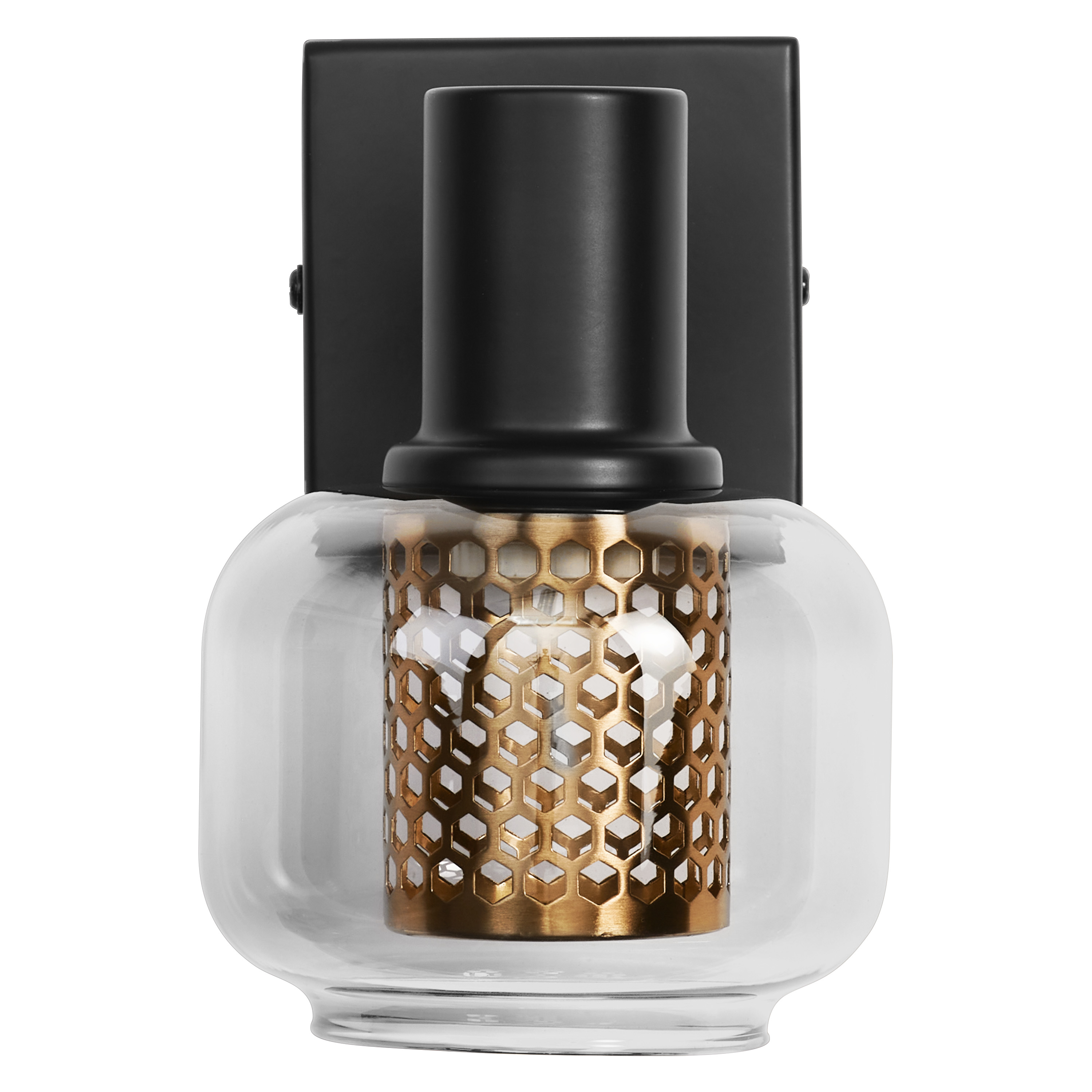

Product image: white background, upright, alternative image
DECOR SPOT FIREFLY 1X2.8W 827 E14BK
DECOR SPOT FIREFLY 1X2.8W 827 E14BK

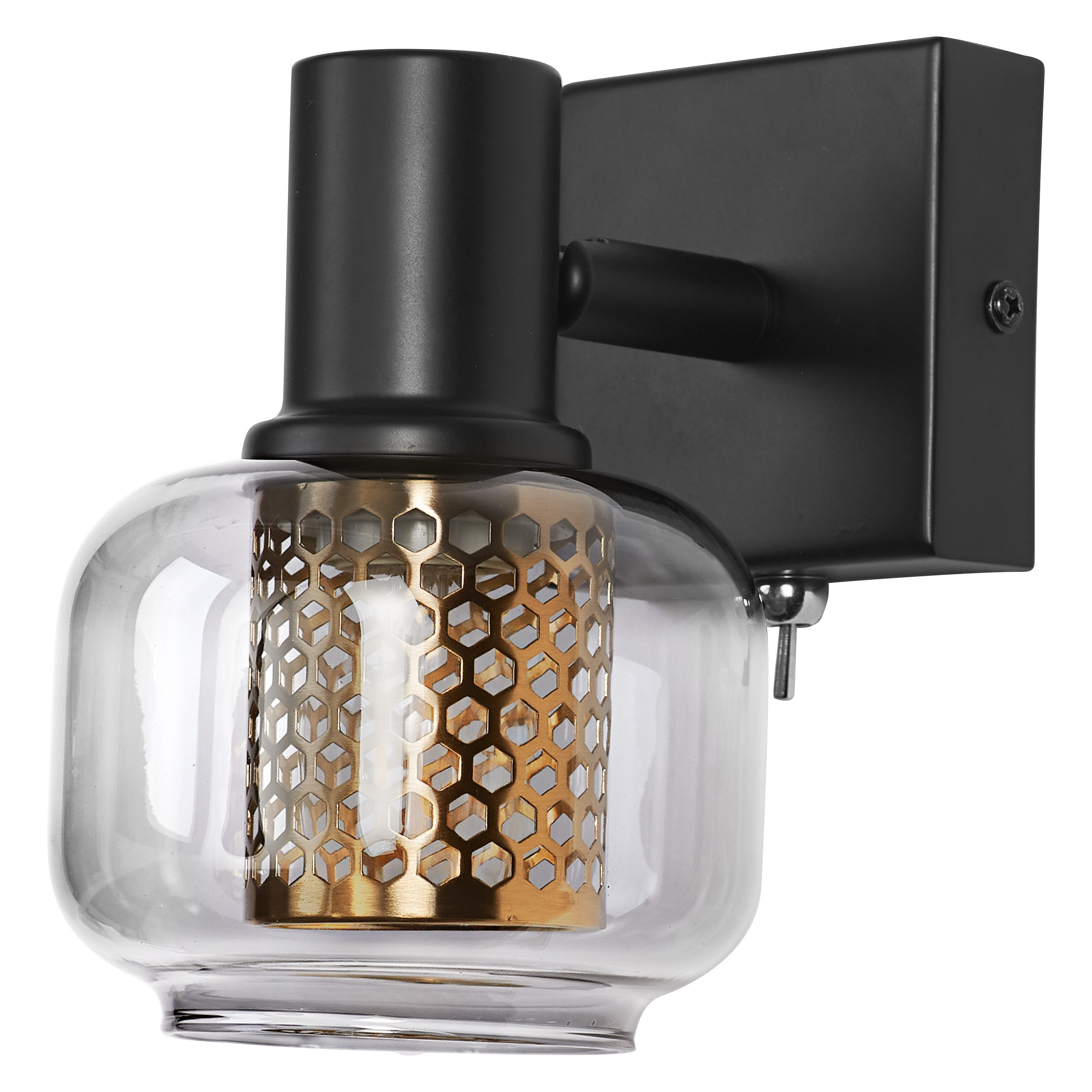

Product image: white background, upright, switched on
DECOR SPOT FIREFLY 1X2.8W 827 E14BK
DECOR SPOT FIREFLY 1X2.8W 827 E14BK
Product line drawing with letters
DECOR SPOT FIREFLY 1X2.8W 827 E14BK
DECOR SPOT FIREFLY 1X2.8W 827 E14BK
Product line drawing with numbers
DECOR SPOT FIREFLY 1X2.8W 827 E14BK
DECOR SPOT FIREFLY 1X2.8W 827 E14BK
Product line drawing - technical
DECOR SPOT FIREFLY 1X2.8W 827 E14BK
DECOR SPOT FIREFLY 1X2.8W 827 E14BK

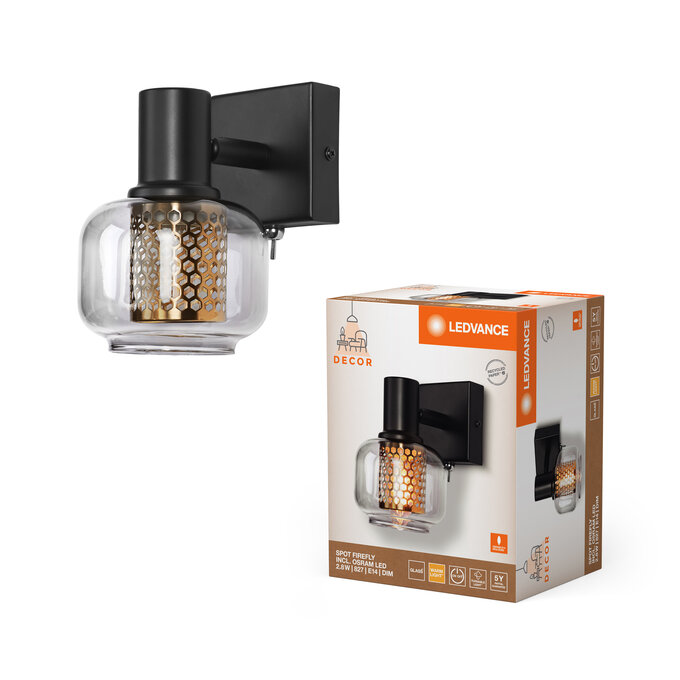

Combo Shot = Product Beauty Shot + Packaging Image
LUM DECOR SPOT FIREFLY 1X2.8W E14 BK
LUM DECOR SPOT FIREFLY 1X2.8W E14 BK
Packaging image, frontal
LUM DECOR SPOT FIREFLY 1X2.8W E14 BK
LUM DECOR SPOT FIREFLY 1X2.8W E14 BK
Packaging image, spacial
LUM DECOR SPOT FIREFLY 1X2.8W E14 BK
LUM DECOR SPOT FIREFLY 1X2.8W E14 BK

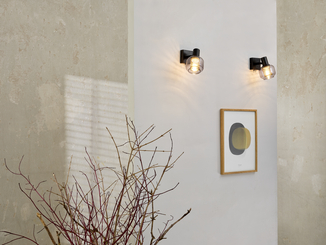

Application pictures
DECOR SPOT FIREFLY 1X2.8W 827 E14BK Ambient
DECOR SPOT FIREFLY 1X2.8W 827 E14BK Ambient
Application pictures
DECOR SPOT FIREFLY 1X2.8W 827 E14BK Closeup 1
DECOR SPOT FIREFLY 1X2.8W 827 E14BK Closeup 1
Application pictures
DECOR SPOT FIREFLY 1X2.8W 827 E14BK Closeup 2
DECOR SPOT FIREFLY 1X2.8W 827 E14BK Closeup 2
Application pictures
DECOR SPOT FIREFLY 1X2.8W 827 E14BK Closeup 3
DECOR SPOT FIREFLY 1X2.8W 827 E14BK Closeup 3
Application pictures
DECOR SPOT FIREFLY Family
DECOR SPOT FIREFLY Family

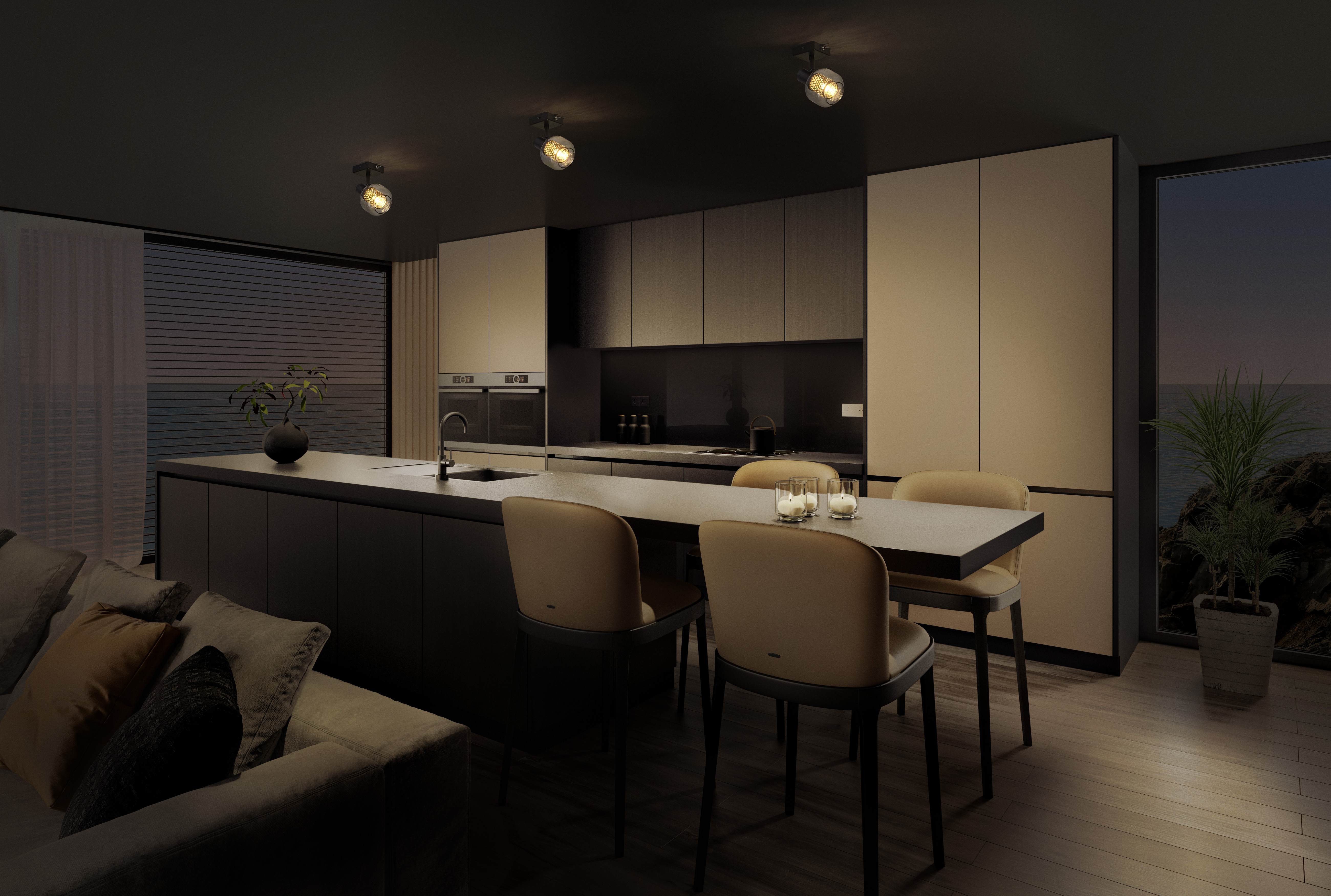

Application pictures Getty
