FLEX INDOOR AUDIO USB COLOR SENSOR

Flex Audio TV Voice Receiver 2M RGB Color Sensor USB

GTIN: 4099854095283 Folding box / 1 Show all packages
Download data sheet
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Easy and quick installation
Areas of application
  • Living areas
  • Indirect lighting
Product features
  • RGB color control
  • USB connection
  • Color reading sensor to adapt the color of the strip to the screen
  • With behalf of integrated voice-receivers the luminaire reacts to sound and music
Equipment / Accessories
  • Complete mounting and connecting accessories included
Safety advice
  • To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
  • Do not connect the rope light to the supply while it is wound onto a reel. Do not use the lightstrip when covered or recessed into a surface. The string of lights may not be operated within the packaging. Do not open the lightstrip.
Electrical data
Nominal wattage 1.80 W
Nominal voltage 5 V
Nominal current 360.000 mA
Protection class III
Photometrical data
Light color (designation) Red, Green, Blue
Photobiological safety group acc. to EN62778 RG1
Beam angle 120 °
Dimensions & Weight
Length 2000.00 mm
Height 2.60 mm
Width 10.00 mm
Product weight 150.00 g
Materials & Colors
Product color White
Housing color White
Body material Polyurethane (PU)
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Temperature range at storage -20…80 °C
Type of connection USB
Type of protection IP20
Dimmable No
Mounting type Surface
Application environment Indoor
With light source Yes
Replaceable light source No
Lifespan
Lifespan L70/B50 at 25 °C 25000 h 1)
Number of switching cycles 10000
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
Standards CE, UKCA
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854095283 Folding box
1		 52 mm x 157 mm x 128 mm 194.00 g 1.04 dm³
4099854095290 Shipping box
8		 340 mm x 230 mm x 160 mm 1880.00 g 12.51 dm³
User instruction / safety instructions
UI FLEX AUDIO TV 2M RGB
PDF (817.34 KB)
Legal information
FLEX RGB
PDF (871.18 KB)
Declarations of conformity
CE Declaration Neon Flex and AUDIO TV
PDF (2.2 MB)

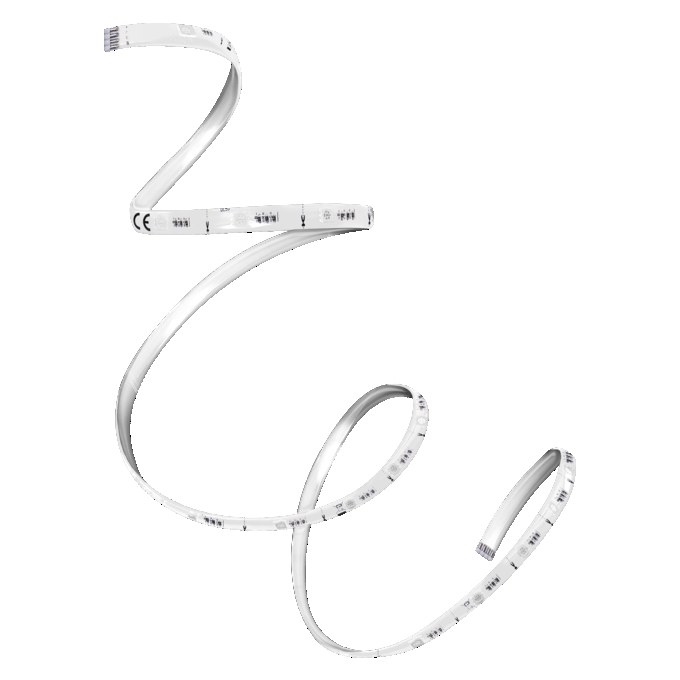

Product image: white background, upright
FLEX AUDIOTV 2M RGB COLORSEN USBVR
JPG (2.16 MB)
Product image: white background, upright, switched on
FLEX AUDIOTV 2M RGB COLORSEN USBVR
JPG (2.22 MB)
Product image: white background, spacial
FLEX AUDIOTV 2M RGB COLORSEN USBVR
JPG (657.84 KB)
Product infographic (application image with text and graphic)
SmartP Wifi Magic E-Com_Grafik 1200x1200px 2023 EN
JPG (736.08 KB)
Product line drawing with letters
FLEX AUDIOTV 2M RGB COLORSEN USBVR
SVG (5.46 KB)
Product line drawing with numbers
FLEX AUDIOTV 2M RGB COLORSEN USBVR
JPG (22.87 KB)

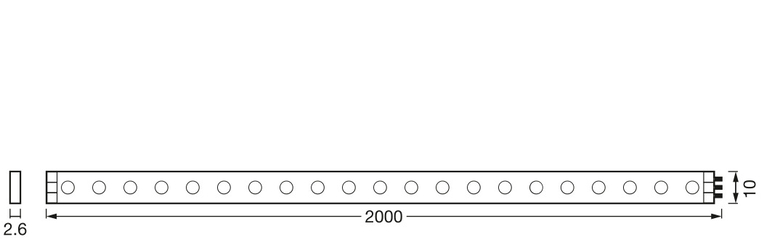

Product line drawing, front, no dimensions
FLEX AUDIOTV 2M RGB COLORSEN USBVR
SVG (3.73 KB)
Combo Shot = Product Beauty Shot + Packaging Image
LUM FC FLEX AUDIO TV 2M COL VR
JPG (2.56 MB)

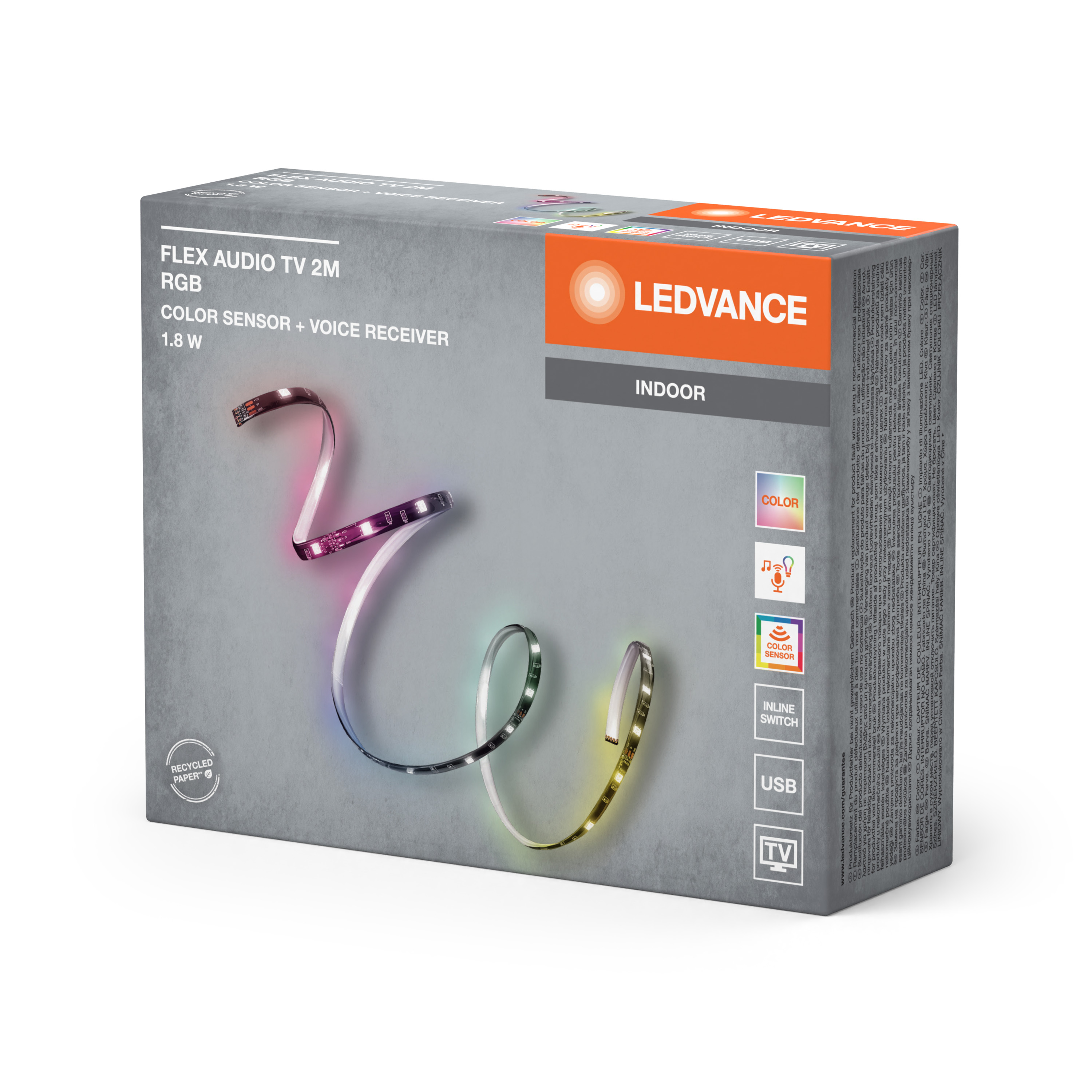

Packaging image, frontal
LUM FC FLEX AUDIO TV 2M COL VR
JPG (2.45 MB)
Packaging image, spacial
LUM FC FLEX AUDIO TV 2M COL VR
JPG (2.59 MB)
Application pictures
SMART+ Wifi Flexible Light Strips Colored
JPG (19.85 MB)
EAN ELDAS number
4099854095283 941602680
