COB STRIPS CCT WITH REMOTE CONTROL

Flex COB 5M TW + RC

GTIN: 4099854095221 Folding box / 1 Show all packages
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Easy and quick installation
  • Homogenous lighting thanks to COB LED
Areas of application
  • Living areas
  • Indirect lighting
Product features
  • COB technology for homogeneous light distribution
  • Dimmable
  • Color temperature adjustable stepless via remote control from 2700 K to 6500 K
  • Flexible, bendable LED strips
Equipment / Accessories
  • Remote control and battery included
  • Complete mounting and connecting accessories included
Safety advice
  • To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
  • Do not connect the rope light to the supply while it is wound onto a reel. Do not use the lightstrip when covered or recessed into a surface. The string of lights may not be operated within the packaging. Do not open the lightstrip.
  • Battery Warning: Keep out of reach for children. Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately.
  • If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
  • Please avoid: Maximal ambient temperature: +35 °C. Replacement of a battery with an incorrect type that can defeat safeguard (for example, in the case of some lithium battery types). Altitude during operation: 2000 m. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
Electrical data
Nominal wattage 35.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 165.000 mA
Inrush current 40 mA
Power factor λ > 0.90
Total harmonic distortion < 70 %
Protection class II
Photometrical data
Luminous flux 1700 lm
Total luminous flux of contained light sources 1700 lm
Luminous efficacy 87 lm/W
Color temperature 2700…6500 K
Reference control setting of contained light source (Kelvin) 2700 K
Light color (designation) Tunable White
Color rendering index Ra ≥80
Standard deviation of color matching < 6 sdcm
Flickering metric (Pst LM) <1
Stroboscope effect metric (SVM) < 0.4
Photobiological safety group acc. to EN62778 RG1
Beam angle 170 °
Dimensions & Weight
Length 5000.00 mm
Height 1.80 mm
Width 10.00 mm
Product weight 250.00 g
Materials & Colors
Product color Yellow
Housing color Yellow
Body material Silicone
Cover material Silicone
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Temperature range at storage -20…80 °C
Type of connection Plug type C (EU)
Type of protection IP20
Dimmable Yes
Mounting type Surface
Application environment Indoor
Replaceable light source No
Lifespan
Lifespan L70/B50 at 25 °C 30000 h 1)
Number of switching cycles 15000
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
BATTERY
Battery size [GMS] CR2025
Certificates & Standards
Standards CE
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854095221 Folding box
1
65 mm x 140 mm x 141 mm 292.00 g 1.28 dm³
4099854095238 Shipping box
8
306 mm x 282 mm x 173 mm 2734.00 g 14.93 dm³
User instruction / safety instructions
FLEX COB TUNABLE WHITE
Legal information
Legal Insert FLEX
Declarations of conformity
CE Declaration Flex COB and Audio
Product image: white background, upright
FLEX COB 5M TW RC
Product image: white background, upright, alternative image
FLEX COB 5M TW RC
Product image: white background, upright, switched on
FLEX COB 5M TW RC
Product infographic (application image with text and graphic)
SmartP Wifi Magic E-Com_Grafik 1200x1200px 2023 EN
Product line drawing with letters
FLEX COB 5M TW RC
Product line drawing with numbers
FLEX COB 5M TW RC
Product line drawing, front, no dimensions
FLEX COB 5M TW RC

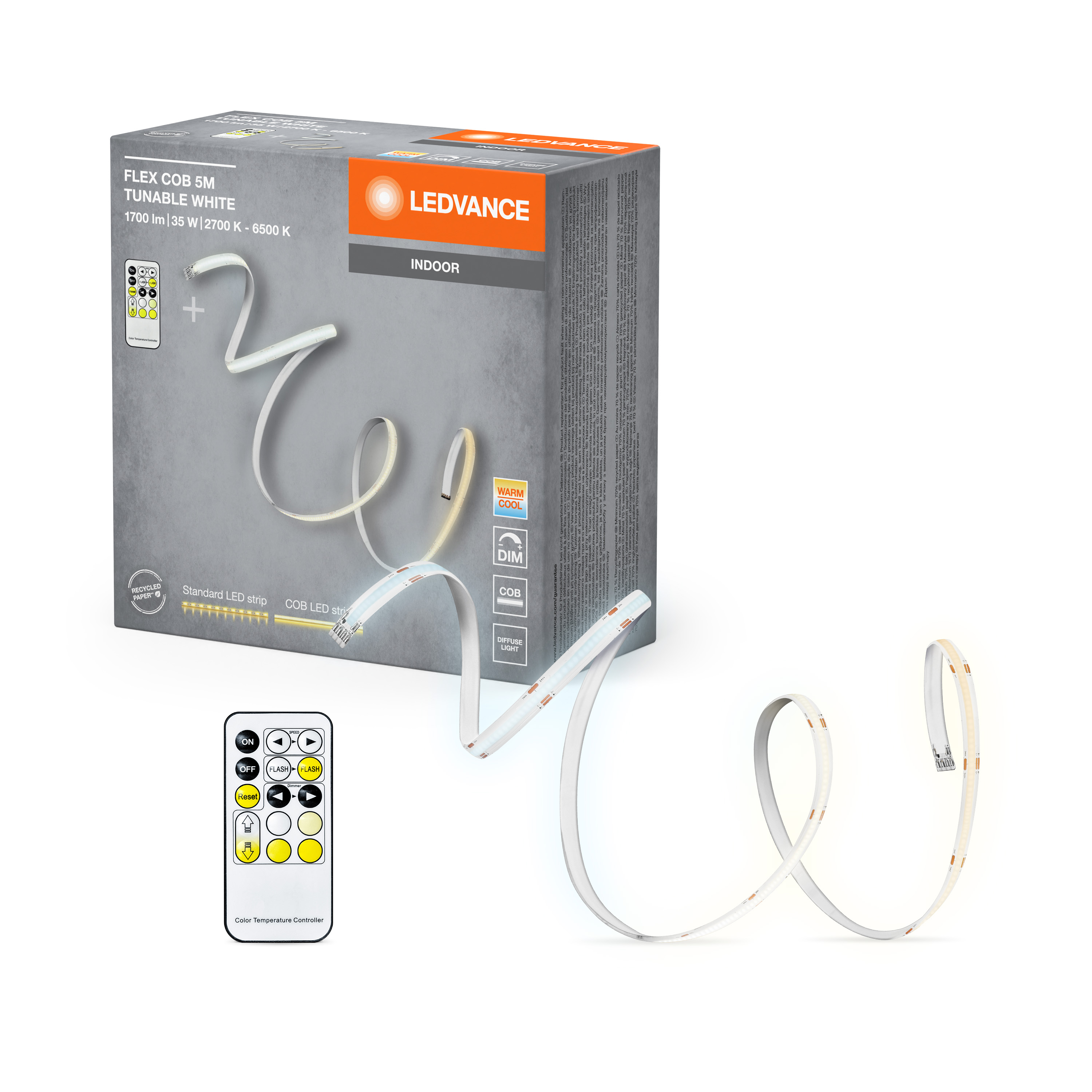

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC FLEX COB 5M TW RC MiPRC

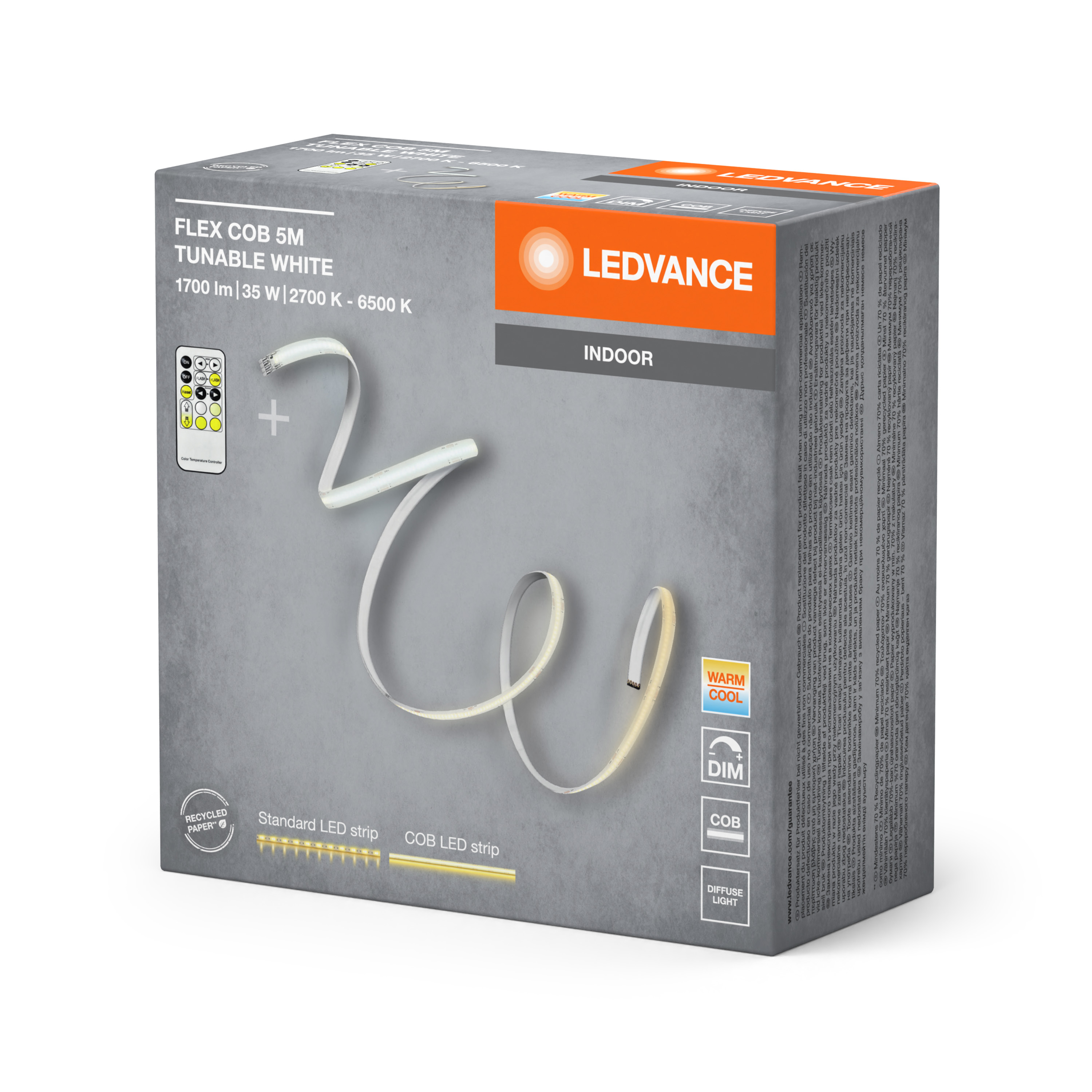

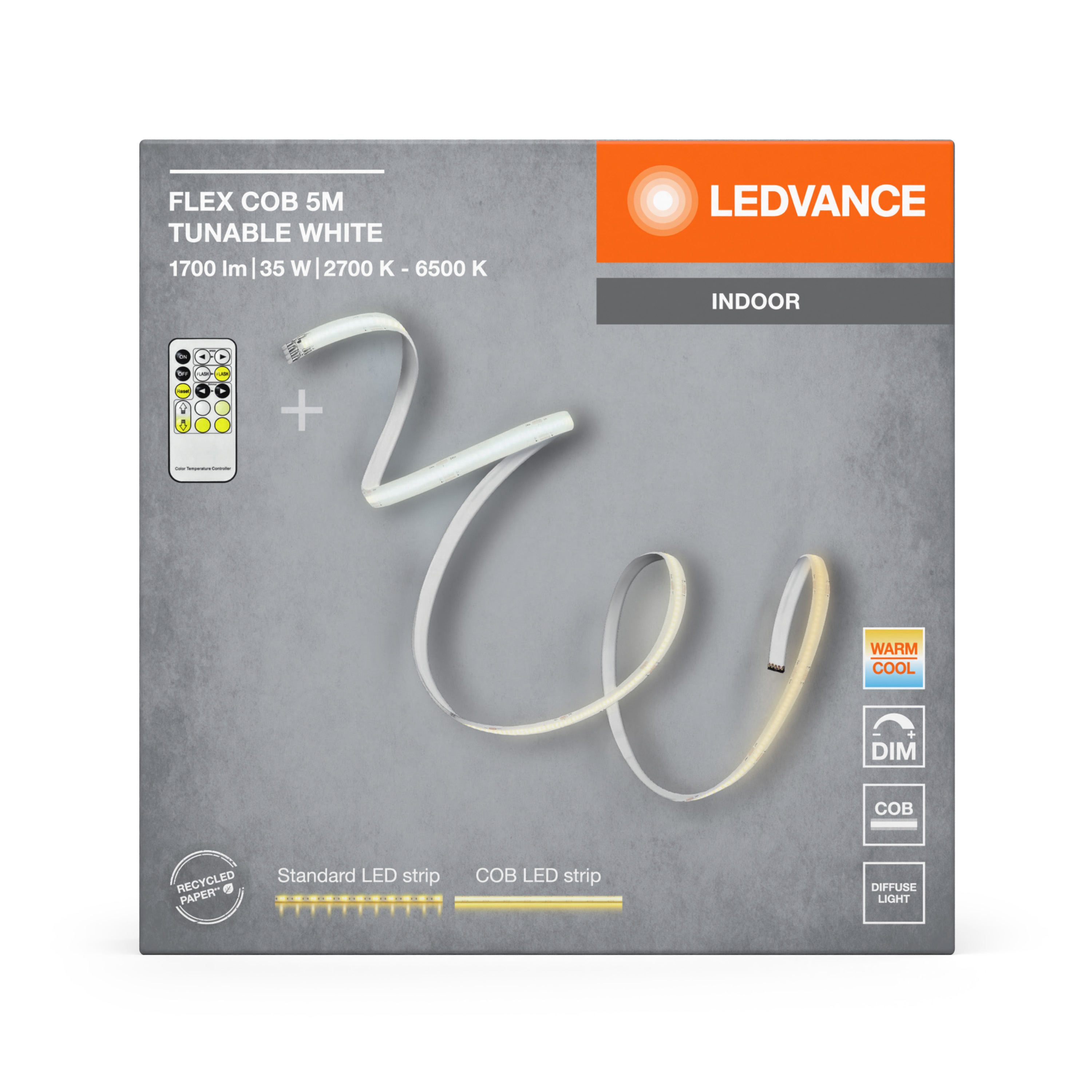

Packaging image, frontal
LUM FC FLEX COB 5M TW RC MiPRC
Packaging image, spacial
LUM FC FLEX COB 5M TW RC MiPRC
Application pictures
SMART+ Wifi Flexible Light Strips Colored
Application pictures Getty
COB Strips White 6500K
Application pictures Getty
COB Strips White 3000K
EAN ELDAS number
4099854095221 941601990
