Decor Wood Nest

Decor Wood Nest Pendant 1xG9 Brown

GTIN: 4058075848283 Folding box / 1 Show all packages
Download data sheet
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • High-quality look and feel
  • Different types of luminaires with the same design language maintain a consistent style at home
  • High flexibility in the choice of the light source
  • Sustainable solution thanks to exchangeable light sources
  • Easy mounting
Areas of application
  • Indoor applications
  • Corridors, entrance areas, stairwells, living rooms, basements
  • Bedrooms
Product features
  • Housing material: metal, glass and rubber wood
  • Textile cable
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Protection class I
Operating mode Mains voltage
Dimensions & Weight
Length 500.00 mm
Height 1500.00 mm
Width 385.00 mm
Product weight 2300.00 g
Materials & Colors
Product color Wood decor
Housing color Wood decor
Body material Rubberwood
Cover material Glass
Application & Mounting
Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Terminal, 3-Pole (L, N, PE)
Type of protection IP20
Protection class IK (shock resistance) IK03
Dimmable No
Mounting type Suspended
Mounting location Ceiling
Application environment Indoor
With light source No
Replaceable light source No
Holder designation G9
Certificates & Standards
Standards CE, UKCA
Additional product data
Product remark Maximum bulb wattage: 5 W LED
Number of illuminants 3
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075848283 Folding box
1		 192 mm x 452 mm x 563 mm 2856.00 g 48.86 dm³
4058075848290 Shipping box
2		 576 mm x 468 mm x 410 mm 7150.00 g 110.52 dm³
User instruction / safety instructions
DECOR ACACIA/WOOD NEST PENDANT 3XG9
PDF (3.04 MB)
Declarations of conformity
LUM DECOR holder series
PDF (311.77 KB)

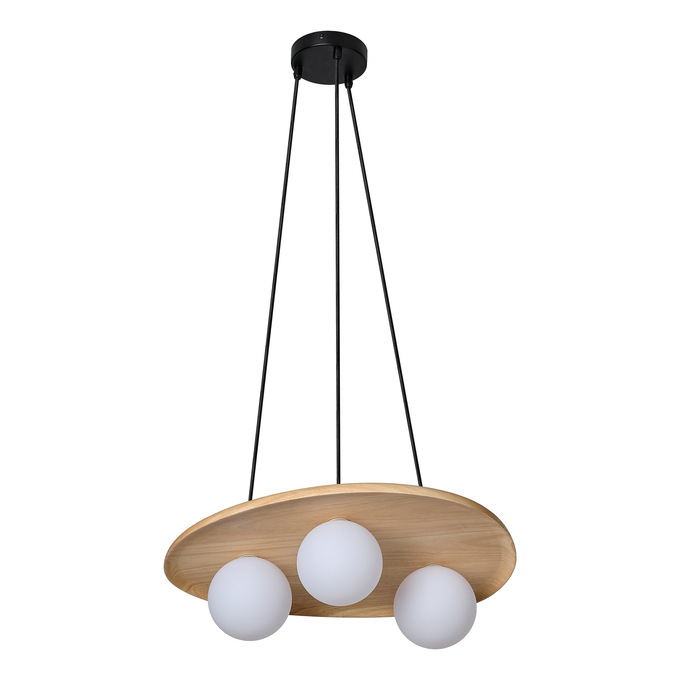

Product image: white background, upright
DECOR WOOD NEST PENDANT 3XG9 side off
JPG (1.45 MB)

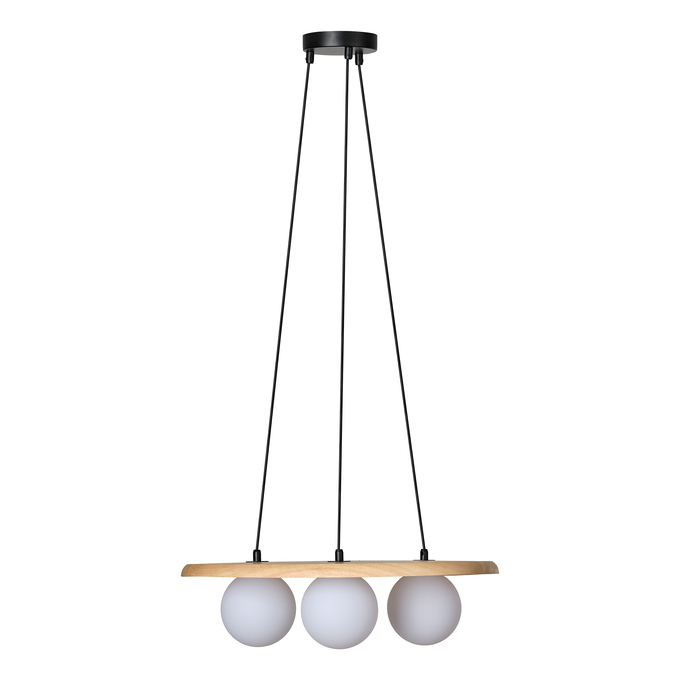

Product image: white background, upright, alternative image
DECOR WOOD NEST PENDANT 3XG9 front
JPG (1.12 MB)

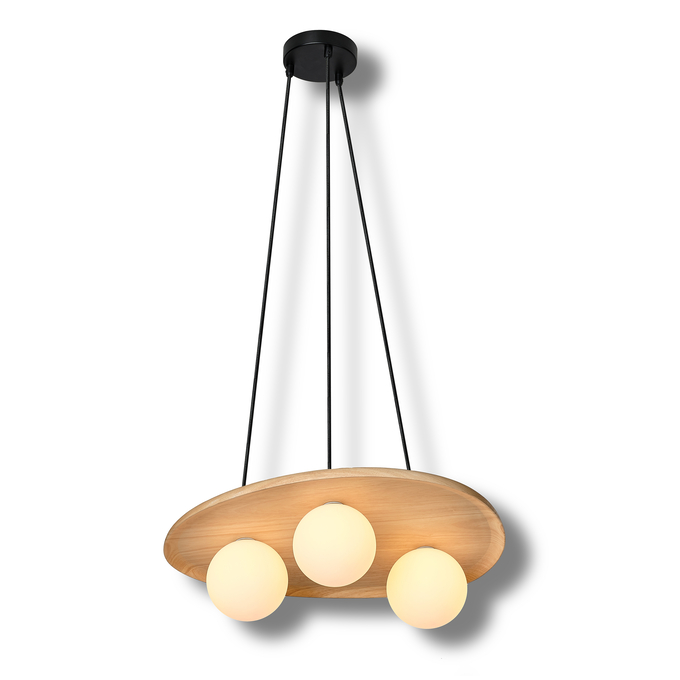

Product image: white background, upright, switched on
DECOR WOOD NEST PENDANT 3XG9 side on
JPG (1.5 MB)
Product line drawing with letters
DECOR CLAY NEST PENDANT 3XG9 BR
SVG (40.24 KB)
Product line drawing with numbers
DECOR CLAY NEST PENDANT 3XG9 BR
SVG (53.82 KB)
Product line drawing - technical
DECOR CLAY NEST PENDANT 3XG9 BR
SVG (35.77 KB)

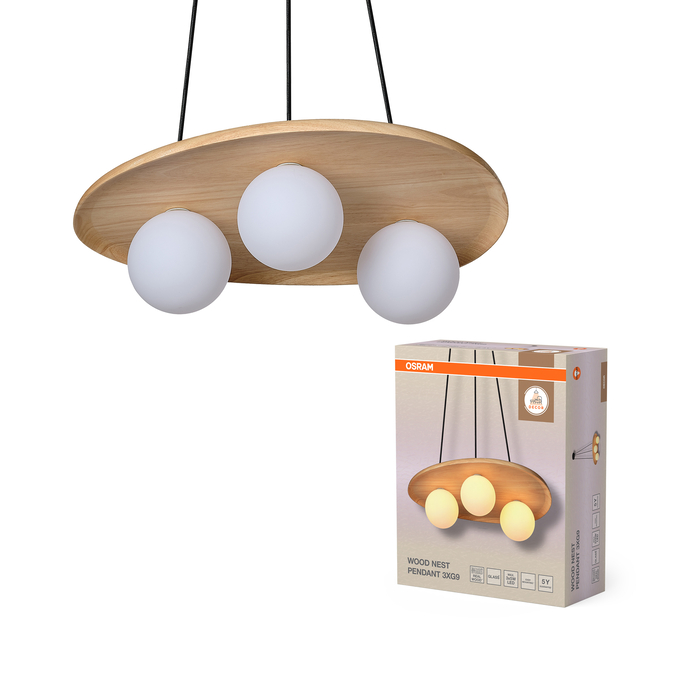

Combo Shot = Product Beauty Shot + Packaging Image
FC DECOR24 WOOD NEST PENDANT 3xG9
JPG (734.23 KB)
Packaging image, frontal
FC DECOR24 WOOD NEST PENDANT 3xG9
JPG (768.9 KB)
Packaging image, spacial
FC DECOR24 WOOD NEST PENDANT 3xG9
JPG (791.29 KB)
Product image with graphic and measurements
DECOR WOOD NEST PENDANT 3XG9
JPG (164.97 KB)

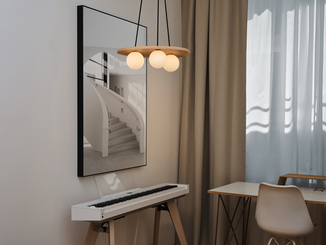

Application pictures
DECOR WOOD NEST PENDANT 3XG9 ambient
JPG (19.52 MB)
Application pictures
DECOR WOOD NEST PENDANT 3XG9 close-up off
JPG (20.58 MB)
Application pictures
DECOR WOOD NEST PENDANT 3XG9 close-up on
JPG (18.75 MB)
