Decor Wood Nest
Decor Wood Nest Table 1xG9 Brown
GTIN: 4058075848221
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- High-quality look and feel
- Different types of luminaires with the same design language maintain a consistent style at home
- High flexibility in the choice of the light source
- Sustainable solution thanks to exchangeable light sources
- Easy mounting
Areas of application
- Indoor applications
- Corridors, entrance areas, stairwells, living rooms, basements
- Bedrooms
Product features
- Housing material: metal, glass and rubber wood
- Textile cable
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Inrush current | 0.1 A |
| Max. number of luminaires per miniature circuit breaker B16 | 387 |
| Max. number of luminaires per miniature circuit breaker C10 | 242 |
| Max. number of luminaires per miniature circuit breaker C16 | 387 |
| Protection class | I |
| Operating mode | Mains voltage |
Dimensions & Weight
| Length | 200.00 mm |
| Height | 260.00 mm |
| Width | 135.00 mm |
| Product weight | 620.00 g |
Materials & Colors
| Product color | Wood decor |
| Housing color | Wood decor |
| Body material | Rubberwood |
| Cover material | Glass |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Terminal, 3-Pole (L, N, PE) |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Wall |
| Application environment | Indoor |
| With light source | No |
| Replaceable light source | No |
| Holder designation | G9 |
Certificates & Standards
| Standards | CE, UKCA |
Additional product data
| Product remark | Maximum bulb wattage: 5 W LED |
| Number of illuminants | 1 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075848221 | Folding box 1 |
182 mm x 242 mm x 313 mm | 886.00 g | 13.79 dm³ |
| 4058075848238 | Shipping box 4 |
378 mm x 326 mm x 505 mm | 4461.00 g | 62.23 dm³ |
User instruction / safety instructions
DECOR ACACIA/WOOD NEST CEILING + WALL G9
DECOR ACACIA/WOOD NEST CEILING + WALL G9
Declarations of conformity
LUM DECOR holder series
LUM DECOR holder series
Product image: white background, upright

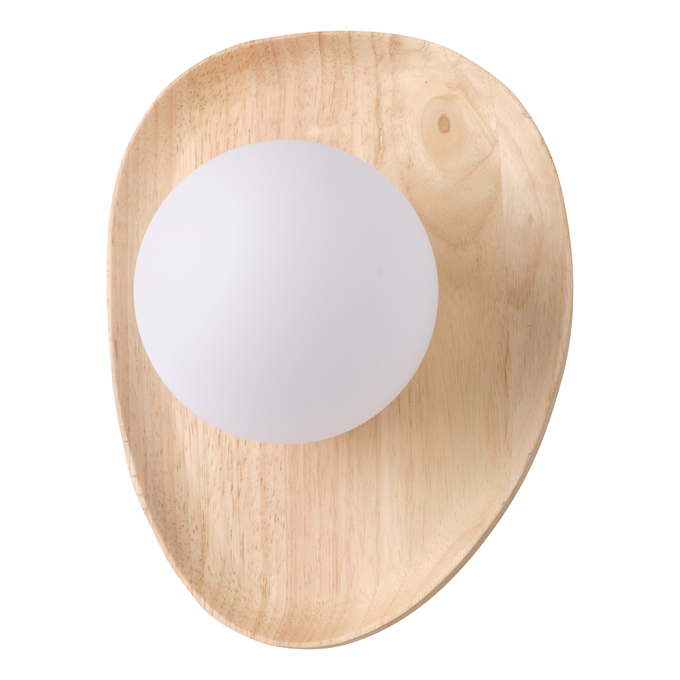

DECOR WOOD NEST WALL 1XG9 side off
DECOR WOOD NEST WALL 1XG9 side off
Product image: white background, upright, alternative image

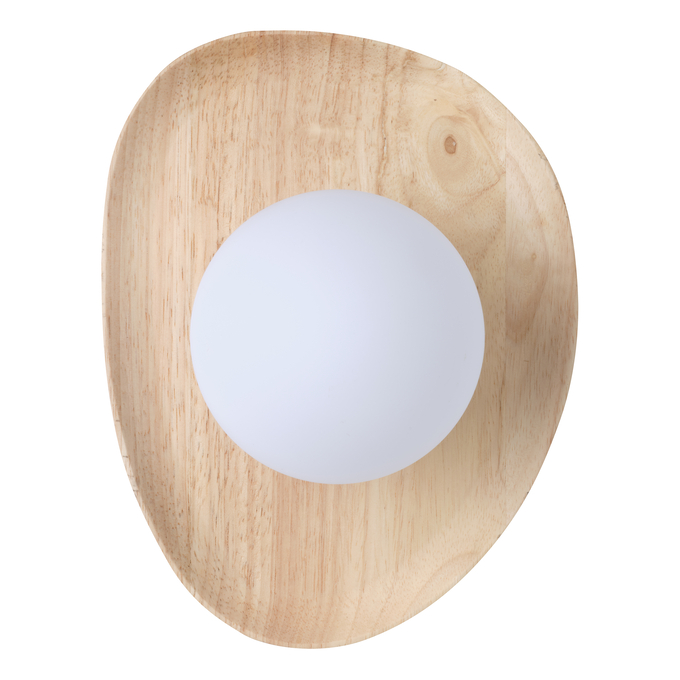

DECOR WOOD NEST WALL 1XG9 front
DECOR WOOD NEST WALL 1XG9 front
Product image: white background, upright, switched on

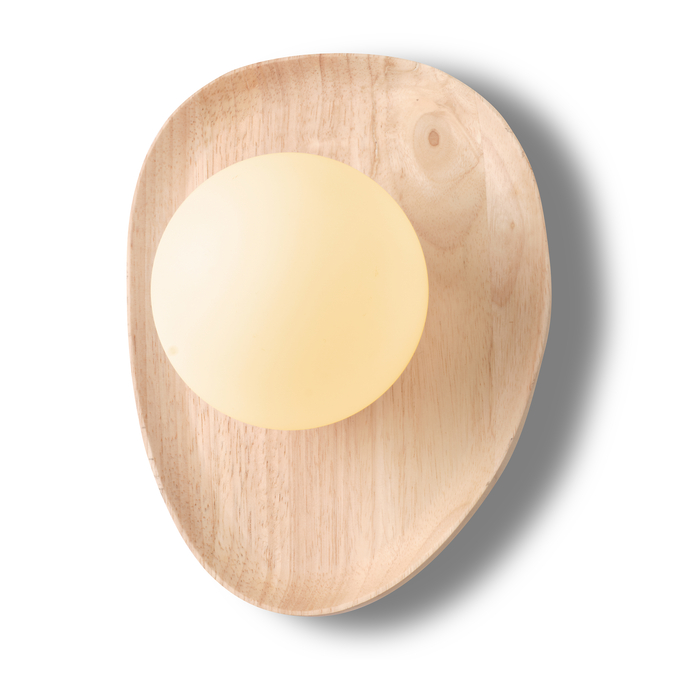

DECOR WOOD NEST WALL 1XG9 side on
DECOR WOOD NEST WALL 1XG9 side on
Product line drawing with letters
DECOR PLASTER NEST WALL 1XG9 WT
DECOR PLASTER NEST WALL 1XG9 WT
Product line drawing with numbers
DECOR PLASTER NEST WALL 1XG9 WT
DECOR PLASTER NEST WALL 1XG9 WT
Product line drawing - technical
DECOR PLASTER NEST WALL 1XG9 WT
DECOR PLASTER NEST WALL 1XG9 WT
Combo Shot = Product Beauty Shot + Packaging Image

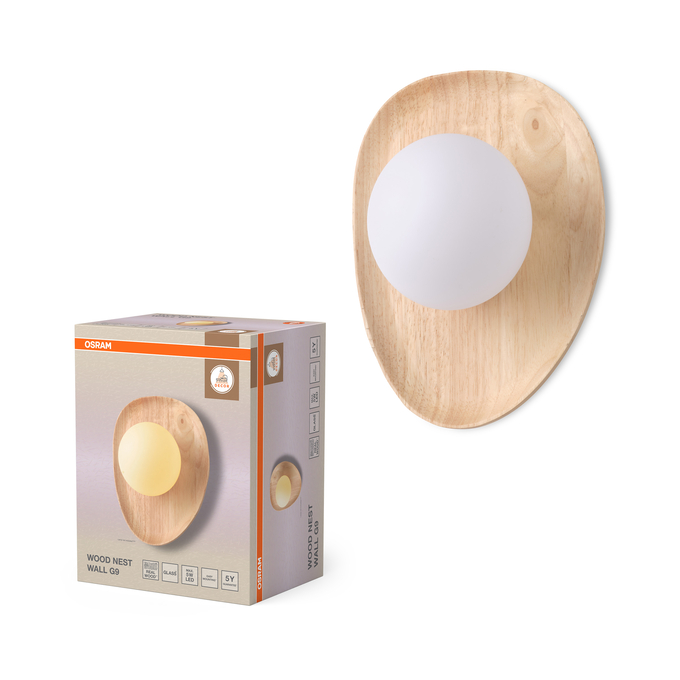

FC DECOR24 WOOD NEST WALL 1xG9
FC DECOR24 WOOD NEST WALL 1xG9
Packaging image, frontal
FC DECOR24 WOOD NEST WALL 1xG9
FC DECOR24 WOOD NEST WALL 1xG9
Packaging image, spacial
FC DECOR24 WOOD NEST WALL 1xG9
FC DECOR24 WOOD NEST WALL 1xG9
Product image with graphic and measurements
DECOR WOOD NEST WALL 1XG9
DECOR WOOD NEST WALL 1XG9
Application pictures

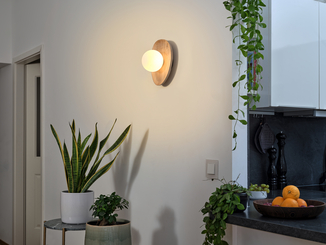

DECOR WOOD NEST WALL 1XG9 ambient
