Decor Bell
Decor Bell Table E27
GTIN: 4058075848641
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Timeless design
- On-off switch on wall luminaire for convenient operation
- Lampshade position flexibly selectable
- Luminaire family with a consistent style
- Lampshade made of recycled materials
- Sustainable solution thanks to exchangeable light sources
Areas of application
- Indoor applications
- Corridors, entrance areas, stairwells, living rooms, basements
- Bedrooms
Product features
- Housing material: metal and PCR
- Textile cable
- Optional cable provided with fitted EU plug (only for wall luminaire)
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Electrical data
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Protection class | II |
| Operating mode | Mains voltage |
Dimensions & Weight
| Length | 180.00 mm |
| Height | 500.00 mm |
| Width | 230.00 mm |
| Product weight | 1090.00 g |
| Cable length | 2500 mm |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Steel|Polyethylene (PE) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Plug type C (EU) |
| Type of protection | IP20 |
| Dimmable | No |
| Mounting type | Standing |
| Mounting location | Table |
| Adjustable | No |
| With light source | No |
| Replaceable light source | No |
| Holder designation | E27 |
Certificates & Standards
| Standards | CE |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
Additional product data
| Product remark | Maximum bulb wattage: 8 W LED |
| Number of illuminants | 1 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1), Tripnehyl Phosphate (115-86-6) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075848641 | Folding box 1 |
133 mm x 213 mm x 518 mm | 1625.00 g | 14.67 dm³ |
| 4058075848658 | Shipping box 4 |
445 mm x 290 mm x 540 mm | 7285.00 g | 69.69 dm³ |
User instruction / safety instructions
DECOR BELL TABLE+FLOOR PCR E27
DECOR BELL TABLE+FLOOR PCR E27
Declarations of conformity
CE Declaration Decor Luminaires
CE Declaration Decor Luminaires
Product image: white background, upright

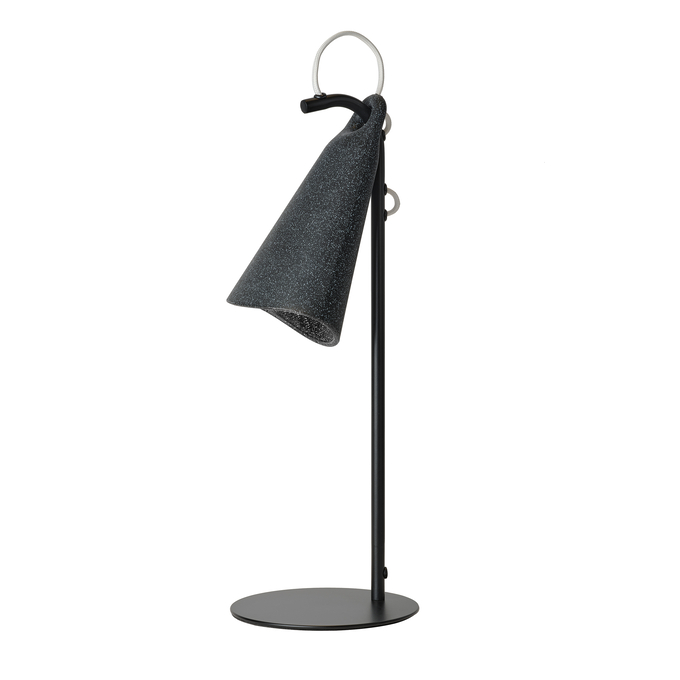

DECOR BELL TABLE PCR E27 side off
DECOR BELL TABLE PCR E27 side off
Product image: white background, upright, alternative image

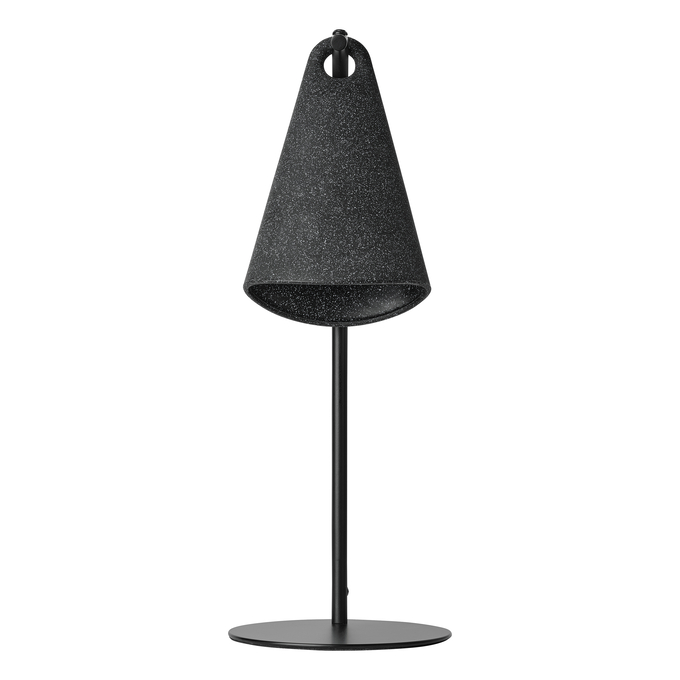

DECOR BELL TABLE PCR E27 front
DECOR BELL TABLE PCR E27 front
Product image: white background, upright, switched on

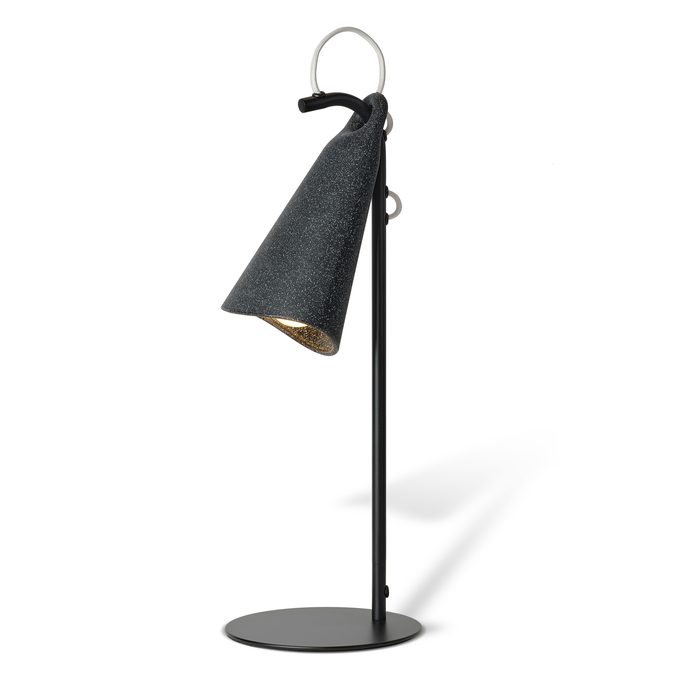

DECOR BELL TABLE PCR E27 side on
DECOR BELL TABLE PCR E27 side on
Product line drawing with letters
DECOR BELL TABLE PCR E27
DECOR BELL TABLE PCR E27
Product line drawing with numbers
DECOR BELL TABLE PCR E27
DECOR BELL TABLE PCR E27
Product line drawing - technical
DECOR BELL TABLE PCR E27
DECOR BELL TABLE PCR E27

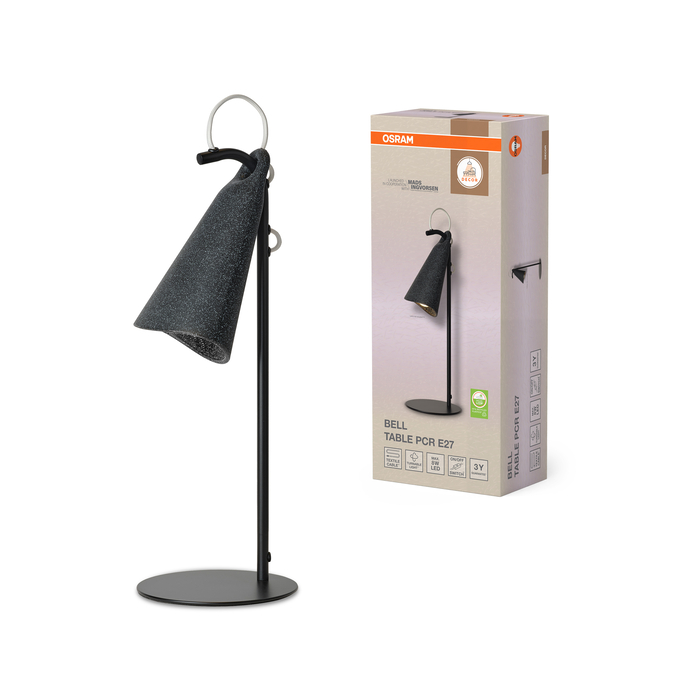

Combo Shot = Product Beauty Shot + Packaging Image
FC DECOR24 BELL TABLE PCR E27
FC DECOR24 BELL TABLE PCR E27
Packaging image, frontal
FC DECOR24 BELL TABLE PCR E27
FC DECOR24 BELL TABLE PCR E27
Packaging image, spacial
FC DECOR24 BELL TABLE PCR E27
FC DECOR24 BELL TABLE PCR E27
Application pictures

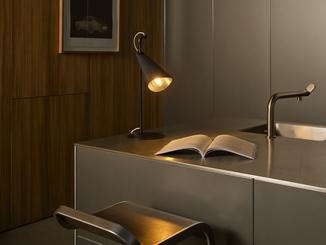

DECOR BELL TABLE PCR E27 ambient
