Decor Mesh
Decor Mesh Ceiling 18.5W 830 Black
GTIN: 4058075847385
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- High-quality look and feel
- Different types of luminaires with the same design language maintain a consistent style at home
- Easy mounting
Areas of application
- Indoor applications
- Corridors, entrance areas, stairwells, living rooms, basements
- Bedrooms
Product features
- Housing material: metal
- Pendant and table luminaire combine metal grids with wood
- Textile cable
- High-power LED
- Color temperature: 3,000 K
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
| Nominal wattage | 18.50 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 114.000 mA |
| Inrush current | 0.114 A |
| Inrush current time Th50 | 70 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 112 |
| Max. number of luminaires per miniature circuit breaker C10 | 70 |
| Max. number of luminaires per miniature circuit breaker C16 | 112 |
| Power factor λ | 0.70 |
| Total harmonic distortion | < 70 % |
| Protection class | I |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 1130 lm |
| Total luminous flux of contained light sources | 1930 lm |
| Luminous efficacy | 61.08 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | 6 sdcm |
| Flickering metric (Pst LM) | 0,7 |
| Stroboscope effect metric (SVM) | 0,15 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 110 ° |
Dimensions & Weight
| Diameter | 300.00 mm |
| Height | 110.00 mm |
| Product weight | 560.00 g |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Steel |
| Cover material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Terminal, 3-Pole (L, N, PE) |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Ceiling |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 15000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075847385 | Folding box 1 |
148 mm x 342 mm x 343 mm | 971.00 g | 17.36 dm³ |
| 4058075847392 | Shipping box 3 |
458 mm x 358 mm x 368 mm | 3934.00 g | 60.34 dm³ |
User instruction / safety instructions
DECOR MESH CEILING+PENDANT
DECOR MESH CEILING+PENDANT
Declarations of conformity
LUM DECOR MESH
LUM DECOR MESH
Product image: white background, upright
DECOR MESH CEILING 18.5W 830 BK side off
DECOR MESH CEILING 18.5W 830 BK side off

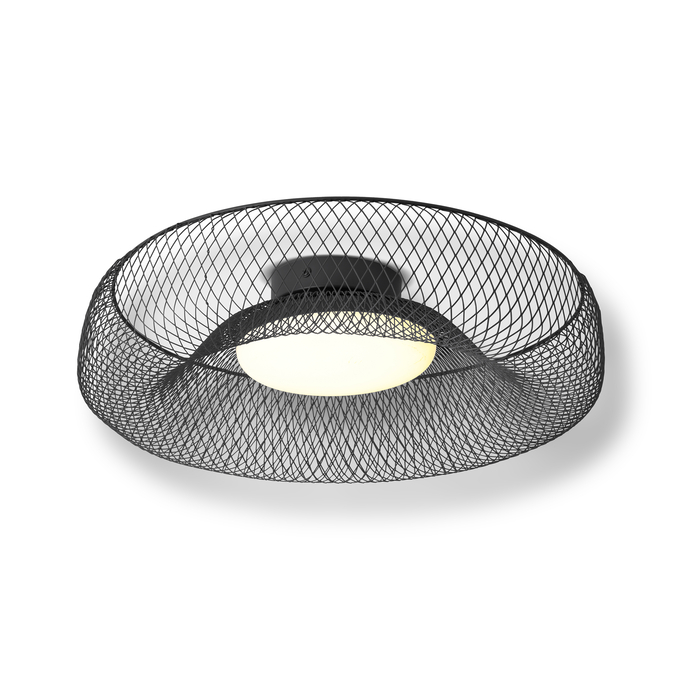

Product image: white background, upright, switched on
DECOR MESH CEILING 18.5W 830 BK side on
DECOR MESH CEILING 18.5W 830 BK side on
Product line drawing with letters
DECOR MESH CEILING 18.5W 830 BK
DECOR MESH CEILING 18.5W 830 BK
Product line drawing with numbers
DECOR MESH CEILING 18.5W 830 BK
DECOR MESH CEILING 18.5W 830 BK
Product line drawing - technical
DECOR MESH CEILING 18.5W 830 BK
DECOR MESH CEILING 18.5W 830 BK
Combo Shot = Product Beauty Shot + Packaging Image
FC DECOR24 MESH CEILING
FC DECOR24 MESH CEILING
Packaging image, frontal
FC DECOR24 MESH CEILING
FC DECOR24 MESH CEILING
Packaging image, spacial
FC DECOR24 MESH CEILING
FC DECOR24 MESH CEILING
Product infographic with environment and dimensions
DECOR MESH CEILING 18.5W 830 BK
DECOR MESH CEILING 18.5W 830 BK
Product image with graphic and measurements
DECOR MESH CEILING 18.5W 830 BK
DECOR MESH CEILING 18.5W 830 BK

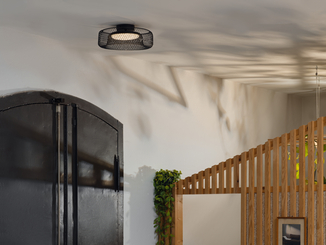

Application pictures
